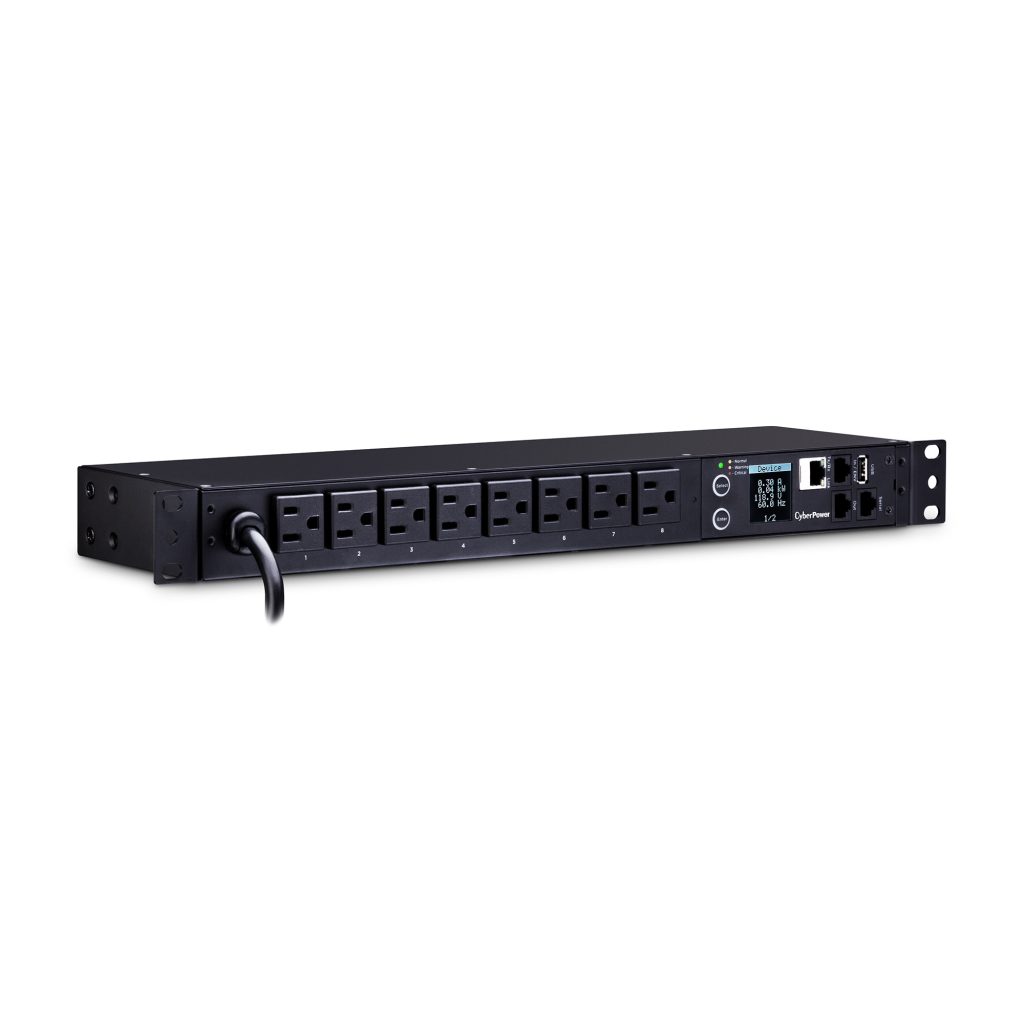

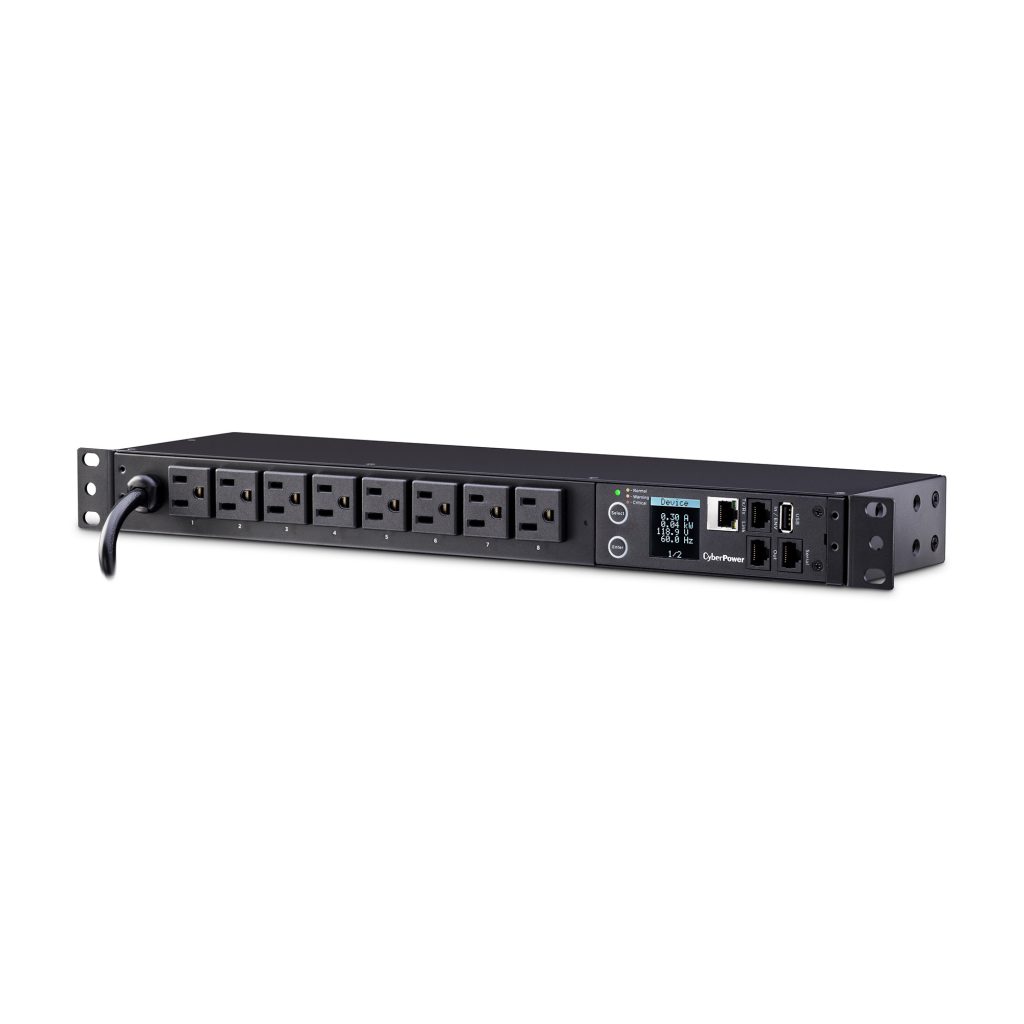

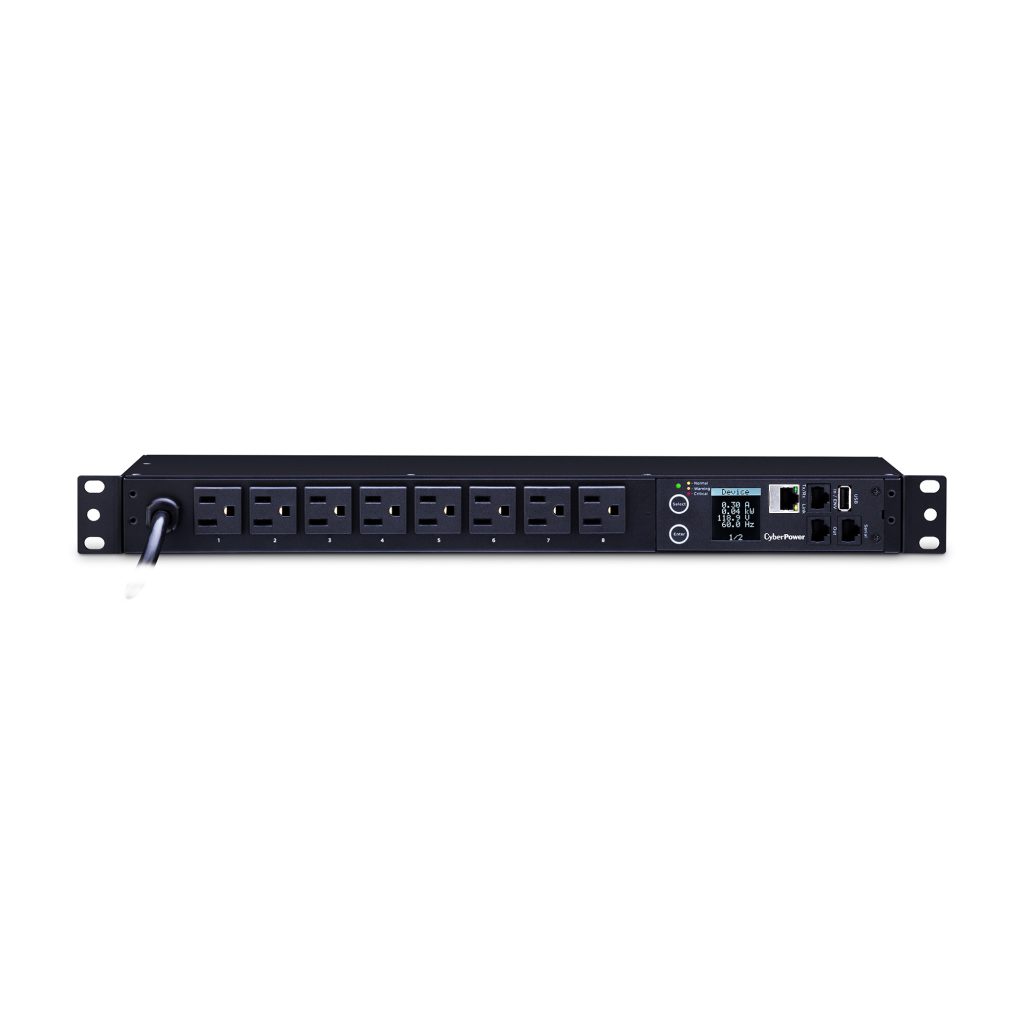

CyberPower - PDU31001 - 15A 1U Monitored Rackmount PDU

Product Overview

The CyberPower PDU31001 is an 8-outlet, 1U rackmount monitored power distribution unit designed for reliable power delivery and power-status visibility in server, data center, and network closet environments. It provides 120V 15A output through eight front-facing NEMA 5-15R receptacles from a single NEMA 5-15P input plug with unfiltered electrical pass-through.

Key Configuration

Model: PDU31001 | Product Type: Monitored Rackmount PDU | Rack Size: 1U | Output: 120V, 15A | Outlets: 8 front NEMA 5-15R | Input Plug: NEMA 5-15P | Network Connection: RJ45 Ethernet port | Monitoring: CyberPower Management Console and local LCD | Warranty: Three-year limited warranty

Key Features

 · Distributes AC power to servers, equipment, and connected devices

 · Provides eight front-facing NEMA 5-15R outlets in a 1U rackmount design

 · Supports remote power-status monitoring through the CyberPower Management Console

 · RJ45 Ethernet connection enables network-based monitoring access

 · Local LCD display shows amperage, voltage, kW, IP address, and other PDU information

 · Automatic event notifications can be sent by email, SMS text, or SNMP traps

 · Switch-free design helps prevent accidental power shutdown

 · Durable metal housing protects internal components in demanding rack environments

Technical Context

The PDU31001 is designed for monitored power distribution where administrators need visibility into PDU vitals both locally and remotely. The built-in CyberPower Management Console supports load monitoring and event logging, while upgradeable firmware allows the PDU software to receive downloadable improvements over time.

Network-grade plugs and outlets, a cord retention tray, and durable metal housing make the PDU suitable for corporate servers, data centers, and network closets where reliable power distribution and organized cable retention are important.

Installation Notes

The PDU31001 can be installed horizontally or vertically in a rack, under a counter, or on a wall using the included mounting brackets. The package includes the PDU, short mounting brackets, long mounting brackets, screws, washers, cord retention tray, cable ties, RJ45/DB9 serial cable, user manual, registration card, and software download card.
