CyberPower - PDU41001G - 15A 1U Gigabit Switched Rackmount PDU

Product Overview

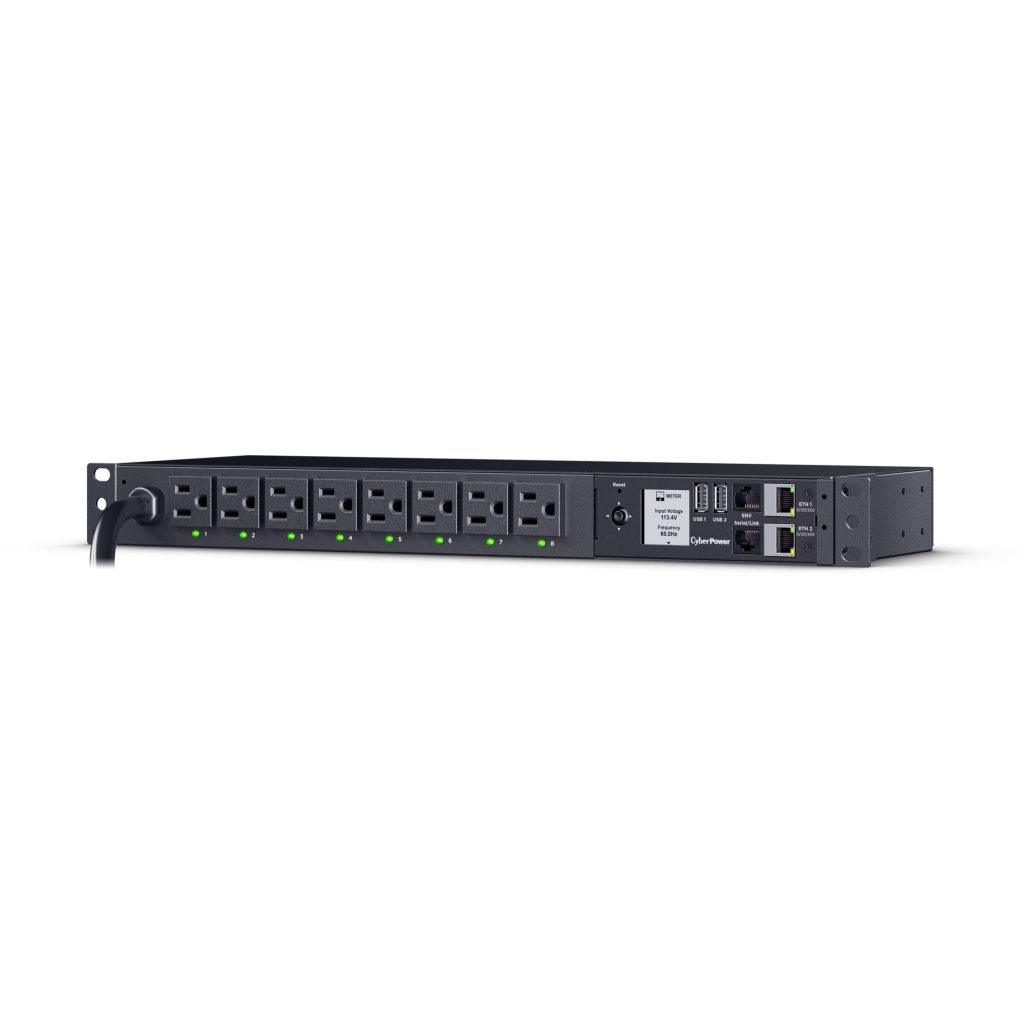

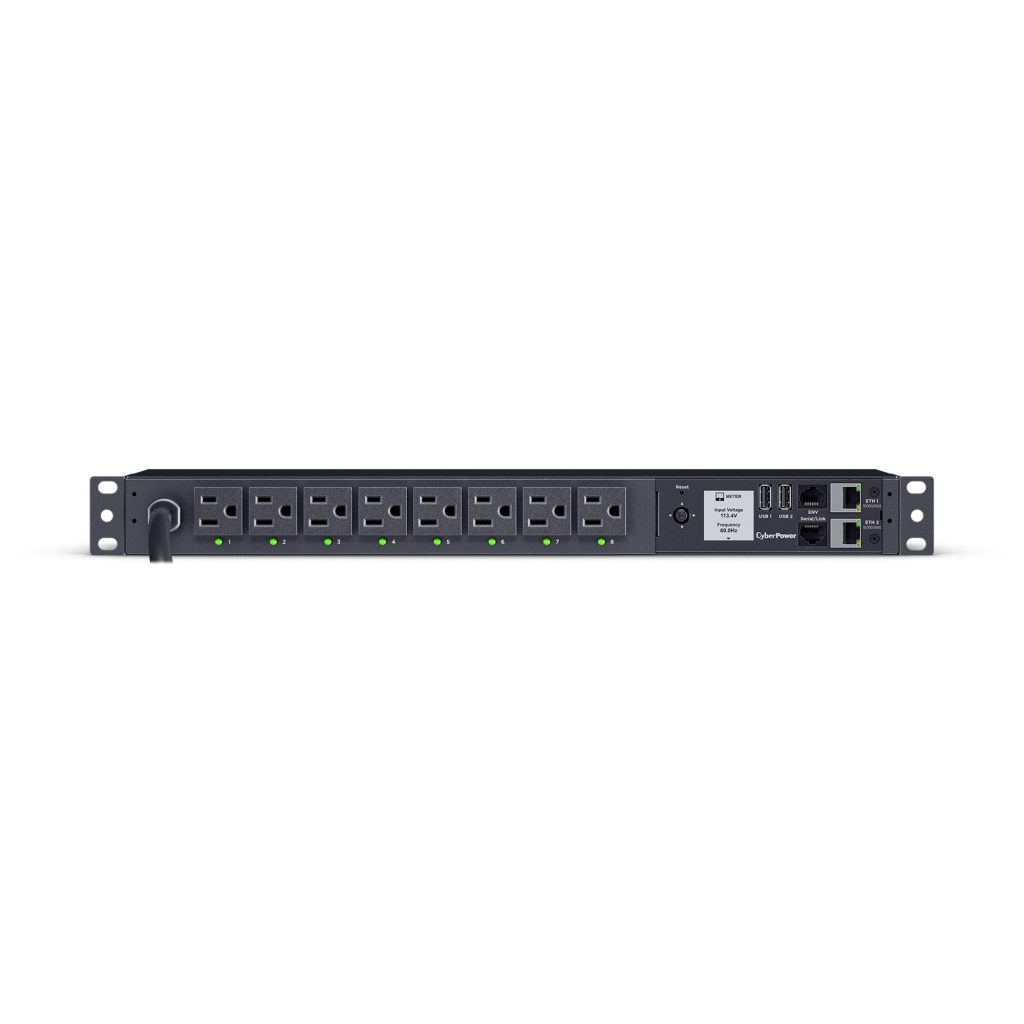

The CyberPower PDU41001G is an 8-outlet, 1U rackmount gigabit switched power distribution unit designed for network-controlled power delivery in IT, security, and equipment rack environments. It provides 120V 15A output through eight front-facing NEMA 5-15R receptacles and allows outlets to be managed individually or collectively through the CyberPower Management Console, web browser access, RJ45 Ethernet connectivity, or local LCD controls.

Key Configuration

Model: PDU41001G | Product Type: Gigabit Switched Rackmount PDU | Rack Size: 1U | Output: 120V, 15A | Outlets: 8 front NEMA 5-15R | Input Plug: NEMA 5-15P | Network: Dual gigabit 10/100/1000 Ethernet ports | Management: CyberPower Management Console, web browser, LCD controls

Key Features

 · Provides eight front-facing NEMA 5-15R outlets for rack equipment power distribution

 · Supports individual or collective outlet switching for remote rebooting and power sequencing

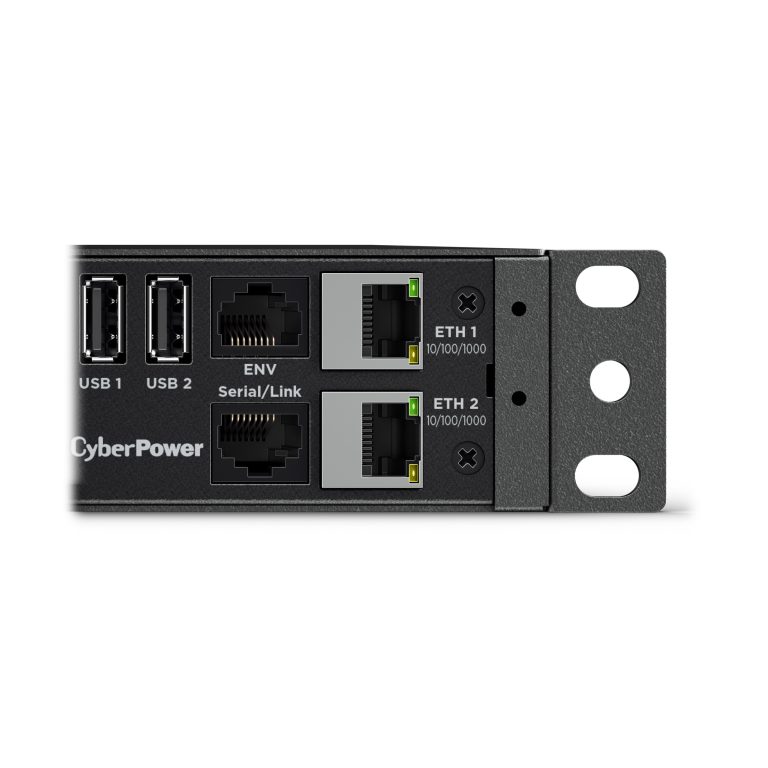

 · Dual gigabit Ethernet ports provide redundant network connectivity

 · CyberPower Management Console enables remote outlet control, power monitoring, event logging, and notifications

 · Automatic event notifications can be sent by email, SMS text, or SNMP traps

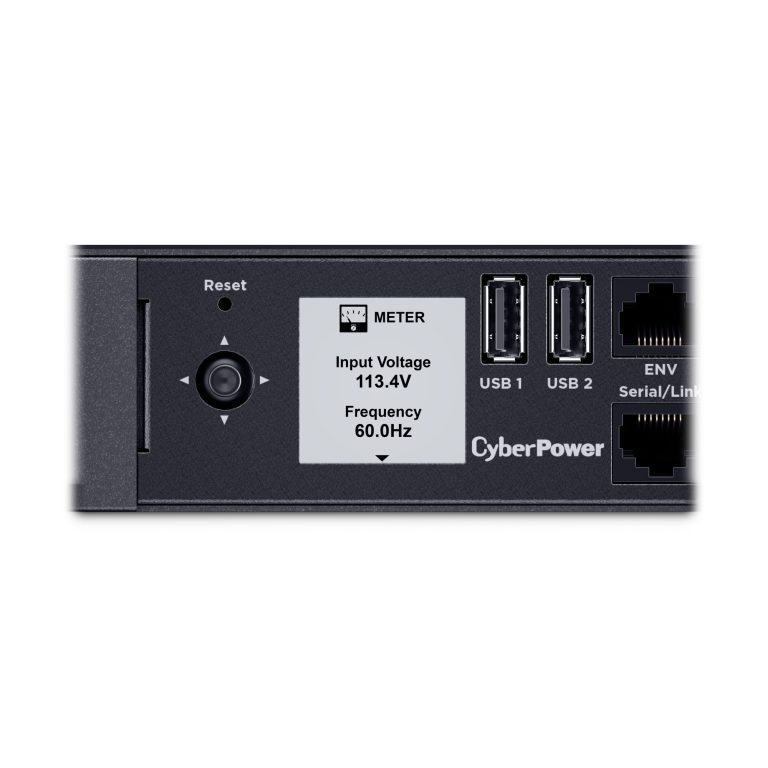

 · Digital display shows amperage, voltage, kW, IP address, and other PDU status information

 · Switch-free design helps prevent accidental power shutdown

 · Cord retention tray and durable metal housing support reliable rack installation

Technical Context

The PDU41001G is designed for installations where connected equipment may need to be power-cycled, sequenced, disabled, or managed remotely. Its switched outlets can be turned on, turned off, or recycled on demand or according to programmed schedules.

Dual gigabit Ethernet ports, DC power sharing, and redundant loop support help maintain network visibility across linked PDUs, while upgradeable firmware allows the unit to receive downloadable improvements over time.

Installation Notes

The PDU41001G includes configurable mounting brackets for 0U, 1U, and 2U installation options, including horizontal, vertical, under-counter, and wall-mount configurations. The package includes mounting brackets, bracket screws, cord retention tray, cable ties, tray mounting screws, rack screws, washers, RJ45/DB9 serial cable, user manual, registration card, and CD.
