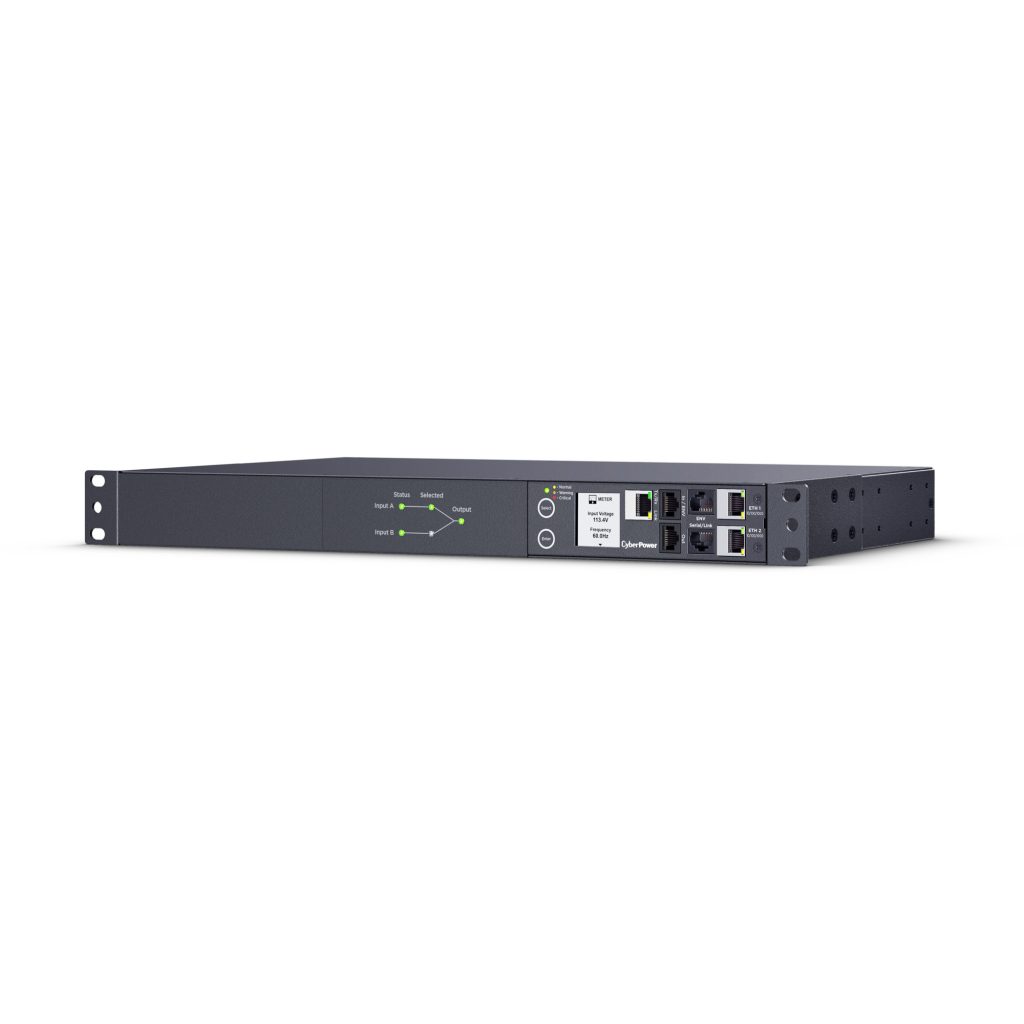

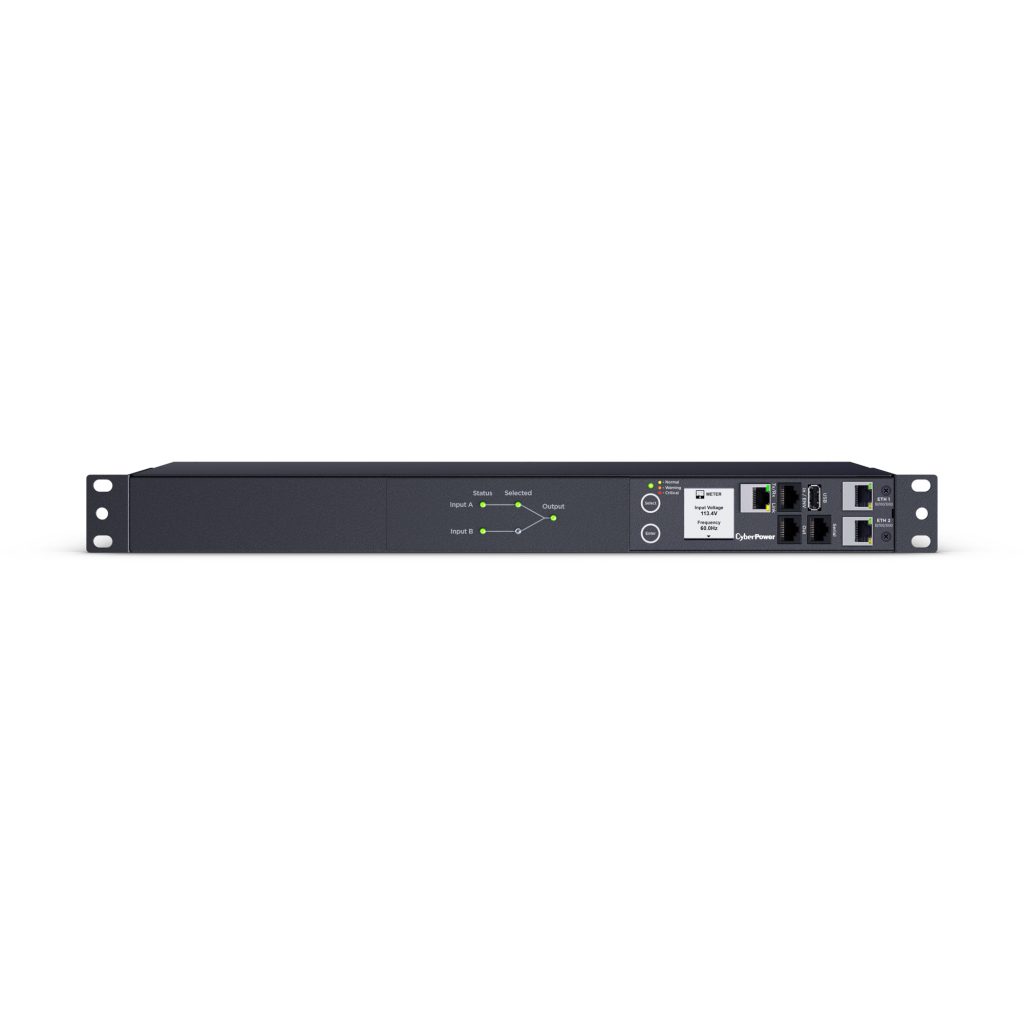

CyberPower - PDU44001G - Gigabit Switched ATS PDU

Product Overview

The CyberPower PDU44001G is a gigabit switched automatic transfer switch PDU designed to provide redundant power for single-corded equipment in data centers, network closets, and telecom installations. It supports 100-120V input, includes ten NEMA 5-15R outlets, and automatically transfers connected equipment from the primary power source to a secondary source when voltage thresholds are exceeded or primary power fails.

Key Configuration

Model: PDU44001G | Product Type: Gigabit Switched ATS PDU | Input Range: 100-120V | Input Cords: Dual NEMA 5-15P | Outlets: 10 NEMA 5-15R | Network: Dual gigabit 10/100/1000 Ethernet ports | Management: CyberPower Management Console, web interface, local LCD controls | Warranty: Three-year limited warranty

Key Features

 · Provides automatic transfer switching between primary and secondary power sources

 · Supplies redundant power protection for single-corded connected equipment

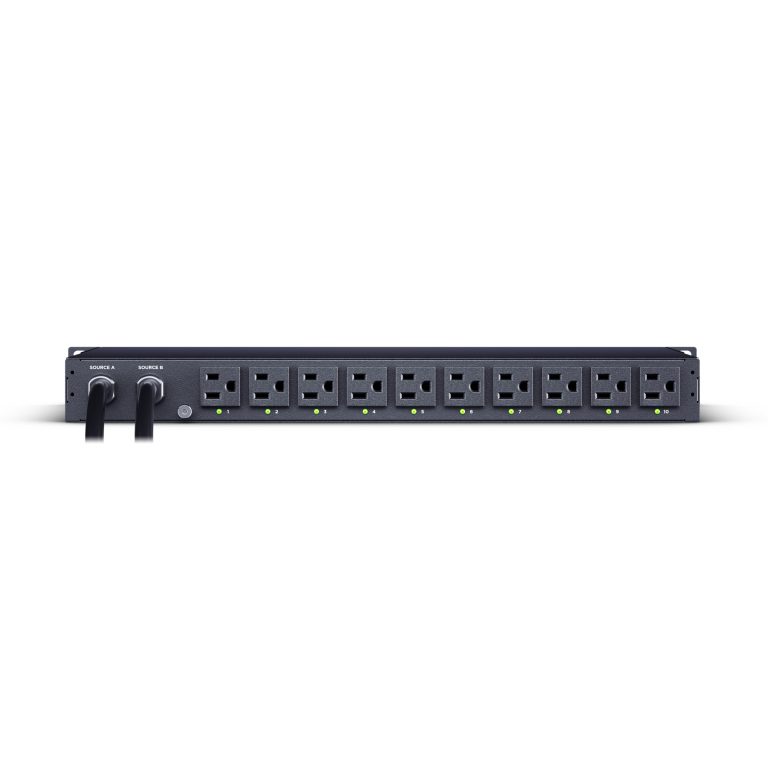

 · Includes ten NEMA 5-15R outlets for rack-mounted equipment power distribution

 · Supports local and remote control of individual or multiple switchable outlets

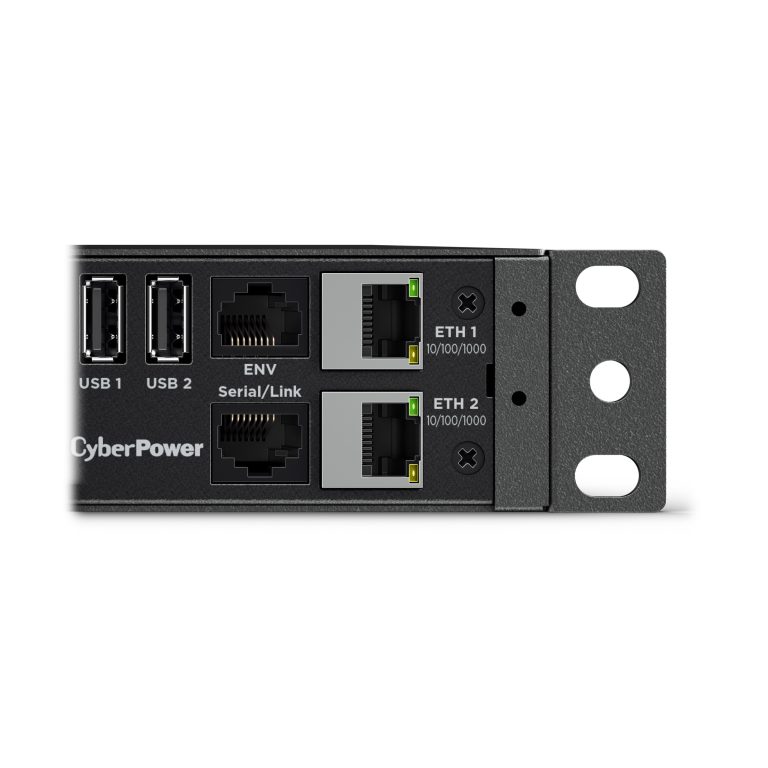

 · Dual gigabit Ethernet ports provide redundant network connectivity

 · CyberPower Management Console supports outlet control, power monitoring, event logging, and notifications

 · Automatic event notifications can be sent by email, SMS text, or SNMP traps

 · LCD display shows amperage, voltage, kW, IP address, and other PDU information

Technical Context

The PDU44001G is built for installations where uptime is critical but connected devices only have a single power input. If the primary input moves outside configured voltage thresholds or fails, the ATS function transfers the load to the secondary source and returns to the primary source once stable power is restored.

Its switched outlet design also supports remote rebooting, load shedding, scheduled power sequencing, and disabling unused outlets, helping administrators manage power distribution without being physically present at the rack.

Installation Notes

The PDU44001G includes mounting brackets, bracket screws, rack mounting screws with washers, cord retention tray, tray mounting screws, cable ties, RJ45/DB9 serial port connection cable, and user manual. Dual NEMA 5-15P power cords should be connected to separate power sources for ATS redundancy.
