CyberPower - PR1500RTXL2UCTAA - 1500VA Smart App Sinewave Rack/Tower UPS
Product Overview
The CyberPower PR1500RTXL2UCTAA is a Smart App Sinewave rack/tower convertible UPS designed to provide battery backup, surge protection, and clean sine wave output for sensitive IT, network, telecom, and server equipment. It uses line-interactive topology with Automatic Voltage Regulation to correct minor power fluctuations without switching to battery mode, helping extend battery life and maintain stable operation.
Key Configuration
Model: PR1500RTXL2UCTAA | Product Type: Smart App Sinewave Rack/Tower UPS | Topology: Line-interactive | Output Waveform: Sine wave | Installation: Rack or tower | Display: Rotatable multifunction LCD panel | EBM Compatibility: BP48VP2U02TAA | Remote Management: RMCARD205TAA compatible | Warranty: Three-year warranty
Key Features
· Provides battery backup for safe shutdown during utility power failures
· Delivers sine wave output for sensitive equipment and Active PFC power supplies
· Automatic Voltage Regulation corrects minor voltage fluctuations without using battery power
· Rotatable multifunction LCD panel displays UPS status, setup, control, and testing options
· Battery Equalization Technology helps maintain balanced battery voltages and extend battery life
· Fast Charge Technology helps restore UPS and EBM backup capacity more quickly

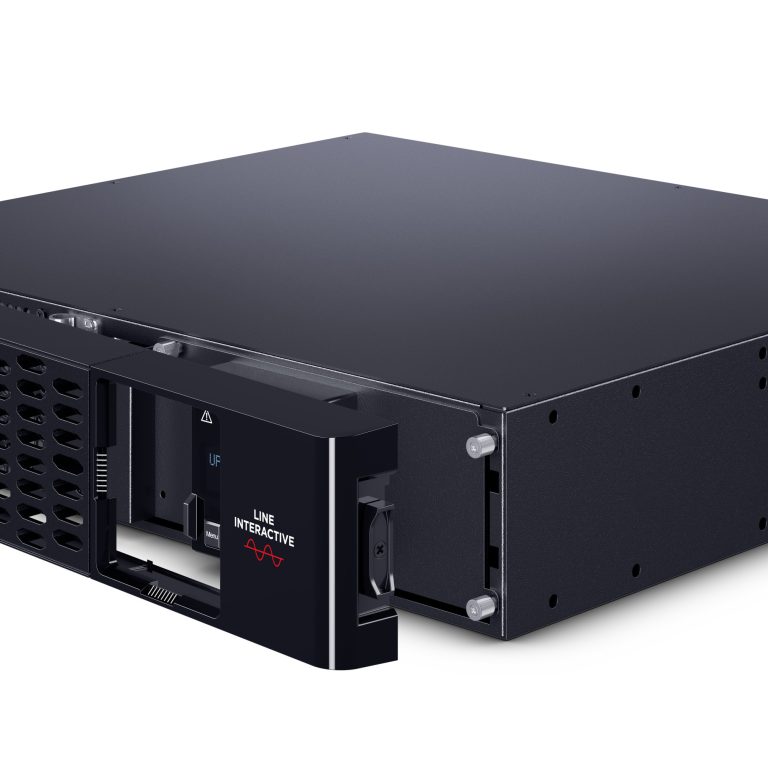

· Toolless battery panel access simplifies battery replacement and service

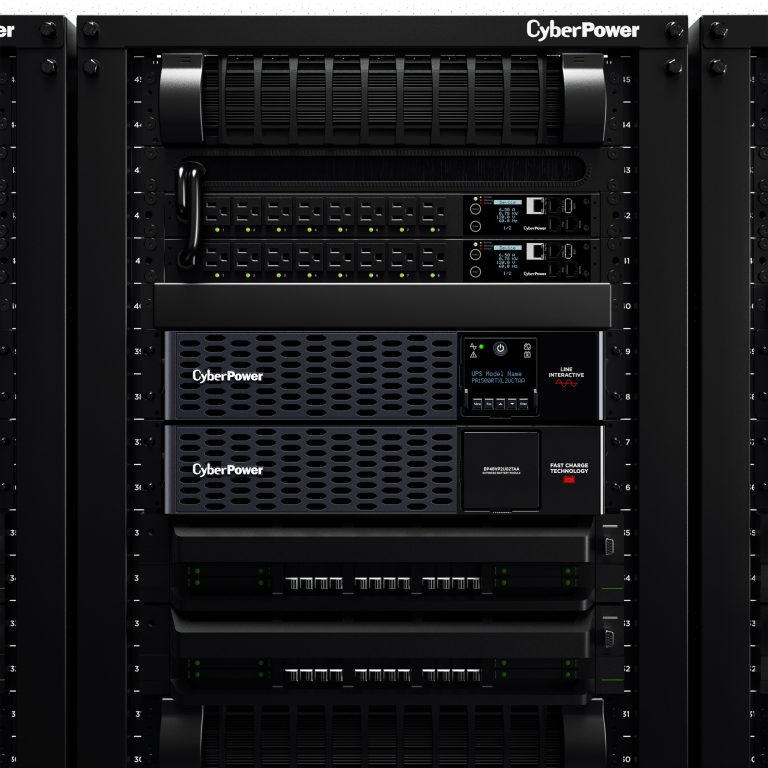

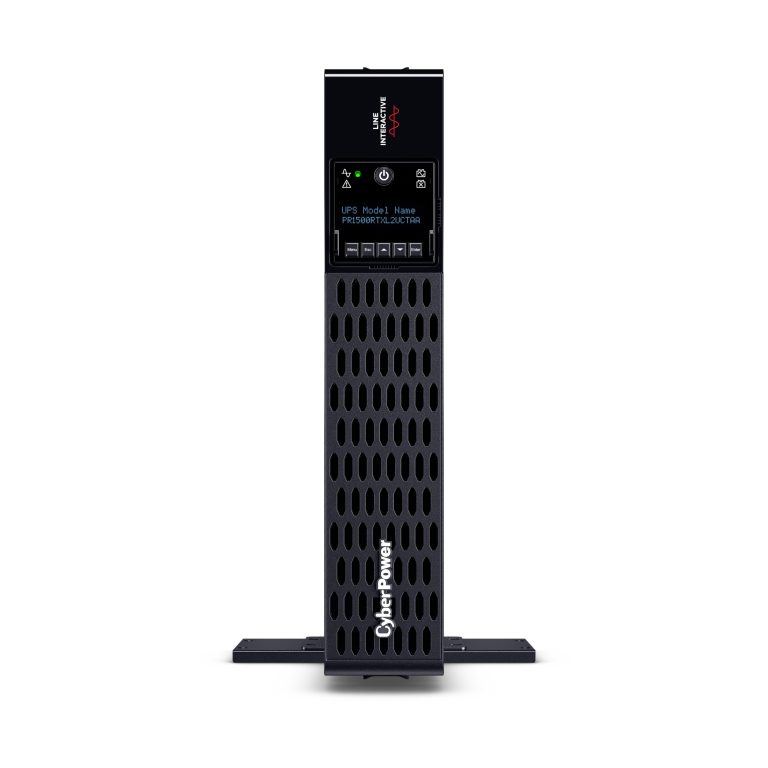

· Supports rack or tower installation for flexible deployment
Technical Context
The PR1500RTXL2UCTAA is built for applications where clean, stable power is required to prevent unexpected shutdowns caused by gaps from simulated sine wave output. Its line-interactive topology uses an autotransformer to regulate brownouts and overvoltage conditions while conserving battery capacity.
The UPS supports expanded runtime with the BP48VP2U02TAA Extended Battery Module and remote management through the RMCARD205TAA network management card. Built-in cloud support and PowerPanel Business Edition software provide additional monitoring and management options for IT environments.
Installation Notes
The PR1500RTXL2UCTAA is suitable for corporate servers, department servers, network devices, storage devices, telecom installations, and VoIP installations. The package includes the UPS system, faceplate, user manual, 2-post rack mounting kit, 4-post rail rack mounting kit, tower mounting kit, Emergency Power Off cable, and USB A+B type cable.
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 4 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Extended Battery Module | BP48VP2U02TAA |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 6.5 min |
| Runtime at Half Load | 17.9 min |
| Typical Recharge Time | 3 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 70 – 155 VAC |
| Circuit Breaker | 15 A |
| Cord Length | 10 ft (3.0 m) |
| Input Frequency Range | 47 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage | 100 – 125 VAC |
| Input Voltage Range | 75 VAC – 155 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation | Double Boost Single Buck |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Voltage | 100/110/120/125 VAC ± 5% |
| On Battery Waveform | Sine Wave |

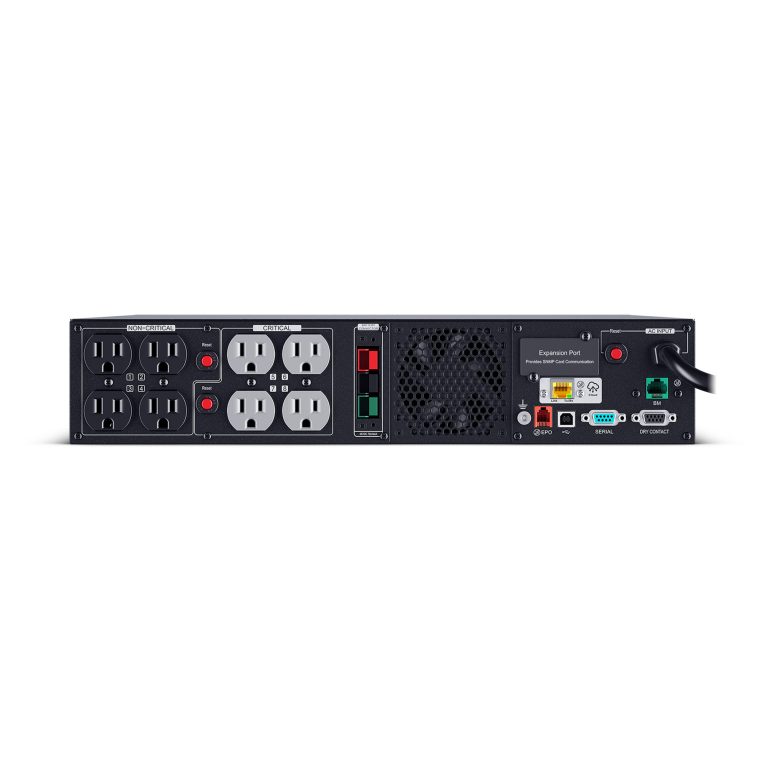

| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 8 |
| Outlets – Critical Load | 4 |
| Outlets – Total | 8 |
| Output Power Factor | 1 |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 1500 VA |
| Watts | 1500 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 2430 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Overcharge Overheat |
| Emergency Power Off (EPO) Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On Line Mode Battery Mode Fault Night Mode Wiring Fault |
| Management Cable | USB Cable EPO Cable |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205TAA Yes – with built-in RJ45 ethernet connection cloud port |
| Serial Port | 1 Serial 1 Dry Contact |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 50.04 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 19.7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 500 (mm) |
| Physical Weight (kg) | 30.71 |
| Physical Weight (lb) | 67.7 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 37.19 |
| Shipping – Weight (lb) | 82.00 |
| Shipping Dimensions – (WxHxD) (cm) | 56.13 x 27.43 x 61.98 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.1 x 10.8 x 24.4 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 561.34 x 274.32 x 619.76 (mm) |
| Environmental | |
| AC Mode Thermal Dissipation | 71.7 BTU/hr |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 cUL107.1 FCC Class B |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4A |
| Product Warranty | 3 Year Limited Warranty |
