CyberPower - RB1290X8 - Replacement Battery Cartridge

Part number:
Price:

Product Overview

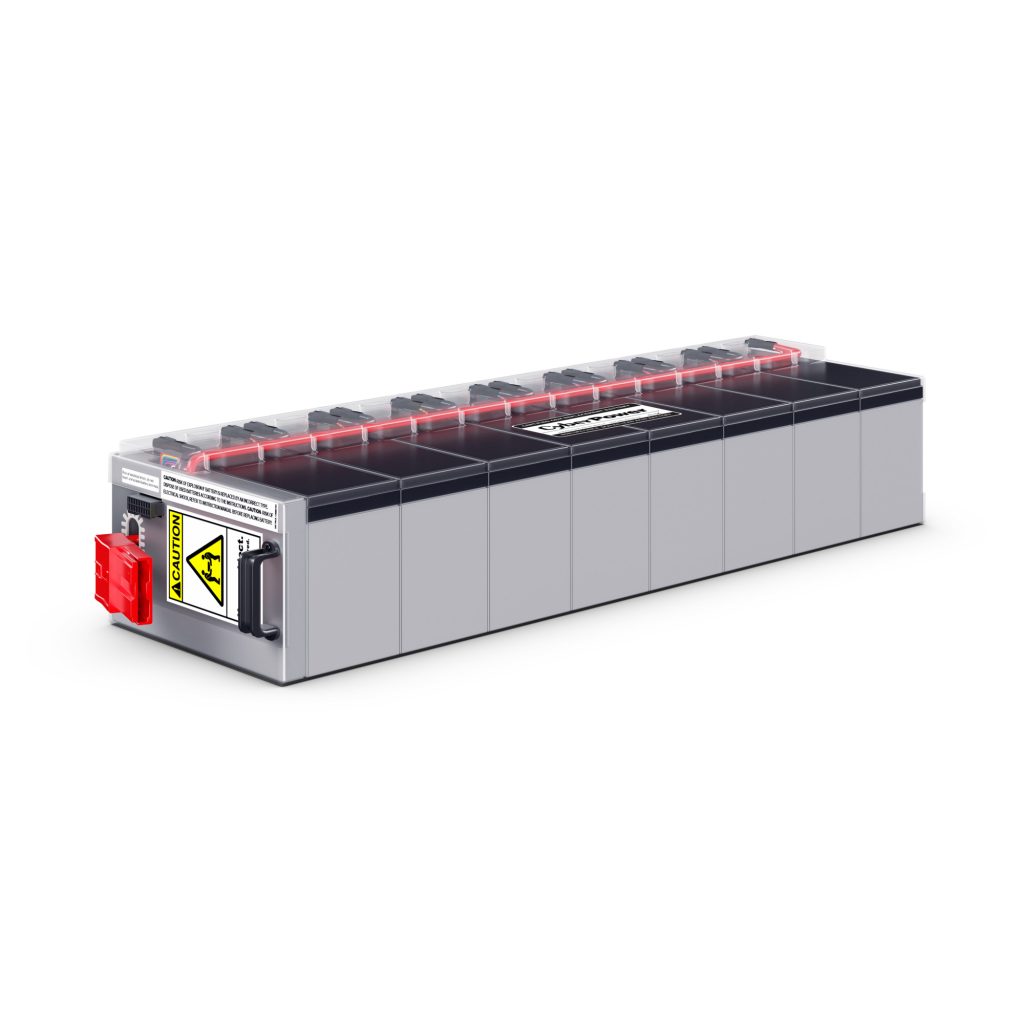

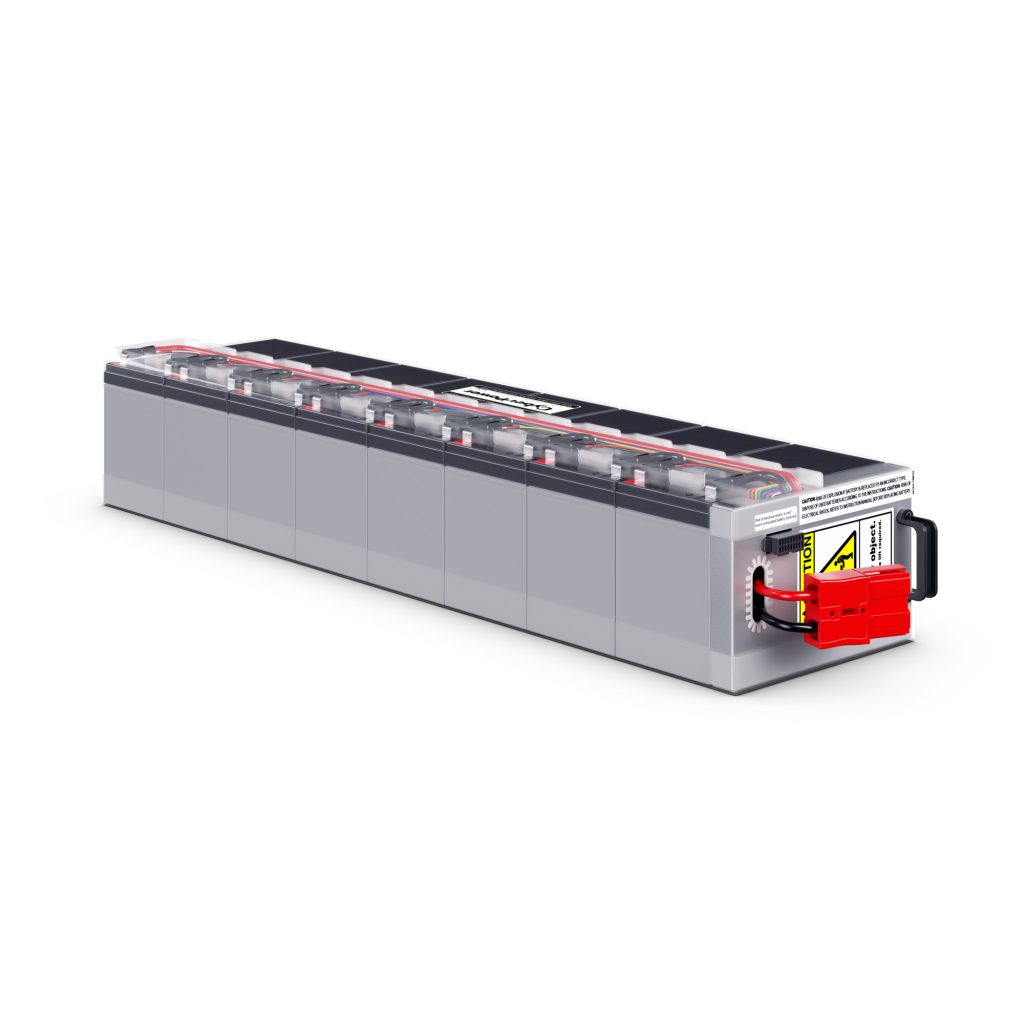

The CyberPower RB1290X8 is a UPS replacement battery cartridge designed to restore operation to compatible CyberPower UPS systems with weak or depleted internal batteries. It contains eight 12V/9Ah sealed lead-acid batteries in a pre-assembled, user-installable cartridge that meets or exceeds original manufacturer specifications.



Key Configuration

Model: RB1290X8 | Product Type: UPS Replacement Battery Cartridge | Battery Type: Sealed lead-acid | Battery Quantity: 8 | Battery Rating: 12V/9Ah | Compatible UPS Models: OL8KRTHD, OL10KRTHD | Warranty: Eighteen-month warranty



Key Features

 · Restores battery backup capability to compatible CyberPower UPS systems

 · Includes eight 12V/9Ah sealed lead-acid batteries

 · Pre-assembled cartridge allows quick and convenient user installation

 · Leak-proof casing helps protect the battery cartridge and prolong service life

 · Maintenance-free battery fluid never requires replacement

 · OEM certified to meet or exceed original manufacturer specifications

 · Reusable packaging supports safe return of expired batteries to a recycling center

 · Covered by an eighteen-month warranty under normal use and conditions



Technical Context

The RB1290X8 uses sealed lead-acid battery construction, which provides high surge current capability, strong power-to-weight performance, and cost-effective replacement for UPS backup systems.

This cartridge is compatible with CyberPower OL8KRTHD and OL10KRTHD UPS models.



Installation Notes

The RB1290X8 is user-installable and ships with instructions and recycling information. After installing the new cartridge, the reusable packaging can be used to deliver expired batteries to a suitable recycling center.

Battery
Battery Quantity8
Battery Size12 V / 9 Ah
Battery TypeSealed Lead-Acid Battery
Output
USB Charge PortNo
Dimensions

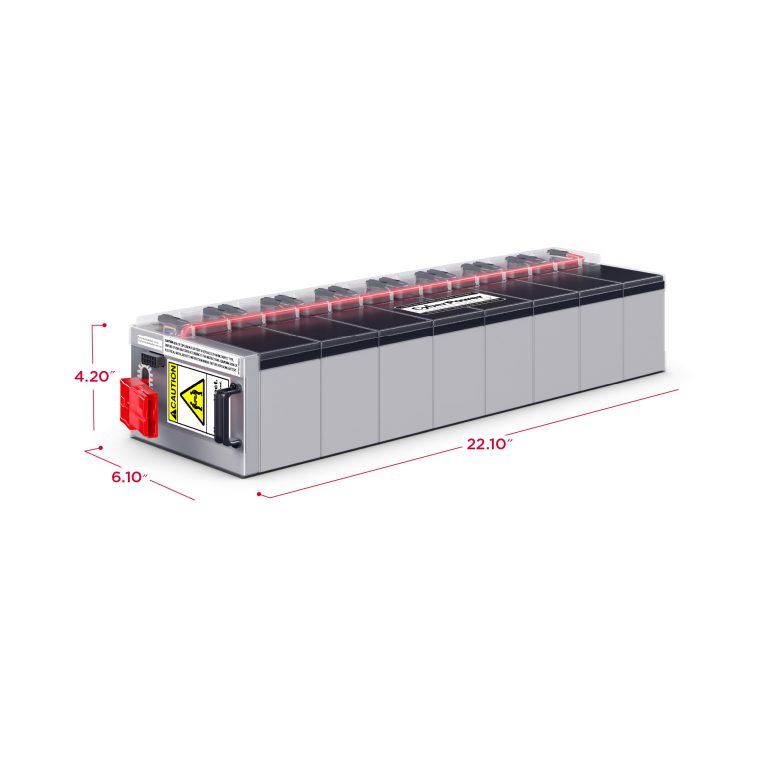

Physical Dimensions - (WxHxD) (cm)15.49 x 10.67 x 56.13 (cm)
Physical Dimensions - (WxHxD) (in)6.1 x 4.2 x 22.1 (in)
Physical Dimensions - (WxHxD) (mm)155 x 107 x 561 (mm)
Physical Weight (kg)21.77
Physical Weight (lb)48
Dimensions - Shipping
Shipping - Weight (kg)23.27
Shipping - Weight (lb)51.3
Shipping Dimensions - (WxHxD) (cm)27.43 x 24.38 x 68.07 (cm)
Shipping Dimensions - (WxHxD) (in)10.8 x 9.6 x 26.8 (in)
Shipping Dimensions - (WxHxD) (mm)274.32 x 243.84 x 680.72 (mm)
Environmental
Operating Relative Humidity0 - 90 % (non-condensing)
Operating Temperature32 - 104 °F (0 - 40 °C)
Compatibility
ModelsOL8KRTHD, OL10KRTHD
UPS ModelsOL8KRTHD, OL10KRTHD
Warranty
Product Warranty18 Month Limited Warranty
