Digital Watchdog - DW-VA1P41T - VMAX A1 Plus Universal HD over Coax 4-Channel Digital Video Recorder with 1TB HDD

Product Overview

The DW-VA1P41T is a 4-channel VMAX® A1 Plus™ DVR with a pre-installed 1TB HDD. It supports Universal HD over Coax® signals up to 5MP and features 4K True HD output. This embedded Linux system offers PathFinder™ P2P remote access, C3™ CMS integration, and H.264 compression for streamlined, high-resolution analog surveillance.

Key Configuration

• • Channels: 4 analog inputs; signals supported: HD-Analog, HD-CVI, HD-TVI up to 5MP, analog up to 960H
• • Recording rates: 5MP @ 40 fps, 4MP @ 60 fps, 1080P/720P/960H @ 120 fps
• • HDD: 1 × SATA bay, up to 16TB storage; 1TB HDD pre-installed

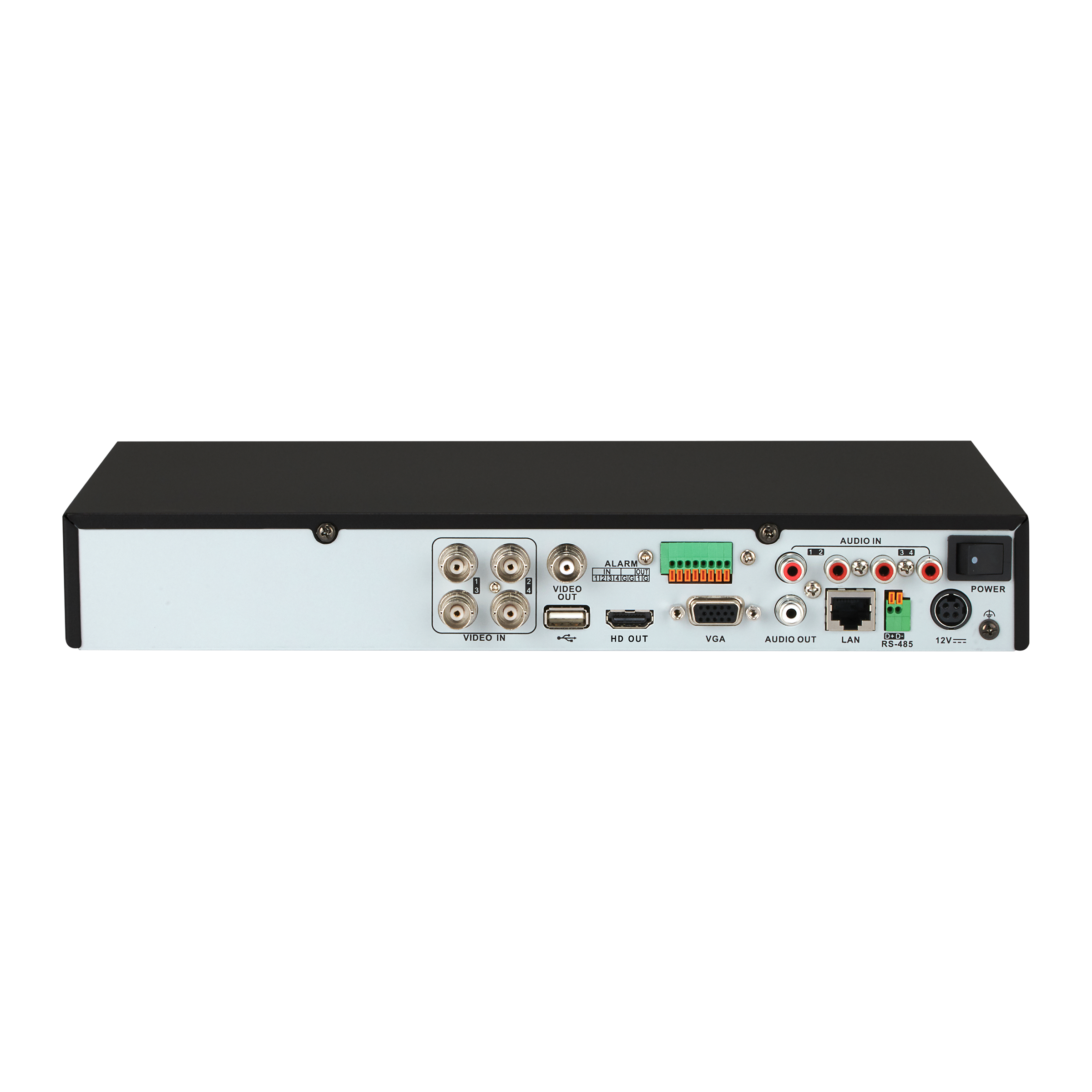

• • Video outputs: True HD (4K/3840×2160), VGA, Spot (D1); display modes: 1, 4, sequence
• • Audio: 4 inputs / 1 output (ADPCM codec); alarm: 4 sensor inputs / 1 relay output

Key Features

This is a versatile 4-channel DVR that automatically detects HD-Analog, HD-TVI, and 960H signals while utilizing PathFinder™ P2P technology for effortless remote setup without port forwarding. It enhances security through synchronized event recording and instant snapshot notifications to provide real-time surveillance in a compact and efficient package

Technical Context

The DW-VA1P41T delivers 4K True HD output and intuitive thumbnail-based playback while utilizing UTC for comprehensive PTZ control over existing coaxial cables to eliminate extra wiring furthermore the system supports versatile management through the C3™ CMS and mobile apps to provide seamless local and remote access for multiple users across a high-performance surveillance architecture

Installation Notes

Featuring S.M.A.R.T. HDD monitoring and automated health checks to prevent data loss, this hardware operates reliably within standard indoor environments while offering a dedicated D1 spot output for secondary displays. The unit is assembled and inspected in the U.S.A. and carries a 5-year warranty to serve as a dependable solution for modernizing legacy analog systems through robust and proactive performance management
