ExacqVision - S-96T-R2SL - exacqVision S-Series Networked Video Storage Server
Product Overview
The exacqVision S-Series is a video security storage device designed to archive IP video and audio from exacqVision recorders with instant search capability. It helps extend recording capacity, improve recoverability, and consolidate archives from multiple recorders into a unified exacqVision storage environment.
Key Configuration
Product Type: exacqVision S-Series Video Security Storage Device | Storage Role: IP video and audio archiving | Expansion: Up to 288TB with additional drives | Network Interfaces: Dual 10 Gbps | RAID Support: Enterprise RAID 5/6 and RAID 1 protected operating system drives | Support: Next Business Day onsite support with BBE S-Series | Warranty: 5-year warranty and SSA
Key Features
· Archives video and audio from exacqVision recorders to S-Series storage
· Instant search capability supports faster access to archived video
· Scheduled or continuous archiving helps optimize network load
· Flexible user-defined archiving rules allow critical video and audio to be stored longer
· Consolidates archives from multiple video recorders on one or more S-Series systems
· Dual 10 Gbps network interfaces support fast archiving and mass client performance
· Expands primary recorder storage without complicated third-party storage
· Enterprise RAID 5/6 and redundant power supplies support high reliability
Technical Context
The S-Series extends exacqVision storage so users can retain video from more cameras or for more days without adding extra video recorders. Its shared network storage approach can lower cost and increase flexibility compared with attaching separate external storage to multiple recorders.
Installation Notes
The S-Series is managed through the exacqVision client interface, allowing administrators to configure and monitor recorder and storage health from the same VMS environment. Enterprise-class hard drives, RAID-protected operating system drives, redundant power options, and 5 years of software updates help support long-term system uptime.
| Archiving | |
| Archiving | S-Series 2U |
| Maximum Video Recorders | 64 |
| Maximum Data Rate | 1200Mbps |
| Server | |
| Server | S-Series 2U |
| Enterprise Storage Management Software | Included |
| Operating System | Ubuntu Linux 24.04 |
| Storage Capacity | 96TB |
| Maximum Hard Drives | 12 |
| RAID | RAID 6 |
| NIC | 2 x 1Gbps, 2 x 10Gbps (SFP) |
| CPU | Xeon |

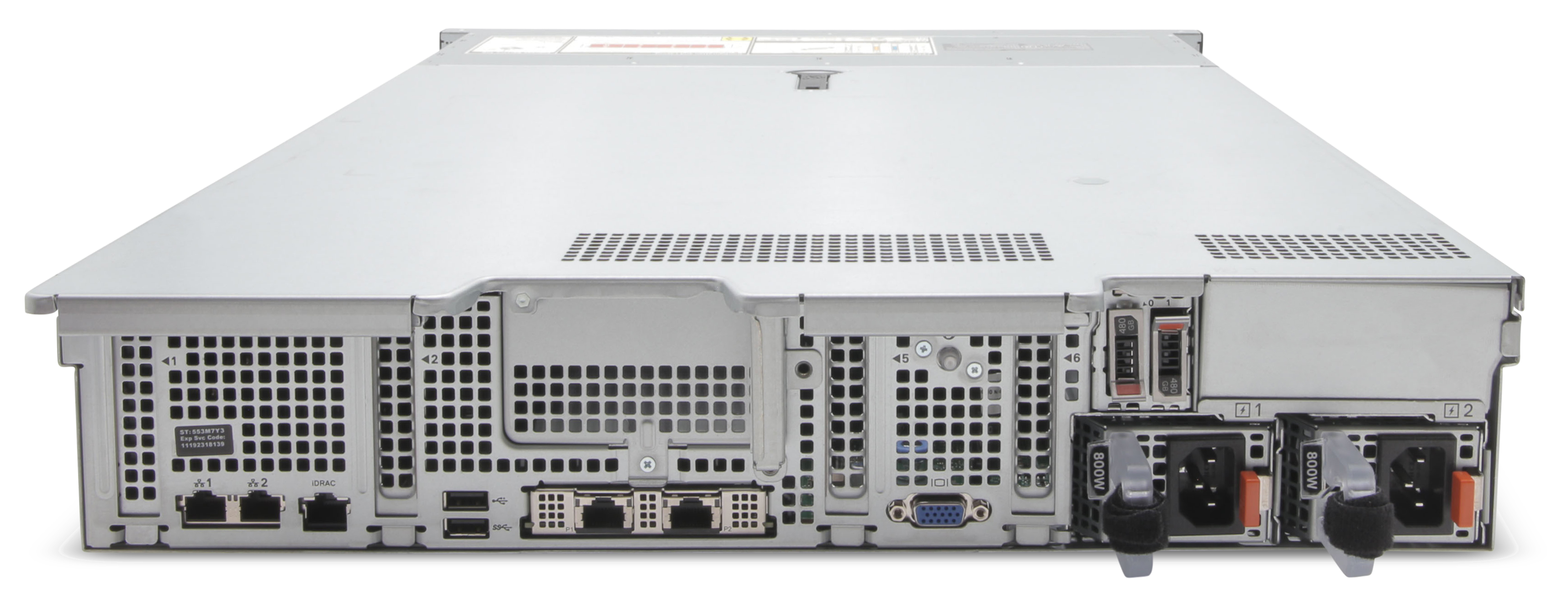

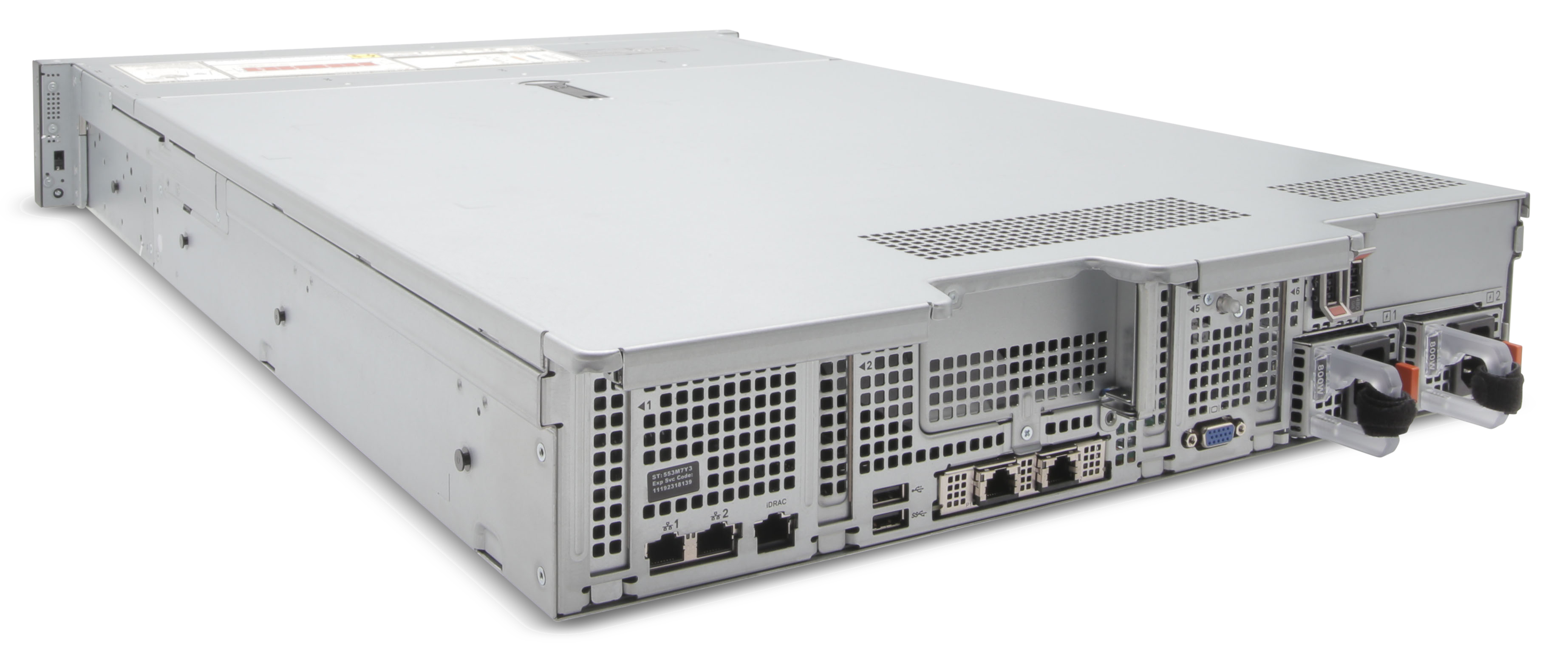

| Ports | Front: (1) Micro-AB USB/(1) x USB 2.0/(1) x VGA Rear: (1) USB 2.0/(1) Serial/(1) USB 3.0/(1) VGA/(1) IDRAC |
| RAM | 2 x 8GB (16GB) |
| General | |
| General | S-Series 2U |
| Dimensions (D x W x H) | D: 721.62 mm (28.4 in) with bezel W: 482.0 mm (18.97 in) H: 86.8 mm (3.41 in) |
| Power | 800W Platinum Power Supply Mixed Mode 100-240 VAC or 240 VDC hot swap redundant |
| Weight | 35.45kg (78.012 lbs) |
| Operating Temperature | 40°F-95°F (45°C-35°C) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1) EMC: Class A emissions (FCC part 15, ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3) Security immunity (EN55035) Environmental: RoHS (EN50581) NDAA, TAA |
| Warranty | 5-Year NBD (Next Business Day) |
