GeoVision - 84-NRL810P-UA0U - 8CH, 4K PoE Standalone NVR 1 Bay, H.265/H.264

Product Overview

The GV-RNVRL810-P is an 8-channel embedded Linux standalone NVR that supports H.265/H.264 compression and up to 8 MP recording resolution. It features 8 built-in PoE+ ports (58W total budget), a 10TB SATA HDD bay, 4K HDMI output, and two-way audio. The system delivers native AI face recognition for E-Map tracking, attendance, and visitor search, while unlocking a comprehensive suite of advanced video and audio analytics, including vehicle/pedestrian detection, perimeter protection, and crowd density, when paired with AI-capable GV-R series IP cameras.

Key Configuration

• • Channels: 8 IP camera inputs; PoE ports: 8 × RJ45 PoE+ (IEEE 802.3at), 58W total
• • HDD bay: 1 × 3.5" SATA, up to 10TB
• • Bandwidth: input 76 Mbps, output 32 Mbps
• • Video outputs: HDMI (4K/3840×2160, 2560×1440, 1920×1080) and VGA simultaneous output

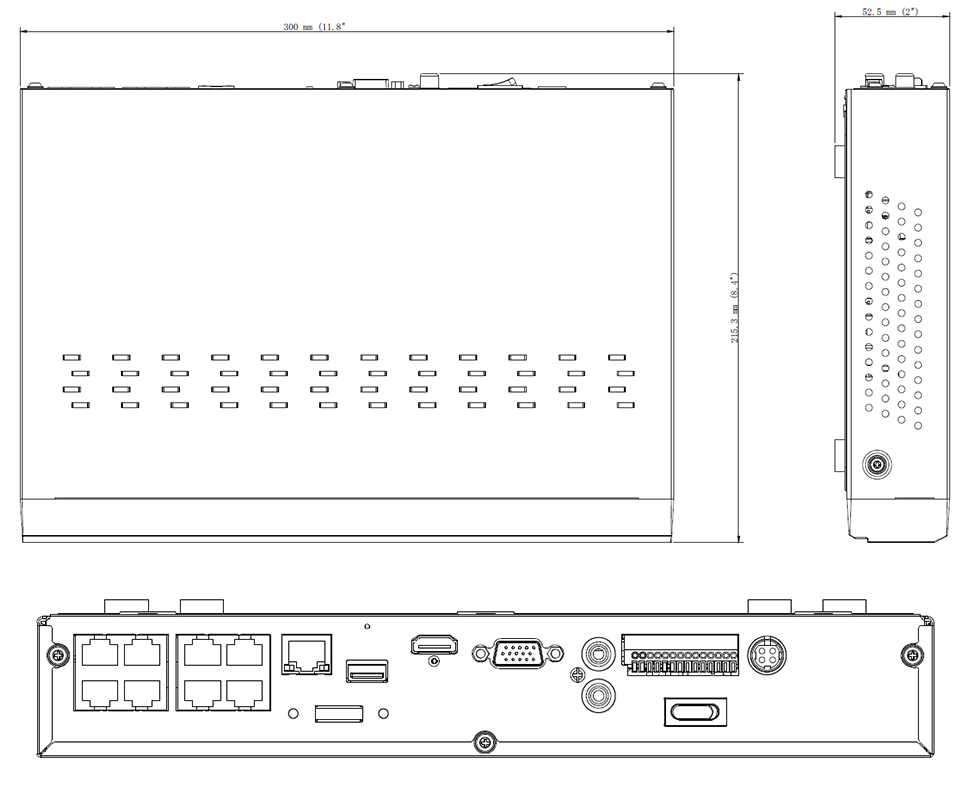

• • Dimensions: 300 × 215.3 × 52.5 mm (11.8" × 8.4" × 2"); net weight: 1.08 kg (2.38 lb)

Key Features

This system delivers variable decoding performance from 1 channel at 8MP (30 fps) up to 8 channels at 720p (240 fps total), with up to 4-channel simultaneous playback and variable speed controls. Built for versatile integration, this non-rackmount unit includes 8 alarm inputs / 1 output, G.711 two-way audio (RCA), RS-485, and e-SATA ports, alongside seamless P2P mobile access via the GV-Eye app. Upon event triggers, it can log AVI video, activate relay outputs, or transmit snapshot alerts via email and FTP. Multi-platform remote management is fully supported across all major web browsers with extensive multilingual interfaces (22 local, 11 web).

Technical Context

Supporting recording resolutions up to 8MP over secure protocols like HTTPS and RTSP, this NVR features a 58W PoE budget with a low 6W base power draw (AC 100–240V). The certified unit (CE/FCC/RoHS) includes dual USB 2.0 ports and supports browser-based firmware updates.

Installation Notes

Measuring 300 × 215.3 × 52.5 mm and weighing 1.08 kg, this non-rackmount NVR operates reliably between -10°C to 50°C with under 90% relative humidity. It delivers data and power to IP cameras via built-in PoE+ ports, supports local backup via a USB mouse and flash drive, and accommodates one 3.5" SATA HDD up to 10TB.
