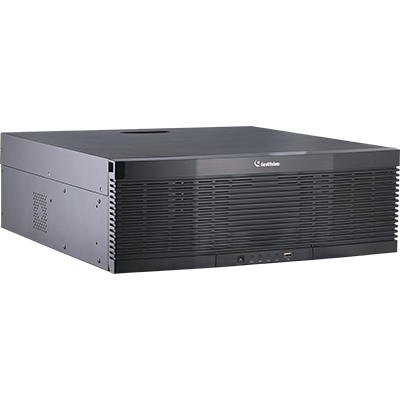

GeoVision - 84-RNRP6G-000U - 256 Channel H.265/H.264 Standalone NVR 16 Bay
Product Overview
The 84-RNRP6G-000U is an enterprise 256-channel Linux NVR supporting up to 12 MP recording and 1024 Mbps bandwidth. It features 16 hot-swap bays (up to 18TB/drive) with RAID 0/1/5/6/10 protection, alongside four HDMI outputs supporting up to 8K resolution. Equipped with built-in AI face recognition, the NVR unlocks advanced analytics like perimeter intrusion and vehicle detection when paired with AI-capable GV-R Series cameras.
Key Configuration
- • Channels: 256 IP camera inputs
- • HDD bays: 16 × 3.5" SATA hot-swap, up to 18TB per disk; RAID 0,1,5,6,10 supported
- • Bandwidth: input 1024 Mbps, output 800 Mbps
- • Video outputs: 4 × HDMI (HDMI #1: up to 8K/7680×4320; HDMI #2/3: up to 4K; HDMI #4: up to 1080P)
- • Dimensions: 439 × 466.1 × 149 mm (17.28" × 18.35" × 5.87"); net weight: 9.3 kg (20.5 lb)
Key Features
Delivers massive decoding performance, handling up to 150 fps at 12MP (5 channels max) down to 4560 fps at 480p, with 16-channel simultaneous playback and speeds up to 16×. Housed in a rack-mountable chassis with hot-swap bays, the NVR consumes just 8W of baseline power. It features 16 alarm inputs, 4 relay outputs, two-way RCA audio, and e-SATA, RS-232, and RS-485 ports. It supports P2P remote access via the GV-Eye app and multi-browser web viewing, triggering automated email, FTP, and relay actions during events.
Technical Context
Supports ultra-high-definition recording resolutions from 720p up to 12MP and integrates into secure enterprise environments with IPv6, HTTPS, and 802.1x protocols. It features one front USB 2.0 port and two rear USB 3.0 ports for rapid data export and local utility management. Engineered for 24/7 reliability, the system operates between -10°C and 50°C and connects directly to a standard 100–240V AC power source.
Installation Notes
Measuring 439 × 466.1 × 149 mm and weighing 9.3 kg, this NVR is fully rack-mountable and operates efficiently from -10°C to 50°C. It features 16 hot-swap bays that accommodate up to 18TB per disk for high-capacity local storage. The system provides four HDMI outputs with a specific display configuration: if HDMI #1 is set to 8K resolution, HDMI #2 is disabled, and HDMI #3 and #4 are limited to 1080p.
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 16 (3.5" SATA HDD), up to 18 TB for each disk |
| Video and Audio | |
| Compression | Audio: G.711 Video: H.264 / H.265 |
| Resolution | 12 MP, 8 MP, 5 MP, 3 MP, 2 MP (1080p), 1.3 MP (960p), 1 MP (720p) |
| Decoding Live / Playback Frame Rate | 12 MP: 150 fps in total (5 CH max.) 8 MP: 240 fps in total (8 CH max.) 5 MP: 390 fps in total (13 CH max.) 4 MP: 480 fps in total (16 CH max.) 2 MP: 960 fps in total (32 CH max.) 720p: 2160 fps in total (72 CH max.) 480p: 4560 fps in total (152 CH max.) |
| Playback | Max. 16-ch playback |
| Operation | |
| Max. Bandwidth | Input: 1024 Mbps |
| Output: 800 Mbps | |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Event Management | |
| Trigger | Schedule, Sensor Input, Motion Detection |
| Action | -Store Video (AVI format) |
| -Send e-mails with captured images | |
| -Upload captured images to FTP Server -Activate relay outputs to control external devices | |
| Web Monitoring | IE 10 / 11 Safari V12.1 or above Firefox V52 or above Google Chrome V57 or above Edge V79 or above |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Interface | |
| Monitor HDMI | HDMI 1: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 1600 x 1200, 1920 x 1200, 3840 x 2160, 7680 x 4320 |
| HDMI 2, 3: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 1600 x 1200, 1920 x 1200, 3840 x 2160 HDMI 4: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080 *The device only supports HDMI 1 output 8K. If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled. | |

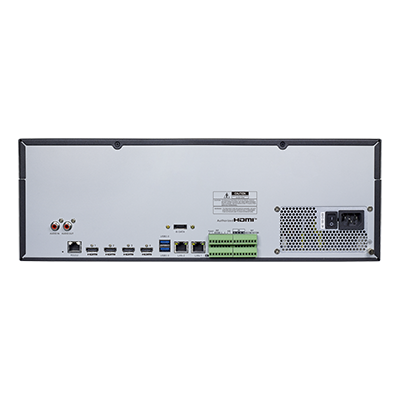

| Connector | Ethernet: 2 ports, RJ45 100/1000 Mbps |
| USB: USB 2.0 x 1 (front), USB 3.0 x 2 (rear) | |
| Line In: 1 RCA | |
| Audio Out: 1 RCA | |
| RS-232: 1 RJ45 (not functional) | |
| RS-485: 1 | |
| Alarm Input/Out: 16 in / 4 out e-SATA: 1 LED Indicator: 4 LEDs: Power, HDD, LAN x 2 | |
| RAID Type | 0, 1, 5, 6, 10 |
| General | |
| Language | Local Arabic, Bulgarian, Danish, English, Finnish, French, German, Greek, Hebrew, Hindi, Italian, Japanese, Korean, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Traditional Chinese, Turkish |
| Web English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish | |
| Mechanical Design | |
| Dimensions (W x D x H) | 439 x 466.1 x 149 mm (17.28" × 18.35" × 5.87") |
| Net Weight | 9.3 kg (20.5 lb) |
| Rack Mount | Yes |
| Electrical | |
| Power Source | Input: AC 100 ~ 240 V, 50 ~ 60 Hz |
| Power Consumption (excluding HDD and IP cameras) | 8W |
| Operating / Temperature | Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | Less than 90% RH |
| Certification | CE, FCC, LVD, RoHS compliant |
| AI Integrated Function | |
| AI Analytics | Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map, Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare Sound Detection *The video analytics functions are only applicable when AI-capable GV-R Series IP cameras are connected to the RNVR. |
| Face Recognition | Face Search, Face Tracking on E-Map, Repeated Visitor Search, Face Attendance Management *Face Recognition function is only applicable when AI-capable GV-R Series IP cameras are connected to the RNVR. |
| Network | |
| Protocol | 802.1x, DHCP, IPv4/IPv6, DynDNS, HTTP, HTTPS, NTP, RTSP, TCP, SNMP, UDP |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm |
| Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download | |
| Remote Setting: Channel (Live, Image control, Video Cover, Motion), Record (Encode, Capture), Alarm (Motion, I/O, Combination Alarm, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System | |
| Live View | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N *A total of up to 4-channel connection is supported for one non-IE browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N. |
| Playback | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N *A total of up to 4-channel connection is supported for each Web browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N. |
| Application | |
| Software Supported | GV-Control Center (V4.2.1 or later), GV-Edge Recording Manager Windows Version (V2.2.8 or later), GV-Vital Sign Monitor (V18.4.0 or later), GV-VPN |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0) |
