GeoVision - 84-TNR1620-P00U - 16 Channel H.265/H.264 POE Standalone NVR 2 Bay, US
Product Overview

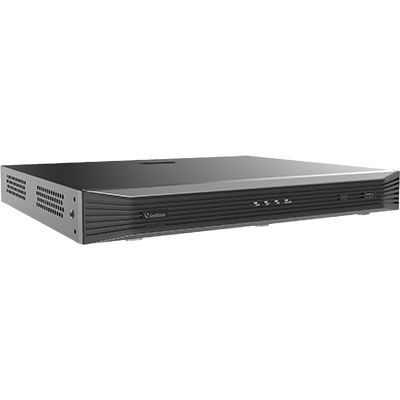

The GeoVision GV-TNR1620 is a 16-channel H.265 standalone NVR running an embedded Linux OS and supporting up to 12 MP recording resolution. It features 16 built-in PoE+ ports with a 240W power budget, dual SATA bays for up to 20TB of storage, and 4K HDMI output. The unit integrates advanced AI capabilities, including face recognition, smart intrusion protection, ultra motion detection, and AcuSearch for efficient event retrieval. It is ONVIF conformant, supports two-way audio, and utilizes GV-VPN for secure remote connectivity.
Key Configuration
- • Channels: 16 IP camera inputs; PoE ports: 16 × RJ45 PoE+ (IEEE 802.3at), max 30W per port, 240W total
- • HDD bays: 2 × 3.5" SATA, up to 10TB per disk
- • Bandwidth: input 160 Mbps, output 128 Mbps
- • Video outputs: HDMI (4K @ 30Hz, 1920×1080 @ 60/50Hz) and VGA (1920×1080 @ 60/50Hz) simultaneous output
- • Dimensions: 380 × 322 × 53 mm (15" × 12.7" × 2.1"); weight: 2.7 kg (6.0 lb)
Key Features
Supports flexible live viewing in up to 16-window modes and simultaneous 16-channel playback with variable speeds. It features robust NVR-based AI, including Face Recognition with a 50,000-picture library, Smart Intrusion Protection, and AcuSearch for rapid data retrieval. The system also integrates camera-side AI for advanced analytics like people counting and crowd monitoring when paired with compatible GV-IP cameras. Housed in a rack-mountable chassis, the unit includes 8 alarm inputs, 2 outputs, and two-way audio via RCA connections.
Technical Context
Delivers high-performance decoding, supporting up to 12MP at 60 fps or 16 channels at 720P, with specialized capacities for AI-enabled operation. It features a robust networking suite including HTTPS, IPv6, and SNMP, alongside dual USB ports for easy data management. Operating reliably between -10°C and 55°C, this NVR is universally certified (CE, FCC, UKCA) and runs efficiently on 100–240V AC with a low base power consumption of 12W.
Installation Notes
The measuring 380 × 322 × 53 mm and weighing 2.7 kg. It includes a built-in PoE switch to power cameras directly, though separate hard drives are required for storage. Maintenance is streamlined via web browser firmware updates or the GV-IP Device Utility.
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 2 (3.5" SATA HDD), up to 10 TB for each disk* |
| Video and Audio | |
| Compression | Audio: G.711 Video: H.264 / H.265 |
| Decoding Live / Playback | AI Off 12 MP: 60 fps in total (2 CH max.) 8 MP: 60 fps in total (2 CH max.) 4 MP: 120 fps in total (4 CH max.) 1080P: 300 fps in total (10 CH max.) 720P: 480 fps in total (16 CH max.) |
| AI On 8 MP: 60 fps in total (2 CH max.) 4 MP: 30 fps in total (4 CH max.) 1080P: 240 fps in total (8 CH max.) 720P: 480 fps in total (16 CH max.) | |
| Playback | Max. 16 channels |
| Operation | |
| Max. Bandwidth | Input: 160 Mbps |
| Output: 128 Mbps | |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Live View Display | 1 / 4 / 6 / 8 / 9 / 16 |
| Web Browser | IE 10 / 11 Firefox V52 or above Google Chrome V45 or above Edge V79 or above |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility (V9.0.5 or later) |
| Interface | |
| Monitor | VGA: 1 port 60 Hz: 1024 x 768, 1280 x 720, 1280 x 1024, 1600 x 1200, 1920 x 1080 50 Hz: 1920 x 1080 |
| HDMI: 1 port 60 Hz: 1024 x 768, 1280 x 720, 1280 x 1024, 1600 x 1200, 1920 x 1080 50 Hz: 1920 x 1080 30 Hz: 3840 x 2160 (4K) | |
| Connector | Ethernet: 1 port, RJ45 10/100/1000 Mbps |

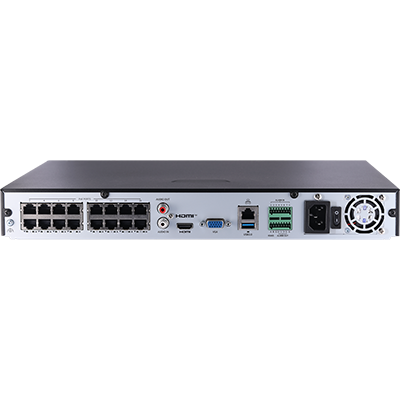

| PoE: 16 ports, RJ45, PoE+ (IEEE 802.3at) | |
| USB: USB 2.0 x 1 (front), USB 3.0 x 1 (rear) | |
| Audio In: 1 RCA | |
| Audio Out: 1 RCA | |
| RS-485: Not functional Alarm Input/Out: 8 in / 2 out LED Indicator: 4 LEDs: RUN, NET, HD, CLOUD (not functional) | |
| General | |
| Dimensions (W x D x H) | 380 x 322 x 53 mm (15" x 12.7" x 2.1") |
| Weight | 2.7 kg (6.0 lb) |
| Rack Mount | Yes |
| Power | |
| Power Source | Input: AC 100 ~ 240 V, 50 ~ 60 Hz |
| PoE Switch | Max 30 W for single port, Max 240 W in total |
| Power Consumption | 12 W (excluding HDD and IP cameras) |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 0% ~ 90% RH (non-condensing) |
| Certification | CE, FCC, LVD, UKCA, BSMI, RoHS compliant |
| AI Integrated Function | |
| AI Analytics | AI by Camera Intrusion Detection, Cross Line Detection, Enter Area, Face Detection, Leave Area, People Flow Counting, Crowd Density Monitoring * These functions are only applicable when the NVR is connected to AI-capable GV-IP cameras, as listed in the Compatible AI-Capable GV-IP Cameras section below. |
| AI by NVR - Face Recognition (Face Detection, Face Comparison): max. 1 CH - Smart Intrusion Protection (Cross Line Detection, Intrusion Detection, Enter Area, Leave Area): max. 2 CHs - Ultra Motion Detection (only to AI-capable GV-IP cameras, as listed in the Compatible AI-Capable GV-IP Cameras section below): max. 4 CHs - AcuSearch: max. 1 CH * Only one of these functions (Face Recognition, Smart Intrusion Protection, Ultra Motion Detection, and AcuSeach) can be enabled at a time. * Only one analyzer setup (Camera-Side Analysis or NVR-Side Analysis) can be enabled at a time. | |
| Face Picture Library | Up to 16 face lists, with up to 50,000 face pictures in total |
| Network | |
| Protocol | 802.1x, DDNS, DHCP, DNS, HTTP, HTTPS, IPv4/IPv6, NTP, PPPoE, RTSP, SMTP, SNMP |
| Remote Monitoring | |
| Access from Web Browser | Live View, Image Snapshot, Playback, Digital PTZ, System Configurations |
| Application | |
| Software Supported | GV-Control Center (V4.2.1 with Patch, or later), GV-Edge Recording Manager Windows Version (V2.3.1 with Patch, or later), GV-VPN (V1.1.2 or later), GV-Vital Sign Monitor (V18.4.1 with Patch, or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.5 or later) |
