Hanwa - XNO-6123R/KEX - Network IP Outdoor IR AI Bullet Camera with 5.2-62.4mm Lens

Product Overview

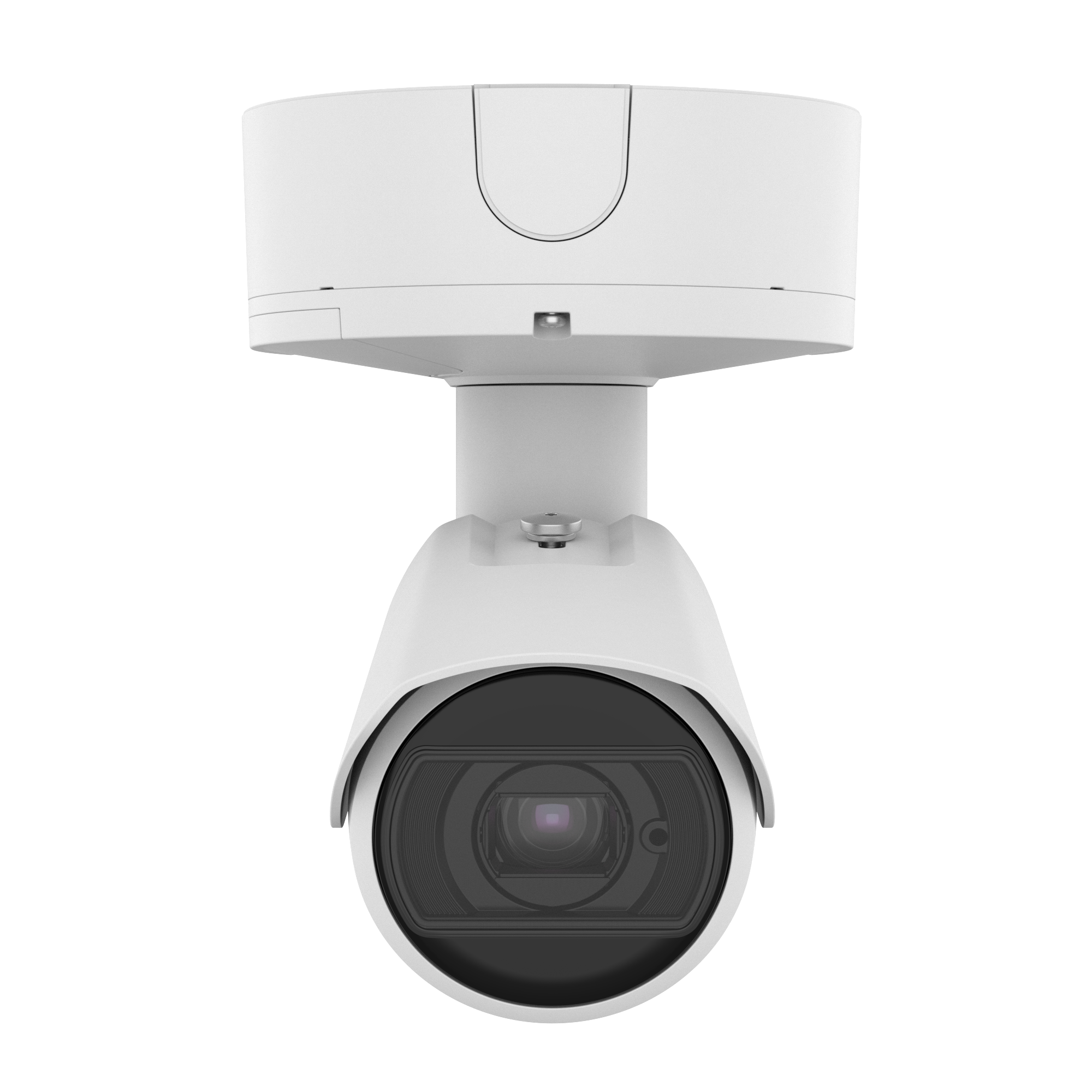

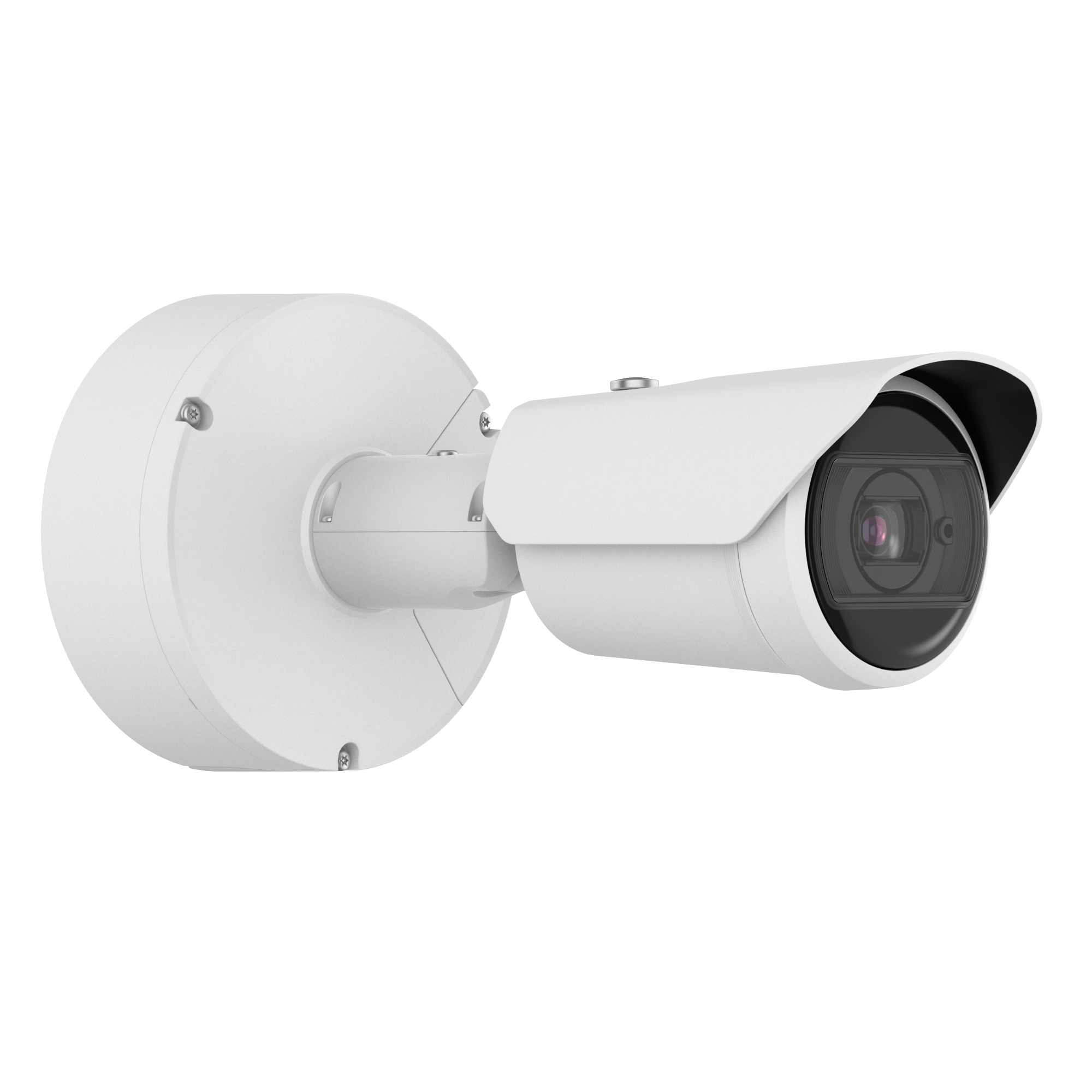

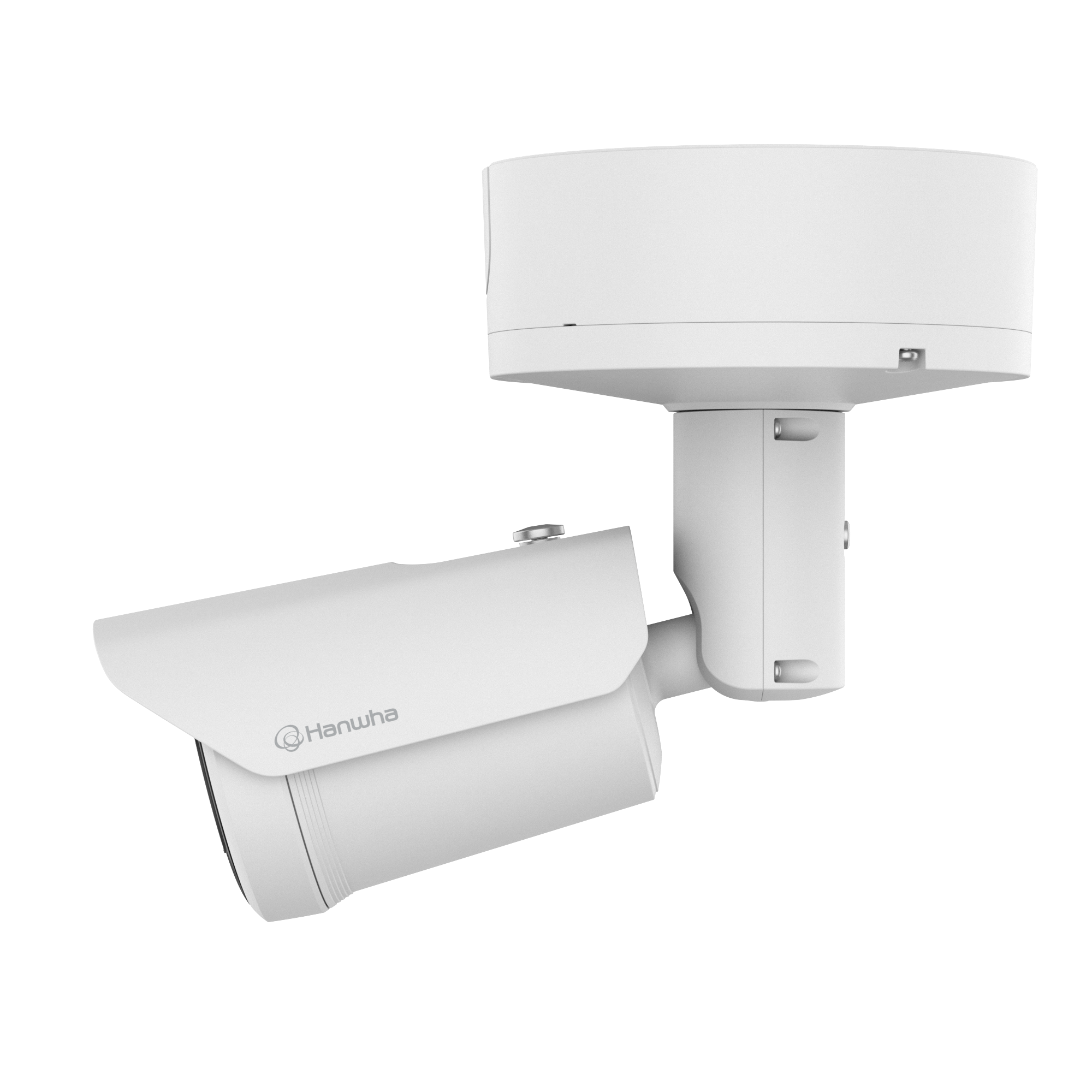

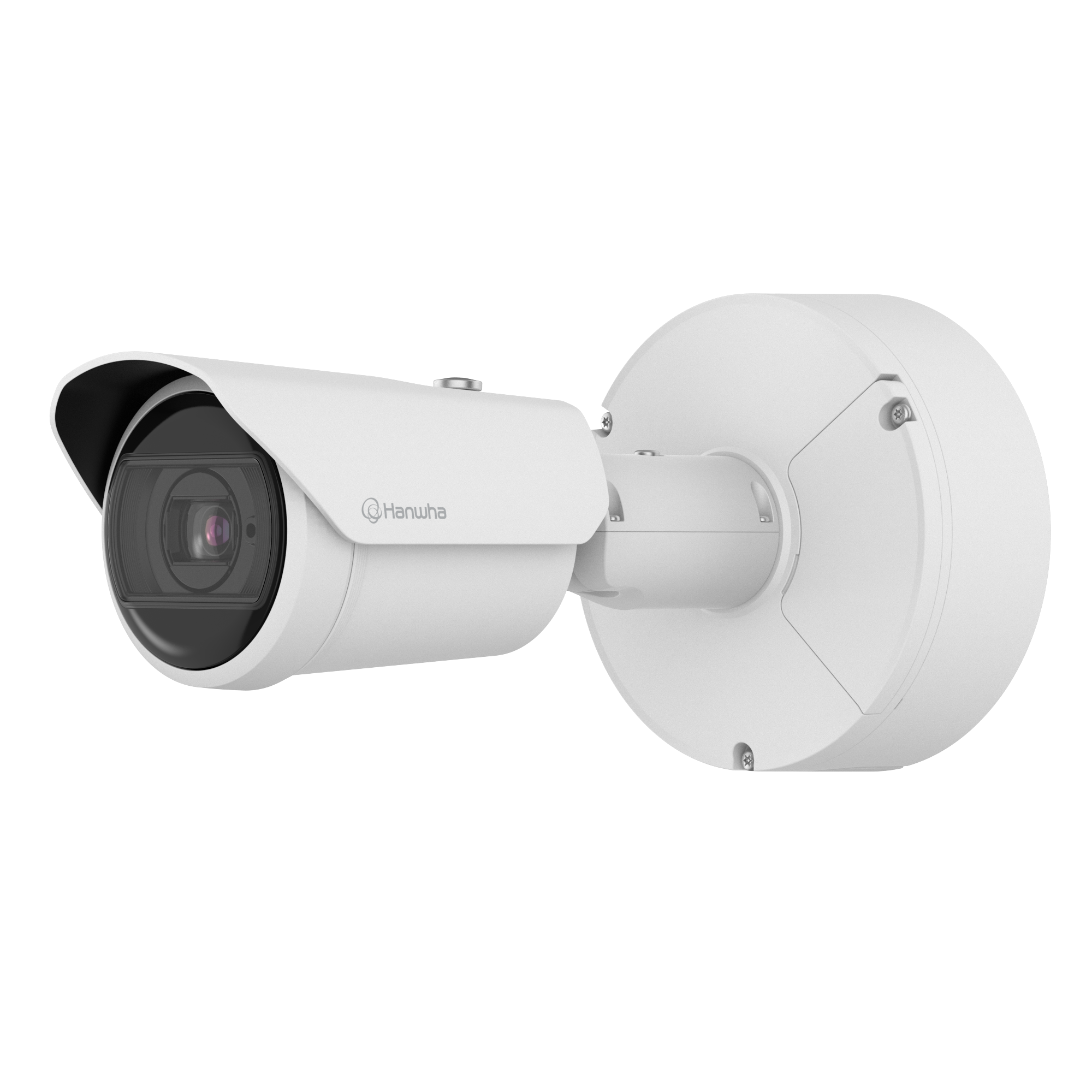

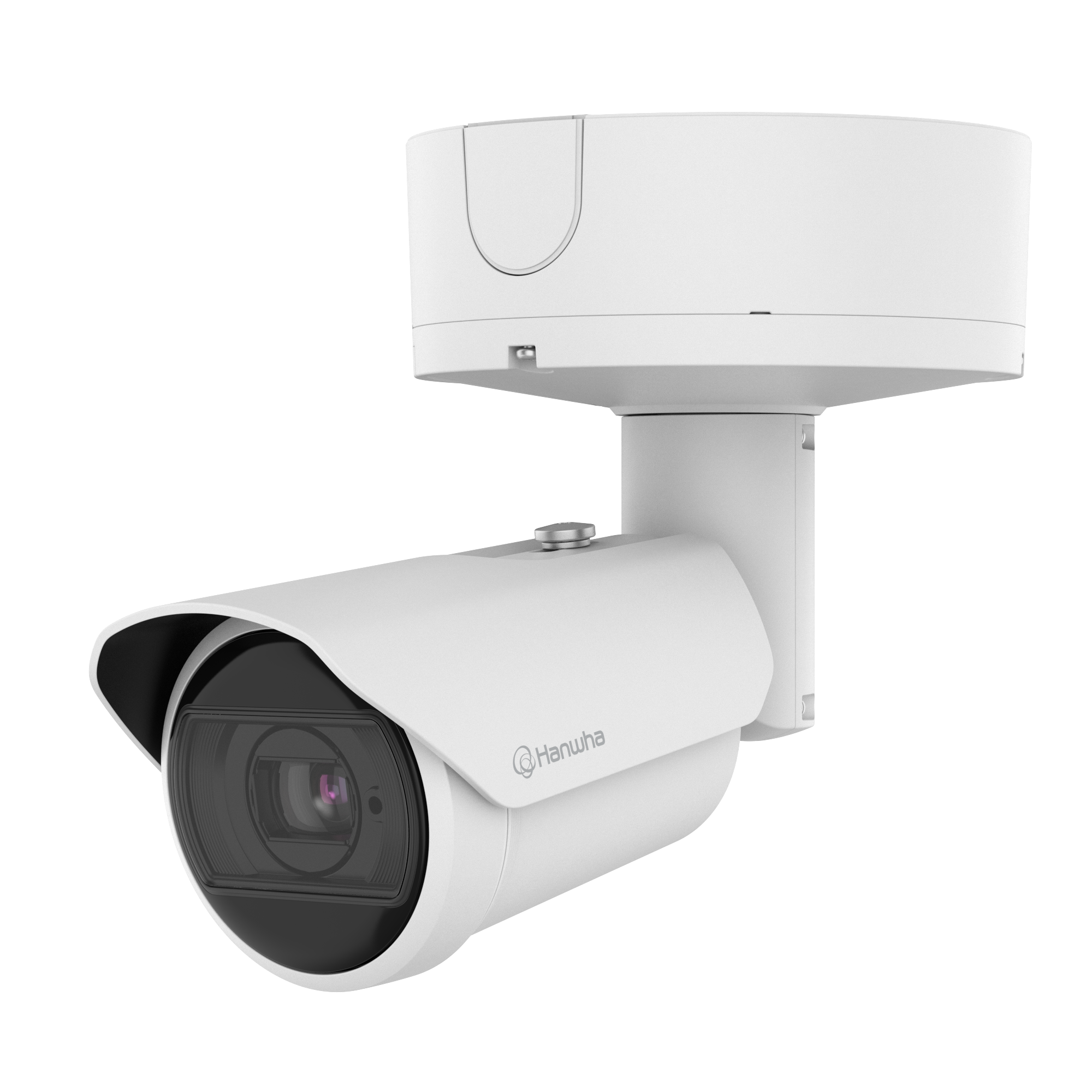

Hanwha Vision XNO-6123R is a 2 MP AI IR bullet camera with a 5.2-62.4 mm 12x optical zoom lens, 150 dB WDR, and video output up to 120 fps when WDR is disabled. It combines AI-based object detection, 90 m IR illumination, digital image stabilization, edge recording, and rugged IP66/IP67, IK10, and NEMA 250 Type 4X protection.

Key Configuration

Model: XNO-6123R | Resolution: Up to 1920 × 1080 | Lens: 5.2-62.4 mm 12x optical zoom, 32x digital zoom | Field of View: 55°-5° horizontal | Connectivity: 10/100/1000BASE-T, PoE+, 12 V DC, alarm I/O | Storage: Two Micro SD/SDHC/SDXC slots up to 1 TB total | Protection: IP66, IP67, IK10, NEMA 250 Type 4X

Key Features

• · 2 MP CMOS sensor supports resolutions up to 1920 × 1080
• · 5.2-62.4 mm DC auto-iris lens provides 12x optical and 32x digital zoom
• · H.265/H.264 encoding supports up to 120 fps with WDR disabled and up to 60 fps with WDR enabled
• · 150 dB WDR, WiseNR II, WiseStream III, defog, and built-in gyroscope stabilization improve image quality in difficult conditions
• · WiseIR infrared illumination provides a viewable range of up to 90 m at 850 nm
• · AI analytics classify people, faces, vehicles, and license plates with vehicle-type attributes
• · Virtual line, direction, area intrusion, enter, exit, loitering, and object detection analytics support intelligent monitoring
• · Two Micro SD/SDHC/SDXC slots support up to 512 GB each for a total of 1 TB edge storage
• · 10/100/1000BASE-T Ethernet, ONVIF S/G/T/M, direct cloud connection, alarm I/O, and 12 V DC output support system integration
• · PoE+ or 12 V DC power, power-failover support, and IP66/IP67, IK10, and NEMA 250 Type 4X protection support demanding installations

Technical Context

The 12x optical zoom lens provides a horizontal field of view from 55° to 5°, allowing the camera to cover broad scenes or focus on distant details. 150 dB WDR preserves image information in high-contrast lighting, while WiseNR II and WiseStream III use AI-based processing to reduce noise, bandwidth, and storage requirements. AI analytics can generate classified events for people, faces, vehicles, license plates, and virtual-line or virtual-area activity.

According to the DORI data, detection reaches up to 73.8 m at wide angle and 879.5 m at telephoto, while identification reaches up to 7.4 m and 88.0 m respectively.

Installation Notes

The camera measures Ø93.4 × 298.4 mm and weighs approximately 2,300 g. It supports IEEE 802.3at PoE+ Class 4 or 12 V DC power, with maximum consumption of 19.5 W via PoE+ or 16.5 W via DC. The operating temperature range is -40°C to +60°C with 0-100% condensing humidity; startup should be performed above -30°C. The minimum object distance is 1.5 m. Two configurable alarm I/O ports, compatible conduit openings, and single, double, 4-inch octagon, and square gang-box support are provided.
