Hanwha - PNM-9022RV - 8MP IR Panoramic Camera with 2.8mm Fixed Lens

Product Overview

The Hanwha PNM-C9022RV is an 8MP panoramic multi-sensor camera delivering a stitched 5120 × 1568 image at up to 20fps. It features dual 1/2.8" sensors with fixed 2.8mm lenses, a 209° horizontal field of view, 120dB WDR, and 20m WiseIR illumination with four adjustable zones. AI-powered analytics support person and vehicle classification, while WiseStream III and WiseNR II optimize bandwidth and image quality.

Key Configuration

• Resolution: 8MP panoramic stitched image (5120 × 1568) at up to 20fps
• Sensors/Lens: Dual 1/2.8" CMOS sensors, fixed 2.8mm lenses, F2.0 aperture, 209° H / 60° V FOV
• Power: PoE+ (IEEE802.3at Class 4) or 12VDC, with automatic power failover; max 24.5W (PoE+) / 22W (12VDC)
• Storage: Dual microSD/SDHC/SDXC slots supporting up to 1TB total edge storage (2 × 512GB)

Key Features

Features dual 1/2.8" CMOS sensors, 120dB WDR, WiseNR II noise reduction, and 20m WiseIR illumination with four adjustable zones. AI analytics support person and vehicle classification, object detection, line crossing, intrusion, and loitering events. Includes audio I/O, alarm I/O, WiseStream III compression, digital PTZ, and support for ONVIF, SUNAPI, and Hanwha Open Platform. Advanced security features include secure boot, encrypted firmware, TPM 2.0, AES-256 SD card encryption, and IEEE 802.1X authentication.

Technical Context

The PNM-C9022RV combines dual sensors into a seamless 209° panoramic image, eliminating blind spots and external dewarping requirements. It features AI-powered WiseStream III compression, WiseNR II noise reduction, four-zone IR illumination, dual SD card support, and power failover between PoE+ and 12VDC. Enhanced security is provided by TPM 2.0, while the hard-coated dome and IP66, IK10, and NEMA 4X ratings ensure durability in demanding environments.

Installation Notes

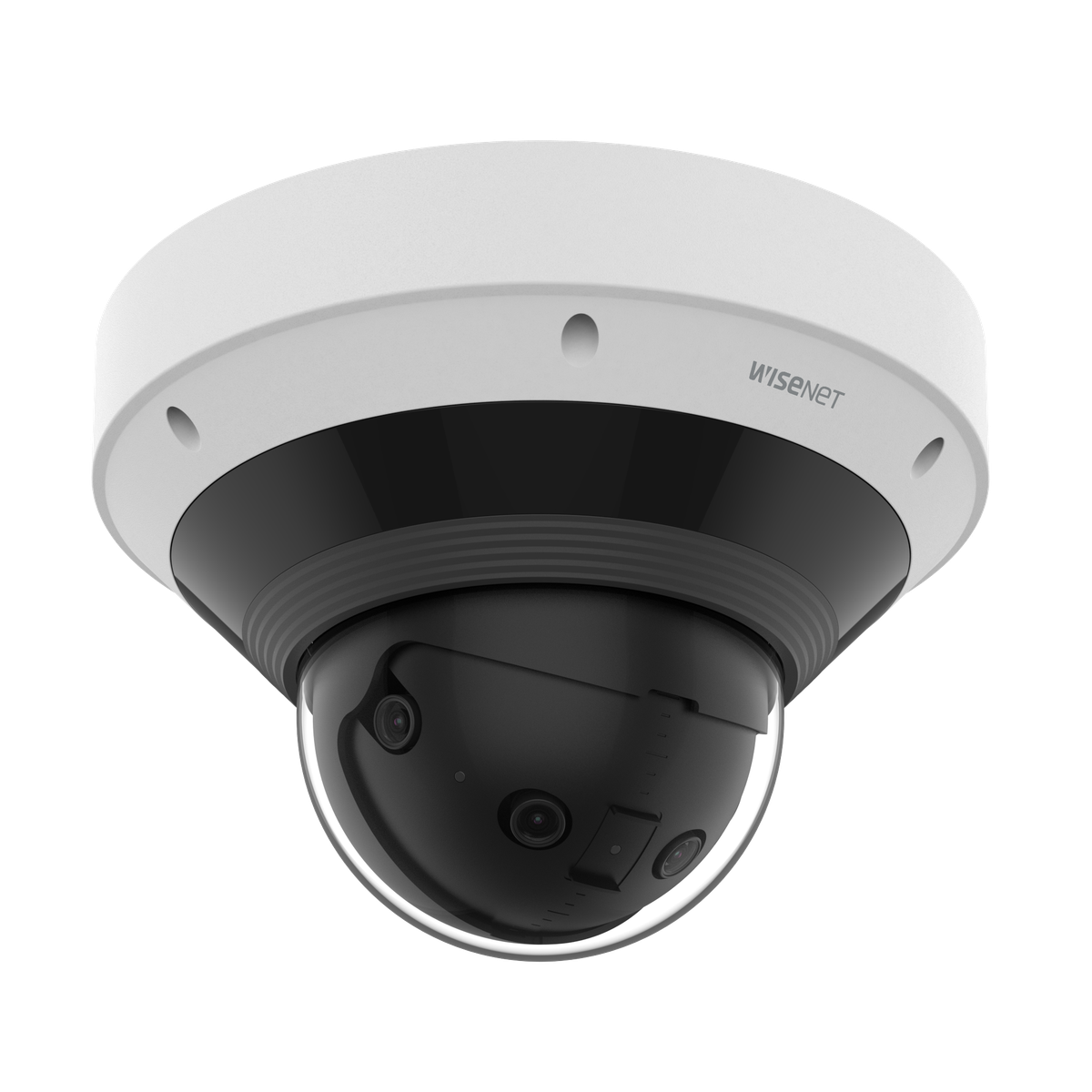

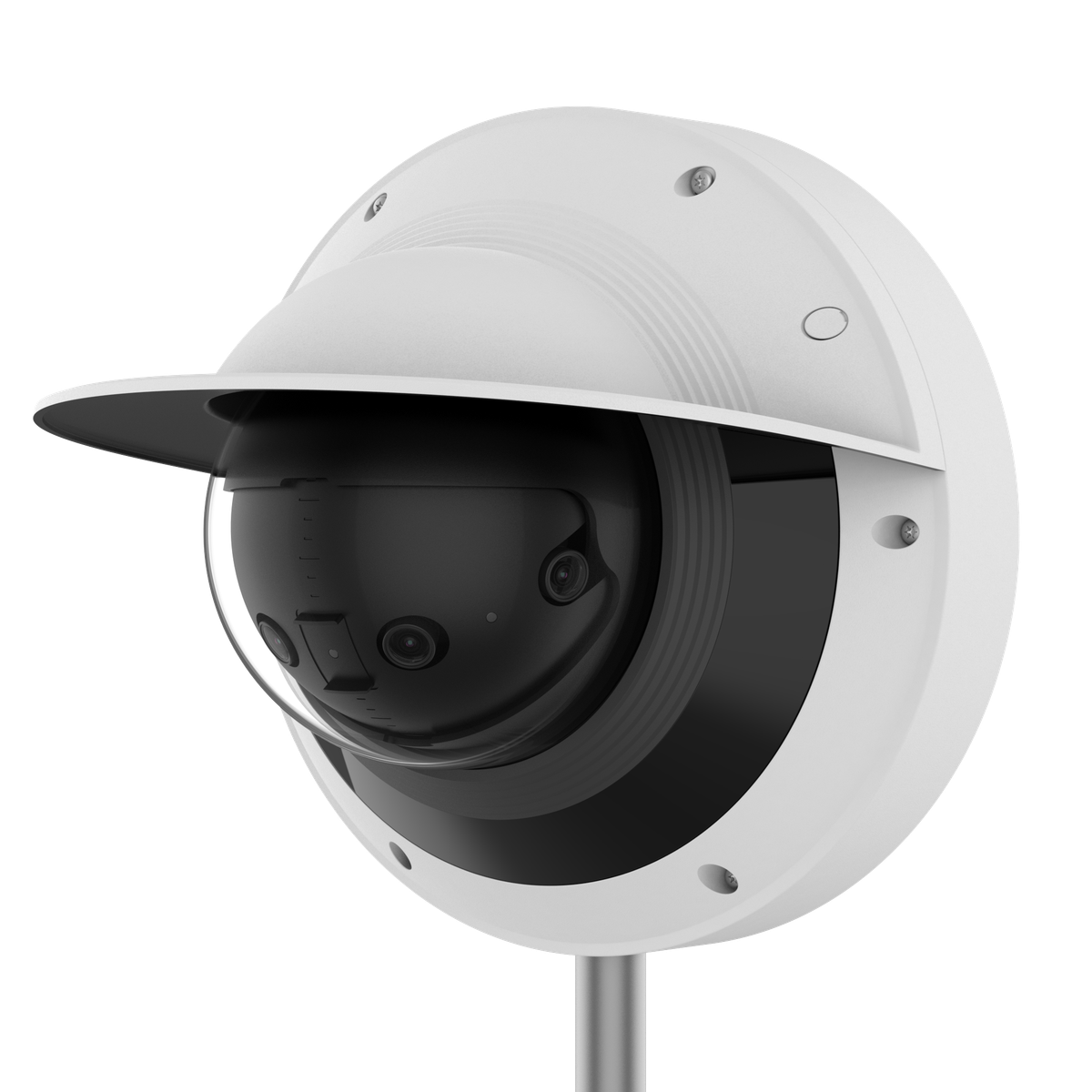

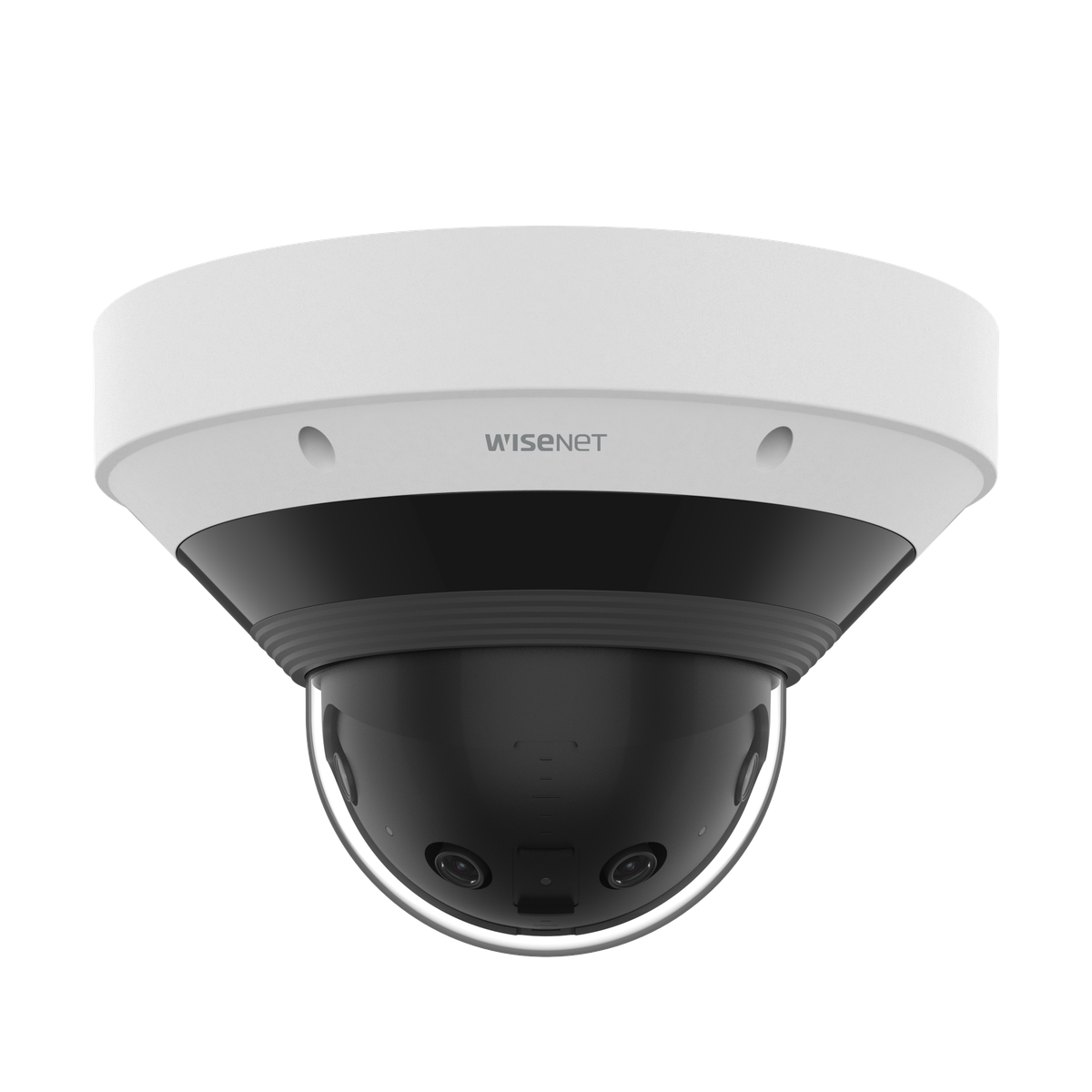

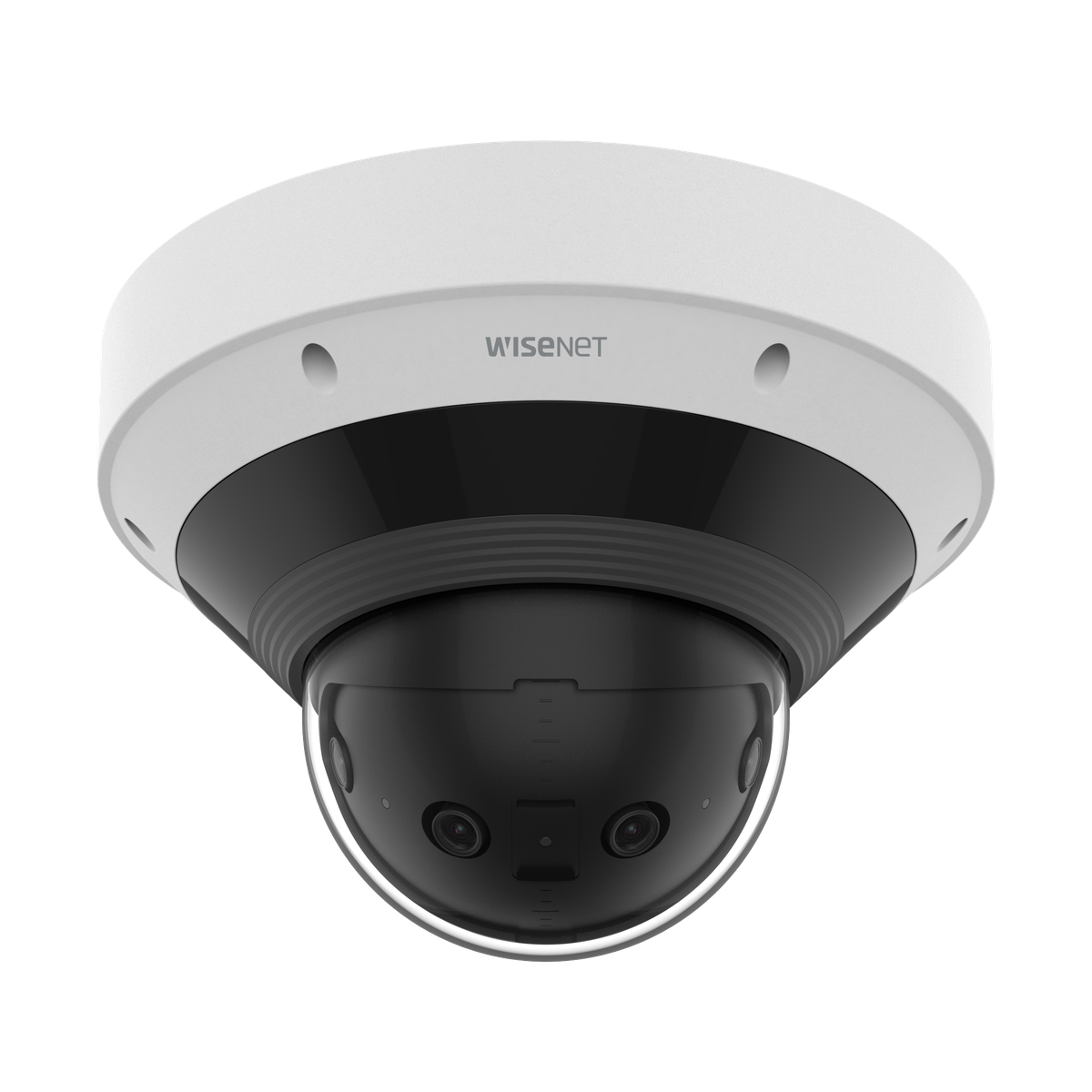

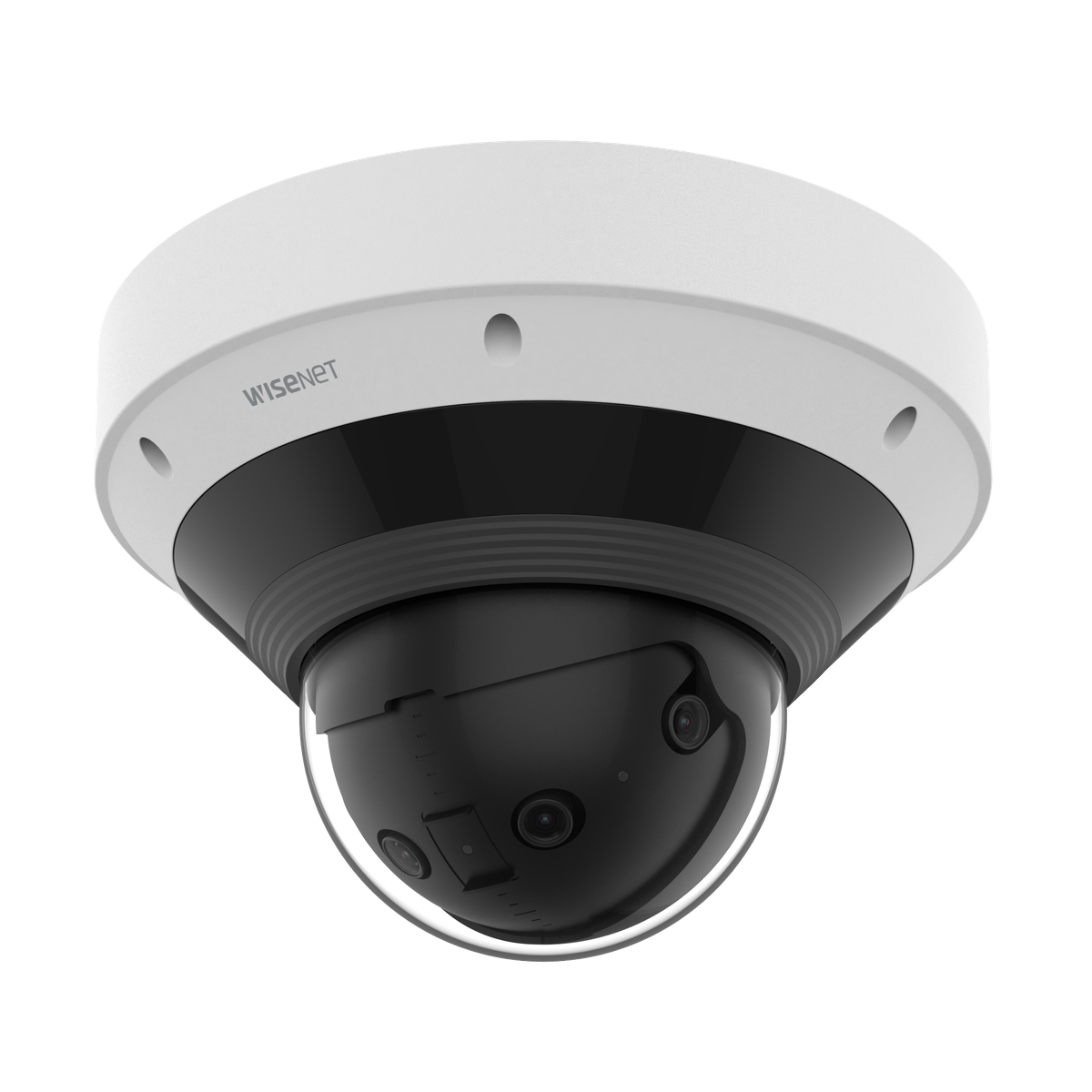

Panoramic dome camera with 360° pan and 65° tilt adjustment. Features a white aluminum housing measuring ø253 × 170 mm and weighing 2.9 kg. Designed for operation in temperatures from -40°C to +55°C with up to 95% non-condensing humidity. Supports PoE+ (IEEE802.3at Class 4) or 12VDC power, includes a Micro USB port for installation, and is compatible with standard gang box mounting options.
