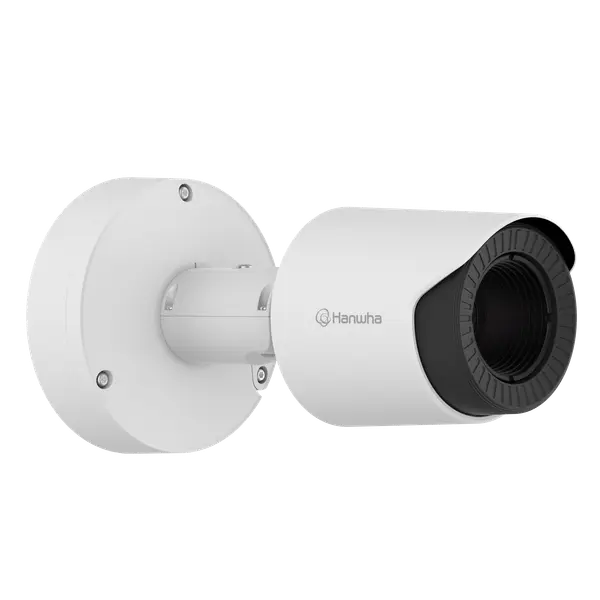

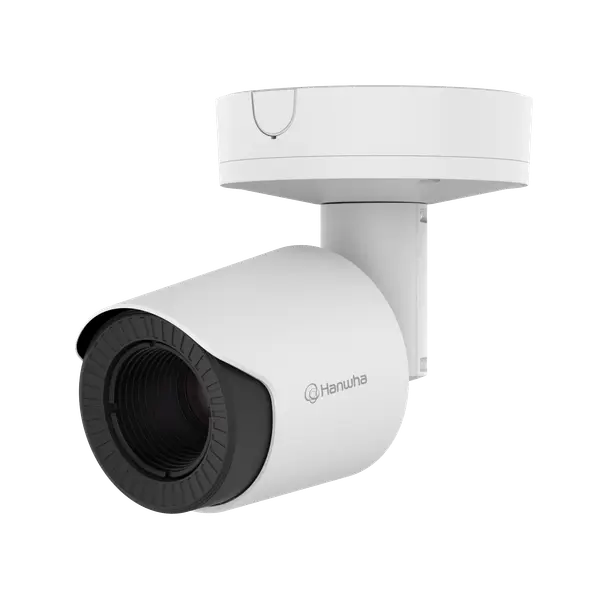

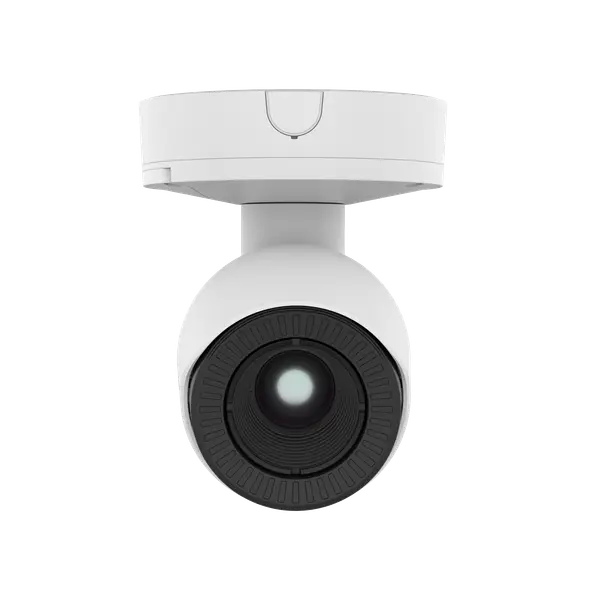

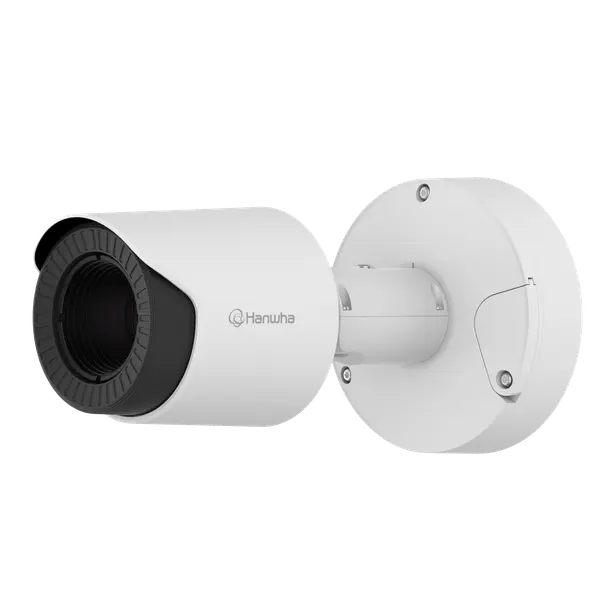

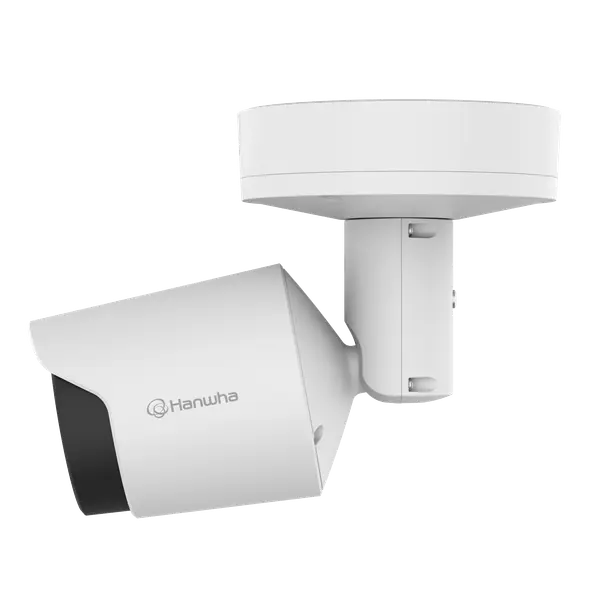

Hanwa - TNO-C3062T/KEX - Network IP QVGA AI Thermal Bullet Camera with 35mm Lens

Product Overview

Hanwha Vision TNO-C3062T is a QVGA AI tele-lens thermal network camera with a 384 × 288 uncooled microbolometer, 35 mm fixed F1.0 lens, and video output up to 768 × 576 at 8 fps. It combines thermal imaging, AI-based person and vehicle classification, radiometric monitoring, and long-range detection with rugged protection for demanding security installations.

Key Configuration

Model: TNO-C3062T | Resolution: 768 × 576 / 384 × 288 | Lens: 35 mm fixed athermalized F1.0 | Spectral Range: 8-14 µm | Connectivity: 10/100/1000BASE-T, PoE, RS-485 | Storage: Micro SD/SDHC/SDXC up to 1 TB, NAS | Protection: IP66, IP67, IK10, NEMA 250 Type 4X

Key Features

• · 384 × 288 uncooled microbolometer supports thermal video output up to 768 × 576
• · 35 mm fixed athermalized F1.0 lens provides a 10.7° horizontal field of view
• · 8-14 µm spectral range and NETD of ≤20 mK at 25°C improve thermal sensitivity
• · H.265, H.264, and MJPEG encoding provide up to 8 fps thermal video
• · AI analytics classify and detect people and vehicles with BestShot thumbnails
• · Virtual line, direction, area intrusion, loitering, enter, and exit detection support perimeter monitoring
• · Radiometric ROI monitoring supports condition analysis for increasing or decreasing temperature trends
• · MicroSD/SDHC/SDXC storage up to 1 TB and NAS recording support event-based archiving
• · 10/100/1000BASE-T Ethernet, PoE, ONVIF S/G/T/M, RS-485, and Hanwha Vision Open Platform support system integration
• · Secure boot, encrypted firmware, FIPS 140-3 Level 3 secure element, IP66/IP67, IK10, and operation from -40°C to +60°C provide enhanced protection

Technical Context

The uncooled thermal sensor detects long-wave infrared energy in the 8-14 µm range, enabling imaging independently of visible-light conditions. A NETD of ≤20 mK improves sensitivity to small temperature differences, while the 35 mm F1.0 lens supports long-range observation. Thermal palettes, radiometric ROI monitoring, and AI-based object classification help identify relevant people or vehicles and support temperature-related events.

According to Johnson's criteria, the camera provides detection distances of up to 1,230 m for people and 3,144 m for vehicles, recognition distances of up to 308 m and 786 m, and identification distances of up to 154 m and 393 m respectively.

Installation Notes

The camera measures Ø107.3 × 275 mm and weighs approximately 2,370 g. It supports IEEE 802.3af PoE Class 3 or 12 V DC power, with maximum consumption of 10.8 W via PoE or 9.4 W via DC. The operating temperature range is -40°C to +60°C with 0-95% non-condensing humidity. Pan, tilt, and rotation adjustment ranges are 0-350°, 0-90°, and 0-350°. The minimum object distance is 36.1 m. The Micro USB Type-B port is intended for preview and installation and requires a Wi-Fi dongle.
