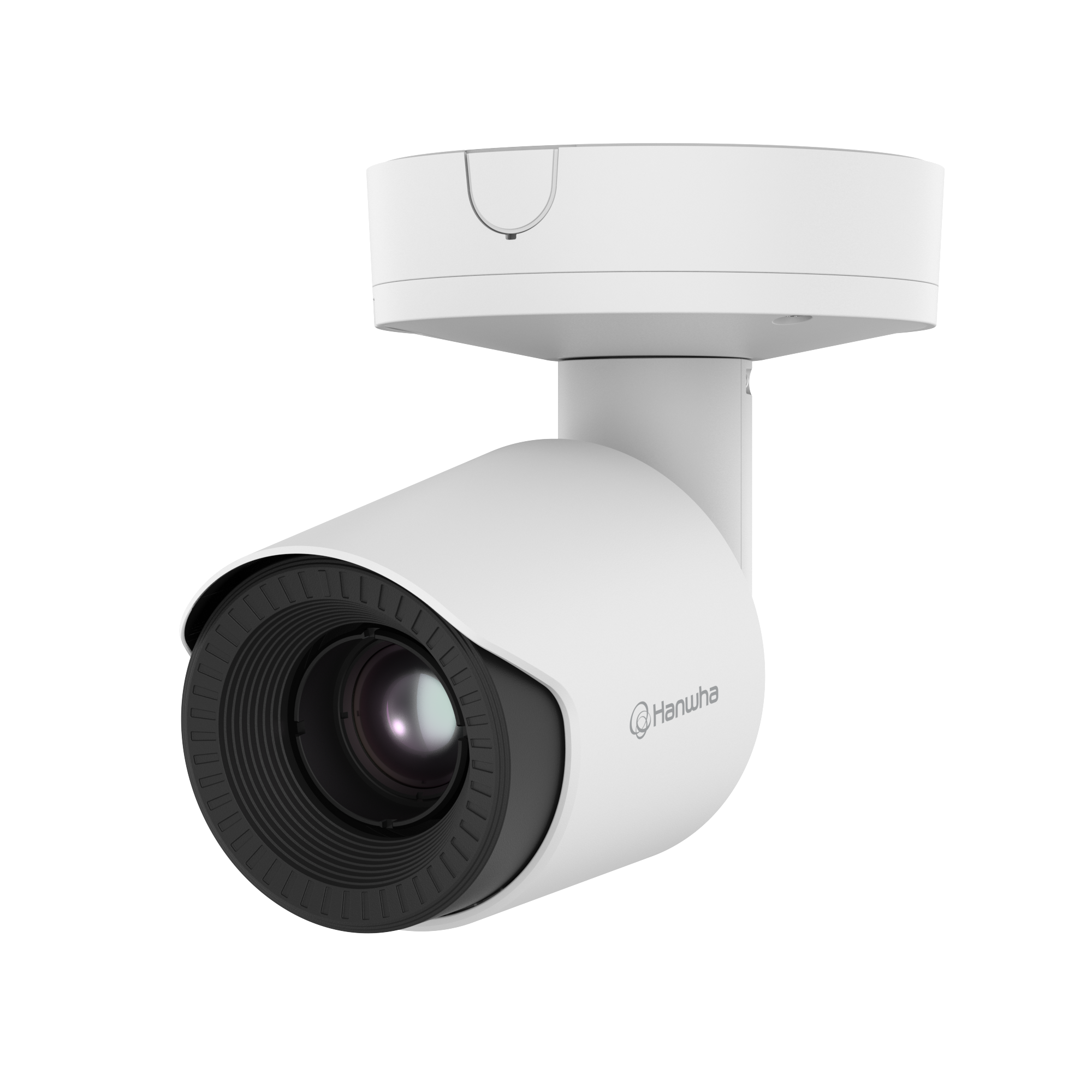

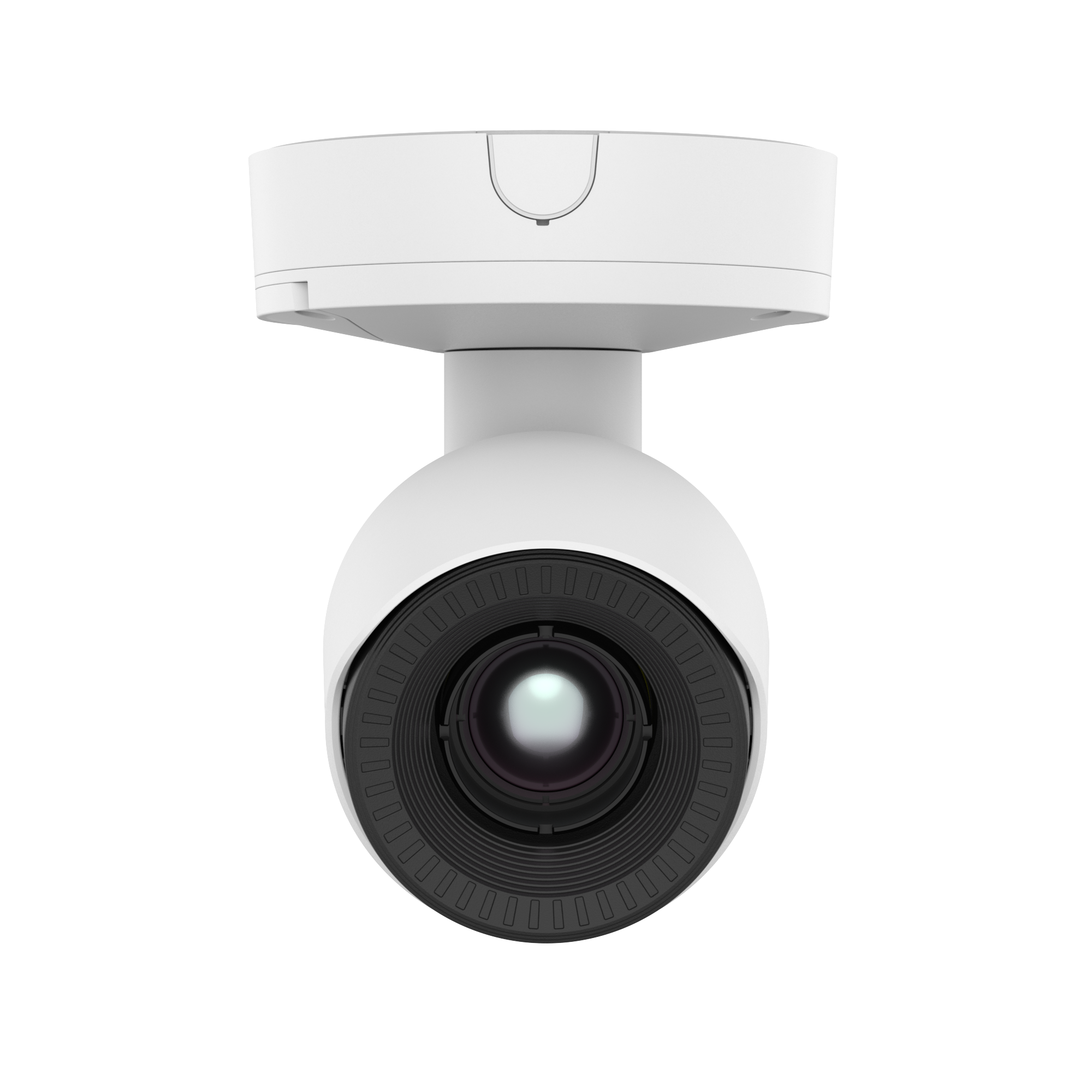

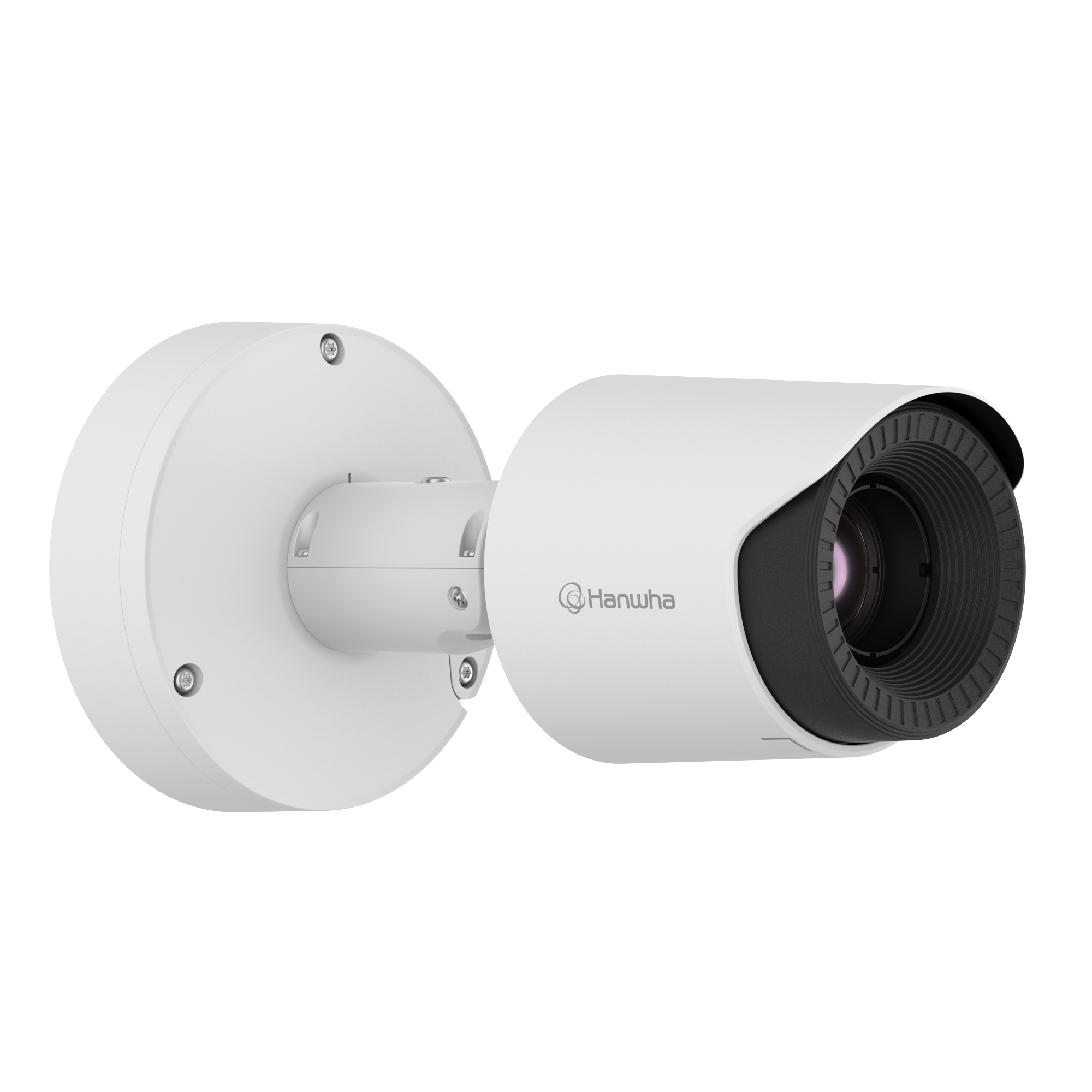

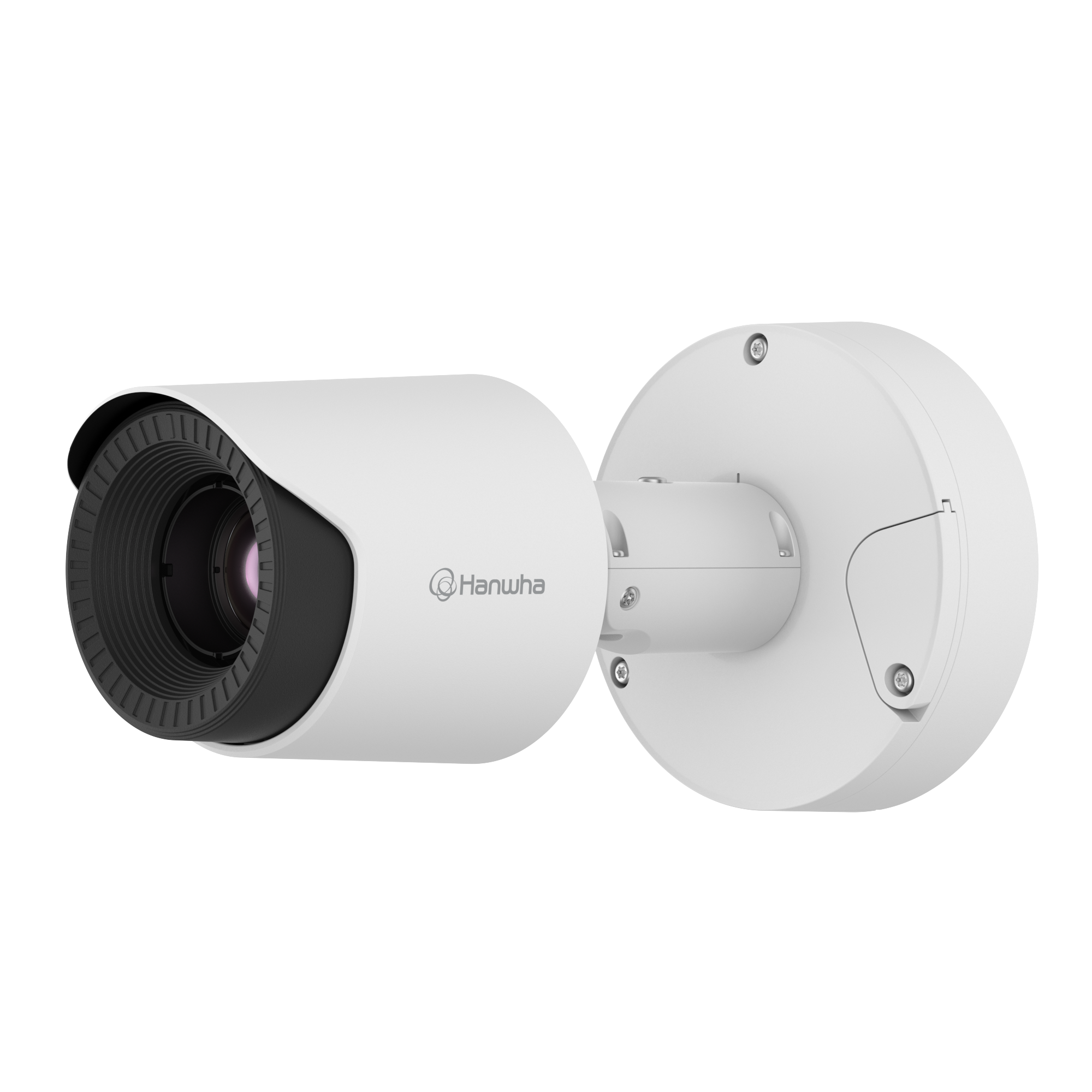

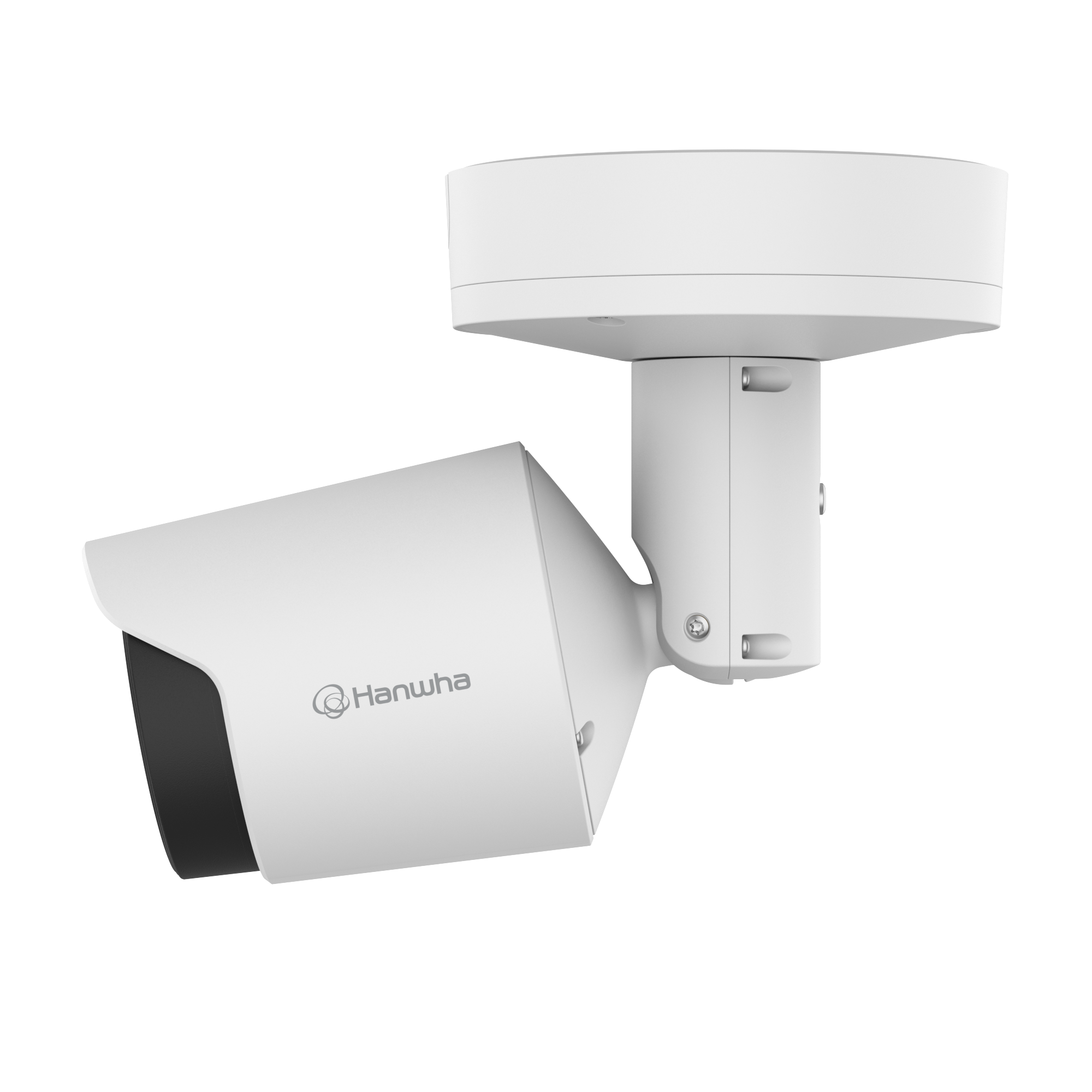

Hanwa - TNO-C4060T - Network IP VGA AI Tele Lens Thermal Camera with 35mm Lens

Product Overview

Hanwha Vision TNO-C4060T is a VGA AI tele-lens thermal network camera with a 640 × 480 uncooled microbolometer, 35 mm fixed athermalized F1.0 lens, and image upscaling up to 1280 × 960. It supports person, vehicle, and vessel detection, thermal analytics, video up to 30 fps, secure network integration, and rugged IP66/IP67, IK10, and NEMA 250 Type 4X protection.

Key Configuration

Model: TNO-C4060T | Resolution: Up to 1280 × 960, 640 × 480, 640 × 360, 320 × 240 | Lens: 35 mm fixed athermalized F1.0 | Field of View: 17.5° horizontal, 13.2° vertical | Connectivity: 10/100/1000BASE-T, PoE, USB Type-C, RS-485, alarm I/O | Storage: Micro SD/SDHC/SDXC up to 1 TB | Protection: IP66, IP67, IK10, NEMA 250 Type 4X

Key Features

• · Uncooled 640 × 480 microbolometer supports upscaled output up to 1280 × 960
• · 35 mm fixed athermalized F1.0 lens provides a 17.5° horizontal field of view
• · NETD of ≤16 mK at 25°C and F1.0 improves sensitivity to small thermal differences
• · H.265, H.264, and MJPEG codecs support up to 30 fps at supported resolutions
• · AI analytics classify and detect people, vehicles, and vessels with BestShot thumbnails
• · Virtual line crossing and direction, motion, loitering, intrusion, enter, exit, appear, and disappear analytics support perimeter monitoring
• · Thermal palettes, sound classification, and temperature-change detection support event analysis
• · Micro SD/SDHC/SDXC storage up to 1 TB and NAS recording support event-based archiving
• · 10/100/1000BASE-T Ethernet, ONVIF S/G/T/M, direct cloud connection, RS-485, and configurable alarm I/O support system integration
• · PoE or 12 V DC power, secure element protection, and operation from -40°C to +60°C support demanding installations

Technical Context

The uncooled microbolometer detects long-wave infrared energy in the 8-14 µm range, enabling thermal imaging independently of visible light. NETD of ≤16 mK improves sensitivity to temperature variations, while WiseNR and AI-based WiseStream processing help retain useful thermal detail and reduce bandwidth and storage requirements. The 35 mm tele-lens narrows the field of view for detailed observation at longer distances, while classified analytics identify people, vehicles, and vessels.

AI detection distance reaches up to 296 m for people, 423 m for vehicles, and 1,010 m for vessels. According to Johnson's criteria, detection reaches up to 1,247 m for people and 3,188 m for vehicles, with identification distances of up to 156 m and 398 m respectively.

Installation Notes

The camera measures Ø107.3 × 275 mm and weighs approximately 2,000 g. It supports IEEE 802.3af PoE Class 3 or 12 V DC power, with maximum consumption of 7.8 W via PoE or 8.1 W via DC. The operating temperature range is -40°C to +60°C with 0-95% non-condensing humidity. The minimum object distance is 36 m. The USB Type-C port is intended for preview and installation and requires a Wi-Fi dongle. Optional conduit compatibility and single, double, 4-inch octagon, and square gang-box support are available.
