Hanwa - TNV-C7013RC/KEX - Network IP AI IR Vandal Corner Camera with 2.39mm Lens
Part number:
Price:
Product Overview

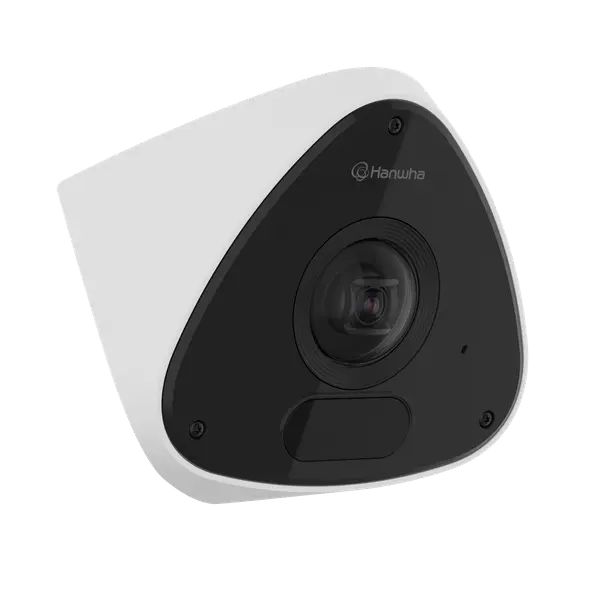

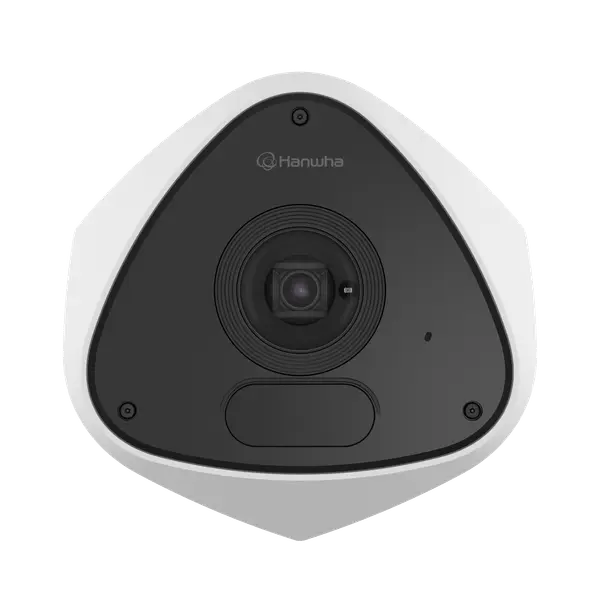

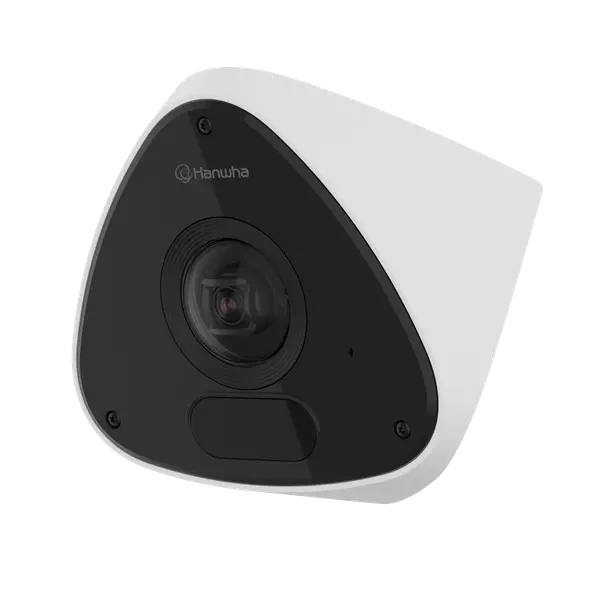

Hanwha Vision TNV-C7013RC is a 3 MP AI corner-mount network camera with a 2.39 mm fixed wide-angle lens, 128° horizontal field of view, and up to 30 fps video. Its anti-ligature design, AI-based object classification, built-in IR illumination, and IP66/IP69, IK11, and NEMA 250 Type 4X protection make it suitable for demanding security environments.
Key Configuration
Model: TNV-C7013RC | Resolution: Up to 2048 × 1536 | Lens: 2.39 mm fixed F2.0 | Field of View: 128° horizontal, 100° vertical | Connectivity: 10/100BASE-T, PoE, 12 V DC, alarm I/O | Storage: Micro SD/SDHC/SDXC up to 1 TB | Protection: IP66, IP69, IP6K9K, IK11, NEMA 250 Type 4X
Key Features
- · Up to 3 MP resolution with 2048 × 1536 maximum image output
- · 2.39 mm fixed F2.0 lens provides a 128° horizontal and 100° vertical field of view
- · H.265, H.264, and MJPEG codecs support up to 30 fps at supported resolutions
- · AI analytics classify people, faces, vehicles, and license plates
- · Object detection, virtual line crossing and direction, loitering, intrusion, enter, and exit analytics support intelligent monitoring
- · Vehicle attributes include car, bus, truck, motorcycle, and bicycle classification
- · WiseIR 15 m infrared illumination uses an invisible 940 nm wavelength
- · 120 dB WDR, WiseNR II, SSNR V, defog, and digital image stabilization improve image usability in challenging scenes
- · Micro SD/SDHC/SDXC storage up to 1 TB and NAS recording support event-based archiving
- · Anti-ligature construction, PoE or 12 V DC power, and IP66/IP69, IP6K9K, IK11, and NEMA 250 Type 4X protection support demanding installations
Technical Context
The wide-angle 2.39 mm lens covers a broad corner area from a single mounting position, while 120 dB WDR helps balance bright and dark regions in high-contrast scenes. WiseNR II, SSNR V, defog, and digital stabilization support clearer video in low-light, hazy, or vibrating environments. H.265/H.264 compression with WiseStream III helps reduce bandwidth and storage requirements, and AI analytics provide classified detection events for people, faces, vehicles, and license plates.
Installation Notes

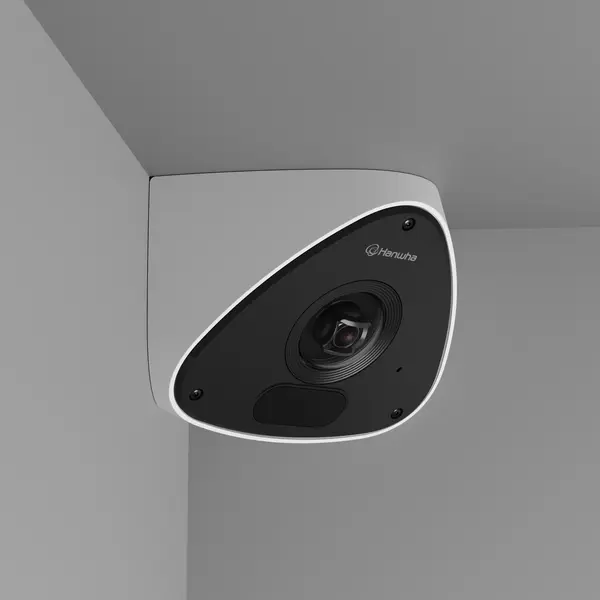

The camera measures 198.3 × 104.8 × 198.6 mm and weighs approximately 1,935 g. It supports IEEE 802.3af PoE Class 3 or 12 V DC power, with maximum consumption of 12.95 W via PoE or 12.7 W via DC. The operating temperature range is -10°C to +55°C with 0-95% non-condensing humidity. The minimum object distance is 0.5 m, and the camera provides two configurable alarm I/O ports. Its anti-ligature corner-mount design is intended for corrections and mental health facilities.
| General | |
| Model | TNV-C7013RC |
| Product Type | AI Corner Mount Camera |
| Compatible Device | SPG-VAN13W |
| Installation Design | Anti-ligature corner-mount design for correctional and mental health facilities |
| Memory | 4 GB RAM |
| Flash Memory | 512 MB |
| Edge Storage | 1 x Micro SD/SDHC/SDXC slot, up to 1 TB |
| Video | |
| Image Sensor | 1/1.8-inch CMOS |
| Maximum Resolution | 2048 x 1536, up to 3 MP |
| Supported Resolutions | 2048 x 1536; 1920 x 1080; 1600 x 1200; 1280 x 1024; 1280 x 960; 1280 x 720; 1024 x 768; 800 x 600; 800 x 448; 720 x 576; 720 x 480; 640 x 480; 640 x 360; 320 x 240 |
| Maximum Frame Rate | H.265/H.264: 30 fps at 60 Hz or 25 fps at 50 Hz MJPEG: 30 fps; maximum 5 fps at 3 MP |
| Minimum Illumination - Color | 0.04 lux at 1/30 sec, 30 IRE |
| Minimum Illumination - Black and White | 0.004 lux at 1/30 sec, 30 IRE |
| Video Compression | H.265/H.264 Main, Baseline and High profiles; MJPEG |
| Smart Codec | Manual, WiseStream III |
| Bitrate Control | H.265/H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast: up to 20 users Multicast supported Multiple streaming: up to 10 profiles |
| Lens | |
| Focal Length | 2.39 mm |
| Maximum Aperture | F2.0 |
| Horizontal Field of View | 128° |
| Vertical Field of View | 100° |
| Minimum Object Distance | 0.5 m (1.64 ft) |
| Focus Control | Fixed |
| Image and Camera Functions | |
| Day and Night | Auto ICR |
| Backlight Compensation | BLC, HLC, WDR and SSDR |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | WiseNR II based on AI engine; SSNR V |
| Digital Image Stabilization | Supported |
| Defog | Supported |
| Gain Control | Off, maximum gain and manual |
| White Balance | ATW, Narrow ATW, AWC, manual, indoor and outdoor |
| Electronic Shutter | Minimum, maximum and anti-flicker modes Speed range: 2-1/12,000 sec |
| Video Rotation | Flip, mirror and hallway view at 90°/270° |
| Color Options | Gray, Green, Red, Blue, Black, White and Mosaic |
| Lighting and Audio | |
| IR Lighting | WiseIR IR LED |
| IR Viewable Length | 15 m (49.21 ft) |
| IR Wavelength | 940 nm |
| Audio Input | Selectable microphone input or line input; built-in microphone |
| Audio Output | Line output |
| Audio Compression | G.711 u-law and G.726 selectable G.726 ADPCM at 8 kHz G.711 at 8 kHz G.726: 16, 24, 32 and 40 kbps AAC-LC: 48 kbps at 16 kHz |
| Operational Features | |
| Motion Detection | 8 zones; 8-point polygonal zones |
| Privacy Masking | 32 zones; 4-point quadrangle zones |
| Alarm Interface | 2 configurable I/O ports |
| Additional Alarm I/O | Supported through an optional I/O box |
| Alarm Triggers | Analytics, network disconnection, alarm input, application event, time schedule and MQTT subscription |
| Alarm Events | Image upload by email, FTP or SFTP Video clip upload by FTP or SFTP Email notification SD/SDHC/SDXC or NAS event recording Alarm output, PTZ preset handover, HTTP/HTTPS/TCP messaging, audio clip playback and MQTT publication |
| Analytics | |
| Classified Object Types | Person, face, vehicle and license plate |
| Vehicle Attributes | Car, bus, truck, motorcycle and bicycle |
| Thumbnail | DetectionShot |
| AI Analytics | Object detection Virtual line: crossing and direction Virtual area: loitering, intrusion, enter and exit Motion detection |
| Normal Analytics | Defocus detection, tampering, fog detection, audio detection, sound classification and virtual area appear/disappear |
| Clothing Color Detection | Orange, black and red at 400 lux |
| Network | |
| Ethernet | Metal-shielded RJ-45, 10/100BASE-T |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3, ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP and MQTT |
| Application Interface | ONVIF S, G, T and M |
| Programming Interface | SUNAPI (HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Supported |
| Security | |
| Firmware Protection | Encrypted firmware, secure boot and signed firmware |
| User Authentication | Digest authentication and brute-force attack prevention |
| Network Authentication | IEEE 802.1X with EAP-TLS, EAP-LEAP, EAP-PEAP and MSCHAPv2 |
| Secure Communication | HTTPS, WSS and SRTP |
| Access Control | IP-based access control |
| Data Protection | Encrypted credentials and encrypted live recording file export |
| Secure Storage | TPM, HTPM and AES-256 encrypted SD card partition |
| Security Certificate | TPM 2.0 with FIPS 140-2 Level 2 |
| Audit | Access, system and event log management |
| Electrical | |
| Input Voltage | PoE IEEE 802.3af Class 3 or 12 VDC |
| Power Consumption via PoE | Typical: 9.7 W Maximum: 12.95 W |
| Power Consumption via 12 VDC | Typical: 9.0 W Maximum: 12.7 W |
| Mechanical | |
| Material | Aluminum |
| Color | White |
| RAL Code | RAL9003 |
| Dimensions | 198.3 (W) x 104.8 (H) x 198.6 (D) mm 7.87 x 4.13 x 7.82 in |
| Product Weight | 1,935 g (4.27 lb) |
| Environmental | |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | -50°C to +60°C (-58°F to +140°F) |
| Operating Humidity | 0-95% RH, non-condensing |
| Storage Humidity | 0-90% RH, non-condensing |
| Humidity Control | Supported with air vent |
| DORI Performance | |
| Detection | 35.1 m (115.16 ft) at 25 PPM / 8 PPF |
| Observation | 14 m (45.93 ft) at 63 PPM / 19 PPF |
| Recognition | 7.0 m (22.97 ft) at 125 PPM / 38 PPF |
| Identification | 3.5 m (11.48 ft) at 250 PPM / 76 PPF |
| Protection and Certifications | |
| Ingress Protection | IP66 and IP69 |
| Impact Protection | IK11 |
| Environmental Protection | ISO 20653 IP6K9K and NEMA Type 4X |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A and KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 No. 62368-1 and IEC 62471 |
| Environmental Standards | IEC/EN 63000, IEC 60529, IEC 62262 and ISO 20653 |
