Hanwha - WRT-P-5205W-4TB - Mini-Tower Wisenet WAVE Recording Server with 4 Professional Licenses, 4TB Windows
Product Overview
The WRT-P-5205W-4TB is a mini-tower server preconfigured with Windows 11 IoT Enterprise LTSC 2024 and Wisenet WAVE VMS. Driven by an Intel Core Ultra 5 processor and 16GB RAM, it manages 470 Mbps throughput and up to 64 Wisenet or ONVIF IP camera channels. This 4TB unit utilizes three front-access, hot-swappable 3.5" bays expandable to 36TB raw. Network integration is handled via 1GbE and 5GbE RJ45 interfaces.
Key Configuration
- • Recording throughput: up to 470 Mbps; supports up to 64 channels
- • Storage: 4TB included; up to 36TB raw storage; 3× 3.5" front hot-swappable bays; OS drive: 1× 512GB M.2 SSD (internally mounted)
- • Processor: Intel Core Ultra 5; RAM: 16GB; OS: Windows 11 IoT Enterprise LTSC 2024 (Ubuntu 22.04 LTS optional)
- • Network interfaces: 1× 1GbE RJ45, 1× 5GbE RJ45
- • Dimensions: 7.40"W × 17.24"D × 15.24"H (187.7 × 438 × 387 mm); weight: 44.97 lbs (20.40 kg)
Key Features
Preconfigured with the Wisenet WAVE VMS and utility tools, this server includes four Professional licenses for immediate deployment. The system features a 1500W 80 Plus Platinum power supply, hot-swappable data drive bays, and wide support for Wisenet and ONVIF-conformant IP cameras. For a turnkey installation, a USB mouse and keyboard are included in the box.
Technical Context

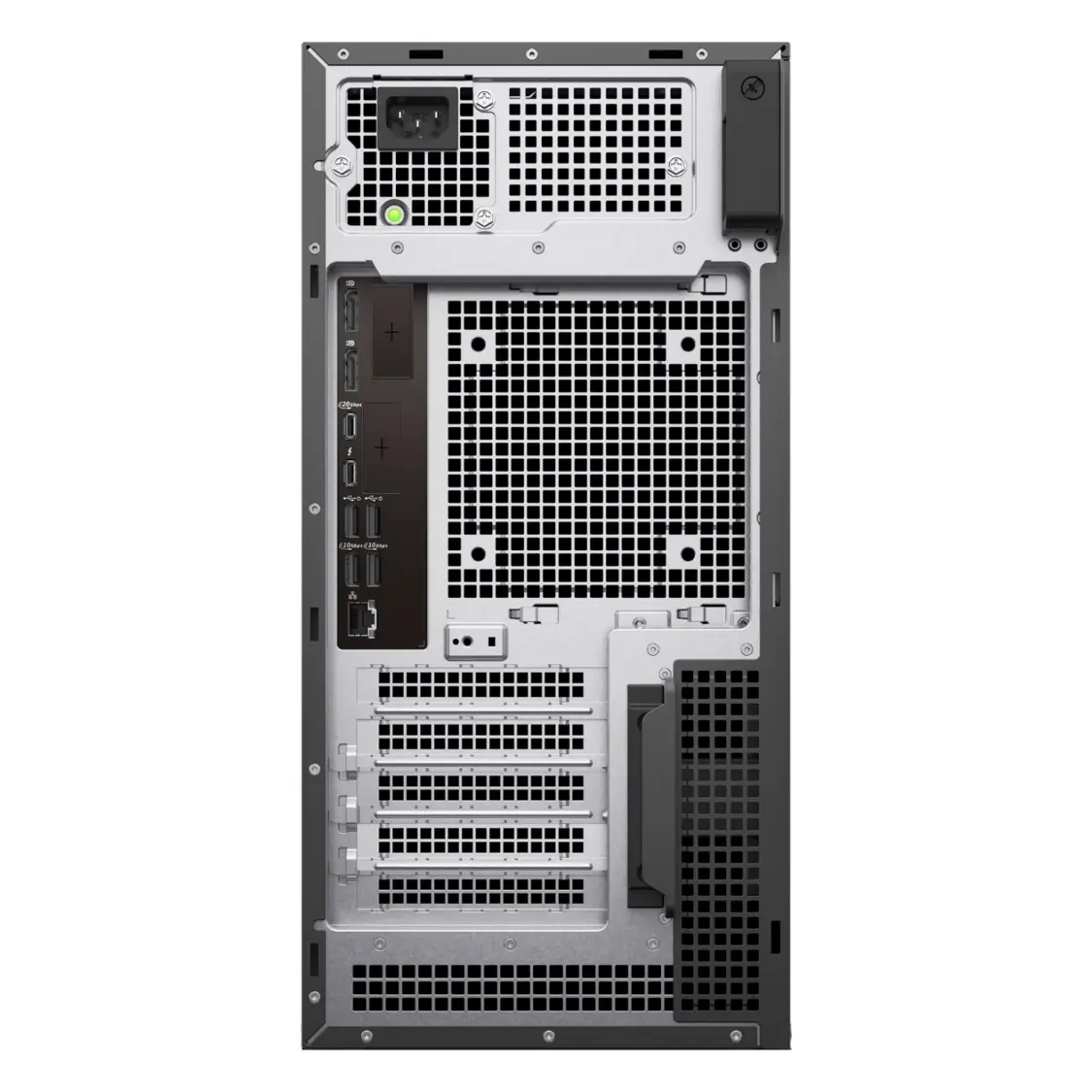

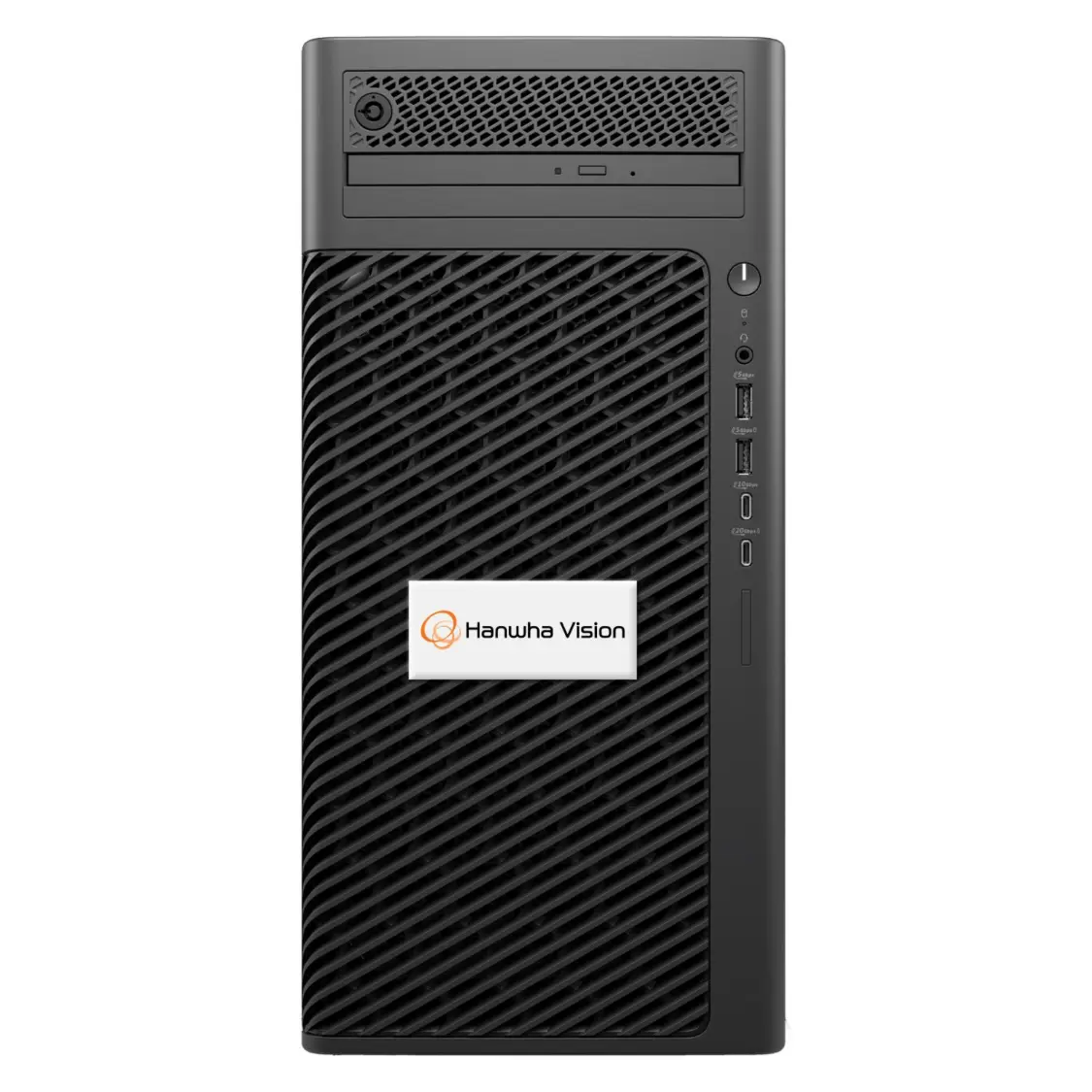

This black metal mini-tower features flexible connectivity, including front and rear USB 3.2 Gen2x2 Type-C ports, a rear Thunderbolt port, and a front 3.5mm audio jack. Operating on a universal 100–240 VAC input, it is powered by an efficient 80 Plus Platinum supply and carries UL, cUL, CB, and FCC certifications.
Installation Notes
Measuring 7.40" × 17.24" × 15.24" (187.7 × 438 × 387 mm) and weighing 44.97 lbs (20.40 kg), this mini-tower features hot-swappable HDD bays for straightforward storage maintenance. It operates from 10°C to 35°C (50°F to 95°F) within a 20–85% non-condensing humidity range. The system comes complete with a USB mouse and keyboard, and includes a 5-Year Next Business Day Keep Your Hard Drive warranty.
| Recording Bandwidth | Up to 470 Mbps * Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS |
| Included Licenses | 4 x Wave Professional License |
| OS Drive Bays | 1 x 512GB M.2 SSD (Internally Mounted) |
| Data Storage | Up to 36TB raw storage |
| Network Interface | 1x 1GbE, 1x 5GbE RJ45 |
| Memory | 16GB |
| Other Ports | Front: 1x 3.5mm Universal Audio |
| Keyboard & Mouse | Included |
| USB Ports | Front: 2x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen 2x2 Type-C Rear: 2x USB 2.0, 2x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C, 1x Type-C Thunderbolt |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 / Ubuntu 22.04 LTS |
| Processor | 1 x Intel Core Ultra 5 |
| Data Drive Bays | 3 x 3.5" Front Hot Swappable Bays |
| Included Licenses | 4 x Wave Professional License |
| Mechanical Form Factor | mini-tower |
| Color / Material | Black/Metal |
| Dimensions (WxDxH) | 7.40"(187.70mm) x 17.24"(438mm) x 15.24"(387mm) |
| Weight | 44.97 lbs (20.40 kg) |
| Electrical Power Supply | 1500W 80 Plus Platinum |
| Power Input | 100 - 240 VAC |
| Environmental Operating Temperature | 50F - 95F (10C - 35C) |
| Storage Temperature | -40F to 149F (-40C to 65C) |
| Operating Humidity | 20% to 85% (non-condensing) |
| Certifications | UL, cUL, CB, FCC, 80 Plus Platinum |
