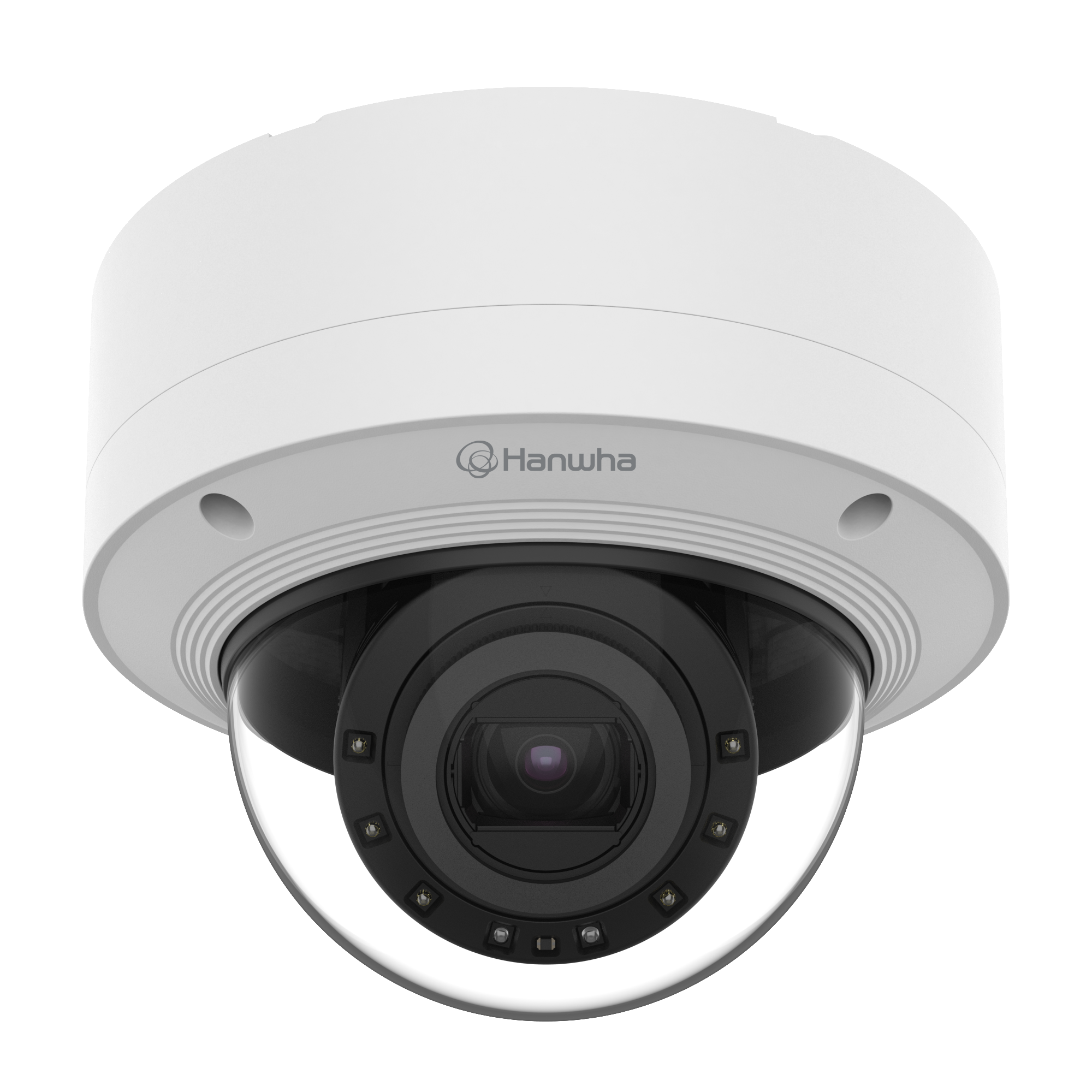

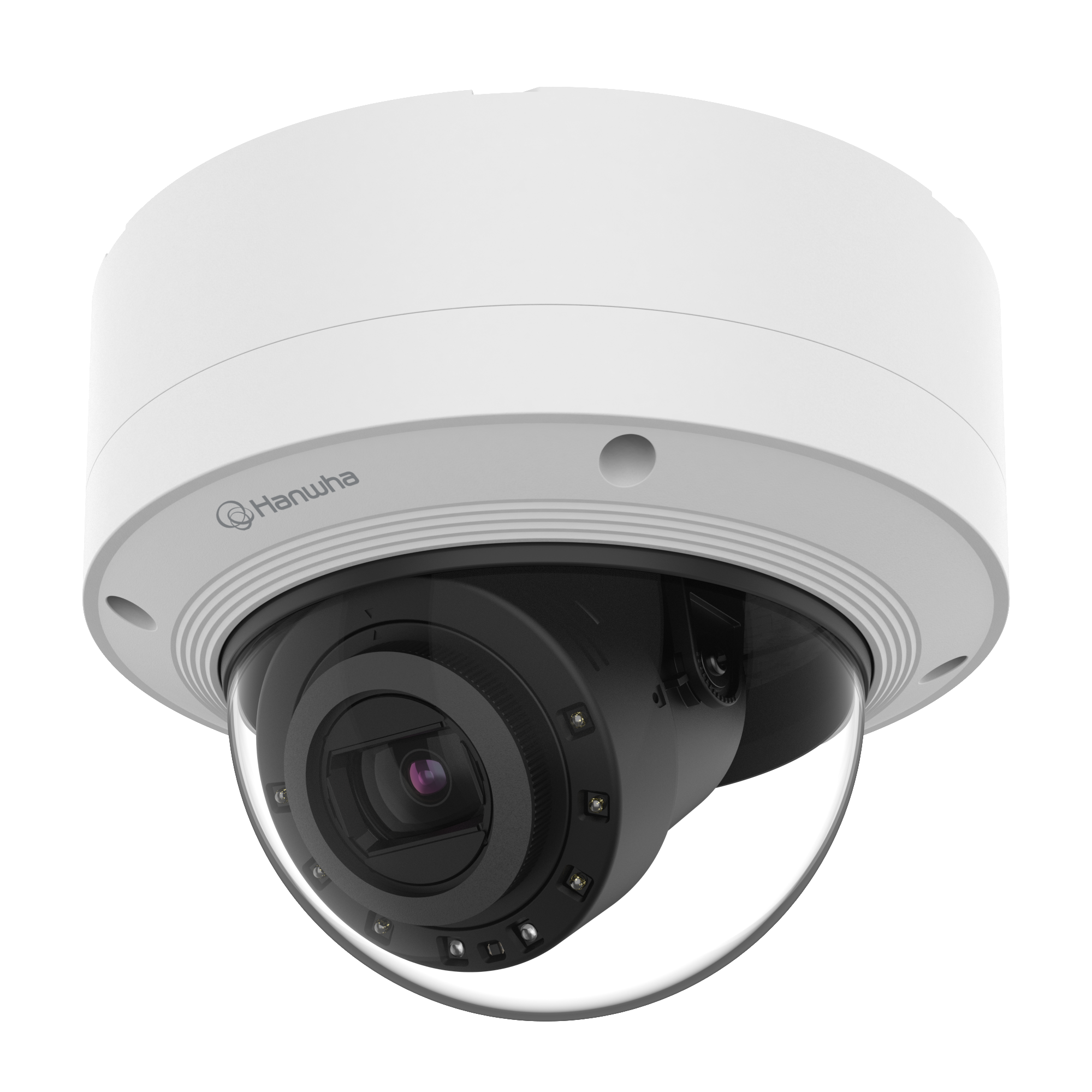

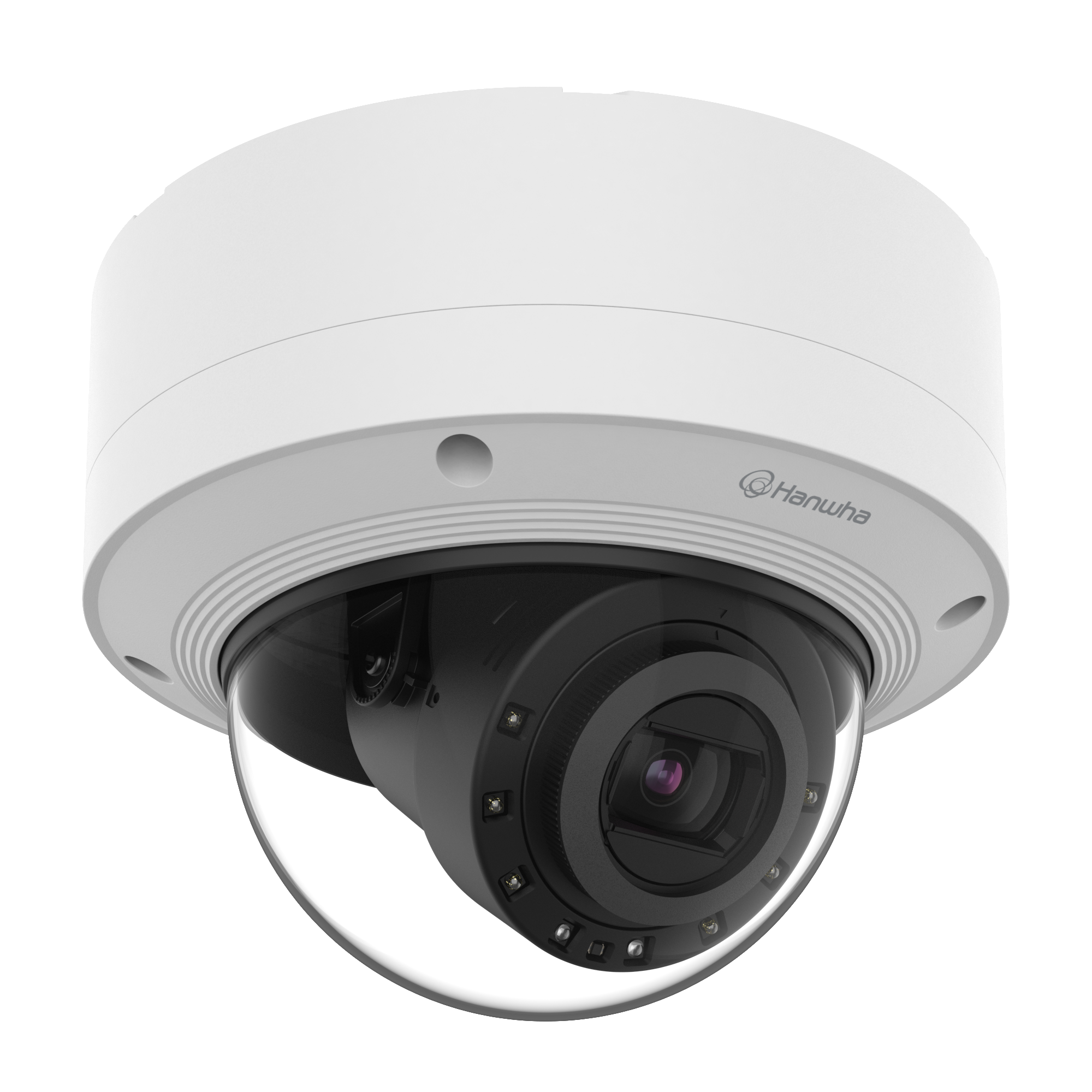

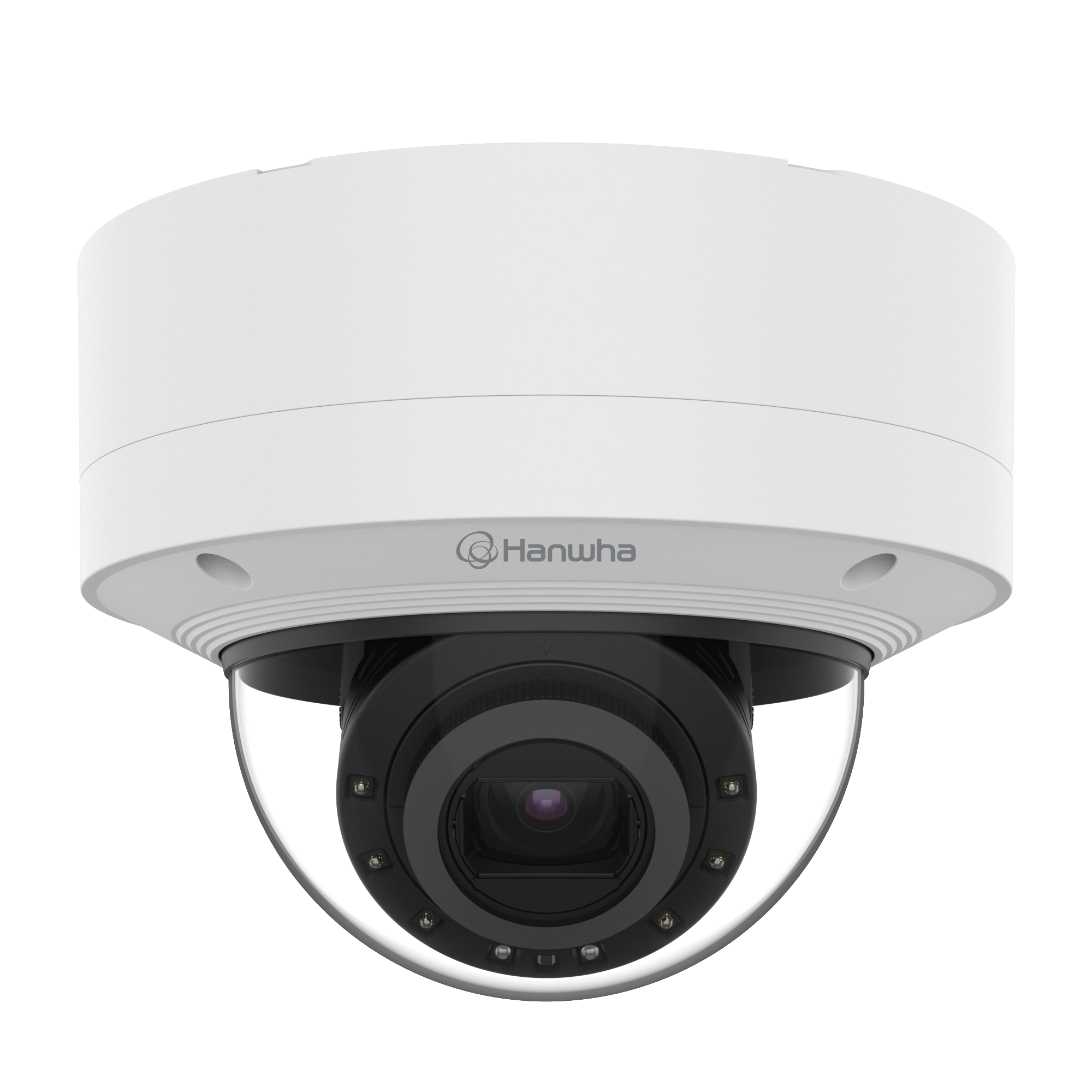

Hanwa - XNV-6123R/KEX - Network IP Outdoor IR AI Dome Camera with 5.2-62.4mm Lens

Name: Hanwa - XNV-6123R/KEX - Network IP Outdoor IR AI Dome Camera with 5.2-62.4mm Lens
Brand: Hanwha Vision
SKU: XNV-6123R/KEX

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

Product Overview

Hanwha Vision XNV-6123R-KEX is a 2 MP network IP outdoor IR AI dome camera with a 5.2-62.4 mm motorized varifocal lens and 12x optical zoom. It provides detailed video in changing lighting conditions, supports up to 120 fps using H.265/H.264, and integrates with HealthPro and OnCloud platforms for remote management.

Key Configuration

Key Features

· 2 MP resolution provides detailed video for monitoring and identification
· 5.2-62.4 mm motorized varifocal lens offers 12x zoom flexibility
· Color imaging operates at 0.03 Lux with F1.6, 1/30 sec, and 30 IRE settings
· IR LED operation enables monitoring in complete darkness at 0 Lux
· H.265/H.264 encoding supports a maximum frame rate of 120 fps
· AI technology supports advanced surveillance capabilities
· CloudConnector compatibility enables integration with HealthPro and OnCloud
· Outdoor dome design is suited to exterior network surveillance installations

Technical Context

The motorized varifocal lens allows the viewing angle and magnification to be adjusted for different surveillance areas, while the 12x zoom supports closer inspection of distant subjects. High frame-rate H.265/H.264 video provides smooth motion rendering, and IR illumination maintains visibility when ambient light is unavailable. CloudConnector compatibility enables centralized access and remote management through HealthPro and OnCloud.

General
Model	XNV-6123R
Product Type	2 MP AI IR Vandal Dome Camera
Compatible Devices	SBP-180HMW1, SBV-180BW, SBV-180WW, SBP-150CMI, SBP-300CMI, SBP-300CMW1, SBP-900CMW, SBP-300CMTW, SBP-300CMTS, SBP-300WMW, SBP-300WMW1, SBP-390WMW2, SBD-180PMW, SBP-300PMW2, SHD-1370FPW, SBP-300LMW, SBP-156LMW1, SBP-300KMW1 and SBP-300NBW
Memory	2 GB RAM
Flash Memory	512 MB
Edge Storage	2 x Micro SD/SDHC/SDXC slots, up to 512 GB per slot; 1 TB total
Cloud Edge Storage	2 x Micro SD/SDHC/SDXC slots, up to 1 TB per slot; 2 TB total
Video
Image Sensor	1/2.8-inch CMOS
Maximum Resolution	1920 x 1080, 2 MP
Supported Resolutions	1920 x 1080; 1280 x 1024; 1280 x 960; 1280 x 720; 1024 x 768; 800 x 600; 800 x 448; 720 x 576; 720 x 480; 640 x 480; 640 x 360; 320 x 240
Maximum Frame Rate	H.265/H.264: 120 fps at 60 Hz or 100 fps at 50 Hz with WDR off; 60 fps at 60 Hz or 50 fps at 50 Hz with WDR on MJPEG: 30 fps
Minimum Illumination - Color	0.03 lux at 1/30 sec, 30 IRE
Minimum Illumination - Black and White	0.003 lux at 1/30 sec, 30 IRE
Video Output	CVBS: 1.0 Vp-p / 75 Ω composite output for installation USB: Micro USB Type-B
Video Compression	H.265/H.264 Main, Baseline and High profiles; MJPEG
Smart Codec	Manual, WiseStream III
Bitrate Control	H.265/H.264: CBR or VBR MJPEG: VBR
Streaming	Unicast: up to 20 users Multicast supported Multiple streaming: up to 10 profiles
Lens
Lens Type	DC auto iris
Focal Length	5.2-62.4 mm
Optical Zoom	12x
Digital Zoom	32x
Maximum Aperture	F1.6 wide; F3.0 tele
Horizontal Field of View	55°-5°
Vertical Field of View	33°-3°
Diagonal Field of View	62°-6°
Minimum Object Distance	2.1 m (6.89 ft)
Focus Control	One-shot autofocus and focus save
Pan, Tilt and Rotation
Pan Range	0°-360°
Tilt Range	0°-80°
Rotation Range	0°-355°
Sequence	300 presets
Image and Camera Functions
Day and Night	Auto ICR
Backlight Compensation	BLC, HLC, WDR and SSDR
Wide Dynamic Range	150 dB
Digital Noise Reduction	WiseNR II based on AI engine; SSNR V
Digital Image Stabilization	Supported; built-in gyro sensor
Defog	Supported
Lens Distortion Correction	Supported; fill and stretch modes
Gain Control	Off, maximum gain and manual
White Balance	ATW, Narrow ATW, AWC, manual, indoor and outdoor
Electronic Shutter	Minimum, maximum, anti-flicker and AI-based preferred shutter control Speed range: 2-1/12,000 sec
Video Rotation	Flip, mirror and hallway view at 90°/270°
Motion Detection	8 zones; 8-point polygonal zones
Privacy Masking	32 zones; 4-point quadrangle zones
Color Options	Gray, Green, Red, Blue, Black, White and Mosaic
Lighting and Audio
IR Lighting	IR LED
IR Viewable Length	WiseIR: 90 m (295.28 ft)
IR Wavelength	850 nm
Audio Input	Selectable microphone input or line input
Audio Output	Line output
Audio Compression	G.711 u-law and G.726 selectable G.726 ADPCM at 8 kHz G.711 at 8 kHz G.726: 16, 24, 32 and 40 kbps AAC-LC: 48 kbps at 16 kHz
Additional Output	12 VDC output
Analytics
Classified Object Types	Person, face, vehicle and license plate
Vehicle Attributes	Car, bus, truck, motorcycle and bicycle
Thumbnail	DetectionShot
AI Analytics	Object detection Virtual line: crossing and direction Virtual area: loitering, intrusion, enter and exit Motion detection
Normal Analytics	Defocus detection, tampering, fog detection, audio detection, sound classification, shock detection and virtual area appear/disappear
Alarm Triggers	Analytics, network disconnection, alarm input, application event, time schedule and MQTT subscription
Alarm Interface	2 configurable I/O ports
Additional Alarm I/O	Supported through an optional I/O box
Alarm Events	Image upload by email, FTP or SFTP Video clip upload by FTP or SFTP Email notification SD/SDHC/SDXC or NAS event recording Alarm output, PTZ preset handover, HTTP/HTTPS/TCP messaging, audio clip playback and MQTT publication
Network
Ethernet	Metal-shielded RJ-45, 10/100/1000BASE-T
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3, ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP and MQTT
Application Interface	ONVIF S, G, T and M
Programming Interface	SUNAPI (HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection	Supported
Security
Firmware Protection	Encrypted firmware, secure boot and signed firmware
User Authentication	Digest authentication and brute-force attack prevention
Network Authentication	IEEE 802.1X with EAP-TLS, EAP-LEAP, EAP-PEAP and MSCHAPv2
Secure Communication	HTTPS, WSS and SRTP
Access Control	IP-based access control
Data Protection	Encrypted credentials and encrypted live recording file export
Secure Storage	TPM, HTPM and AES-256 encrypted SD card partition
Security Certificate	TPM 2.0 with FIPS 140-2 Level 2
Audit	Access, system and event log management
Electrical
Input Voltage	PoE+ IEEE 802.3at Class 4 or 12 VDC
Power Consumption via PoE	Typical: 15.5 W Maximum: 19.5 W
Power Consumption via 12 VDC	Typical: 13.1 W Maximum: 16.5 W
Power Redundancy	Failover supported
Mechanical
Material	Aluminum with hard-coated dome
Color	White
RAL Code	RAL9003
Dimensions	Ø180 x 138 mm (Ø7.09 x 5.43 in)
Product Weight	2,130 g (4.70 lb)
Compatible Conduit Hole	19.1 mm (3/4 in), M25
Compatible Gang Boxes	Single, double, 4-inch octagonal and square
Environmental
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Storage Temperature	-50°C to +60°C (-58°F to +140°F)
Operating Humidity	0-100% RH, condensing
Storage Humidity	0-90% RH, non-condensing
Startup Requirement	Startup should be performed above -30°C
Humidity Control	Supported with air vent
DORI Performance
Detection	Wide: 73.8 m (242.01 ft) Tele: 879.5 m (2,885.51 ft)
Observation	Wide: 29.5 m (96.81 ft) Tele: 351.8 m (1,154.21 ft)
Recognition	Wide: 14.8 m (48.40 ft) Tele: 175.9 m (577.10 ft)
Identification	Wide: 7.4 m (24.20 ft) Tele: 88.0 m (288.55 ft)
Protection and Certifications
Ingress Protection	IP66, IP67 and IP6K9K
Impact Protection	IK10+
Environmental Protection	NEMA Type 4X and NEMA TS 2-2013
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A and KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 No. 62368-1 and IEC 62471
Environmental Standards	IEC/EN 63000, IEC 60529, ISO 20653, IEC 62262 and NEMA 250 Type 4X
Note: The Micro USB Type-B port is intended for preview and installation only and requires a Wi-Fi dongle.
