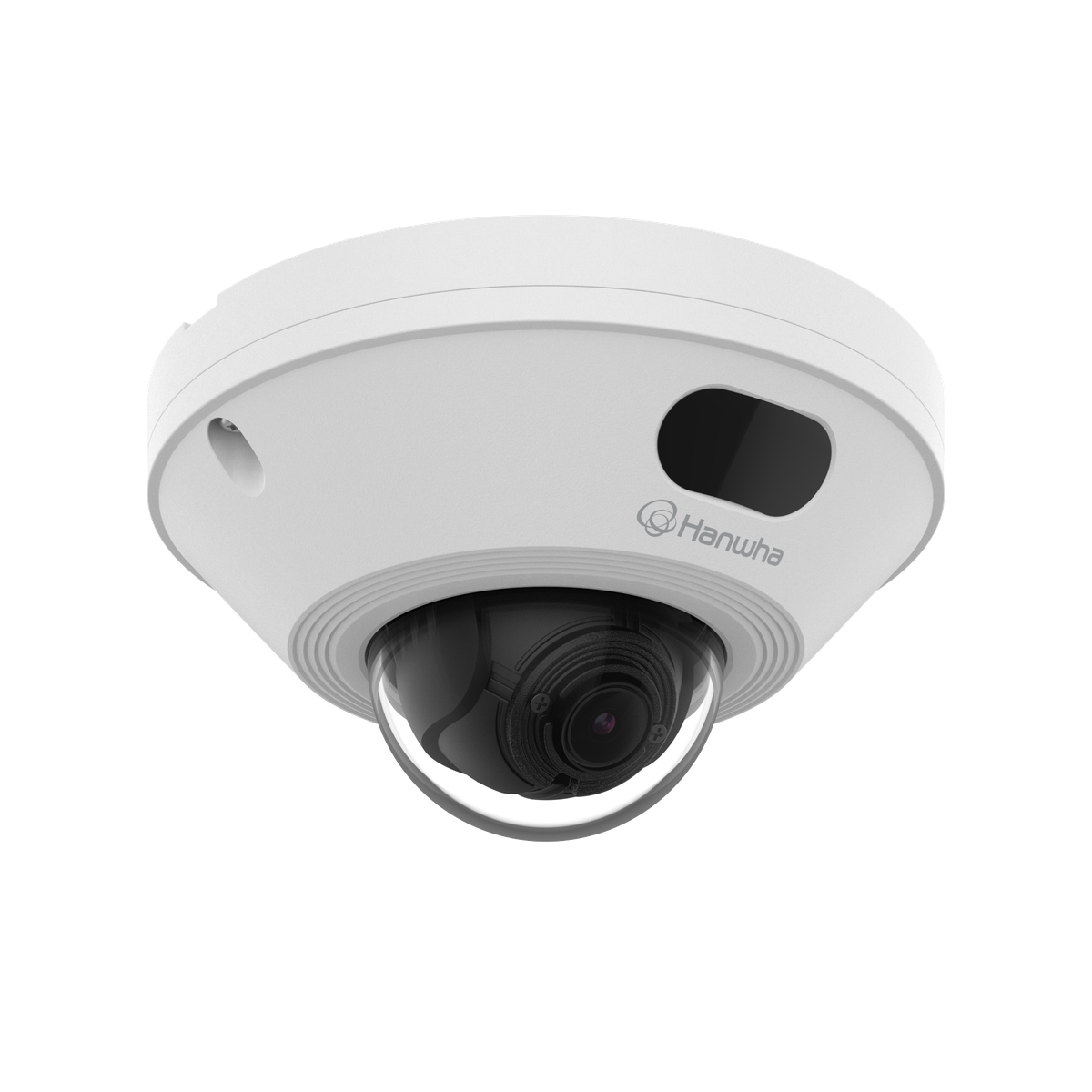

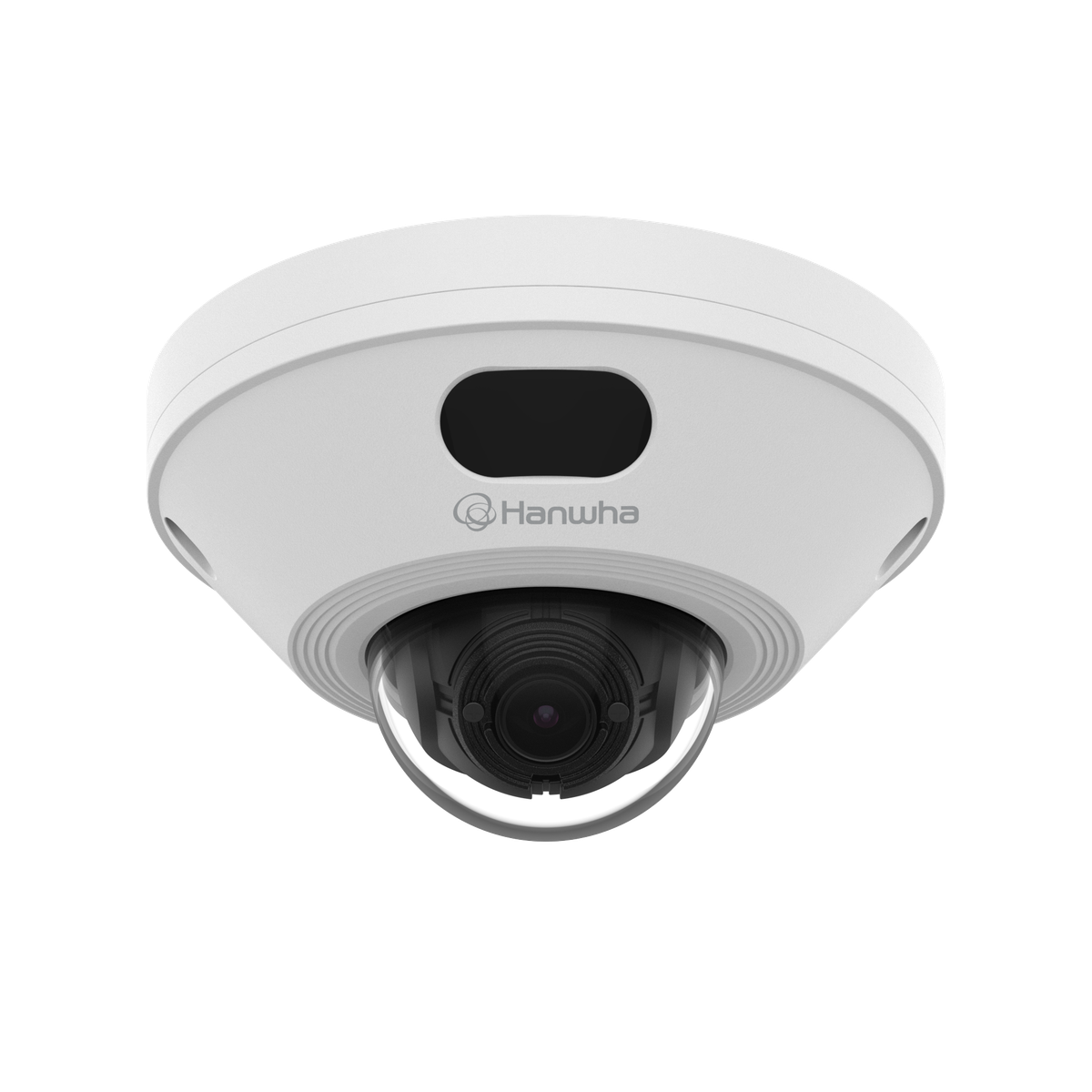

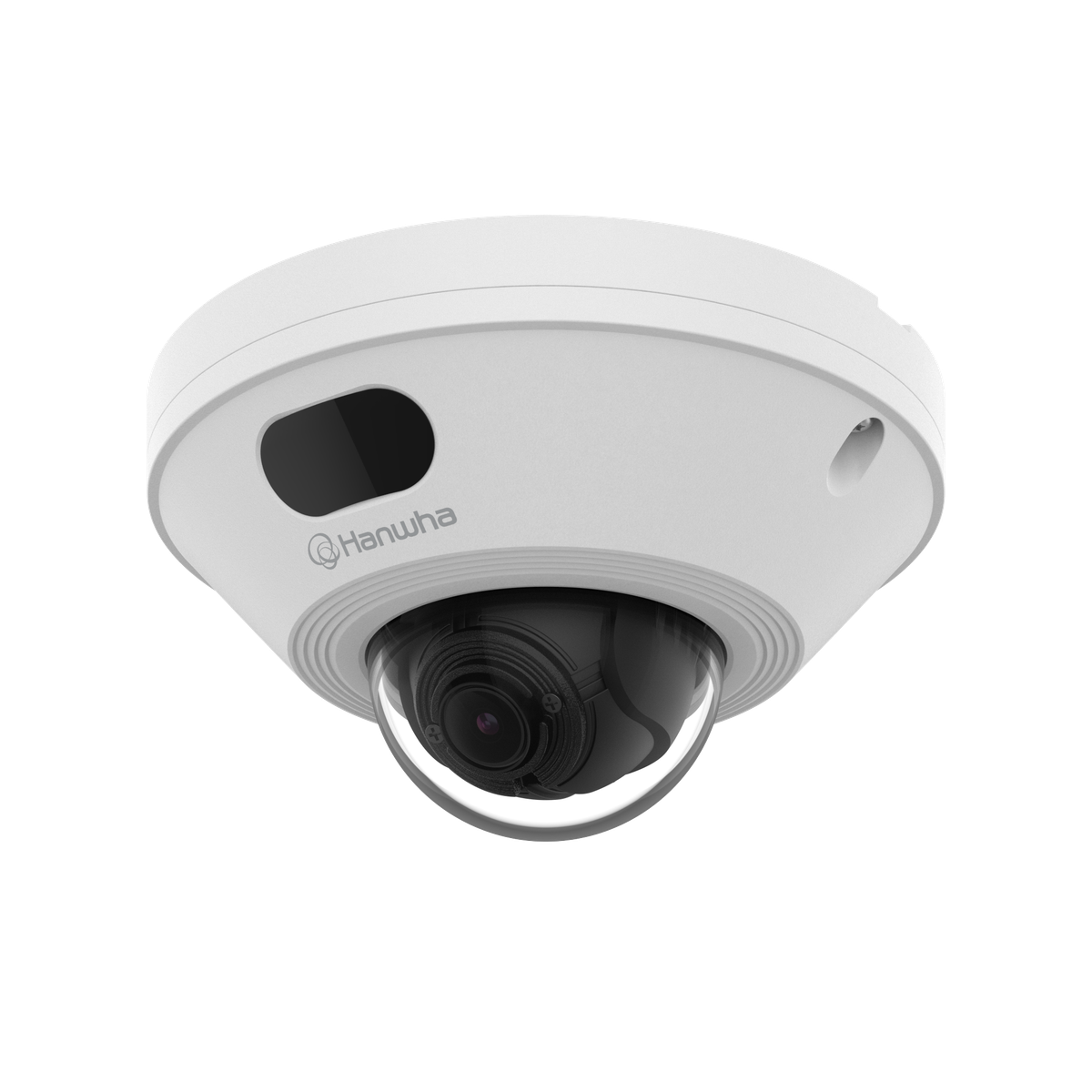

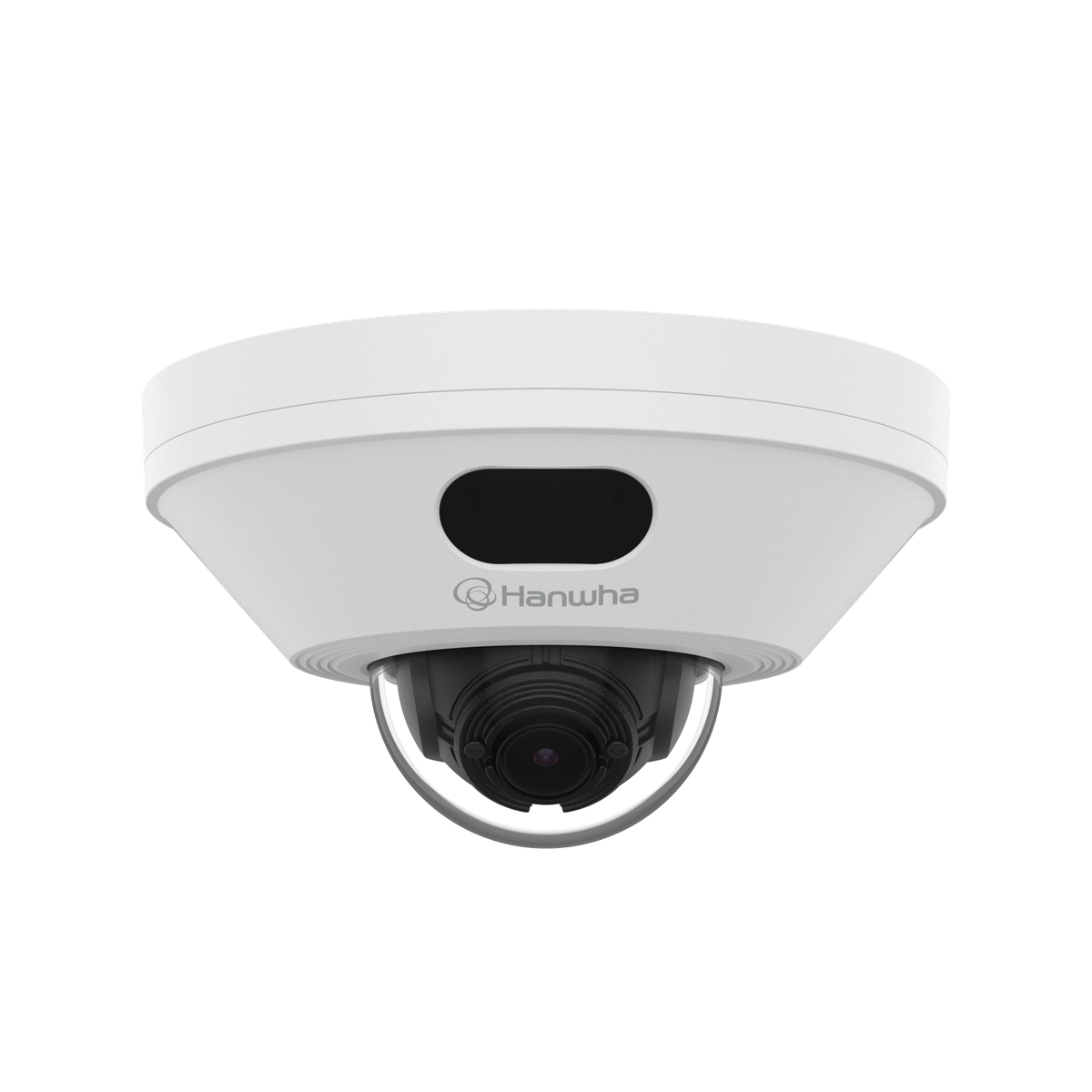

Hanwha - XNV-A9016R - 4K Outdoor Compact IR Network Dome Camera with 3mm Lens

Product Overview

The Hanwha XNV-A9016R is a compact outdoor 4K network dome camera delivering 3840 × 2160 resolution at up to 30fps. It features a fixed 3mm lens with a 108° horizontal field of view, 120dB WDR, and 25m IR illumination. Powered by the Wisenet 9 platform with dual NPUs, it provides on-device AI analytics, image enhancement, and efficient H.265/H.264/MJPEG compression with AI-driven WiseStream technology.

Key Configuration

• Resolution: 8MP (3840 × 2160) at up to 30fps (H.265/H.264); MJPEG up to 5fps
• Lens: Fixed 3mm lens, F1.6 aperture, 108° H / 59° V / 127° D FOV
• Power: PoE (IEEE 802.3af Class 3), max 10.0W, typical 7.7W, with WisePower and Eco mode
• Storage: microSD/SDHC/SDXC slot supporting up to 1TB edge storage with AES-256 encryption

Key Features

Features a 1/2.8" CMOS sensor with 120dB WDR, WiseNR II noise reduction, digital stabilization, defog, and 25m IR illumination. AI analytics support person, face, vehicle, and license plate detection, along with people counting, heatmaps, queue monitoring, social distancing, and slip-and-fall detection. Includes WiseStream compression, ONVIF support, advanced cybersecurity features, and IP66, IK10, and NEMA 4X protection ratings.

Technical Context

The XNV-A9016R is a compact 4K dome camera powered by the Wisenet 9 platform with dual NPUs for on-device AI analytics. It supports person, face, vehicle, and license plate detection, along with people counting, heatmaps, queue monitoring, and advanced event analytics. Additional features include AI-based WiseNR II noise reduction, WisePower energy monitoring, operation in high-humidity environments, and NEMA TS-2 certification for traffic applications. DORI distances reach 55.8m detection and 5.6m identification.

Installation Notes

Measuring Ø120 × 65.5 mm and weighing 555 g. Supports pan, tilt, and rotation adjustments, operates from -40°C to +50°C (up to +74°C intermittent), and is designed for 0–100% condensing humidity environments. Powered by PoE IEEE 802.3af Class 3, with manual focus adjustment and a USB-C service port for installation. Audio and alarm I/O are available through an optional I/O module.
