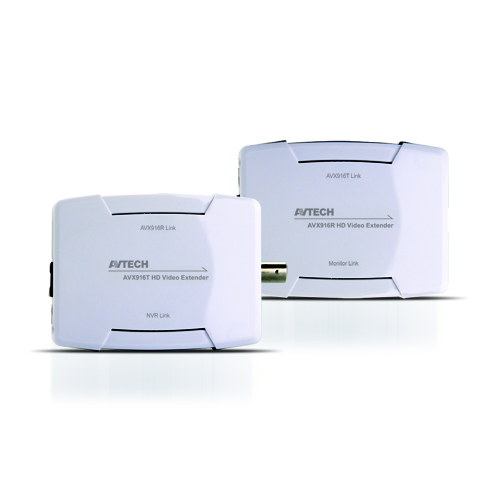

Avtech - AVX916-Kit - HD Video Extender
This product has been discontinued.
Part number:
AVX916-Kit
Price:
HD Video Extender
Features:
Use over long distance — HD Video extender can be used for distances of up to 70 m for 3G SDI signals.
Expanded applications — Signals from USB mouse is able to be transferred over the coaxial cable.
Rich diagnostic LED lights — With LED indications, user can easily perceive the unusual connection for troubleshooting immediately.
| AVX916R (Receiver) | AVX916T (Transmitter) |
Coaxial Cable Connection** | RG6, 128 braids (Up to 70m) | |
Video Output | Full HD display (1080P / 60Hz) | |
Audio Output | YES | |
USB port | YES (for USB mouse) | |
LED Indications | YES (Bi-color) | |
Temperature | Operating: 10°C ~ 40°C | |
Storage: 0°C ~ 70°C | ||
Power Supply | External adaptor DC 5V @500mA | |
Power Consumption (±10%) | 2.5W | |
Dimensions (mm)*** | 92(L) × 69(W) × 15(H) | |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
User Manual
0.4mb
File
Product Dimensions
0.2mb
