LOUROE - LE-870 - Ceiling Mount Digital IP Microhpone w/ Audio Analytics Capability

Product Overview

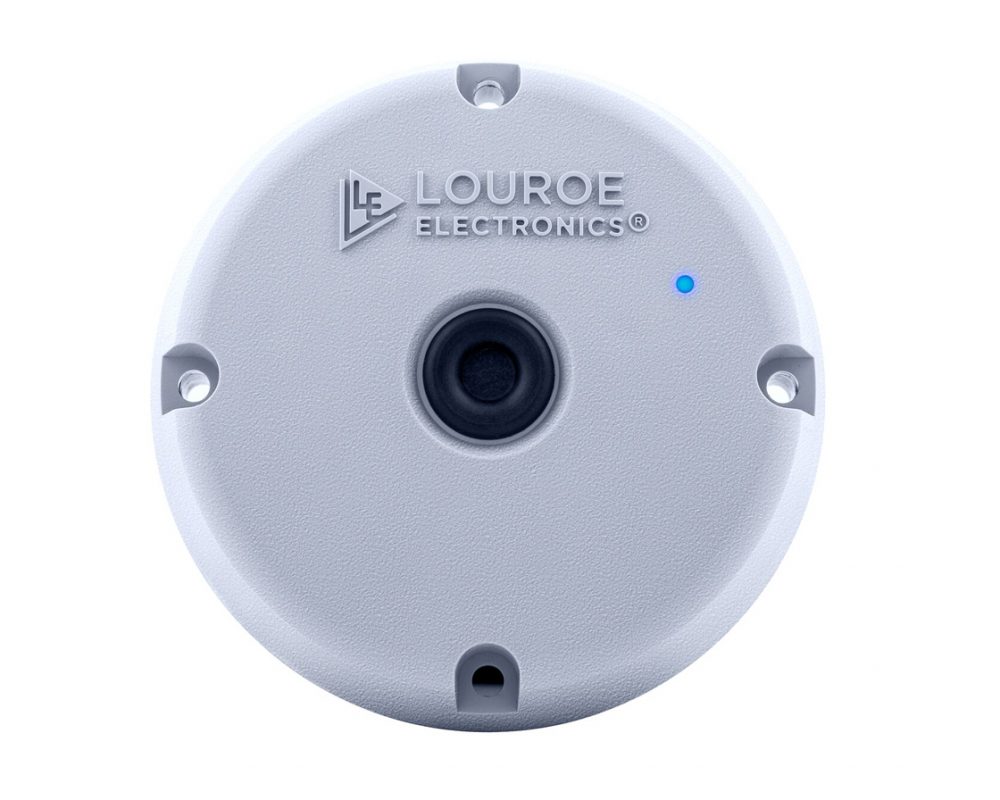

The Louroe Electronics LE-870 (Digifact A) is an IP microphone with an onboard quad-core processor and built-in audio analytics, streaming audio via RTSP for VMS integration. It features an omni-directional pickup pattern covering approximately a 30 ft diameter area, a frequency response of 50 Hz to 15 kHz, and a sensitivity of -45 dBV/Pa. The device supports PoE (IEEE802.3af) connectivity and includes audio analytics such as gunshot, aggression, car alarm, and glass break detection.

Key Configuration

• Sensitivity: -45 dBV/Pa (1 Pa = 94 dB SPL)
• Frequency response: 50 Hz to 15 kHz
• Pick-up pattern: omni-directional, 30' diameter circle
• Power: PoE IEEE802.3af compliant or optional external 5V DC 2A
• Memory: 512 MB RAM

Key Features

One-way audio streaming with RTSP and VMS integration, supporting IPv4, HTTP, RTP, TCP, and SSH. Includes password-protected user access and decibel threshold alarming with relay outputs. Built-in audio analytics detect gunshots, aggression, car alarms, and glass break events. Supports TCP alerts, external outputs, and NAS recording for pre/post-alarm events. Connectivity via RJ45 PoE, 5-pin output, and 2-pin power input. Works standalone or integrated into larger security systems via API.

Technical Context

On-device audio analytics processing with a quad-core processor for IP-based surveillance. Supports up to four external 5V DC (100 mA max) outputs triggered by programmable decibel thresholds. Enables pre- and post-alarm recording directly to NAS storage and supports dual power options via PoE or external 5V DC input.

Installation Notes

Ceiling mount design with high-impact anti-static ABS enclosure. Supports PoE (IEEE802.3af) or external 5V DC 2A optional power input. Includes RJ45 Ethernet/PoE port, 5-pin header for up to four 5V DC outputs (100 mA max), and 2-pin external power input.
