LiLin - IPC0522E2 - 1080P Full HD Door Station
Product Overview

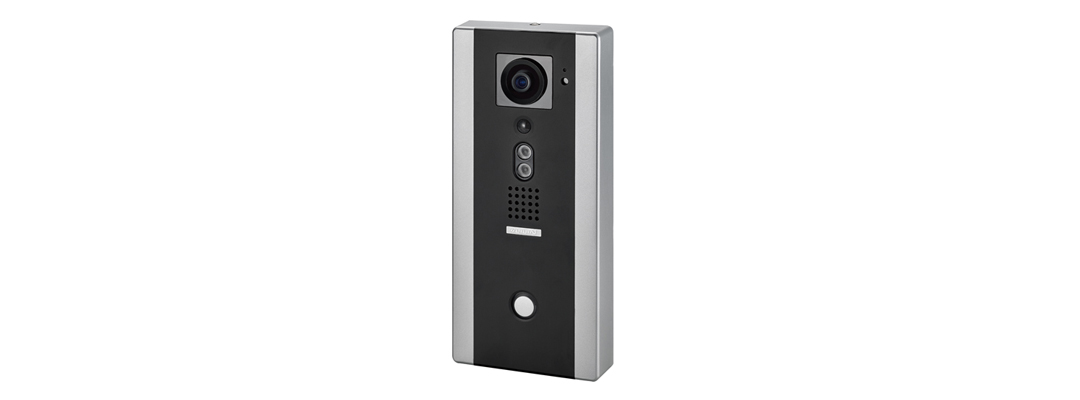

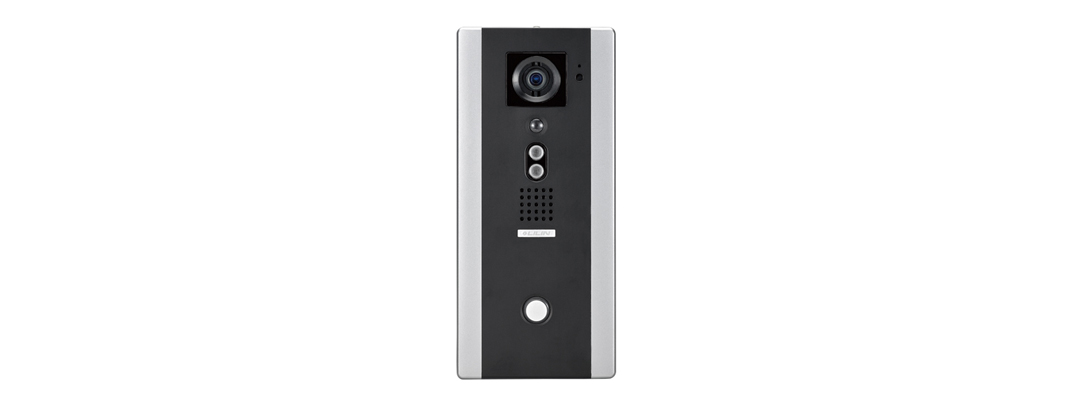

The LILIN IPC0522E2 is a 1080P Full HD door station designed for secure video intercom communication and entry control. It combines a 2 megapixel CMOS camera, built-in microphone, two-way audio, SIP support, and integrated IR/white LED illumination for reliable visitor identification day and night.
Key Configuration
Model: IPC0522E2; Product Type: Full HD Door Station; Resolution: 1080P / 2MP; Video: H.264; Audio: Built-in microphone and 2-way audio; Interfaces: Digital I/O 2 in / 1 out, RS-485, SIP support; Illumination: IR LED and white LED up to 10m; Protection: IP66
Key Features
· Full HD 2 megapixel CMOS image sensor
· 2D WDR function and digital PTZ support
· Motion, tamper, and alarm detection for entry monitoring
· High-efficiency IR LED and white LED illumination up to 10m
· Day and night operation with removable IR cut filter
· Built-in highly sensitive microphone with 2-way audio support
· ONVIF Profile S, SIP, RS-485, and audio/video intercom support
Technical Context
The IPC0522E2 enables direct communication between residents or operators and visitors through an integrated camera and audio intercom system. SIP support allows the door station to work with compatible IP phone systems, while PoE installation simplifies cabling by carrying power and data over a single network cable.
Its WDR function helps improve visibility in mixed lighting conditions, and the built-in IR and white LEDs support clear identification in low-light or nighttime environments.
Installation Notes
The IP66-rated enclosure supports outdoor doorway installation in rain and dusty environments. Digital I/O and RS-485 support provide integration options for access control, alarms, and related entry-management devices.
| General | |
| Model | IPC0522E2 |
| Motion sensor | PIR, Detection Area 94°(H) / 82°(V), Detection range 5M (max.) |
| Light sensor | Visible-light detection range 1-1000 Lux |
| CPU.Memory | Embedded SoC, 816 MHz ARM Cortex-A9, 512MB DDR3,256MB flash memory |
| OS | Embedded Linux 3.8.0 |
| Dimensions | 114(W) × 250(H) × 34(D) mm |
| Weight | 850g |
| Casing | Matte aluminum black or brushed aluminum black faceplate finish |
| Warranty | 3 Years |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color : 0.5 Lux at F1.8, B/W: 0.1 Lux at F1.8; 0 Lux with IR LED ON |
| Focal Length | 2.1mm |
| Iris | F1.8 |
| Iris Control | Fixed IRIS |
| Angle of View | 129° (H) 69.4° (V) 146.3° (D) |
| Peak wavelength | Infrared LED (850nm) and White LED |
| Beam Spread | 60°(Infrared LED) , 90°(White LED) |
| Max IR distance | 10 M (Infrared LED) , 3 M (White LED) |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective pixels | 1920 (H) × 1080 (V) = 2,073,600 (Pixels) |
| Video & Image | |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA connector |
| Video Compression | H.264 main and high profile, Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported |
| Number of streams | 4 |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), 720 x 400, VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | H.264 / MJPEG : up to 30 fps @ 1920 × 1080 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 /Outdoor1 / Custom |
| Back Light Compensation (BLC) | Off / On |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / 1 Frame / 2 Frames |
| Sense Up+ | Yes |
| Auto Gain Control | 42dB Variable Gain |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Lens Distortion Correction |
| Lens distorsion correction (LDC) | Yes |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
| OSD | Text overlay for date, time, and camera name |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Audio & I/O | |
| Audio | Two-way Audio, G.711 u-law/ PCM / AAC with echo cancelation, Built-in Microphone and speaker |
| Alarm Input / output | Digital 2 input (TTL, +3 – 5VDC) / 1 Output (Relay dry contact N.O. / N.C., Load max. 24VDC/1A) |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption, DDNS via HTTPS |
| Authentication | Digest HTTP authentication, RTSP authentication, 802.1x |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS,SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP,PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIFProfile S, SDDP, Bonjour , SIP , 802.1x , SSL/TLS |
| Max number of online users | 10 simultaneous users |
| WiFi | One doorbell button |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S, LILIN Navigator Enterprise 5.0, Third party VMS through LILIN HTTP API |
| Firmware | Firmware update via HTTP and IP Scan; Firmware available at website |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network loss / PIR detection / RING Button detection / QR code |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / SNMPTrap / Alarm Output / Push Service notification |
| Storage | |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| System Requirements | |
| CPU requirement | Intel® Core™ i3 or higher grade |
| OS requirement | Windows 7 or above |
| RAM requirement | 4GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above |
| Approvals & Environment | |
| CE | Yes, EMI CLASS A |
| FCC | Yes, EMI CLASS A |
| IP Rating | IP66 |
| Languages | English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic,Hungarian, Japanese |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 10.5W / PoE, 12W |
