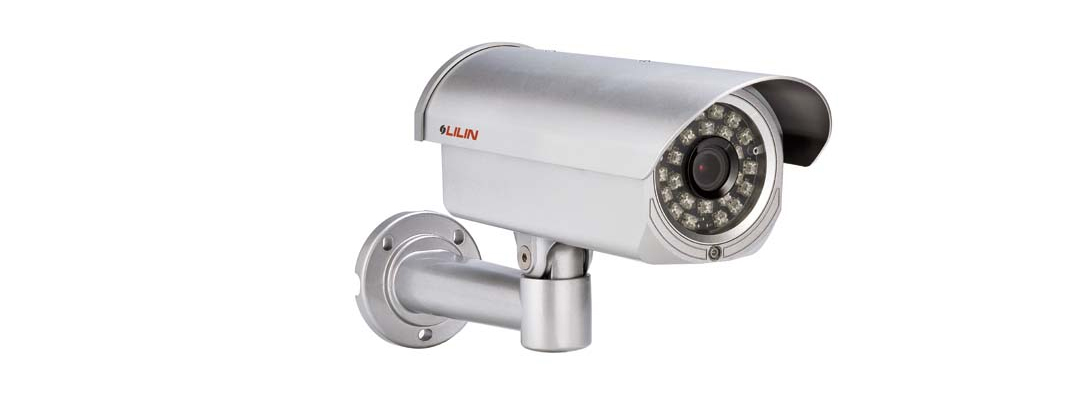

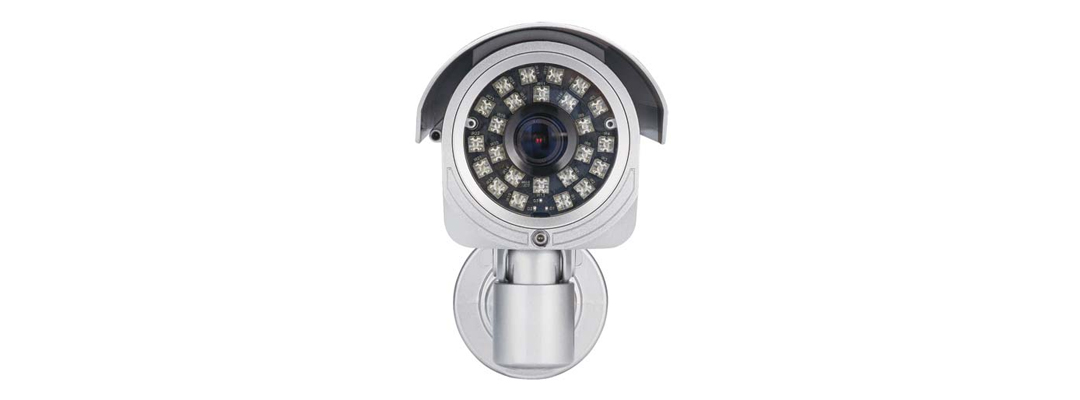

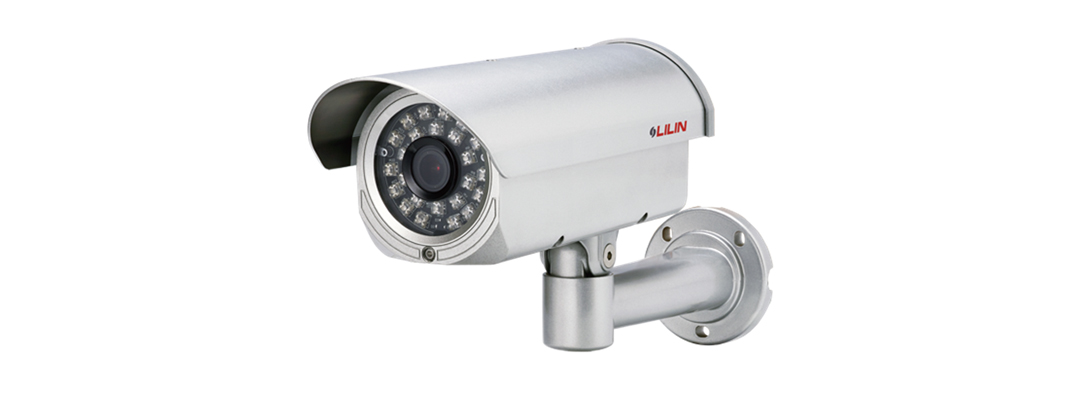

LiLin - LR7224EX3.6 - 1080P Day & Night Vari-Focal IR IP Bullet Camera

Product Overview

The LILIN LR7224EX3.6 is a 1080P Day & Night vari-focal IR IP bullet camera designed for outdoor surveillance in low-light and demanding weather conditions. It combines a Full HD 2 megapixel CMOS sensor, H.264/MJPEG video streaming, Sense Up+ low-light enhancement, and integrated IR illumination for reliable day and night monitoring.

Key Configuration

Model: LR7224EX3.6; Product Type: Vari-Focal IR IP Bullet Camera; Resolution: 1080P / 2MP; Video: H.264 and Motion JPEG triple streaming; Lens: Vari-focal with digital zoom support; IR Range: Up to 55m; Audio: 2-way audio support; I/O: 1 input, 1 output; Protection: IP66

Key Features

 · Full HD 2 megapixel CMOS image sensor

 · True H.264 AVC/MPEG-4 Part 10 video compression

 · H.264 and Motion JPEG triple video streaming

 · 3D noise reduction and 2D WDR function

 · High-efficiency IR LED with radiant distance up to 55m

 · Day and night operation with removable IR cut filter

 · 2-way audio, digital I/O, and ONVIF support

Technical Context

The LR7224EX3.6 uses LILIN Sense Up+ low-light technology together with 2D WDR, AGC control, and 3D noise reduction to improve visibility in difficult lighting conditions. These imaging functions help reduce motion blur and preserve usable detail in nighttime or high-contrast scenes.

The camera also supports audio and motion detection functions without requiring additional licenses, making it suitable for practical security monitoring where video, audio, and event detection are needed together.

Installation Notes

The IP66-rated cable-managed housing supports outdoor installation and helps protect the camera body against rain, dust, and harsh environmental conditions. PoE support simplifies deployment by allowing power and network connectivity through a single cable.
