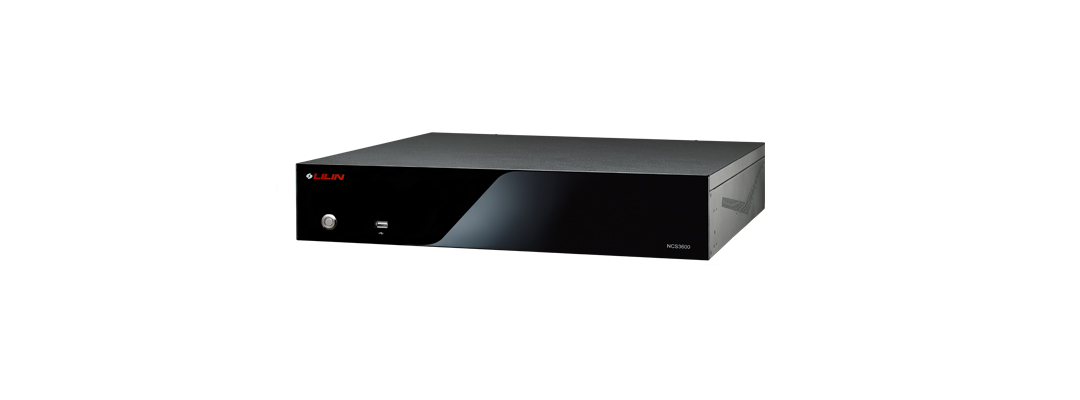

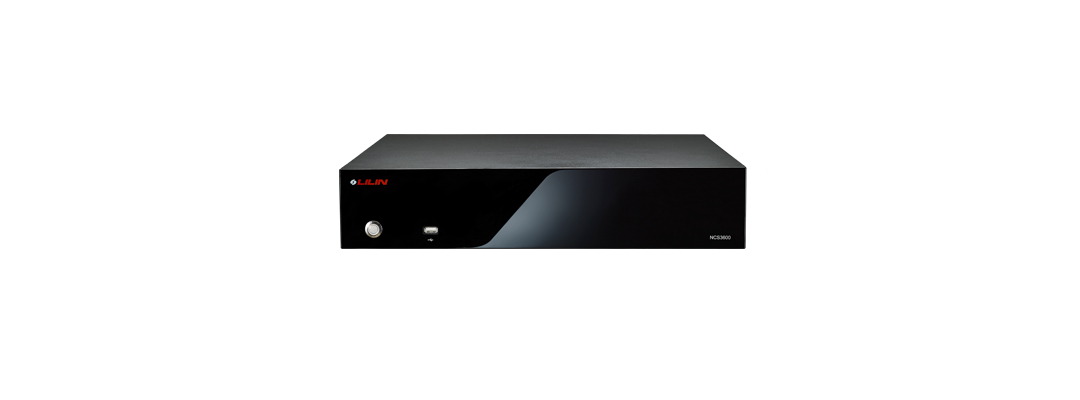

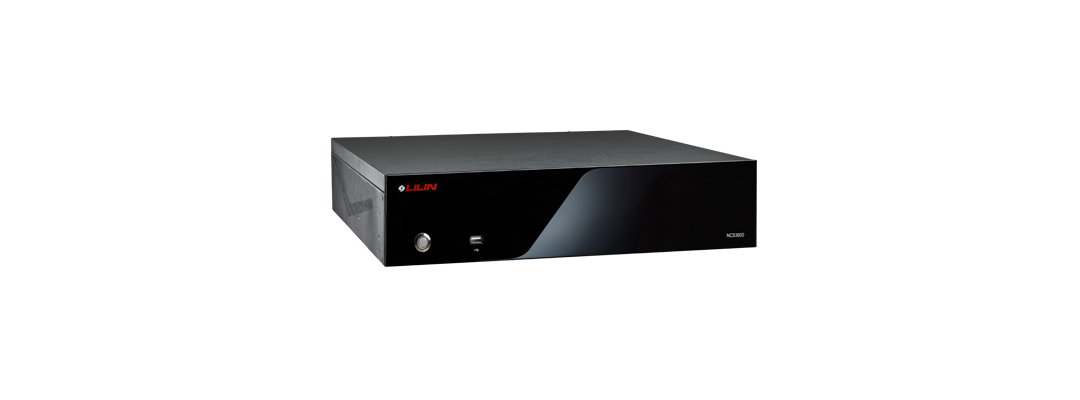

LiLin - NCS1440E - NCS 144CH Control Server
Product Overview
The LILIN NCS1440E is a 144-channel Central Management System control server designed for large-scale LILIN surveillance deployments. It supports LILIN IP cameras, PTZ dome IP cameras, fisheye cameras, DVRs, and NVRs, providing centralized management, viewing, playback, backup, device status reporting, PTZ control, and user authentication.
Key Configuration
Model: NCS1440E; Product Type: NCS 144CH Control Server; Channel Capacity: up to 144 channels; Supported Resolutions: 1080P, 3MP, 4MP, 5MP, 8MP, and 12MP network streaming; AI Camera Pairing: up to 64 AI IPCAM channels; Storage Support: 1 x 256GB SSD for OS and up to 3 x 3.5" SATA HDDs for recording; Network: built-in 2 x 2.5GbE RJ-45; Power Supply: built-in 500W; Form Factor: 2U rackmount.
Key Features
• Supports up to 144 channels of 1080P, 3MP, 4MP, 5MP, 8MP, and 12MP network streaming
• Dual-stream decoding mode for efficient live monitoring and playback
• Dual-monitor display support for up to 144 total channels at 480P 15fps
• Multi-channel synchronized playback for remote or local review
• Supports fisheye camera dewarping and up to 64 AI IPCAM channels
Technical Context
The NCS1440E works with NCC Viewer Manager 5.0 to manage LILIN Navigator Corporate servers, NVRs, and DVRs. It supports remote live monitoring, remote video playback, remote video backup, device status reports, PTZ control, and user authentication, making it suitable for command-center surveillance operations.
Installation Notes
The NCS1440E is designed for 2U rackmount cabinet installation. Storage planning should account for the built-in 256GB OS SSD, up to three 3.5" SATA recording drives, non-RAID recording requirements, camera count, resolution mix, AI camera workload, and dual-monitor display needs.
| General | |
| Model | NCS1440E |
| Chassis | 2U Chassis |
| Network Video Support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Warranty | 3 years |
| Video Input | |
| Network Video Input | Up to 144 channels 1080P / 3M / 4M / 5M / 8M/12M |
| Network Video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 1250Mbps, Download: up to 1250Mbps |
| Video Input (Support Quantity) | Max. 144 channels |
| Camera Name | 20 characters |
| Channel Editing | Mouse drag-n-drop |
| Fisheye Dewarp Mode | Ceiling and ground mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 360, 2 P Two Panoramics 180, 8 R1O Eight Regions One Fisheye, Wall mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 180, 1 WP One Wall Panoramic 180, 8 R1O Eight Regions One Fisheye |
| Privacy Mask | Supported |
| Live View & Display | |
| Digital Zoom | Yes, ePTZ supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI Output | 1 × HDMI Port 2.0b (4096 × 2160@60Hz) |
| VGA Output | No support |
| DisplayPort Output | 2 × DisplayPort 1.4a (4096 × 2160@60Hz) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual Stream Technology (Video Output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video Output) | 2 monitors support up to 144 channels (480P 15FPS) |
| Recording | |
| Application / Recording Mode | Alarm, motion, schedule, and manual |
| Recording Schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording Resolution & Framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported |
| Motion Recording | N/A |
| Alarm Recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular Recording | Yes / size customizable |
| Limited Recording | Yes / days customizable |
| Failover | Supported |
| Video Archiving | Yes |
| Low Bitrate Recording | Yes |
| Remote Network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback & Backup | |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback Resolution and Framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video Input | Max. 36 channels, AVI & MP4 file format supported |
| Remote Video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card, maximum can support up to 36 channels playback and backup |
| Alarm & Event | |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm Recording (Alarm / Event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm Scheduling | Up to four alarm tables with AND logic |
| Alarm Event Actions | Various alarm log including video loss, stop recording, schedule, logon, operation log |
| Digital Output | Controllable via IP cameras |
| Alarm Event Actions (Accessories) | Digital output controllable, snapshots, and alarm popup |
| Integration | |
| Video Archiving & Sync. | Individual camera configurable, scheduling and instant archiving, sync recording data with NAV server / NVR / DVR / IP camera SD card. |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS Support | Support NAV Client software |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese, Polish |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Daylight Saving | Daylight saving time by Windows OS |
| eMap | |
| eMap | Supported |
| eMap Live Monitoring | Each map can see 9 live video at the same time |
| Auto Switch to the Map of Alarm Event | Supported |
| Snapshot | Motion detection / external alarm / audio detection alarm / face detection |
| (eMap)Central Management | Centralized monitoring channels from multiple server |
| (eMap)Online Maps | Google map and Baidu map up to 128 eMap, GPS devices supported |
| Number of Mark for Online Map | Each online map can support 5000 camera mark |
| Number of Mark for Offline Map | Each offline map can support 500 camera mark |
| Hardware | |
| CPU | Intel® Core™ i9-12900E |
| RAM | 32GB (1 × DDR4 32GB) |
| Chipset | Intel® H610 |
| Display Card | Intel® UHD Graphics 770 |
| Ethernet Ports | 1 x Intel® I225V with 2.5GbE 1 x Intel® I225V with 2.5GbE |
| Audio (Hardware) | 2 × Audio jack(s) |
| Rear Panel USB Port | 2 x USB 3.2 Gen2 Type-A, 2 x USB 2.0 Type-A |
| Front Panel USB Port | 1 x USB 3.0 Type-A |
| Cooler | 2 × 60mm rear exhaust fans |
| Hot Spare | Not supported |
| Storage | |
| Internal HDD / Swap Drive Bay | built-in 1 × 256GB SSD (OS) Support up to 3 x 3.5 Inch SATA HDD (recording) |
| SSD HDD | built-in 1 × 256GB SSD (OS) Support up to 3 x 3.5 Inch SATA HDD (recording) Note: Do not use WD Purple HDDs for NAV HDD installation. Please use 7200RPM WD Red Pro for non-RAID installation, WD (Gold) Enterprise HDDs for RAID installation, or other Enterprise HDDs |
| Power & Environment | |
| Power Consumption | 500W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 0°C ~ 50°C(32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C(-4°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 88 (H) × 438 (W) × 451 (D) mm |
| Color | Black |
| Weight | 20.94 lbs (9.50kg) - Net |
