Product Overview
The LILIN NTS1004E is a 96-channel decoder and TV Wall display server designed for command centers, monitoring rooms, and 24-hour surveillance display environments. It works with LILIN Navigator software and NCC software to provide multi-monitor video display, cross-monitor viewing, and centralized video output for IP cameras, speed domes, DVRs, NVRs, and NAV recording servers.
Key Configuration
Model: NTS1004E; Product Type: 96CH Decoder / TV Wall Device; Display Support: up to 4 monitors; Channel Display Capacity: up to 96 total channels at 480P 15fps; Storage Support: 1 x 500GB 2.5" SATA SSD for OS and up to 3 x 3.5" SATA HDDs; Network: built-in dual Gigabit Ethernet RJ-45 x 2; Power Supply: built-in 700W; Form Factor: 4U rackmount.
Key Features
• Supports up to 96 total display channels across 4 monitors
• Dual-stream decoding mode for efficient video display handling
• Supports LILIN IP cameras, speed domes, DVRs, NVRs, and NAV recording servers
• Cross-monitor display support for flexible TV Wall layouts
• Built-in dual Gigabit Ethernet, 700W power supply, and 4U rackmount design
Technical Context
The NTS1004E supports AVI file and RTSP stream sources in addition to LILIN surveillance devices. It is designed to provide multiple input and output display options for security operators, allowing users to select which video sources appear on specific monitors within a TV Wall or centralized viewing environment.
Installation Notes
The NTS1004E is intended for 4U standard rackmount cabinet installation. Deployment planning should account for monitor count, total channel display load, Navigator and NCC software integration, network throughput, RTSP or AVI source requirements, and the desired TV Wall viewing layout.
| General | |
| Model | NTS1004E |

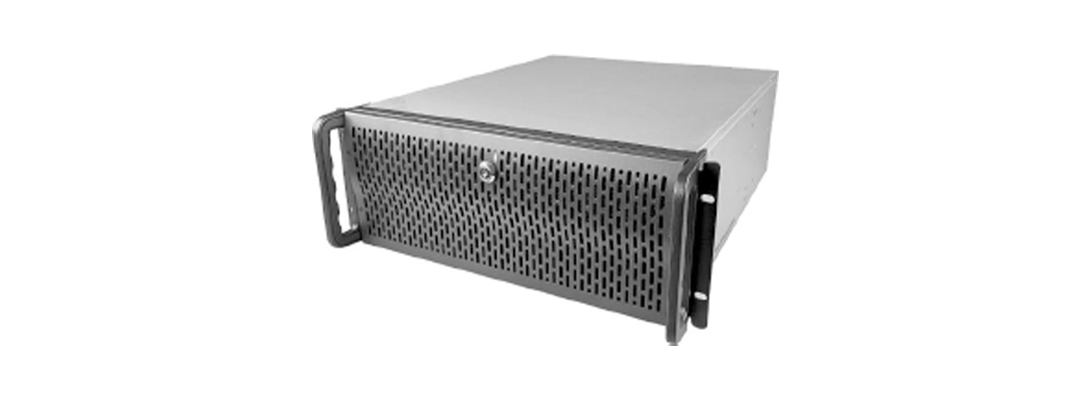

| Chassis | 4U Chassis |
| Network Video Support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capturing |
| Network Video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 1250Mbps, Download: up to 1250Mbps |
| Camera Name | 20 characters |
| Channel Editing | Mouse drag-n-drop |
| Privacy Mask | Supported |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese, Polish |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Time Sync | Daylight saving time by Windows OS |
| Warranty | 3 years |
| Live View & Display | |
| Digital Zoom | Yes, ePTZ supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI Output | 2 × HDMI port 2.0b (4096 × 2160@60Hz) |
| DVI Output | No support |
| VGA Output | No support |
| DisplayPort Output | 2 × DisplayPort 1.4, (4096 × 2160@60Hz) |
| Mosaic TV Wall | 4 monitors support up to 96 channels video display in total (480P 15fps) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual Stream Technology (Video Output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video Output) | 4 monitors support up to 96 channels in total (480P 15fps) |
| Hardware | |
| CPU | Intel® Core™ i7-12700E |
| RAM | 64GB (2 × DDR4 32GB) |
| Chipset | Intel® Q670 |
| Display Card | 1 × RTX3050 |
| Ethernet Ports | 1 x Intel® I225LM with 2.5GbE 1 x Intel® I225LM with 2.5GbE |
| Audio (Hardware) | 3 × Audio jack(s) |
| Rear Panel USB Port | 5 x USB 3.2 (Gen2) Type-A 1 x USB 3.2 (Gen2x2) Type-C |
| Front Panel USB Port | 1 x USB 3.0 Type-A |
| System FAN | 2 × 120mm front exhaust fans 2 × 80mm rear exhaust fans |
| Storage | |
| Internal HDD / Swap Drive Bay | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 3 x 3.5 Inch SATA HDD |
| SSD HDD | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 3 x 3.5 Inch SATA HDD Note: Do not use WD Purple HDDs for NAV HDD installation. Please use 7200RPM WD Red Pro for non-RAID installation, WD (Gold) Enterprise HDDs for RAID installation, or other Enterprise HDDs |
| Power & Environment | |
| Power Consumption | 700W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 0°C ~ 50°C(32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C(-4°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 177 (H) × 482 (W) × 650 (D) mm |
| Color | Black |
| Weight | 35.71 lbs (16.2kg) - Net |
