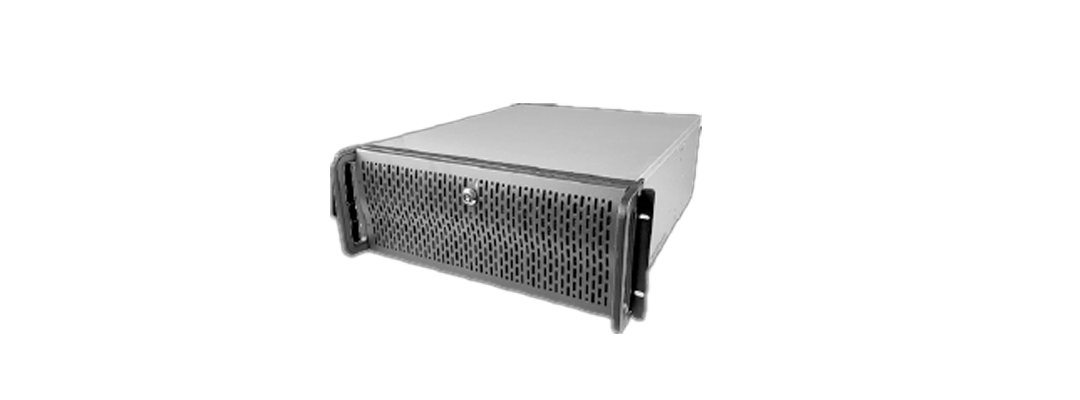

LiLin - NTS1006E - 144CH Decoder

Product Overview

The LILIN NTS1006E is a 144-channel decoder and TV Wall display server designed for central monitoring stations, security command centers, and 24-hour surveillance display environments. It works with LILIN Navigator software and NCC software to provide multi-monitor video display, cross-monitor viewing, and centralized output control for LILIN IP cameras, speed domes, DVRs, NVRs, and NAV recording servers.

Key Configuration

Model: NTS1006E; Product Type: 144CH Decoder / TV Wall Device; Display Support: up to 6 monitors; Channel Display Capacity: up to 144 total channels at 480P 15fps; Storage Support: 1 x 500GB 2.5" SATA SSD for OS and up to 3 x 3.5" SATA HDDs; Network: built-in dual Gigabit Ethernet RJ-45 x 2; Power Supply: built-in 700W; Form Factor: 4U rackmount.

Key Features

• Supports up to 144 total display channels across 6 monitors
• Dual-stream decoding mode for efficient video display handling
• Supports LILIN IP cameras, speed domes, DVRs, NVRs, and NAV recording servers
• Cross-monitor display support for flexible TV Wall layouts
• Built-in dual Gigabit Ethernet, 700W power supply, and 4U rackmount design

Technical Context

The NTS1006E supports AVI file and RTSP stream sources in addition to LILIN surveillance devices. It is designed to provide multiple input and output display options for security operators, allowing users to select which video sources appear on specific monitors within a TV Wall, control room, or centralized monitoring environment.

Installation Notes

The NTS1006E is intended for 4U standard rackmount cabinet installation. Deployment planning should account for monitor count, total channel display load, Navigator and NCC software integration, network throughput, RTSP or AVI source requirements, and the desired TV Wall viewing layout.
