LiLin - NVR6104E-1X8TB - 8TB NVR6104E-1X8TB

Product Overview

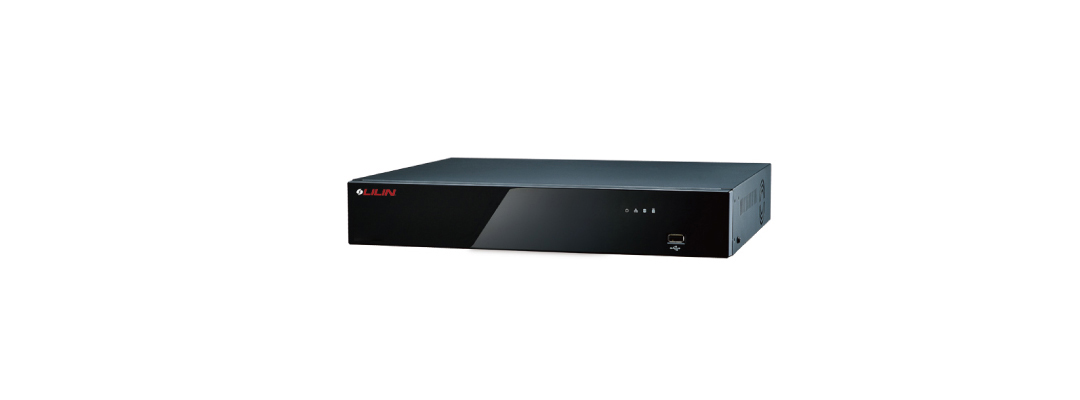

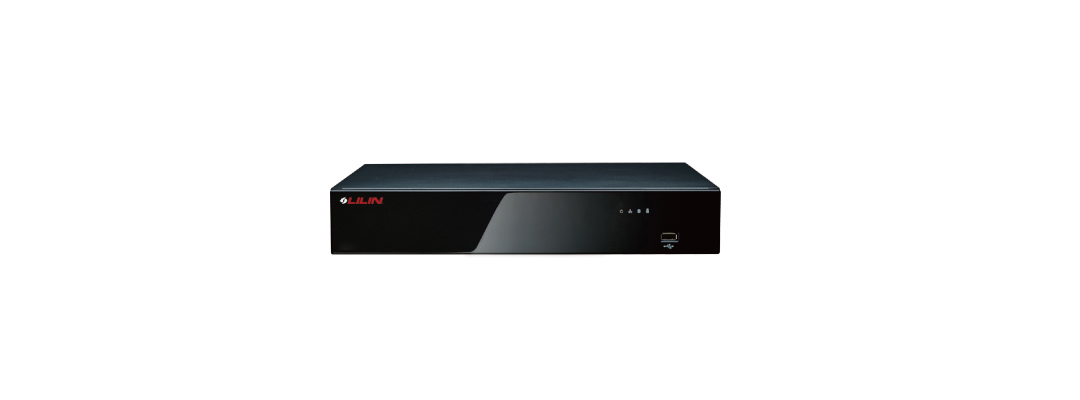

The LILIN NVR6104E-1X8TB is a 4-channel PoE 4K standalone Network Video Recorder configured with one 8TB surveillance hard drive. It provides built-in PoE ports for powering compatible IP cameras, supports Ultra HD 4K recording, and offers a simple plug-and-play setup for professional megapixel surveillance applications.

Key Configuration

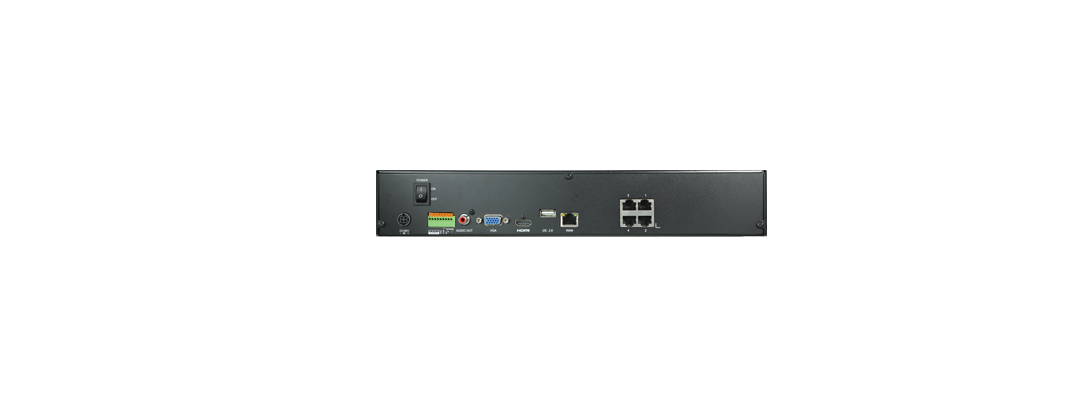

Model: NVR6104E-1X8TB; Product Type: 4 CH PoE 4K Standalone Network Video Recorder; Installed Storage: 1 x 8TB HDD; Total Included Storage: 8TB; Camera Input: 4-channel H.264 / H.265 network camera input; PoE Ports: 4-port PoE with automatic network camera plug and play; Video Support: up to 4K H.264 / H.265 network camera support; Video Output: HDMI 1.4 at 4K 30P and VGA 1080P; Network Input Throughput: up to 32Mbps.

Key Features

• Includes one installed 8TB surveillance hard drive
• Supports up to 4 channels of Ultra HD 4K network camera recording
• Built-in 4-port PoE for powering PoE cameras directly from the recorder
• H.264 and H.265 compression support for efficient recording and storage
• HDMI 1.4 4K 30P and VGA 1080P video output options

Technical Context

The NVR6104E-1X8TB supports up to four channels of Ultra HD recording at 4K or 8MP resolution, providing higher image detail than traditional 1080P systems. Its built-in PoE design removes the need for separate IP address configuration for connected cameras, making it suitable for SMB, retail, hospitality, and intelligent building surveillance systems.

Installation Notes

This 1X8TB configuration ships with one installed 8TB hard drive. Deployment planning should account for camera count, total network input throughput up to 32Mbps, display requirements, recording retention needs, HDMI or VGA output selection, and remote access configuration through app or Navigator software.
