LiLin - NVR6116E-V-1X16TB - 16TB 16 CH PoE 4K Standalone Network Video Recorder
Product Overview

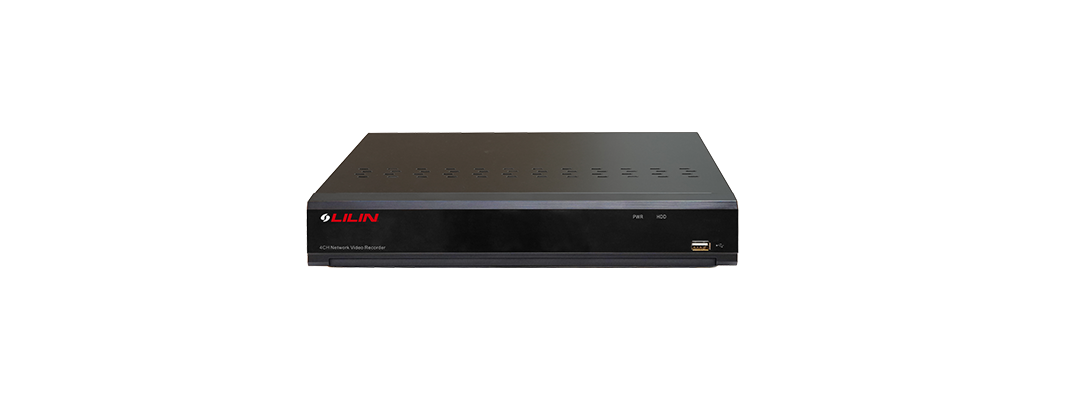

The LILIN NVR6116E-V-1X16TB is a 16-channel PoE 4K standalone Network Video Recorder configured with one 16TB surveillance hard drive. It supports H.264 and H.265 network camera input, Ultra HD 4K recording, mobile access, and automatic PoE camera plug-and-play installation for professional IP surveillance systems requiring expanded camera capacity.
Key Configuration
Model: NVR6116E-V-1X16TB; Product Type: 16 CH PoE 4K Standalone Network Video Recorder; Installed Storage: 1 x 16TB HDD; Total Included Storage: 16TB; Camera Input: 16-channel H.264 / H.265 network camera input; PoE Ports: 16-port PoE with automatic network camera plug and play; Video Support: up to 4K H.264 / H.265 network camera support and up to 1080P 60fps network camera support; Network Input Throughput: up to 96Mbps; Remote Access: mobile phone iOS and Android solutions supported; Browser Support: Chrome, Edge, Firefox, IE, Opera, and Safari.
Key Features
• Includes one 16TB surveillance hard drive for local video storage
• Supports 16-channel H.264 and H.265 network camera input
• Supports up to 4K H.264 / H.265 network camera recording
• Built-in 16-port PoE with automatic network camera plug and play
• Supports iOS and Android mobile access with up to 96Mbps network input throughput
Technical Context
The NVR6116E-V-1X16TB is built for surveillance deployments that require higher camera density while maintaining straightforward cabling and network setup. Integrated PoE ports provide both power and network connectivity for supported cameras, while H.265 compression helps reduce bandwidth and storage requirements for high-resolution 4K video streams.
Installation Notes
The NVR6116E-V-1X16TB is intended for standalone installation with up to sixteen PoE network cameras. Deployment planning should account for camera count, 4K or 1080P stream settings, total network input throughput up to 96Mbps, browser access requirements, mobile viewing setup, and the included 16TB storage capacity for the desired retention period.
| General | |
| Model | NVR6116E-V |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| Languages | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech |
| Warranty | 3 Years |
| Video Input | |
| Supports (IP Video Input) | Network camera / ONVIF Profile S / DVR / NVR / Video encoder / Navigator |
| Input (IP Video Input) | 16 CH |
| Resolution (IP Video Input) | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Maximum Frame Rate (IP Video Input) | 480 FPS |
| Video Output & Display | |
| Output (Video Output) | HDMI 1.4 (4K 30P) / VGA 1080P |
| Spot Monitor (Video Display) | HDMI & VGA sync output |
| Split Screen | 1 / 4 / 8 / 9 / 13 / 12 / 16 split division, sequence mode, freeze, alarm display |
| Digital Zoom | Up to 64× on live and playback |
| Recording | |
| Video Compression | H.264 / H.265 |
| Maximum Network Throughput | 96Mbps |
| Recording Resolution | CIF ~ 4K |
| Frame Rate | Single channel up to 1080P 60 FPS record |
| Application / Recording Mode | Manual, schedule (continue, event, none) |
| Recording Schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Recording Day | Automatic recording day calculator |
| Alarm & Metadata | |
| Alarm Event Actions | Motion grid (20×12, multi-level sensitivities) / network camera event |
| Metadata Options | POS RFID AND PIN CONTROLLER BARCODE SCANNER GPS LPR (Denial, Allowed, Vistor) AI Camera( Object recognition person, car and tripwire, support 8 AI camera at default condition ) IVS Camera |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer |
| Playback & Backup | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 16CH synchronous playback |
| Playback Resolution | CIF ~ 4K |
| Max. Frame Rate (Playback) | Up to 1080P 60FPS |
| Playback Speed | Fast rewind 2× ~ 64× / Fast forward 2× ~ 64× / Slow motion 1/2 ~ 1/16 |
| USB Flash Disk (Backup) | Up to 128 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple NVRs file download and multi-channel playback |
| Storage | |
| Internal HDD / Swap Drive Bay | 1 × 3.5" HDD 16TB |
| HDD Inspection (System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Audio | |
| Audio Input | 16 CH (Network camera), G.711 u-law 8K & AAC |
| Audio Output | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Microphone | USB Mic (Optional) |
| Network | |
| Network Ports | RJ-45 100Mbps Ethernet × 1, RJ-45 100Mbps PoE × 16 (802.3af) |
| Protocols | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile Application | iOS / Android supported |
| P2P (Network) | APP scan QR Code / UID connection |
| RTSP Service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery (Network) | Network camera plug and play via PoE port, otherwise WS-Discovery and IP Scan, automatically quick IP address setup for network cameras also available |
| Network | Live / playback / backup / menu configuration / event log |
| Wi-Fi Dongle | WiFi and 4G external USB dongle supported (Certified brand only) |
| USB GPS Receiver | Support |
| Integration & Control | |
| VMS | Navigator |
| Reports (System) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication (System) | User authentication with feature configurable and IP address blocking |
| Time | Daylight saving / NTP Client / NTP Server / External USB GPS time sync |
| PTZ Protocol | HTTP / ONVIF |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| Remote Controller | Remote controller addressable up to 255 NVRs (Optional) |
| Mouse | Mouse click, drag and scroll |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| Power Supply | DC 48V 3.75A 180W (Max) for HDDs and cameras |
| NVR Consumption (without HDD) | ≤ 7W |
| Operating Temperature | 0°C ~ 45°C |
| Operating Humidity | 5% ~ 80% |
| Dimensions | 215 × 300 × 50 mm |
| Weight | ≈1.5 KG (Without hard drive) |
