LiLin - NVR6216E-1X16TB - 16TB 16 CH PoE 4K Standalone Network Video Recorder
Product Overview

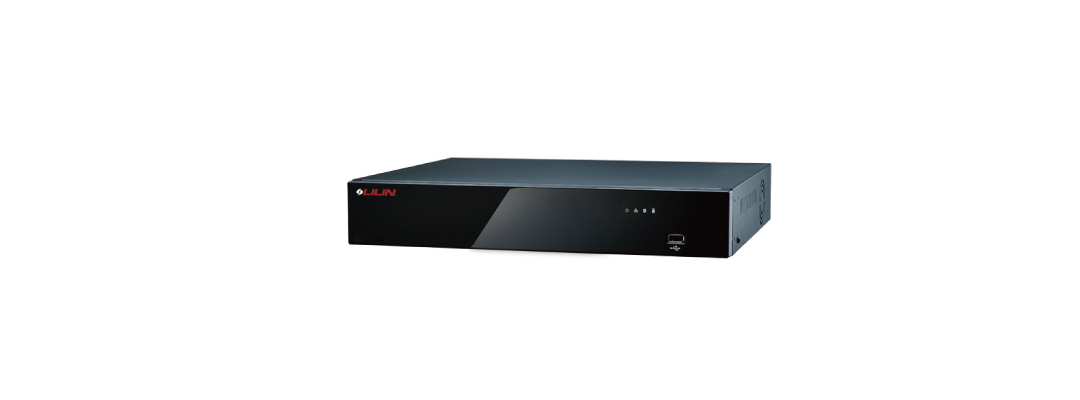

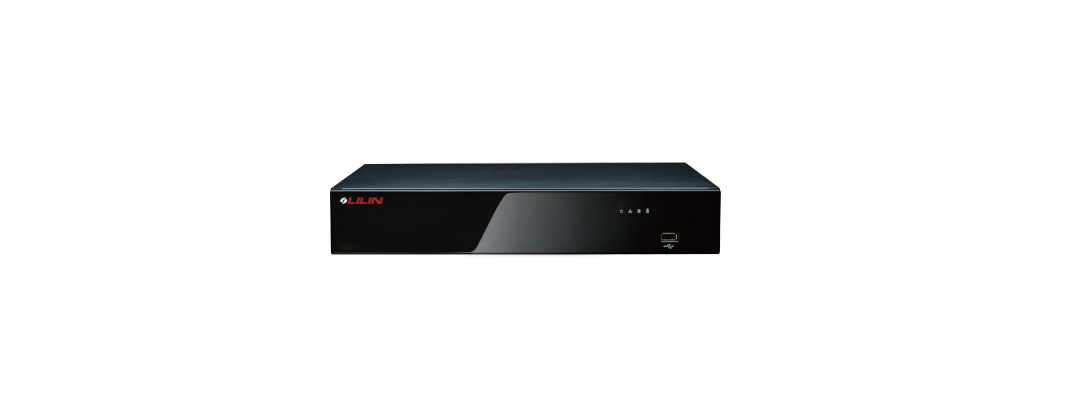

The LILIN NVR6216E-1X16TB is a 16-channel PoE 4K standalone Network Video Recorder configured with one 16TB surveillance hard drive. It supports H.264 and H.265 network camera input, Ultra HD 4K camera recording, P2P QR code UID connection for app and Navigator access, and automatic network camera plug-and-play installation.
Key Configuration
Model: NVR6216E-1X16TB; Product Type: 16 CH PoE 4K Standalone Network Video Recorder; Installed Storage: 1 x 16TB HDD; Total Included Storage: 16TB; Camera Input: 16-channel H.264 / H.265 network camera input; PoE Ports: 16-port PoE with automatic network camera plug and play; Video Support: up to 4K H.264 / H.265 network camera support; Network Input Throughput: up to 96Mbps; Remote Access: P2P QR code UID connection for app and Navigator; Compliance: Taiwan chipset and NDAA compliant.
Key Features
• Includes one 16TB surveillance hard drive for 16TB total local video storage
• Supports 16-channel H.264 and H.265 network camera input
• Supports up to 4K H.264 / H.265 network camera recording
• Built-in 16-port PoE with automatic network camera plug and play
• Supports P2P QR code UID connection for app and Navigator access
Technical Context
The NVR6216E-1X16TB is part of LILIN's professional PoE NVR series and is built to provide a straightforward recording platform for SMB, retail, hospitality, and intelligent building surveillance applications. H.265 compression helps improve storage efficiency for high-resolution streams, while the integrated PoE switch simplifies camera wiring by delivering power and data through the same network cable.
Installation Notes
The NVR6216E-1X16TB is intended for standalone installation with up to sixteen PoE network cameras. Deployment planning should account for camera count, 4K stream settings, total network input throughput up to 96Mbps, P2P or Navigator access requirements, and the included 16TB storage capacity for the desired retention period.
| General | |
| Model | NVR6216E |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| Languages | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech |
| Video Input | |
| Supports (IP Video Input) | Network camera / ONVIF Profile S / DVR / NVR / Video encoder / Navigator |
| Input (IP Video Input) | 16 CH |
| Resolution (IP Video Input) | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Maximum Frame Rate (IP Video Input) | 480 FPS |
| Video Output & Display | |
| Output (Video Output) | HDMI 1.4 (4K 30P) / VGA 1080P |
| Spot Monitor (Video Display) | HDMI & VGA sync output |
| Split Screen | 1 / 4 / 8 / 9 / 13 / 16 split division, sequence mode, freeze |
| Digital Zoom | Up to 64× on live and playback |
| Recording | |
| Video Compression | H.264 / H.265 |
| Maximum Network Throughput | 96Mbps |
| Recording Resolution | CIF ~ 4K |
| Frame Rate | Single channel up to 1080P 60 FPS record |
| Application / Recording Mode | Manual, schedule (continue, event, none) |
| Recording Schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Recording Day | Automatic recording day calculator |
| Alarm & Metadata | |
| Alarm Event Actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI |
| Metadata Options | POS RFID AND PIN CONTROLLER BARCODE SCANNER GPS LPR (Denial, Allowed, Vistor) AI Camera( Suppot 8 AI Camera at default condition) IVS Camera |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback & Backup | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 16CH synchronous playback |
| Playback Resolution | CIF ~ 4K |
| Max. Frame Rate (Playback) | Up to 1080P 60FPS |
| Playback Speed | Fast rewind 2× ~ 64× / Fast forward 2× ~ 64× / Slow motion 1/2 ~ 1/16 |
| USB Flash Disk (Backup) | Up to 128 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| DVD DVD/RW (Backup) | External USB DVD / RW |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple NVRs file download and multi-channel playback |
| Digital Watermark (Video Tamper Resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| Storage | |
| Internal HDD / Swap Drive Bay | 1 × 3.5" HDD 16TB, Compatibility List https://www.meritlilin.com/compatiblelist/nvr1dvr3en.html |
| HDD Inspection (System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Audio | |
| Audio Input | 16 CH (Network camera), G.711 u-law 8K & AAC |
| Audio Output | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Line Input | RCA × 1 |
| Network Camera Two Way Audio / IP Camera 2-way Audio | Yes |
| Microphone | USB Mic (Optional) |
| Network | |

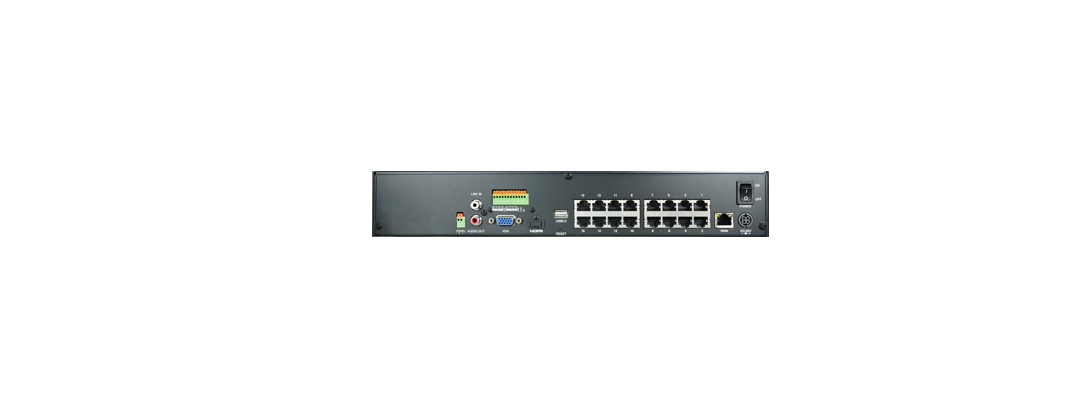

| Network Ports | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE ×16 (802.3af) |
| Protocols | ARP、TCP/IP、UDP、HTTP、HTTPS、SMTP、SNMP、FTP、DDNS、PPPoE、NTP、RTP、 RTSP、DHCP、ONVIF Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile Application | iOS / Android supported |
| P2P (Network) | APP scan QR Code / UID connection |
| RTSP Service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery (Network) | Network camera plug and play via PoE port, otherwise WS-Discovery and IP Scan, automatically quick IP address setup for network cameras also available |
| Network | Live / playback / backup / menu configuration / event log |
| Wi-Fi Dongle | WiFi and 4G external USB dongle supported (Certified brand only) |
| USB GPS Receiver | Support |
| Integration & Control | |
| Reports (System) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication (System) | User authentication with feature configurable and IP address blocking |
| Time | Daylight saving / NTP / External USB GPS time sync / Keyboard |
| PTZ Protocol | HTTP、ONVIF |
| Keyboard Keypad | Support PIH-931D keyboard input (Connector box required) |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| Remote Controller | Remote controller addressable up to 255 NVRs (Optional) |
| Mouse | Mouse click, drag and scroll |
| Approvals & Environment | |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
| Power Supply | DC 48V 3.75A 180W (Max) for HDDs and cameras |
| Operating Temperature | 0°C ~ 45°C |
| Operating Humidity | 5% ~ 80% |
| Weight | ≈2.75 KG (Without hard drive) |
