LiLin - NVR6864E-4X16TB - 64TB 64 CH 4K 2U 19 Video Recorder
Product Overview

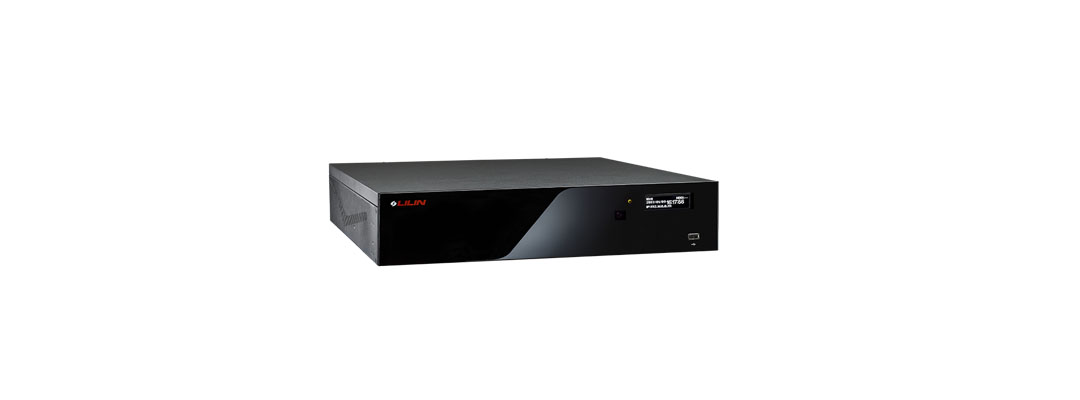

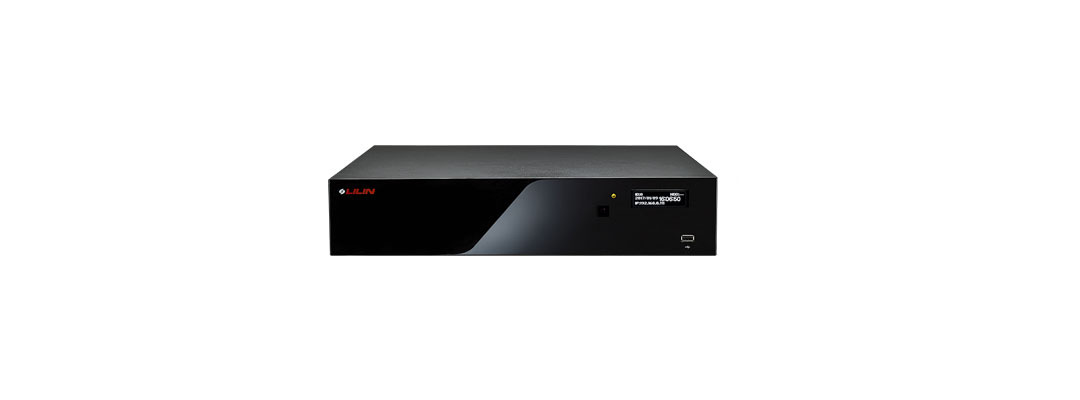

The LILIN NVR6864E-4X16TB is a 64-channel 4K 2U 19" standalone Network Video Recorder configured with four 16TB surveillance hard drives. It supports H.264 and H.265 network camera input, Ultra HD 4K camera recording, built-in PoE for powering PoE cameras, P2P QR code UID connection for app and Navigator access, and software RAID support for storage protection.
Key Configuration
Model: NVR6864E-4X16TB; Product Type: 64 CH 4K 2U 19" Standalone Network Video Recorder; Installed Storage: 4 x 16TB HDD; Total Included Storage: 64TB; Camera Input: 64-channel H.264 / H.265 network camera input; PoE Ports: 16-port PoE with automatic network camera plug and play; Video Support: up to 4K H.264 / H.265 network camera support; Network Input Throughput: up to 300Mbps; RAID Throughput: 160Mbps; RAID Support: software RAID 1 / 5 / 6; Remote Access: P2P QR code UID connection for app and Navigator; Compliance: Taiwan chipset and NDAA compliant.
Key Features
• Includes four 16TB surveillance hard drives for 64TB total local video storage
• Supports 64-channel H.264 and H.265 network camera input
• Supports up to 4K H.264 / H.265 network camera recording
• Built-in 16-port PoE with automatic network camera plug and play
• Supports software RAID 1 / 5 / 6 for storage protection
Technical Context
The NVR6864E-4X16TB is part of LILIN's professional PoE NVR series and is built for 64-channel megapixel surveillance deployments. It supports Ultra HD 4K or 8MP video, H.265 compression for storage efficiency, network input throughput up to 300Mbps, and RAID throughput up to 160Mbps for centralized recording environments.
Installation Notes
The NVR6864E-4X16TB is intended for rackmount installation in 2U 19" equipment cabinets. Deployment planning should account for camera count, PoE camera wiring, 4K stream settings, network input throughput up to 300Mbps, RAID configuration, P2P or Navigator access requirements, and the included 64TB storage capacity for the desired retention period.
| General | |
| Model | NVR6864E |
| CPU | ARM Cortex CA53 Quad core |
| OS | Embedded Linux Kernel 4.19 |
| WDT | Hardware watchdog timer |
| Languages | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech |
| Video Input | |
| Supports (Video Input)/Network Video /IP Video | Network camera / ONVIF Profile S / ONVIF Profile G / DVR / NVR / Video encoder / Navigator |
| Input (IP Video Input) | 64 CH |
| Resolution (IP Video Input) | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Maximum Frame Rate (IP Video Input) | 1920 FPS |
| Video Output & Display | |
| Output (Video Output) | HDMI1 1.4a 4K 30P / HDMI2 1080P / VGA 1080P |
| Spot Monitor (Video Display) | HDMI & VGA sync output |
| Split Screen | 1 / 4 / 8 / 9 / 12 / 13 / 16 / 25 / 32 / 36 / 64 split division, sequence mode, freeze, alarm display |
| Digital Zoom | Up to 64× on live and playback |
| Recording | |
| Video Compression | H.264 / H.265 |
| Maximum Network Throughput | 300Mbps (RAID 160Mbps) |
| Recording Resolution | CIF ~ 4K |
| Frame Rate | Single channel up to 1080P 60 FPS record |
| Application / Recording Mode | Manual, schedule (continue, event, none) |
| Recording Schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Recording Day | Automatic recording day calculator |
| Alarm & Metadata | |
| Alarm Event Actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI |
| Metadata Options | POS RFID AND PIN CONTROLLER BARCODE SCANNER GPS LPR (Denial, Allowed, Vistor) AI Camera( Object recognition person, car and tripwire ) IVS Camera AI Camera( Object recognition person, car and tripwire, support 16 AI camera at default condition ) |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Ports | DI × 16 and DO × 4 (With programmable condition) |
| Playback & Backup | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 32CH synchronous playback |
| Playback Resolution | CIF ~ 4K |
| Max. Frame Rate (Playback) | Up to 1080P 60FPS |
| Playback Speed | Fast rewind 2× ~ 64× / Fast forward 2× ~ 64× / Slow motion 1/2 ~ 1/16 |
| USB Flash Disk (Backup) | Up to 128 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| Back Up | Remote Playback Manager / Backupman, multiple NVRs file download and multi-channel playback |
| Digital Watermark (Video Tamper Resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| Storage | |
| Internal HDD / Swap Drive Bay | 64TB (4 × 3.5" HDD 16TB) |
| RAID | Software RAID 1/5/6 supported |
| HDD Inspection (System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Audio | |
| Audio Input | 64 CH (Network camera), G.711 u-law 8K & AAC |
| Audio Output | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Network Camera Two Way Audio / IP Camera 2-way Audio | Yes |
| Microphone | USB Mic (Optional) |
| Network | |
| Network Ports | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE ×16 (802.3af) |
| Protocols | ARP、TCP/IP、UDP、HTTP、HTTPS、SMTP、SNMP、FTP、DDNS、PPPoE、NTP、RTP、 RTSP、DHCP、ONVIF Profile S、ONVIF Profile G |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile Application | iOS / Android supported |
| P2P (Network) | APP scan QR Code / UID connection |
| RTSP Service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery (Network) | WS-Discovery and IP Scan, automatically quick IP address setup for network cameras |
| Network | Live / playback / backup / menu configuration / event log |
| USB GPS Receiver | Support |
| Integration & Control | |
| VMS | Navigator |
| Reports (System) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication (System) | User authentication with feature configurable and IP address blocking |
| Time | Daylight saving / NTP Client / NTP Server / External USB GPS time sync / Keyboard |
| PTZ Protocol | HTTP / ONVIF |
| Keyboard Keypad | Support PIH-931D keyboard input (Connector box required) |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| RS-485 | One set for keyboard controller |
| Remote Controller | Remote controller addressable up to 255 NVRs (Optional) |
| Mouse | Mouse click, drag and scroll |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| Power Supply | AC Input 100 ~ 240V 60/ 50HZ, DC Output 12V 10A, 53V 4A，280W(Max) |
| NVR Consumption (without HDD) | ≤ 16W |
| Operating Temperature | 0°C ~ 45°C |
| Operating Humidity | 5% ~ 80% |
| Dimensions | 438 × 451 × 87 mm |
| Weight | ≈7.6 KG (Without hard drive) |
