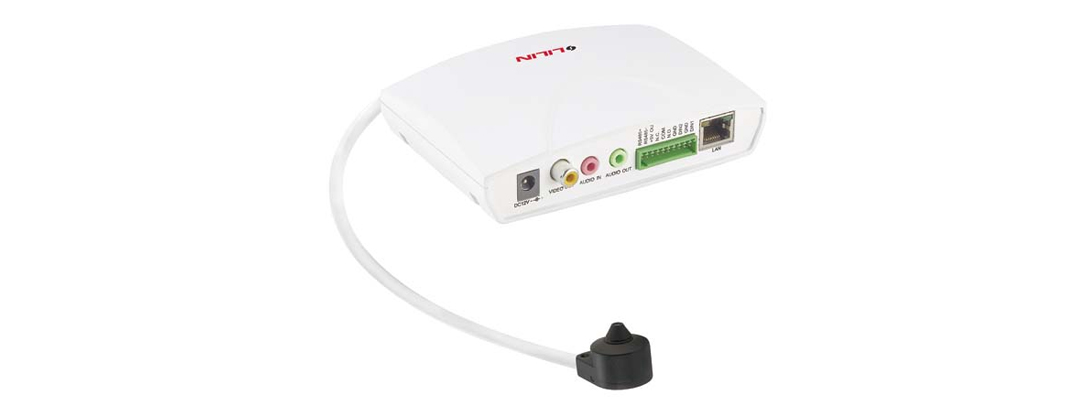

LiLin - P3C0122P3 - 1080P Fixed Covert IP Camera
Product Overview
The LILIN P3C0122P3 is a 1080P fixed covert IP camera designed for discreet surveillance applications. It features a Full HD 2 megapixel CMOS image sensor, H.265 / HEVC and H.264 / AVC high-performance video compression, day and night operation, smart event support, and ONVIF compatibility for integration with network video systems.
Key Configuration
Model: P3C0122P3; Product Type: 1080P Fixed Covert IP Camera; Image Sensor: Full HD 2 megapixel CMOS; Video Compression: H.265 / HEVC and H.264 / AVC; Streaming: simultaneous H.265 and H.264 encoded streams; WDR: 2D WDR and HDR up to 120dB; Noise Reduction: 3D noise reduction; PTZ: digital PTZ supported; Audio: 2-way audio supported; Digital I/O: 2 inputs, 1 output; ONVIF Support: Profile S, Profile T, and Profile G; Serial Interface: RS-485 supported.
Key Features
• Full HD 2 megapixel CMOS image sensor
• H.265 / HEVC and H.264 / AVC high-performance video compression
• Simultaneous streaming of H.265 and H.264 encoded streams
• HDR function up to 120dB with 2D WDR support
• ONVIF Profile S, Profile T, and Profile G supported
Technical Context
The P3C0122P3 supports smart H.264 / H.265 recording workflows, motion detection, SMART event handling, IVS functions, and digital PTZ for flexible scene monitoring. Its 3D noise reduction and wide dynamic range features help improve image usability in difficult lighting conditions.
Installation Notes
The P3C0122P3 is intended for covert IP camera installations where discreet placement, Full HD video, network compatibility, event detection, audio support, and digital I/O integration are required. Deployment planning should account for camera positioning, network connectivity, ONVIF integration, RS-485 usage, and recording compatibility with the selected VMS or NVR platform.
| General | |
| Model | P3C0122P3 |
| Pick Up Element | 1/2.9" CMOS image sensor |
| Effective Pixels | 1920 (H) × 1080 (V) = 2,073,600 (Pixels) |
| Scanning System | Progressive Scan |
| Warranty | 3 Years |
| Lens & Camera | |
| Min. Illumination/Low Light Mode (Colour) | Color : 0.1 Lux at F2.8 ; B/W : 0.02 Lux at F2.8 |
| Focal Length | 3.7mm |
| Iris | F2.8 |
| Iris Control | Fixed IRIS |
| Angle of View | 88.5° (H) 45.8° (V) 106.4° (D) |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| S / N Ratio | More than 50dB (AGC off) |
| Video | |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA connector |
| Video Compression | H.265/HEVC profile, H.264 profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of Streams | 4 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, Smart H.264/H.265 |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 HDR mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x4 (by normal mode) |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / on (4 zones) |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
| Image | |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Back Light Compensation | Yes |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| EV (Exposure Value) | Adjustable |
| Lens Distorsion Correction (LDC) | supports |
| OSD | Position configurable text overlay for date, time, camera ID, event status and watermark with customizable user demand data |
| Watermark | BMP logo |
| Audio & I/O | |
| Audio Input / Output | Mono, 1.4 Vp-p, 50 KΩ, 3.5mm phone jack |
| Audio | Two-way Audio, G.711 u-law / PCM, External Microphone Required |
| Alarm Input / Output | Digital 2 input (TTL, +3 – 5VDC) / 1 Output (Relay dry contact N.O. / N.C., Load max. 24VDC/1A) |
| Control Interface | RS-485 , Half-Duplex , support MLP2 , Pelco D/P protocols |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption(must) |
| Authentication | Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User Accounts | 10 user accounts available |
| Multi IP Address | Yes |
| Network Interface/Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
| Max Number of Online Users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (Recording) | Support Micro SD/SDHC card for circular recording (card is not included) |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection, Object Counting |
| IVS Advanced 2.1 (Optional) | Unattended Object Detection, Missing Object Detection, Crowd Detection, Loitering Detection, Face Detection |
| IVS Advanced 2.2 (Optional) | Detection Zone for Car and Human |
| Alarm Event Triggers | Motion / Tamper / Alarm / Network lost detection / SmartEvent |
| Alarm Event Actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm / SNMP Trap / Push service notification |
| Video Display | LILIN Universal ActiveX |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Languages | English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS Requirement | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web Browser | Microsoft® Internet Explorer® 9 or above |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory |
| OS | Embedded Linux 3.14 |
| Approvals & Environment | |
| CE | Yes, EMI CLASS A |
| FCC | Yes, EMI CLASS A |
| Starting Temperature | 0°C – +50°C (32°F – 122°F) |
| Operating Temperature | -25°C – +50°C (-13°F – 122°F) |
| Storage Temperature | -25°C – +50°C (-13°F – 122°F) |
| Operating Humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 5W / PoE, 6W |

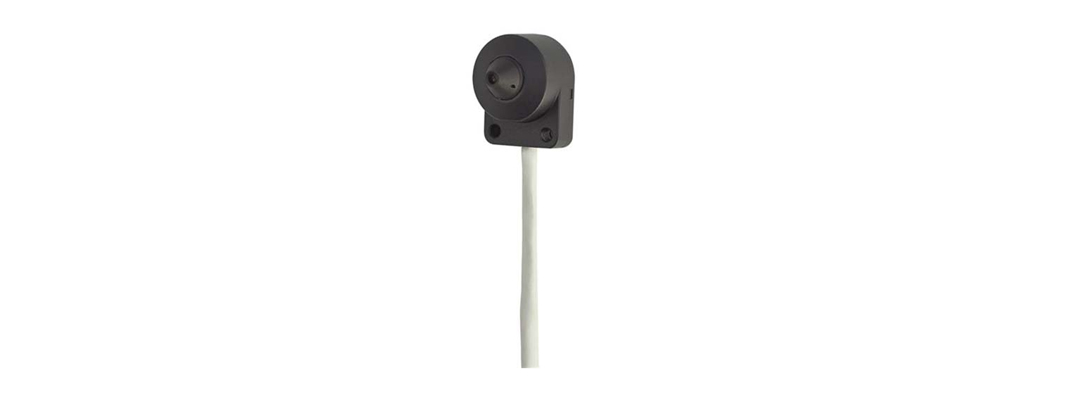

| Dimensions | Main module : 130(W) × 35(H) × 93(D) mm , Image sensor module : Ø25 × 32mm |
| Weight | Main module : 210g , Image sensor module : 188g |
