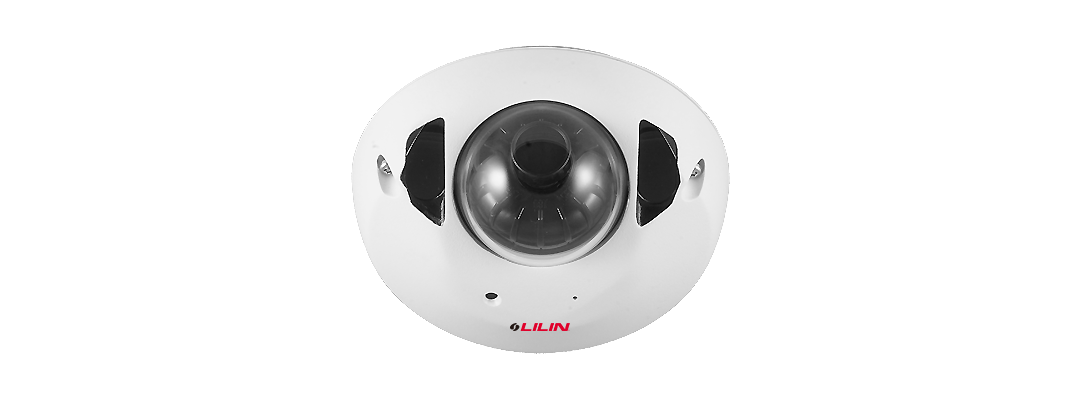

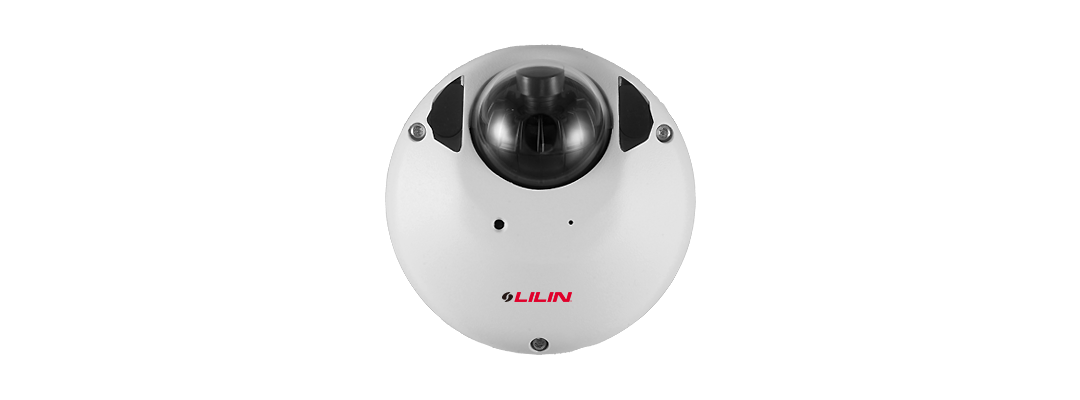

LiLin - P6R3782E2 - Starvis 4k Day & Night Fixed IR Vandal Resistant Dome IP Camera
Product Overview
The LILIN P6R3782E2 is a Starvis 4K day and night fixed IR vandal resistant dome IP camera designed for intelligent surveillance applications. It features an Ultra HD 8 megapixel CMOS image sensor, H.265 / HEVC and H.264 / AVC high-performance video compression, edge AI support, HDR up to 140dB, IR illumination, audio support, and rugged IP67 / IK10-rated construction.
Key Configuration
Model: P6R3782E2; Product Type: Starvis 4K Day & Night Fixed IR Vandal Resistant Dome IP Camera; Image Sensor: Ultra HD 8 megapixel CMOS; Video Compression: H.265 / HEVC and H.264 / AVC; Streaming: simultaneous H.265 and H.264 encoded streams; WDR: 2D WDR and HDR up to 140dB; Noise Reduction: 3D noise reduction; AI: supported; IR Working Distance: up to 15m; Audio: 1-way audio supported, plus microphone; Digital I/O: 1 input, 1 output; ONVIF Support: Profile S, Profile T, and Profile G; Weather Resistance: IP67; Vandal Resistance: approximately IK10.
Key Features
• Ultra HD 8 megapixel CMOS image sensor
• H.265 / HEVC and H.264 / AVC high-performance video compression
• Edge AI support for intelligent recognition and event processing
• HDR function up to 140dB with 2D WDR support
• IP67 rain and dust resistance with vandal resistance approximately IK10
Technical Context
The P6R3782E2 supports simultaneous H.265 and H.264 encoded streams, smart event handling, motion / tamper / audio / alarm / network lost detection, global counter, virtual input, metadata, and fixed lens operation with image quality optimization. The camera also supports Aida perimeter human and vehicle recognition and Aida human and vehicle density recognition for object counting and reduced false alarms.
Installation Notes
The P6R3782E2 is intended for outdoor dome camera installations where 4K image detail, infrared illumination, AI-based recognition, weather resistance, vandal resistance, audio support, and ONVIF integration are required. Deployment planning should account for mounting position, field of view, IR coverage up to 15m, network bandwidth, event rules, digital I/O wiring, and integration with the selected NVR or VMS platform.
| General | |
| Model | P6R3782E2 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective Pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| Light Sensor | Yes |
| Scanning System | Progressive Scan |
| Warranty | 3 Years |
| Lens & Camera | |
| Min. Illumination/Low Light Mode (Colour) | Color : 0.09 Lux at F1.6 ; B/W : 0.02 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8mm |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View (H) | 105.7° (H) , |
| Angle of View (V) | 56.3° (V) , |
| Angle of View (D) | 126.2° (D) |
| Peak Wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR Distance | 15M |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| S / N Ratio | More than 50dB (AGC off) |
| Video | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of Streams | 3 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode : 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode : 60Hz: 20 FPS @ 3840 × 2160 50Hz: 20 FPS @ 3840 × 2160 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Image | |
| White Balance | Auto / Manual |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio | One-way Audio, G.711 u-law / AAC, Built-in Microphone |
| Alarm Input / Output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User Accounts | 10 user accounts available |
| Multi IP Address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G, ONVIF Profile M |
| Max Number of Online Users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (Recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm Event Triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm Event Actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Log | Event & operation log & IVS event log |
| Schedule Setting | Support holiday list |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web Browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Network OS | Embedded Linux 4.14 |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating Temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage Temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating Humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC 12V, 7.4W / PoE, 10W |
| Dimensions | Ø110 × 48(H) mm |
| Weight | 390g |
| Casing Material | Aluminum alloy |
