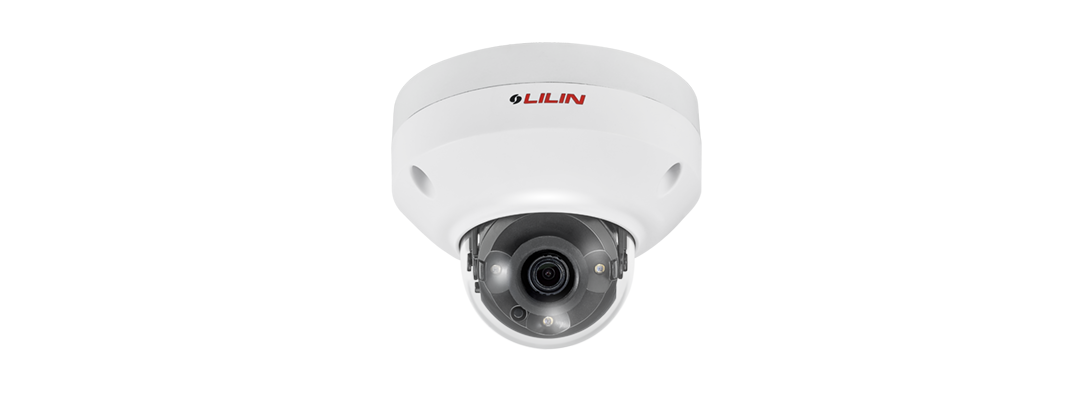

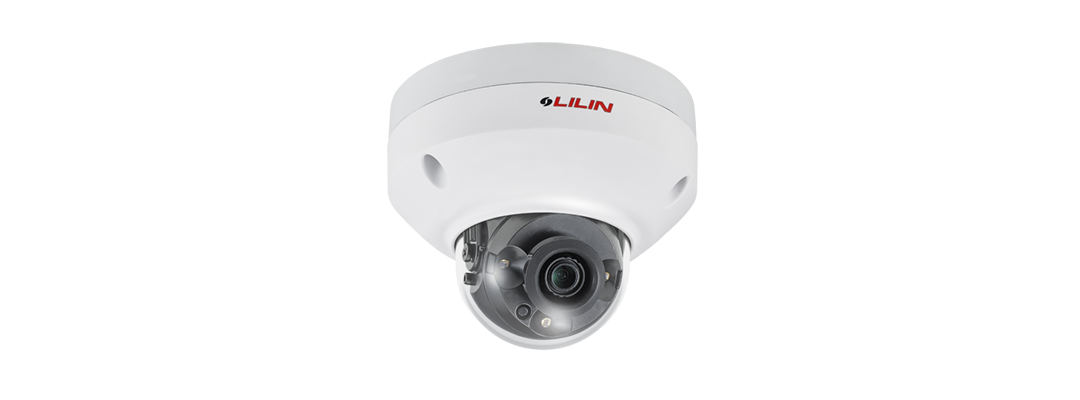

LiLin - P6R6352E2 - 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera
Product Overview
The LILIN P6R6352E2 is a 5MP day and night fixed IR vandal resistant dome IP camera designed for intelligent surveillance applications. It features a 5 megapixel CMOS image sensor, H.265 / HEVC and H.264 / AVC high-performance video compression, edge AI and IVS support, infrared illumination up to 40m, day and night operation, and rugged IP67 / IK10-rated construction.
Key Configuration
Model: P6R6352E2; Product Type: 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera; Image Sensor: 5 megapixel CMOS; Video Compression: 5MP H.265 / HEVC and H.264 / AVC; Streaming: simultaneous H.265 and H.264 encoded streams; Lens Type: fixed lens; WDR: 2D WDR and HDR function; Noise Reduction: 3D noise reduction; Analytics: IVS / AI supported; IR Working Distance: up to 40m; Digital I/O: 1 input, 1 output; ONVIF Support: Profile S, Profile T, Profile G, and Profile M; Weather Resistance: IP67; Vandal Resistance: approximately IK10.
Key Features
• 5 megapixel CMOS image sensor
• H.265 / HEVC and H.264 / AVC high-performance video compression
• IVS / AI support for intelligent recognition and event processing
• High-efficiency IR LED with radiant distance up to 40m
• IP67 rain and dust resistance with vandal resistance approximately IK10
Technical Context
The P6R6352E2 supports simultaneous H.265 and H.264 encoded streams, smart event handling, motion / tamper / audio / alarm / network lost detection, global counter, virtual input, metadata, defog function, and privacy zone mask support. The camera also supports Aida perimeter human and vehicle recognition and Aida human and vehicle density recognition for object counting and reduced false alarms.
Installation Notes
The P6R6352E2 is intended for outdoor dome camera installations where 5MP image detail, infrared illumination, AI-based recognition, weather resistance, vandal resistance, digital I/O integration, and ONVIF compatibility are required. Deployment planning should account for mounting position, field of view, IR coverage up to 40m, network bandwidth, event rules, privacy masking, and integration with the selected NVR or VMS platform.
| General | |
| Model | P6R6352E2 |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective Pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Light Sensor | Yes |
| Scanning System | Progressive Scan |
| Warranty | 3 Years |
| Lens & Camera | |
| Min. Illumination/Low Light Mode (Colour) | Color: 0.09 Lux at F1.6 ; B/W: 0.02 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8mm |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View (H) | 110.3° (H) |
| Angle of View (V) | 58.2 (V) |
| Angle of View (D) | 131.6 (D) |
| Peak Wavelength | 850nm |
| Beam Spread | 60° |
| Max IR Distance | 30M |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| S / N Ratio | More than 50dB (AGC off) |
| Video | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of Streams | 3 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616" |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Image | |
| White Balance | Auto / Manual |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / Output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User Accounts | 10 user accounts available |
| Multi IP Address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G, ONVIF Profile M ,ONVIF Profile M |
| Max Number of Online Users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (Recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) vTranscend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm Event Triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm Event Actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Log | Event & operation log & IVS event log |
| Schedule Setting | Support holiday list |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web Browser | "Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode)" |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Network OS | Embedded Linux 4.14 |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating Temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage Temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating Humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.5W / PoE, 8.5W |
| Dimensions | Ø110 × 89(H) mm |
| Weight | 520g |
| Casing Material | Aluminum alloy |
