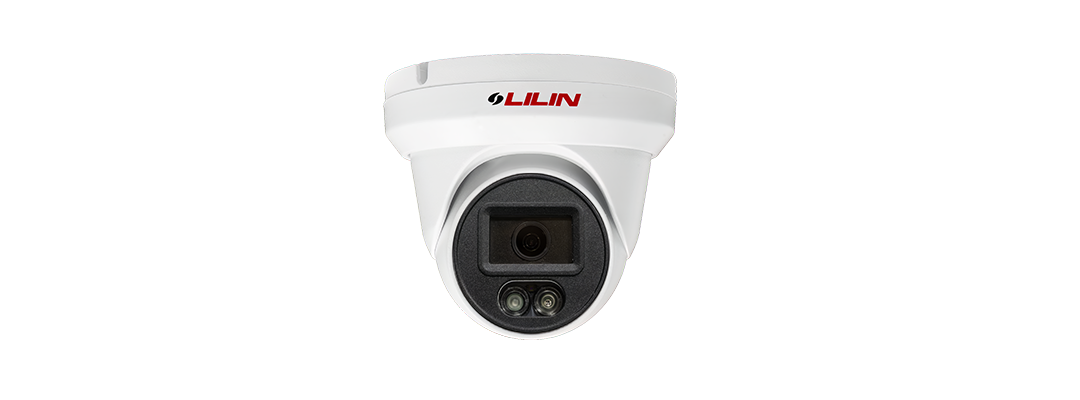

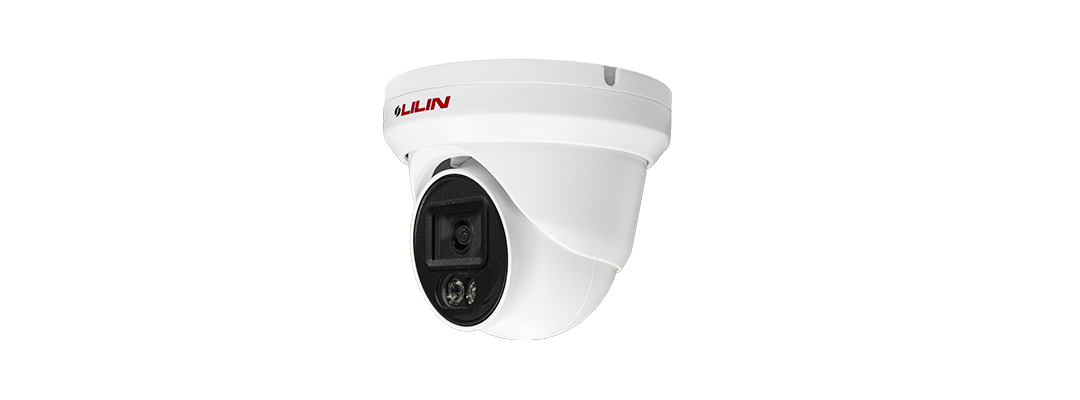

LiLin - P6W4482E2 - 4K Day & Night Fixed Smart Dual Light Turret IP Camera
Product Overview
The LILIN P6W4482E2 is a 4K day and night fixed Smart Dual Light turret IP camera designed for intelligent outdoor surveillance. It features an Ultra HD 8 megapixel CMOS image sensor, H.265 / HEVC and H.264 / AVC high-performance video compression, simultaneous encoded streams, AI / IVS support, dual-light illumination with infrared and white light LEDs, built-in audio support, and rugged IP67 / IK10-rated construction.
Key Configuration
Model: P6W4482E2; Product Type: 4K Day & Night Fixed Smart Dual Light Turret IP Camera; Image Sensor: Ultra HD 8 megapixel CMOS; Video Compression: 8MP H.265 / HEVC and H.264 / AVC; Streaming: simultaneous H.265 and H.264 encoded streams; Lens Type: fixed lens; WDR: 2D WDR and HDR function up to 140dB; Noise Reduction: 3D noise reduction; Analytics: IVS / AI supported; Illumination: IR LED up to 30m and white light LED up to 20m; Audio: built-in highly sensitive microphone and 2-way audio support; Digital I/O: 1 input, 1 output; ONVIF Support: Profile S, Profile T, Profile G, and Profile M; Weather Resistance: IP67; Vandal Resistance: approximately IK10.
Key Features
• Ultra HD 8 megapixel CMOS image sensor for 4K image detail
• H.265 / HEVC and H.264 / AVC high-performance video compression
• Smart dual-light illumination with IR up to 30m and white light up to 20m
• IVS / AI support with smart event handling and metadata
• IP67 rain and dust resistance with vandal resistance approximately IK10
Technical Context
The P6W4482E2 supports simultaneous H.265 and H.264 encoded streams, 3D noise reduction, 2D WDR, HDR up to 140dB, motion / tamper / audio / alarm / network lost detection, global counter, virtual input, metadata, digital PTZ, ROI capabilities, and customizable smart events. The dual-light system combines infrared for black-and-white low-light imaging with white light LEDs for full-color recording in dark scenes.
Installation Notes
The P6W4482E2 is intended for outdoor turret camera installations where 4K image detail, dual-light night imaging, AI-based recognition, weather resistance, vandal resistance, audio support, digital I/O integration, and ONVIF compatibility are required. Deployment planning should account for mounting position, field of view, IR coverage up to 30m, white light coverage up to 20m, network bandwidth, event rules, and integration with the selected NVR or VMS platform.
| General | |
| Model | P6W4482E2 |
| Pick Up Element | 1/1.8" CMOS image sensor |
| Effective pixels | 3856 (H) × 2176(V) = 8,390,656 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | Ø111 x 87(H) mm |
| Weight | 450g |
| Casing Material | Aluminum alloy |
| Warranty | 3 Year(s) |
| Lens & Camera | |
| Min. illumination/Low Light Mode (Colour) | Color : 0.008 Lux at F1.07 ; B/W : 0.004 Lux at F1.07 ; 0 Lux with Light LED ON |
| Focal Length | 2.8mm |
| Iris | F1.1 |
| Angle of View | 108.7° (H) , 58° (V) , 129.4° (D) |
| Peak wavelength | IR : 850nm, Warm Light : 3000K |
| Beam Spread | 60° , 90° |
| Max IR distance | IR : 30M, Warm Light : 20M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 20 FPS @ 3840 × 2160 50Hz: 20 FPS @ 3840 × 2160 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| Smart IR | Yes |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Audio 1 output, Mono, Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW / 300mA, 450mW) , Terminal Block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| RCM | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.5W / PoE, 8.5W |
