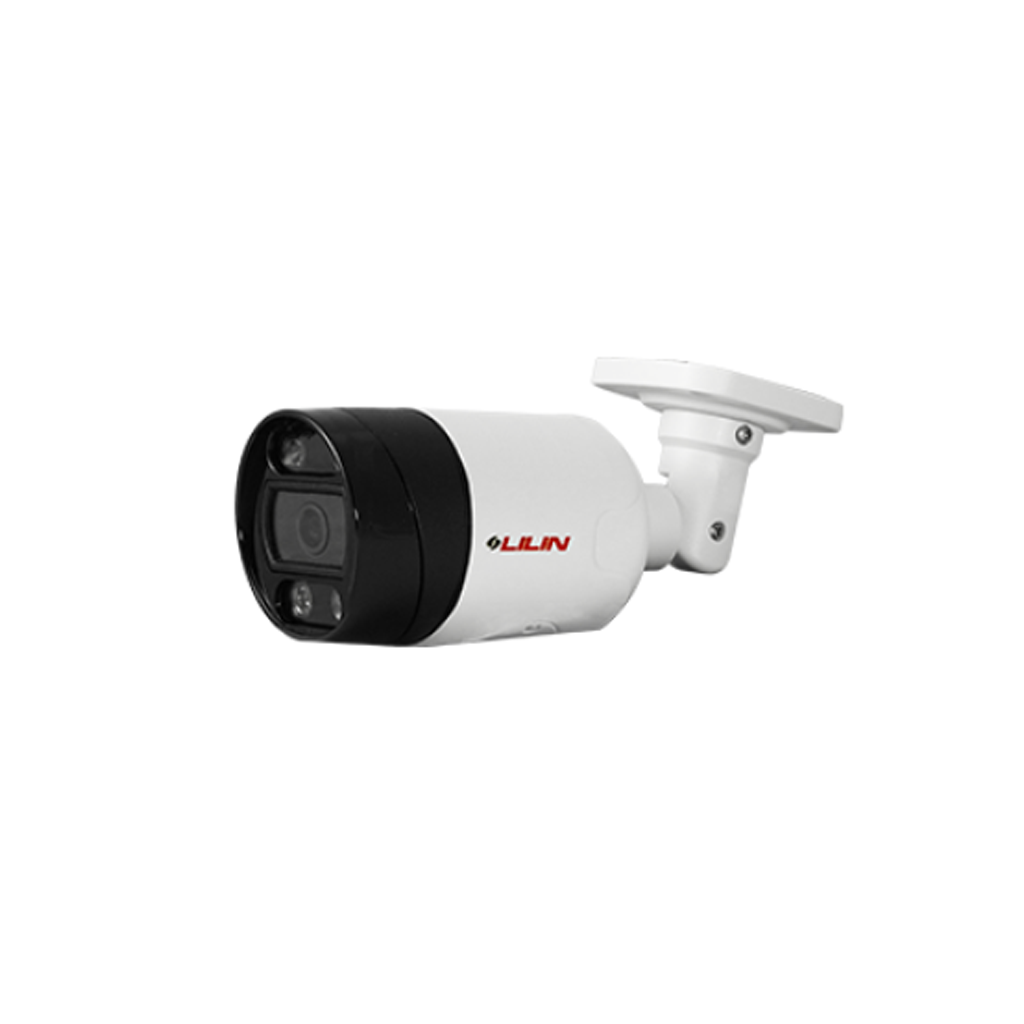

LiLin - P6W9452E2 - 5MP Day & Night Fixed IR IP Bullet Camera
Product Overview
The LILIN P6W9452E2 is a 5MP day and night fixed IR IP bullet camera designed for intelligent outdoor surveillance. It features a 5 megapixel CMOS image sensor, H.265 / HEVC and H.264 / AVC high-performance video compression, simultaneous encoded streams, AI / IVS support, infrared illumination up to 40m, WarmLight viewable illumination up to 30m, 2-way audio support, and rugged IP67 / IK10-rated construction.
Key Configuration
Model: P6W9452E2; Product Type: 5MP Day & Night Fixed IR IP Bullet Camera; Image Sensor: 5 megapixel CMOS; Video Compression: 5MP H.265 / HEVC and H.264 / AVC; Streaming: simultaneous H.265 and H.264 encoded streams; WDR: 2D WDR and HDR function up to 120dB; Noise Reduction: 3D noise reduction; Analytics: IVS / AI supported; Illumination: IR LED up to 40m and WarmLight up to 30m; Audio: 2-way audio supported; Digital I/O: 1 input, 1 output; ONVIF Support: Profile S, Profile T, Profile G, and Profile M; Weather Resistance: IP67; Vandal Resistance: approximately IK10.
Key Features
• 5 megapixel CMOS image sensor
• H.265 / HEVC and H.264 / AVC high-performance video compression
• IVS / AI support with motion, tamper, audio, alarm, and network lost detection
• High-efficiency IR LED up to 40m with WarmLight viewable illumination up to 30m
• IP67 rain and dust resistance with vandal resistance approximately IK10
Technical Context
The P6W9452E2 supports simultaneous H.265 and H.264 encoded streams, 3D noise reduction, 2D WDR, HDR up to 120dB, smart event handling, global counter, virtual input, metadata, day and night operation with removable IR cut filter, 2-way audio, and digital I/O integration. ONVIF Profile S, T, G, and M support enables integration with compatible recording and video management platforms.
Installation Notes
The P6W9452E2 is intended for outdoor bullet camera installations where 5MP image detail, infrared coverage, WarmLight illumination, AI-based recognition, audio support, weather resistance, vandal resistance, digital I/O integration, and ONVIF compatibility are required. Deployment planning should account for mounting position, field of view, IR coverage up to 40m, WarmLight coverage up to 30m, network bandwidth, event rules, and integration with the selected NVR or VMS platform.
| General | |
| Model | P6W9452E2 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 2608 (H) × 1964(V) = 5,122,112 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | 70(W) x 70(H) x 193(D) mm |
| Weight | 450g |
| Casing Material | Aluminum alloy |
| Warranty | 2 Year(s) |
| Lens & Camera | |
| Min. illumination/Low Light Mode (Colour) | Color : 0.06 Lux at F1.3 ; B/W : 0.01 Lux at F1.3 ; 0 Lux with Light LED ON |
| Focal Length | 2.8mm |
| Iris | F1.3 |
| Iris Control | Fixed IRIS |
| Angle of View | 98〫 (H) , 71.7〫 (V) , 127.9〫 (D) |
| Peak wavelength | IR : 850nm, Warm Light : 3000K |
| Beam Spread | 60° , 90° |
| Max IR distance | IR : 40M, Warm Light : 30M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 5MP(2592 x 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 HDR mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| Smart IR | Yes |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Audio 1 input / 1 output, Mono, 1.98 Vp-p, 2.2KΩ, Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW / 300mA, 450mW) , Terminal Block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| RCM | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 6.3W / PoE, 7.7W |
