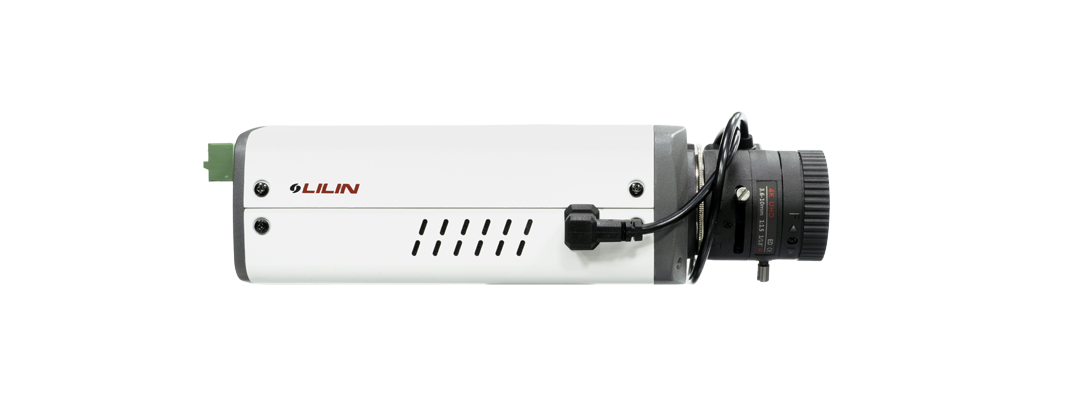

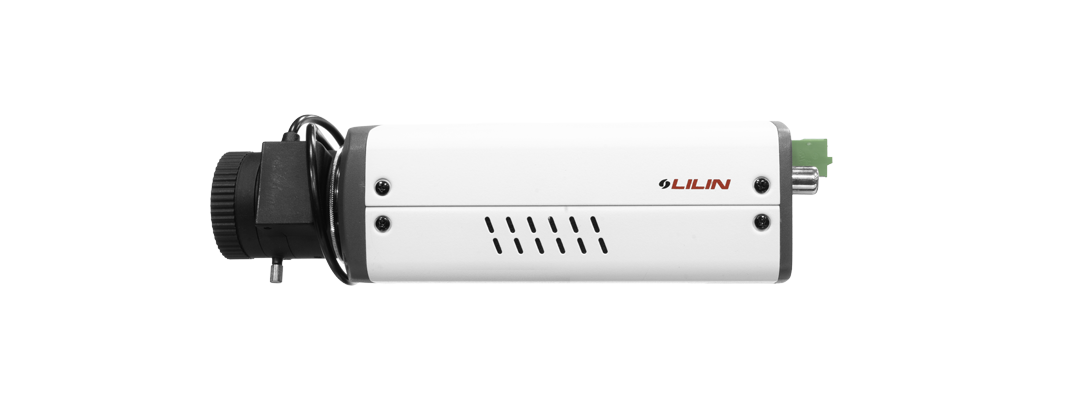

LiLin - P7G1122 - 2MP Day & Night Box IP Camera
Product Overview
The LILIN P7G1122 is a 2MP day and night box IP camera designed for high-performance surveillance and flexible system integration. It features a Full HD 2 megapixel CMOS image sensor, H.265 / HEVC and H.264 / AVC high-performance video compression, simultaneous encoded streams, up to 120FPS video capture, HDR up to 120dB, IVS support, built-in microphone, 2-way audio, digital I/O, and RS-485 support.
Key Configuration
Model: P7G1122; Product Type: 2MP Day & Night Box IP Camera; Image Sensor: Full HD 2 megapixel CMOS; Video Compression: 2MP H.265 / HEVC and H.264 / AVC; Streaming: simultaneous H.265 and H.264 encoded streams; Video Capture: up to 120FPS; WDR: 2D WDR and HDR function up to 120dB; Noise Reduction: 3D noise reduction; Analytics: IVS; Audio: built-in highly sensitive microphone and 2-way audio supported; Digital I/O: 1 input, 1 output; ONVIF Support: Profile S, Profile T, and Profile G; Serial Interface: RS-485 supported.
Key Features
• Full HD 2 megapixel CMOS image sensor
• H.265 / HEVC and H.264 / AVC high-performance video compression
• Up to 120FPS video capture for high-speed motion tracking
• HDR function up to 120dB with 2D WDR and 3D noise reduction
• Built-in microphone, 2-way audio, digital I/O, and RS-485 support
Technical Context
The P7G1122 supports simultaneous H.265 and H.264 encoded streams, digital PTZ, IVS, motion / tamper / audio / alarm / network lost detection, smart events, day and night operation with removable IR cut filter, digital I/O integration, ONVIF Profile S / T / G compatibility, and RS-485 control. Its software and hardware I/O interfaces support integration with peripheral devices and backend systems.
Installation Notes
The P7G1122 is intended for box camera installations where Full HD video, high-frame-rate capture, day and night operation, audio support, digital I/O, RS-485 connectivity, ONVIF compatibility, and intelligent event detection are required. Deployment planning should account for lens selection, mounting position, field of view, lighting conditions, network bandwidth, event rules, and integration with the selected NVR or VMS platform.
| General | |
| Model | P7G1122 |
| Pick Up Element | 1/2" CMOS image sensor |
| Effective pixels | 1945 (H) × 1097 (V) = 2,133,665 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| Network OS | Embedded Linux 4.14 |
| Dimensions | 70(W) × 50(H) × 135(D) mm |
| Weight | 435g |
| Casing Material | Aluminum alloy |
| Lens & Camera | |
| Iris Control | DC-IRIS |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual one push |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 36 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 |
| Video bitrate | "128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, " |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 120 FPS @ 1920 × 1080 50Hz: 100 FPS @ 1920 × 1080 HDR mode: 60Hz: 30 FPS @ 1920 × 1080 50Hz: 25 FPS @ 1920 × 1080 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| ePTZ & Digital Zoom | Yes |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , 3.5mm phone jack |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA jack |
| Control interface | RS-485 , Half-Duplex |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100/1000 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Languages | English, Traditional Chinese |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| Starting Temperature | 0°C – +50°C (32°F – 122°F) |
| Operating temperature | -20°C – +50°C (-4°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.6W / PoE, 8.1W |
