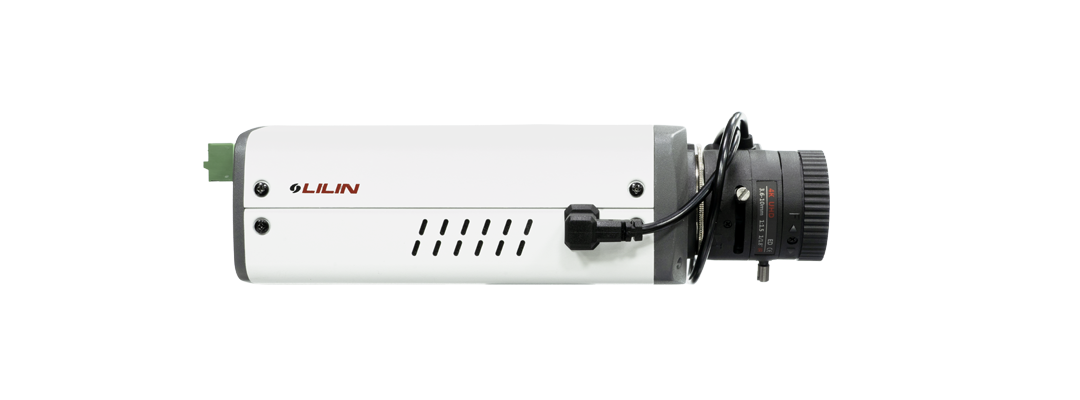

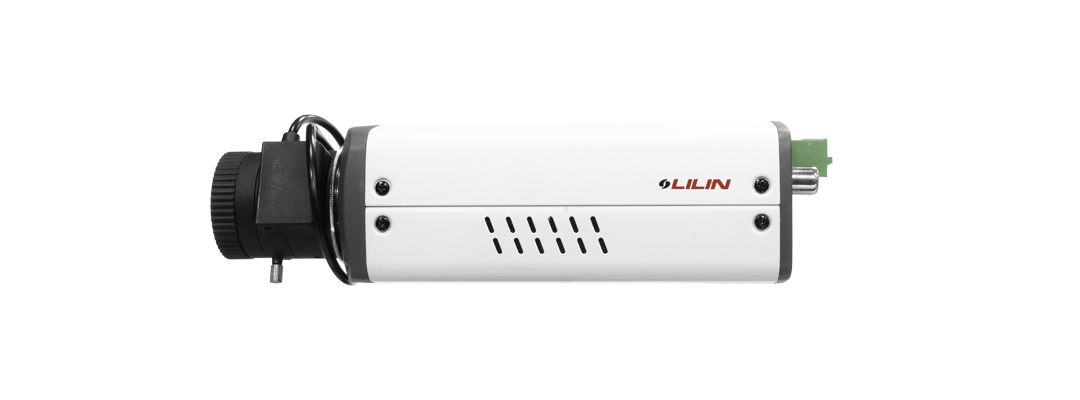

LiLin - P7G1182 - 4K Day & Night Box IP Camera
Product Overview
The LILIN P7G1182 is a 4K day and night box IP camera designed for advanced AI-enabled surveillance and flexible system integration. It features an Ultra HD 8 megapixel CMOS image sensor, H.265 / HEVC and H.264 / AVC high-performance video compression, simultaneous encoded streams, edge AI processing, HDR up to 120dB, built-in microphone, 2-way audio, digital I/O, ONVIF support, and RS-485 connectivity.
Key Configuration
Model: P7G1182; Product Type: 4K Day & Night Box IP Camera; Image Sensor: Ultra HD 8 megapixel CMOS; Video Compression: 8MP H.265 / HEVC and H.264 / AVC; Streaming: simultaneous H.265 and H.264 encoded streams; WDR: 2D WDR and HDR function up to 120dB; Noise Reduction: 3D noise reduction; Analytics: digital PTZ supported and IVS / AI supported with license purchase; Audio: built-in highly sensitive microphone and 2-way audio supported; Digital I/O: 1 input, 1 output; ONVIF Support: Profile S, Profile T, and Profile G; Serial Interface: RS-485 supported.
Key Features
• Ultra HD 8 megapixel CMOS image sensor for 4K image detail
• H.265 / HEVC and H.264 / AVC high-performance video compression
• Edge AI capability with IVS / AI support available by license
• HDR function up to 120dB with 2D WDR and 3D noise reduction
• Built-in microphone, 2-way audio, digital I/O, ONVIF, and RS-485 support
Technical Context
The P7G1182 supports simultaneous H.265 and H.264 encoded streams, digital PTZ, smart events, motion / tamper / audio / alarm / network lost detection, day and night operation with removable IR cut filter, digital I/O integration, ONVIF Profile S / T / G compatibility, and RS-485 control. The P7 series is designed to process image recognition and events directly at the edge, reducing the need for additional AI processing units or intermediary PCs.
Installation Notes
The P7G1182 is intended for box camera installations where 4K video, AI-enabled recognition, day and night operation, audio support, digital I/O, RS-485 connectivity, ONVIF compatibility, and backend system integration are required. Deployment planning should account for lens selection, mounting position, field of view, lighting conditions, AI license requirements, network bandwidth, event rules, and integration with the selected NVR or VMS platform.
| General | |
| Model | P7G1182 |
| Pick Up Element | 1/1.8" CMOS image sensor |
| Effective pixels | 3856 (H) × 2180 (V) = 8,406,080 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| Network OS | Embedded Linux 4.14 |
| Dimensions | 70(W) × 50(H) × 135(D) mm |
| Weight | 435g |
| Casing Material | Aluminum alloy |
| Warranty | 3 Year(s) |
| Lens & Camera | |
| Iris Control | DC-IRIS |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual one push |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| ePTZ & Digital Zoom | Yes |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , 3.5mm phone jack |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA jack |
| Control interface | RS-485 , Half-Duplex |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| User accounts | Multiple user access levels with password protection |
| Access | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100/1000 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Languages | English, Traditional Chinese |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| Starting Temperature | 0°C – +50°C (32°F – 122°F) |
| Operating temperature | -20°C – +50°C (-4°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.6W / PoE, 8.4W |
