Product Overview

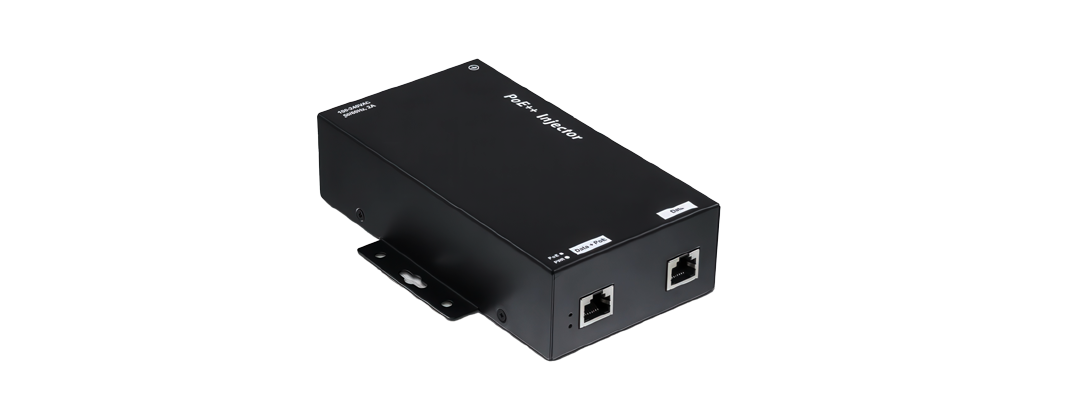

The LILIN PI9018A is a high-performance single-port industrial-grade PoE injector designed to add power delivery to Ethernet network connections. It provides one Ethernet input port for data and one Ethernet output port for combined data and power, allowing compatible PoE devices to receive network connectivity and DC power over a single LAN cable.
Key Configuration
Model: PI9018A; Product Type: Single-Port Industrial PoE Injector; Ethernet Input: 1 data-only Ethernet port; Ethernet Output: 1 Ethernet port with data and power; Power Input: 100-240 VAC; PoE Output: up to 90W; PoE Standard: IEEE 802.3bt PoE++; Application: high-power network devices such as security cameras, wireless access points, and other PoE-compatible equipment.
Key Features
• Single-port industrial-grade PoE injector
• Converts 100-240 VAC input power into PoE DC power
• Delivers up to 90W over existing LAN cabling
• Supports IEEE 802.3bt PoE++ compliant powered devices
• Provides one Ethernet data input and one data + power Ethernet output
Technical Context
The PI9018A is designed to enhance network connection flexibility by injecting power into an Ethernet connection without replacing existing LAN cabling. Its high-power PoE++ output supports devices with greater power requirements than standard PoE endpoints, making it suitable for advanced security cameras, wireless access points, and other demanding network equipment.
Installation Notes
The PI9018A is intended for installations where a network device requires both Ethernet data and PoE power but the upstream switch or network source does not provide sufficient PoE output. Connect the network data source to the input port, connect the powered device to the output port, and verify that the connected endpoint is compatible with IEEE 802.3bt PoE++ and the available 90W power budget.
| General | |
| Model | PI9018A |
| Dimensions | 155 mm (H) x 111.4 mm (W) x 40 mm (D) |
| Weight | 610g |
| Network & PoE | |
| IEEE Standard | IEEE802.3af PoE standard, IEEE802.3at PoE+ standard, IEEE802.3bt PoE++ standard |
| Network connector | RJ-45 |
| Network Cable | Cat.5e UTP/STP cable for 10/100/1G/2.5GBase-T. Cat.6 UTP/STP cable for 5GBase-T. Cat.6A UTP/STP cable for 10GBase-T. |
| No. of Ports | 1 |
| Pass Through Data Rate | 10M/100M/1G/2.5G/5G/10Gbps |
| Power over Ethernet Output | Pin Assignment: 1/2(+), 3/6(-), 4/5(+), 7/8(-). |
| Power over Ethernet Output | Output Voltage: 53VDC (Min), Power Output: 90 Watts. |
| Input Power Requirements | Input Voltage: 100-240Vac/50-60Hz. |
| Input Power Requirements | Input Current: 2A@100-240Vac. |
| Indicators | Power LED: System Power (Solid) & POE LED: PoE Output Power (Solid), PoE Fault (Flashing) |
| Approvals & Environment | |
| Operating temperature | 0℃〜50℃ (32° F to122° F) |
| Operating humidity | -10℃〜70℃ (14° F to 158° F) |
| Storage Humidity | 10%~90% (Non-condensing) |
| Regulatory Compliance | CE,FCC |
