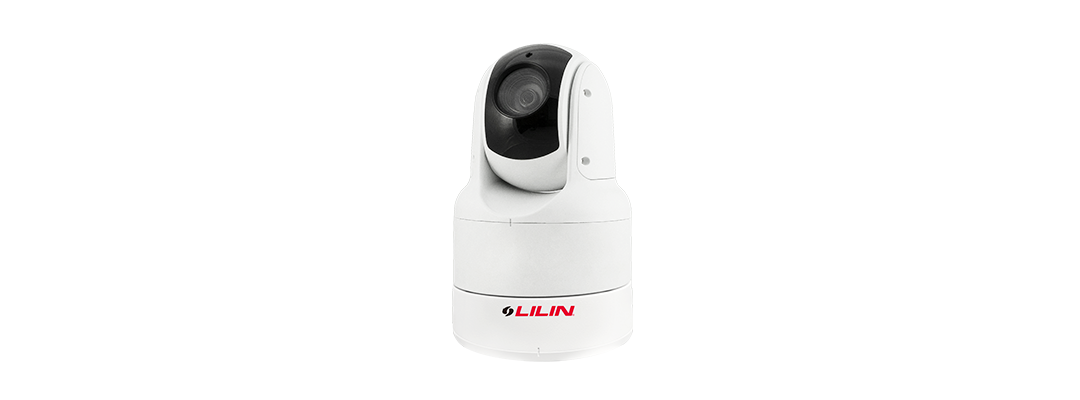

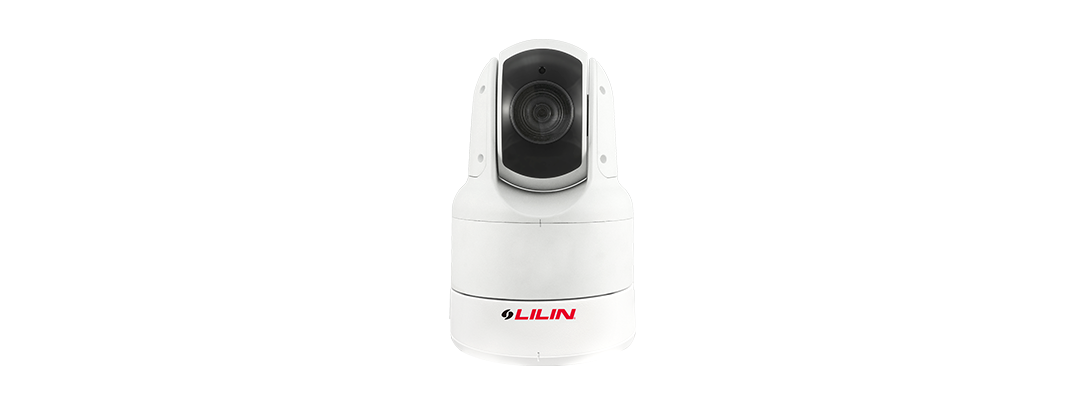

LiLin - S7R5782MX25 - 25X 8MP Day & Night 30 FPS IR Vandal Resistant PTZ IP Camera
Product Overview
The LILIN S7R5782MX25 is a 25X 8MP day and night IR vandal-resistant PTZ IP camera designed for rugged surveillance environments. It combines Ultra HD imaging, optical zoom, physical PTZ movement, integrated AI support, and long-range infrared night vision to provide flexible monitoring across wide areas and distant targets.
Key Configuration
Model: S7R5782MX25; Product Type: IR Vandal Resistant PTZ IP Camera; Resolution: 8MP; Optical Zoom: 25X; Lens: 5.3-132.5mm; Digital Zoom: 16X; IR Night Vision: up to 80m; Pan: 360° endless; Tilt Range: up to 180°; Presets: up to 256 programmable preset positions; Weatherproof Rating: IP68; Vandal Resistance: IK10.
Key Features
• 25X optical zoom lens, 5.3-132.5mm
• 16X digital zoom
• Ultra HD 8 megapixel CMOS image sensor
• Day & Night with removable IR cut filter
• 8MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous H.265 and H.264 encoded streams
• 3D noise reduction (MCTF) and HDR up to 140dB
• Motion, tamper, alarm, network lost, global counter, virtual input, and metadata functions
• SMART event support
• 80m infrared night vision
• Defog function and dynamic privacy zone mask
• 360° endless panning and tilt range up to 180°
• Up to 256 programmable preset positions
• ONVIF supported
• IP68 weatherproof and IK10 vandal-resistant construction
Technical Context
The S7R5782MX25 supports advanced optical zoom and physical PTZ control for flexible adjustment of viewing angles and zoom levels. Integrated AI capabilities allow the camera to automatically track subjects such as people, vehicles, animals, and boats, making it suitable for applications that require both wide-area awareness and detailed target monitoring.
Installation Notes
This PTZ camera is intended for outdoor installations where high-resolution imaging, long-range IR visibility, and rugged protection are required. Its IP68 weatherproof and IK10 vandal-resistant construction supports demanding exposed environments, while PTZ control and preset positions help operators monitor large areas efficiently.
| General | |
| Model | S7R5782MX25 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 3864 (H) × 2192 (V) = 8,469,888 (Pixels) |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memorymemory |
| Network OS | Embedded Linux 4.9.84 |
| Dimensions | 338mm(H) x 184mm(D) |
| Weight | 5400 g |
| Casing Material | Aluminum alloy |
| Window / Glass Thickness | Window Defrost/Defogging function, Standard at Power-Up, Power consumption 2W |
| Warranty | 3 years, but lens and motors are limited in 1 year |
| Lens & Camera | |
| Min. illumination/Low Light Mode (Colour) | 0.04 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.009 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0.008 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.0009 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0 Lux with IR LED ON |
| Zoom ratio | 25X Optical |
| Focal Length | 5.3 (WIDE) – 132.5 (TELE) mm |
| Minimum Aperture Ratio | F1.6(Wide) – F4.3(Tele) |
| Iris Range | F1.6 – 32 , Close |
| Minimum object distance | 50 cm (WIDE end), 1.5M (TELE end) |
| Angle of View | 60.4°(W) – 2.9°(T) (H) 34.7°(W) – 1.5°(T) (V) 69.1°(W) – 3.3°(T) (D) |
| Zoom Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus Speed | 0 – 7 Selectable |
| Focus | Auto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Peak wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Max IR distance | 80m |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Exposure Mode | AUTO / SHUT.P / IRIS.P |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| PTZ | |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 256 Preset Position / Home Position |
| Auto Mode | OFF / SCAN(16) / SEQ(256) / TOUR(16) / PATROL(16) / Auto TRACKING |
| Schedule Setting | OFF / SCAN (4)/ SEQ(256) / TOUR(4) / PATROL(4) / Preset Position(256)(via web interface) |
| Panning Range | 360° Endless |
| Panning Mode | Manual , Auto , Manual Position , Sequential Position |
| Panning Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 120°/s, Alarm Trigger Speed 120°/s |
| Tilting Range | -90° – +90° |
| Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
| Tilting Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 120°/s, Alarm Trigger Speed 120°/s |
| PTZ Control | Pan , tilt , zoom in / out , absolute position, and video-click-n-move |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 |
| 3D Noise Reduction | Off / ON( 1 – 32) |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | OFF / ON ( Up to 16 area) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Defog, Digital Zoom(x8) |
| Shock | 15g vertical, 9g horizontal |
| Vibration | IEC60945 |
| Wind | 60m/s |
| ePTZ & Digital Zoom | - / Yes (Support up to 16x Digital Zoom(Stream 2 / 3 / 4)) |
| OSD | Position configurable text overlay for date, time, camera ID, event status/ Current PTZ Position/ Preset Name, Auto-Pan |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 simultaneous users |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, bONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Max number of online users | 10 user accounts available |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro), iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at web site |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Storage | |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP68 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | - 25°C – + 55°C ( - 13°F – + 131°F ) |
| Operating temperature | - 25°C – + 55°C ( - 13°F – + 131°F ) |
| Storage temperature | - 25°C – + 60°C ( - 13°F – + 140°F ) |
| Operating humidity | 10% – 90% |
| Power Supply | DC12V (10VDC to 32VDC continuous operation and survive 9VDC to 36VDC without damage) |
| Power Consumption | DC12V, 19 W (Still, Illumination OFF) DC12V, 39 W (Motor Drive & Illumination OFF) DC12V, 47 W (Motor Drive & Illumination On) |
