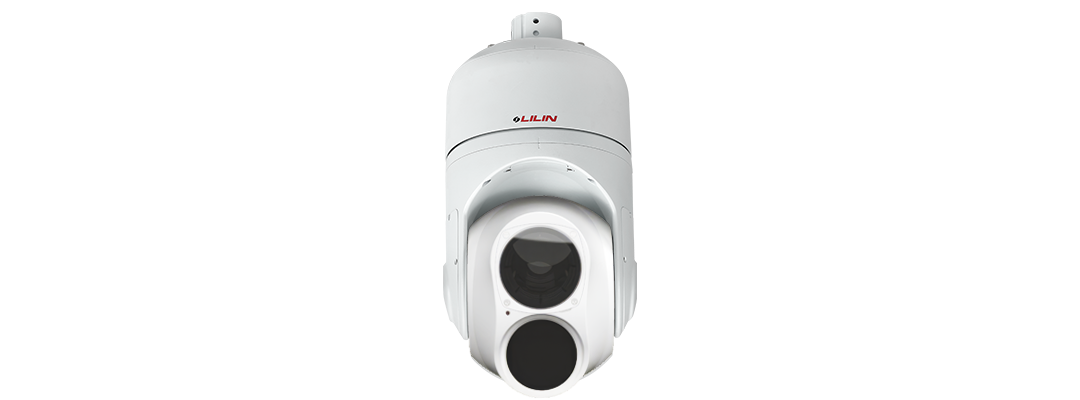

LiLin - S7R5884EX40-L8 - 40X 8MP Day & Night 30 FPS Long Range IR Vandal Resistant PTZ IP Camera
Product Overview
The LILIN S7R5884EX40-L8 is a 40X 8MP day and night long-range IR vandal-resistant PTZ IP camera designed for demanding outdoor surveillance. It combines Ultra HD imaging, extended optical zoom, AI-enabled subject tracking, long-distance infrared night vision, and rugged PTZ operation for wide-area monitoring and distant target observation.
Key Configuration
Model: S7R5884EX40-L8; Product Type: Long Range IR Vandal Resistant PTZ IP Camera; Resolution: 8MP; Optical Zoom: 40X; Lens: 6.3-252mm; Digital Zoom: 16X; IR Night Vision: up to 800m; Pan: 360° endless; Tilt Range: up to 196°; Presets: up to 256 programmable preset positions; Weatherproof Rating: IP66; Vandal Resistance: IK10.
Key Features
• 40X optical zoom lens, 6.3-252mm
• 16X digital zoom
• Ultra HD 8 megapixel CMOS image sensor
• Day & Night with removable IR cut filter
• 8MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous H.265 and H.264 encoded streams
• 3D noise reduction (MCTF) and HDR up to 140dB
• Motion, tamper, audio, alarm, network lost, global counter, virtual input, and metadata functions
• SMART event support
• 800m infrared night vision
• EIS support and defog function
• Dynamic privacy zone mask
• Horizontal and vertical flip
• 360° endless panning and tilt range up to 196°
• Up to 256 programmable preset positions
• 2-way audio supported
• ONVIF and RS-485 supported
• IP66 weatherproof and IK10 vandal-resistant construction
• Rain repellent glass
Technical Context
The S7R5884EX40-L8 provides advanced optical zoom and physical PTZ control for applications that require flexible viewing angles and long-range target identification. Integrated AI capabilities allow the camera to automatically track subjects such as people, vehicles, animals, and boats, making it suitable for broad-area security and perimeter monitoring.
Installation Notes
This camera is intended for exposed outdoor environments where high-resolution imaging, long-range IR coverage, and resilient mechanical protection are required. Its IP66 weatherproof housing, IK10 vandal resistance, EIS support, defog function, and rain repellent glass help maintain reliable monitoring in challenging conditions.
| General | |
| Model | S7R5884EX40-L8 |
| Pick Up Element | 1/1.8" CMOS image sensor |
| Effective pixels | 3856 (H) × 2180 (V) = 8,406,080 (Pixels) |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| Network OS | Embedded Linux 5.4 |
| Dimensions | 395 (H) × 221 (D) mm |
| Weight | 8800 g |
| Casing Material | Aluminum alloy |
| Window / Glass Thickness | Ø75 Heat Resistant Glass & Rain repellent glass |
| Warranty | 3 Year(s) |
| Lens & Camera | |
| Min. illumination/Low Light Mode (Colour) | 0.018 lux (1/30 sec, F1.4(Wide), 30IRE, AGC-Gain: 72dB ICR-OFF Color mode) 0.003 lux (1/30 sec, F1.4(Wide), 30IRE, AGC-Gain: 72dB ICR-ON B/W mode) 0.004 lux (1/8 sec, F1.4(Wide), 30IRE, AGC-Gain: 72dB ICR-OFF Color mode) 0.0007 lux (1/8 sec, F1.4(Wide), 30IRE, AGC-Gain: 72dB ICR-ON B/W mode) 0 Lux with IR illuminator ON |
| Zoom ratio | 40X Optical |
| Focal Length | 6.3 (WIDE) – 252 (TELE) mm |
| Minimum Aperture Ratio | F1.4(Wide) – F4.9(Tele) |
| Iris Range | F1.4 – 32 , Close |
| Minimum object distance | 0.5M (WIDE end), 2.0M (TELE end) |
| Angle of View | 67.8°(W) – 2.1°(T) (H) 39.8°(W) – 1.2°(T) (V) 75.6°(W) – 2.4°(T) (D) |
| Zoom Speed | 0 – 7 Selectable [ Fast : Approx. 10.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus Speed | 0 – 7 Selectable |
| Focus | Auto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Peak wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Max IR distance | 800m |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Exposure Mode | AUTO / SHUT.P / IRIS.P |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 72 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| PTZ | |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 256 Preset Position / Home Position |
| Auto Mode | OFF / SCAN(16) / SEQ(256) / TOUR(16) / PATROL(16) / Auto TRACKING |
| Schedule Setting | OFF / SCAN (4)/ SEQ(256) / TOUR(4) / PATROL(4) / Preset Position(256)(via web interface) |
| Panning Range | 360° Endless |
| Panning Mode | Manual , Auto , Manual Position , Sequential Position |
| Panning Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 150°/s, Alarm Trigger Speed 150°/s |
| Tilting Range | -8° – +188° |
| Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
| Tilting Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 150°/s, Alarm Trigger Speed 150°/s |
| PTZ Control | Pan , tilt , zoom in / out , absolute position, and video-click-n-move |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 |
| 3D Noise Reduction | Off / ON( 1 – 32) |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | OFF / ON ( Up to 16 area) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Defog, Digital Zoom(x8) |
| ePTZ & Digital Zoom | - / Yes (Support up to 16x Digital Zoom(Stream 2 / 3 / 4)) |
| OSD | Position configurable text overlay for date, time, camera ID, event status/ Current PTZ Position/ Preset Name, Auto-Pan |
| Audio & I/O | |
| Audio Input / Output | one audio input / one audio output Terminal block type (microphone not built- in) |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC connector |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 4 Input (TTL 5Vdc) , 2 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW / 300mA,450mW) , Terminal block type |
| Control interface | RS-485, Half-Duplex, support MLP2, Pelco D/P protocols |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100/1000 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Network Storage | NAS (Support SAMBA/CIFS) |
| User accounts | 10 user accounts available |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro), iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M, IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at web site |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above Microsoft® Edge (IE mode) |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP66 |
| Vandal Resistant Rating / IK Rating | IK10 (Housing) |
| Starting Temperature | - 40°C – + 50°C ( -40°F – 122°F ) |
| Operating temperature | - 40°C – + 50°C ( -40°F – 122°F ) |
| Storage temperature | - 20°C – + 60°C ( -4°F – 160°F ) |
| Operating humidity | 10% – 90% |
| Power Supply | AC24V ±10% / DC24V / PoE++(IEEE802.3bt) |
| Power Consumption | AC24V, 56.0W (Heater OFF) AC24V, 79.0W (Heater ON) PoE++, 50.0W (Heater OFF) PoE++, 71.0W (Heater ON) |
