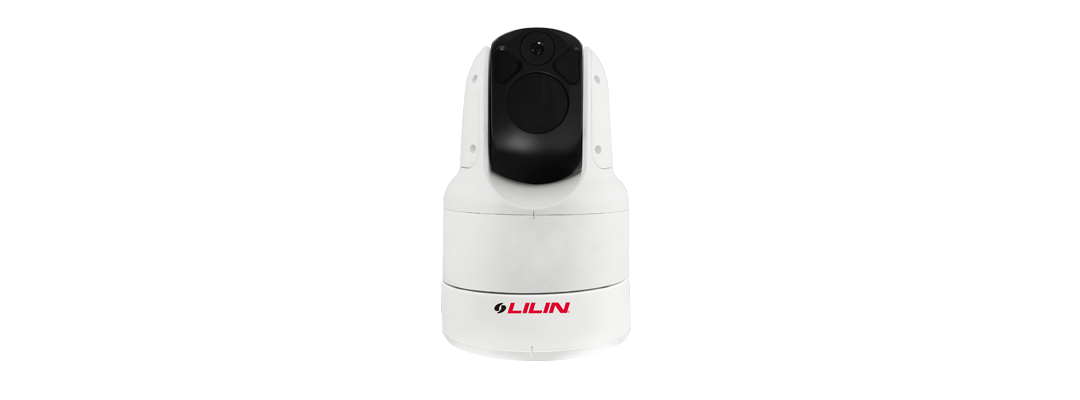

LiLin - S7R5924MX30-T19 - Bispectral PTZ IP Camera | Auto Tracking
Product Overview
The LILIN S7R5924MX30-T19 is a bispectral PTZ IP camera with auto tracking, designed for intelligent surveillance applications that require optical zoom, day and night operation, AI-assisted monitoring, and rugged outdoor performance. It combines a Full HD 2MP CMOS sensor, 30X optical zoom, infrared night vision, and PTZ movement for flexible target observation.
Key Configuration
Model: S7R5924MX30-T19; Product Type: Bispectral PTZ IP Camera with Auto Tracking; Resolution: 2MP; Optical Zoom: 30X; Lens: 4.3-129.0mm; Digital Zoom: 16X; IR Night Vision: up to 100m; Pan: 360° endless; Tilt Range: up to 180°; Presets: up to 256 programmable preset positions; Weatherproof Rating: IP66; Vandal Resistance: IK10.
Key Features
• 30X optical zoom lens, 4.3-129.0mm
• 16X digital zoom
• Full HD 2 megapixel CMOS image sensor
• Day & Night with removable IR cut filter
• 2MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous H.265 and H.264 encoded streams
• 3D noise reduction (MCTF) and HDR up to 120dB
• IVS and built-in AI function support
• Motion, tamper, alarm, network lost, global counter, virtual input, and metadata functions
• SMART event support
• 100m infrared night vision
• EIS function and defog function
• Dynamic privacy zone mask
• Horizontal and vertical flip
• 360° endless panning and tilt range up to 180°
• Up to 256 programmable preset positions
• ONVIF supported
• IP66 weatherproof and IK10 vandal-resistant construction
Technical Context
The S7R5924MX30-T19 supports long-range PTZ surveillance with 30X optical zoom and 16X digital zoom for flexible scene coverage and target detail. Its built-in AI and IVS capabilities help automate event recognition, while H.265/HEVC and H.264/AVC compression support efficient video streaming and storage.
Installation Notes
This camera is suited for outdoor installations where PTZ control, night visibility, and rugged protection are required. The IP66 weatherproof housing, IK10 vandal resistance, EIS function, defog support, and dynamic privacy masking help maintain reliable operation in exposed surveillance environments.
| General | |
| Model | S7R5924MX30-T19 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 1945 (H) × 1097 (V) = 2,133,665 (Pixels) |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| OS | Embedded Linux 5.4 |
| Dimensions | φ184mm*300mm(H) |
| Weight | 5.5kg |
| Casing Material | Aluminum alloy |
| Lens & Camera | |
| Min. illumination/Low Light Mode (Colour) | 0.01 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.008 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0.003 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.0009 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0 Lux with IR LED ON |
| Lens zoom ratio | 30X Optical |
| Minimum Aperture Ratio | 4.3 (Wide) – 129.0 (Tele) mm |
| Focal Length | F1.6(Wide) – F4.7(Tele) |
| Iris Range | F1.6 – 32 , Close |
| Iris Control | DC IRIS / Manual |
| Minimum object distance | 10 cm (Wide end), 1.5m (Tele end) |
| Angle of View | 72.3°(W) – 2.9°(T) (H) 43.3°(W) – 1.7°(T) (V) 81.0°(W) – 3.3°(T) (D) |
| Zoom Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus Speed | 0 – 7 Selectable |
| Focus | Auto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Peak wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Max IR distance | 100m |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Exposure Mode | AUTO / SHUT.P / IRIS.P |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Thermal | |
| Thermal Image sensor | Uncooled microbolometer |
| Thermal Pixel Size | 12 μm |
| Thermal NETD | <50mK @ 25°C |
| Thermal Focal Length | 19mm |
| Thermal Minimum Aperture Ratio | F1.0 |
| Thermal Minimum Object Distance | 31m |
| Thermal Angle of View | 11.6° (H) 8.7° (V) |
| Thermal Wavelength | 8 – 14 μm |
| Thermal Max. Resolution | 320 x 240 |
| Thermal Aspect ratio | 4:3 |
| PTZ | |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 256 Preset Position / Home Position |
| Auto Mode | OFF / SCAN(16) / SEQ(256) / TOUR(16) / PATROL(16) / Auto TRACKING |
| Schedule Setting | OFF / SCAN (4)/ SEQ(256) / TOUR(4) / PATROL(4) / Preset Position(256)(via web interface) |
| Panning Range | 360° Endless |
| Panning Mode | Manual , Auto , Manual Position , Sequential Position |
| Panning Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 120°/s, Alarm Trigger Speed 120°/s |
| Tilting Range | -90° – +90° |
| Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
| Tilting Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 120°/s, Alarm Trigger Speed 120°/s |
| Gyro Stabilized | Yes |
| PTZ Control | Pan , tilt , zoom in / out , absolute position, and video-click-n-move |
| ePTZ & Digital Zoom | - / Yes (X16) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 (Optical x2, Thermal x2) |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | • Stream 1 (Optical): 1920x1072, 1280x720 • Stream 2 (Optical): 1280x720, 640x360 • Stream 3 (Thermal): 1280x960, 640x480, 320x240 • Stream 4 (Thermal): 320x240 |
| Maximum Frame Rate | Optical: 30FPS @ 1920x1080 Thermal: 30FPS @ 1280x960 |
| 3D Noise Reduction | Off / ON( 1 – 32) |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | OFF / ON ( Up to 16 area) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Defog, Digital Zoom(x16) |
| OSD | • Bounding boxes displayed in RTSP streams • Detection zone/line crossing zone overlay displayed in RTSP streams • Bounding box displayed around all objects in Intrusion Zone |
| Audio & I/O | |
| Alarm Input / output | Digital 4 Input (TTL 5Vdc) , 2 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW / 300mA,450mW) , Terminal block type |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | IP address and MAC address filtering |
| Access | Multiple user access levels with password protection |
| Users | 10 user accounts available |
| Multi IP address | Yes |
| Ethernet | 10/100 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Network Storage | NAS (Support SAMBA/CIFS) |
| User accounts | 10 user accounts available |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro), iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| AI (Optional) | EDGEFLOW, EDGECAP |
| Alarm event triggers | Motion / Tamper / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm recording(Alarm / event) | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU requirement | Intel® Core™ i7 or higher grade |
| OS requirement | Windows 10 or above |
| RAM requirement | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP66 |
| Vandal Resistant Rating / IK Rating | IK10 (Housing) |
| NEMA 4X | NEMA 4X (Optional) |
| BSMI Certification | Yes, CNS 15963 |
| Starting Temperature | - 25°C – + 60°C ( - 13°F – 140°F ) |
| Starting Temperature (POE) | - 10°C – + 60°C ( + 14°F – 140°F ) |
| Operating temperature | - 30°C – + 60°C ( - 22°F – 140°F) |
| Storage temperature | - 30°C – + 60°C ( - 22°F – 140°F) |
| Operating humidity | 10% – 90% |
| Power Supply | AC24V, 24.7W (Motor Drive & Illumination OFF) AC24V, 64.5W (Motor Drive & Illumination On) POE++, 24.7W (Motor Drive & Illumination OFF) POE++, 64.5W (Motor Drive & Illumination On) |
| Power Consumption | 5.5kg |
| Shock | 15g vertical, 9g horizontal |
| Vibration | IEC60945 |
| Wind | 60m/s |
