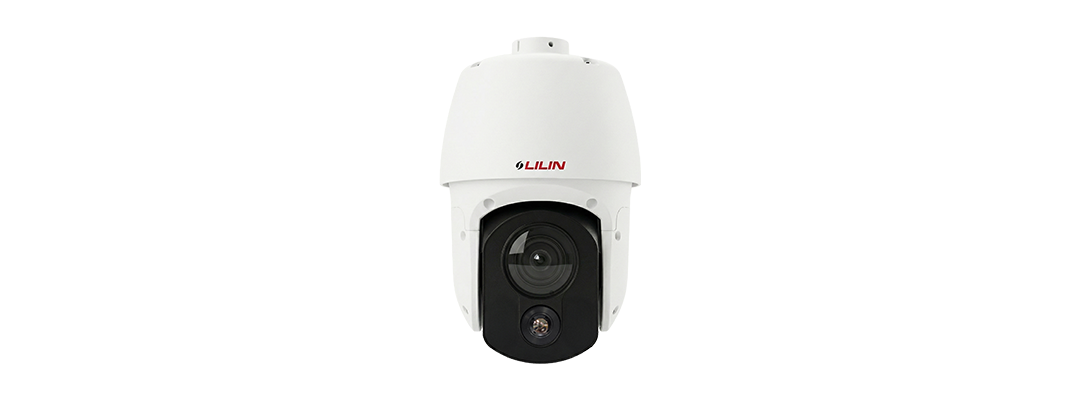

LiLin - S7R5A24EX30-AT3 - Bi-Spectrum Thermal Fusion PTZ Camera

Product Overview

The LILIN S7R5A24EX30-AT3 is a bi-spectrum thermal fusion PTZ IP camera with auto tracking, designed for high-performance perimeter surveillance and threat detection. It combines a visible-light Full HD 2MP optical camera with a thermal imaging sensor in a single PTZ platform, helping operators detect and track targets in darkness, fog, smoke, foliage, and other challenging visibility conditions.

Key Configuration

Model: S7R5A24EX30-AT3; Product Type: Bi-Spectrum Thermal Fusion PTZ IP Camera with Auto Tracking; Visible Sensor: Full HD 2MP CMOS; Optical Zoom: 30X; Optical Lens: 4.3-129.0mm; Digital Zoom: 8X; Thermal Lens: 3.7mm; Thermal Pixel Size: 12µm; Thermal Wavelength: 8-14µm; Video Compression: H.265/HEVC and H.264/AVC; Day & Night: removable IR cut filter.

Key Features

• Bi-spectrum design with visible-light and thermal imaging sensors
• Full HD 2 megapixel CMOS visible-light image sensor
• 30X optical zoom lens, 4.3-129.0mm
• 8X digital zoom
• Uncooled thermal imaging sensor
• 3.7mm thermal focal length
• 12µm thermal pixel size
• Thermal wavelength range of 8-14µm
• H.265/HEVC and H.264/AVC high-performance video compression
• Day & Night operation with removable IR cut filter
• Thermal fusion for improved target visibility in smoke, fog, foliage, or complete darkness
• AI auto-tracking for moving targets such as people or vehicles
• IVS-based intelligent detection and tracking support
• PTZ platform for wide-area monitoring and target follow-up

Technical Context

The S7R5A24EX30-AT3 uses a dual-sensor architecture to combine conventional optical surveillance with thermal detection. The optical camera provides detailed Full HD imagery and long-range zoom, while the thermal channel detects heat signatures that may remain visible when standard video is limited by poor lighting or atmospheric conditions.

Installation Notes

This camera is suited for perimeter security, industrial facilities, critical infrastructure, and large outdoor sites where reliable detection and automated tracking are required. Its bi-spectrum design helps maintain situational awareness across day, night, and low-visibility environments while reducing reliance on visible light alone.
