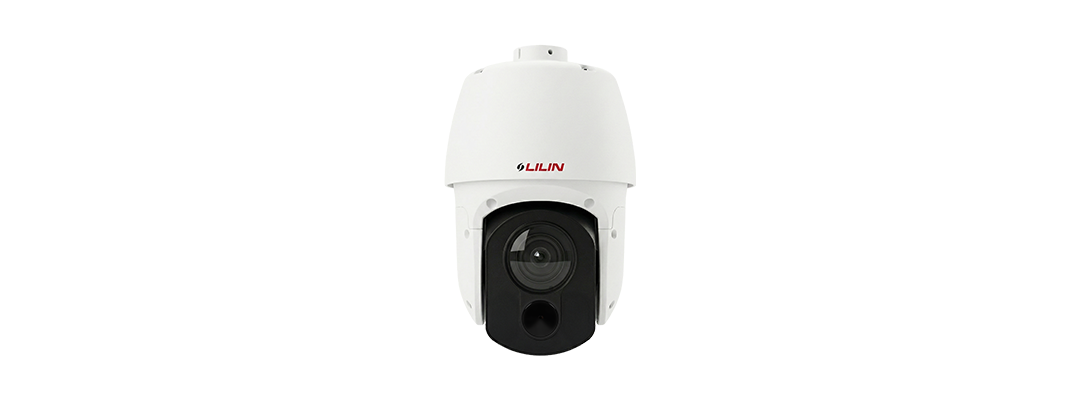

LiLin - S7R5A54EX30 - 30X 5MP Day & Night 30 FPS IR Vandal Resistant PTZ IP Camera
Product Overview
The LILIN S7R5A54EX30 is a 30X 5MP day and night PTZ IP camera designed for long-range outdoor surveillance and intelligent target monitoring. It combines a Full HD 5MP CMOS image sensor, 30X optical zoom, 16X digital zoom, AI-assisted functions, and infrared night vision to support detailed observation across wide-area security environments.
Key Configuration
Model: S7R5A54EX30; Product Type: Vandal Resistant PTZ IP Camera; Resolution: 5MP; Optical Zoom: 30X; Lens: 4.3-129.0mm; Digital Zoom: 16X; IR Night Vision: up to 80m; Pan: 360° endless; Tilt Range: up to 100°; Presets: up to 256 programmable preset positions; Weatherproof Rating: IP66; Vandal Resistance: IK10.
Key Features
• 30X optical zoom lens, 4.3-129.0mm
• 16X digital zoom
• Full HD 5 megapixel CMOS image sensor
• Day & Night with removable IR cut filter
• 5MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous H.265 and H.264 encoded streams
• 3D noise reduction (MCTF) and HDR up to 120dB
• IVS and built-in AI function support
• Motion, tamper, alarm, audio, network lost, global counter, virtual input, and metadata functions
• SMART event support
• 80m infrared night vision
• Defog function
• Dynamic privacy zone mask
• Horizontal and vertical flip
• 360° endless panning and tilt range up to 100°
• Up to 256 programmable preset positions
• 2-way audio supported
• ONVIF supported
• IP66 weatherproof and IK10 vandal-resistant construction
Technical Context
The S7R5A54EX30 supports high-detail PTZ surveillance with a 30X optical zoom lens for identifying distant subjects and a 16X digital zoom for additional image enlargement. H.265/HEVC and H.264/AVC compression help optimize video bandwidth and storage, while AI and IVS functions assist with event-based monitoring.
Installation Notes
This camera is suitable for outdoor security locations that require long-range zoom, AI-assisted monitoring, infrared night visibility, and rugged PTZ performance. Its IP66 weatherproof housing, IK10 vandal resistance, defog function, and privacy masking support dependable operation in exposed surveillance environments.
| General | |
| Model | S7R5A54EX30 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 2608 (H) x 1964 (V) = 5,122,112 (Pixels) |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB eMMC memory |
| OS | Embedded Linux 5.4 |
| Dimensions | Ø175 x 270 (H) mm |
| Weight | 3.9 Kg (without mount) |
| Casing Material | Aluminum alloy |
| Warranty | 3 Year(s) |
| Lens & Camera | |
| Min. illumination/Low Light Mode (Colour) | 0.01 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode)0.008 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode)0.003 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode)0.0009 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode)0 Lux with IR LED ON |
| Zoom ratio | 30X Optical |
| Focal Length | 4.3 (Wide) - 129.0 (Tele) mm |
| Minimum Aperture Ratio | F1.6(Wide) - F4.7(Tele) |
| Iris Range | F1.6 - 32, Close |
| Iris Control | DC IRIS / Manual |
| Minimum object distance | 10 cm (Wide end), 1.5m (Tele end) |
| Angle of View | 72.3° (W) - 2.9° (T) (H)43.3° (W) - 1.7° (T) (V)81.0° (W) - 3.3° (T) (D) |
| Zoom Speed | 0-7 Selectable [Fast: Approx. 6.0 Second (Tele to Wide) in Manual Mode] |
| Focus Speed | 0-7 Selectable |
| Focus | Auto (Continue/Interval/Zoom Trigger / One Push), Manual Focus |
| Peak wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Max IR distance | 80m |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s - 1/20000s |
| Exposure Mode | AUTO / SHUT.P / IRIS.P |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| PTZ | |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 256 Preset Position / Home Position |
| Auto Mode | OFF / SCAN(16) / SEQ(256) / TOUR(16) / PATROL(16) / Auto TRACKING |
| Schedule Setting | OFF / SCAN(4) / SEQ(256) / TOUR(4) / PATROL(4) / Preset Position(256) (via web interface) |
| Panning Range | 360° Endless |
| Panning Mode | Manual, Auto, Manual Position, Sequential Position |
| Panning Speed | Manual Approx. 0.1°/s - 120°/s 8 Steps, Preset Approx. 1°/s - 120°/s, Alarm Trigger Speed 120°/s |
| Tilting Range | -10° - +90° |
| Tilting Mode | Manual, Auto, Manual Position, Sequential Position |
| Tilting Speed | Manual Approx. 0.1°/s - 120°/s 8 Steps, Preset Approx. 1°/s - 120°/s, Alarm Trigger Speed 120°/s |
| PTZ Control | Pan, tilt, zoom in/out, absolute position, and video-click-n-move |
| ePTZ & Digital Zoom | - / Yes (X16) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Video bitrate | 128Kbps-12Mbps, Frame rate and bit rate controllable on-the-fly, VBR/CBR/GOP supported, Fixed bitrate |
| Resolution | 5MP(2592 x 1944), 4MP(2304 x 1728), 3.1MP(2048 x 1536), 3MP(2304 x 1296), 2MP(1920 x 1080), 1.3MP(1280 x 960), 1MP(1280 x 720), D1(720 x 480, 720 x 576), VGA(640 x 480), CIF(352 x 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2592 x 1944, 50Hz: 25 FPS @ 2592 x 1944HDR mode: 60Hz: 30 FPS @ 2592 x 1944, 50Hz: 25 FPS @ 2592 x 1944 |
| 3D Noise Reduction | Off / ON(1-32) |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | OFF / ON (Up to 16 area) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Defog, Digital Zoom(x16) |
| OSD | displayed in RTSP streams, Bounding box displayed around all objects in Intrusion Zone |
| Audio & I/O | |
| Audio Input / Output | one audio input / one audio output Terminal block type (microphone not built-in) |
| Audio | Two-way Audio, G.711 u-law/PCM/AAC, External Microphone Required |
| Alarm Input / output | Digital 4 Input (TTL 5Vdc), 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW/300mA, 450mW), Terminal block type |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | IP address and MAC address filtering |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPOE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro), iPhone, iPad, Android support |
| Video Management | ONVIF Profile S/ONVIF Profile T/ONVIF Profile G, IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan: Firmware available at web site |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB, 64GB, 128GB, 256GB, 512GB, 1TB (SDXC, U1, C10)Transcend - 4GB SD, 8GB SDHC, 32GB SDHC C10, 128GB SDXC C10SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| Network OS | Windows 10 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer 9 or above, Microsoft® Edge |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP68 |
| Vandal Resistant Rating / IK Rating | IK10 (Housing) |
| Starting Temperature | -30°C - +50°C (-22°F - 122°F) |
| Operating temperature | -30°C - +50°C (-22°F - 122°F) |
| Storage temperature | -30°C - +60°C (-22°F - 140°F) |
| Operating humidity | 10% - 90% |
| Power Supply | DC24V (DC21V-35V), PoE+ (802.at) |
| Power Consumption | DC24V, 10.7 W (Still, Illumination OFF)DC24V, 21 W (Motor Drive & Illumination On)PoE+, 11.4 W (Still, Illumination OFF)PoE+, 22 W (Motor Drive & Illumination On) |
| Wind | 40m/s |
