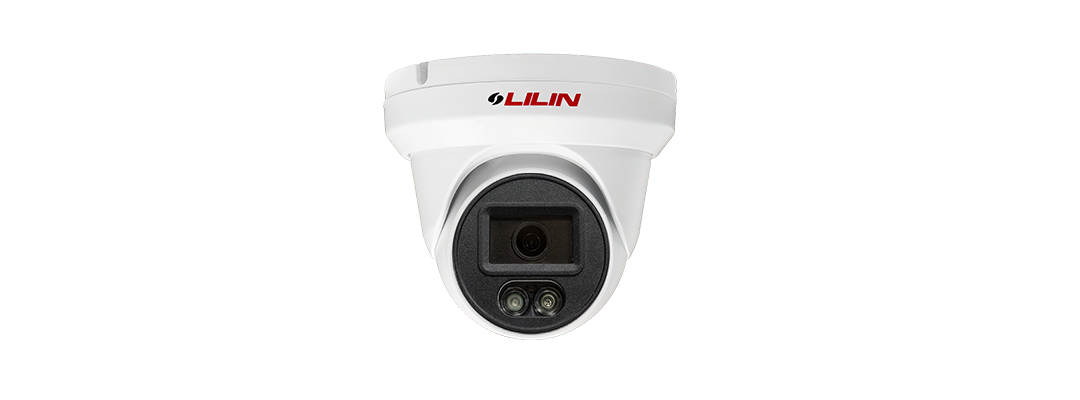

LiLin - V1R4452AE2 - 5MP Day & Night Fixed IR IP Turret Camera
Product Overview
The LILIN V1 series 5MP camera is designed for entry-level AI surveillance applications, combining high-resolution imaging, efficient H.265/HEVC compression, edge-based recognition, and rugged outdoor protection. With EDGEFENCE support, the camera performs human and vehicle recognition directly at the edge, reducing the need for additional AI processing hardware or PC-based analytics.
Key Configuration
Resolution: 5MP; Image Sensor: 5 megapixel CMOS; Video Compression: H.265/HEVC and H.264/AVC; Streaming: simultaneous H.265 and H.264 encoded streams; IR Distance: up to 30m; Audio: built-in microphone and 2-way audio; Digital I/O: 1 input, 1 output; ONVIF Profiles: S, T, G, M; Weatherproof Rating: IP67; Vandal Resistance: IK10; AI Function: EDGEFENCE human and vehicle recognition.
Key Features
• 5 megapixel CMOS image sensor
• 5MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous streaming of H.265 and H.264 encoded streams
• 3D noise reduction
• 2D WDR function
• HDR function up to 120dB
• IVS supported
• Motion, tamper, audio, alarm, network lost, global counter, virtual input, and metadata functions
• SMART event support
• High efficiency IR LED with radiant distance up to 30m
• Day & Night with removable IR cut filter
• Built-in highly sensitive microphone
• 2-way audio supported
• Digital I/O: 1 in, 1 out
• ONVIF Profile S, T, G, and M supported
• IP67 rain and dust resistant housing
• IK10 vandal-resistant construction
• EDGEFENCE support for human and vehicle recognition
Technical Context
The V1 series processes recognition and event logic directly on the camera, enabling efficient edge computing without separate AI servers or intermediary PCs. Its human and vehicle recognition capabilities allow it to function as an electronic fence for intelligent surveillance, automated management, and basic perimeter protection.
Installation Notes
This camera is suitable for entry-level smart surveillance deployments that require 5MP imaging, night visibility, local event processing, audio support, and durable outdoor installation. IP67 protection and IK10 vandal resistance make it appropriate for building entrances, perimeter zones, parking areas, and general security monitoring.
| General | |
| Model | V1R4452AE2 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 2608 (H) × 1964(V) = 5,122,112 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Single core ARM Cortex-A9 960MHz CPU & (DDR 512MB / Flash 128MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | Ø111 x 87(H) mm |
| Weight | 390g |
| Casing Material | Aluminum alloy |
| Warranty | 2 Year(s) |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color: 0.08 Lux at F2.2 ; B/W: 0.01 Lux at F2.2 ; 0 Lux with IR LED ON |
| Focal Length | 2.8mm |
| Iris | F2.2 |
| Iris Control | Fixed IRIS |
| Angle of View | 98° (H) , 71.7° (V) , 127.9° (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR distance | 30M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 5MP(2592 x 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 HDR mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Audio 1 output, Mono, Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW / 300mA, 450mW) , Terminal Block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| BSMI Certification | Yes, CNS 15963 |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 4.6W / POE, 5.7W |
