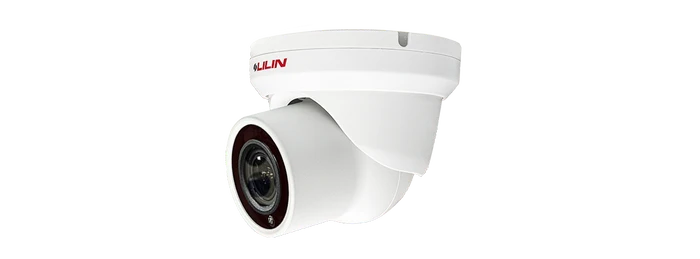

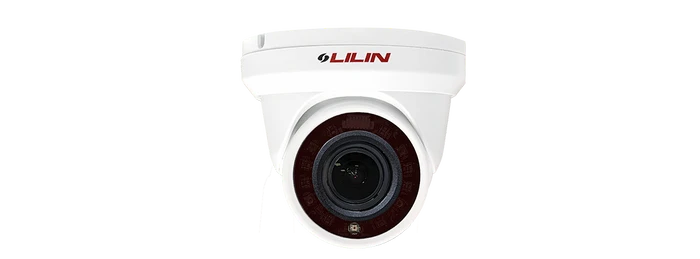

LiLin - V1R4552AX3 - 5MP Day & Night Auto Focus IR IP Turret Camera
Product Overview
This LILIN V1 Series 5MP Day & Night IP camera is designed for entry-level AI surveillance with EDGEFENCE functionality. It combines a 5 megapixel CMOS image sensor, motorized zoom and focus control, IR night visibility, and edge-based human and vehicle recognition for efficient perimeter monitoring without requiring a separate AI server or PC.
Key Configuration
Series: LILIN V1; Resolution: 5MP; Image Sensor: 5 megapixel CMOS; Lens Control: motorized zoom and focus with auto focus; Video Compression: H.265/HEVC and H.264/AVC; IR Distance: up to 30m; Day & Night: removable IR cut filter; Audio: built-in microphone and 2-way audio; Digital I/O: 1 input, 1 output; ONVIF Profiles: S, T, G, M; Weatherproof Rating: IP67; Vandal Resistance: IK10; AI Function: EDGEFENCE human and vehicle recognition.
Key Features
• 5 megapixel CMOS image sensor
• 5MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous streaming of H.265 and H.264 encoded streams
• Auto focus with zoom and focus motorized lens
• 3D noise reduction
• 2D WDR function
• HDR function up to 120dB
• IVS supported
• Motion, tamper, audio, alarm, network lost, global counter, virtual input, and metadata functions
• SMART event support
• High efficiency IR LED with radiant distance up to 30m
• Day & Night with removable IR cut filter
• Built-in highly sensitive microphone
• 2-way audio supported
• Digital I/O: 1 in, 1 out
• ONVIF Profile S, T, G, and M supported
• IP67 rain and dust resistant housing
• IK10 vandal-resistant construction
• EDGEFENCE support for entry-level AI recognition
Technical Context
The V1 Series performs image recognition and event processing directly at the camera edge, reducing the need for additional AI processing units or PC intermediaries. Its EDGEFENCE functionality enables human and vehicle recognition for basic electronic fence applications, helping reduce false alarms while supporting intelligent surveillance and automated security workflows.
Installation Notes
This camera is suitable for installations that require 5MP video, motorized lens adjustment, IR night coverage, local audio support, and entry-level AI event detection. The IP67 and IK10 ratings make it appropriate for outdoor perimeters, entrances, parking areas, building exteriors, and other security locations exposed to weather or physical impact.
| General | |
| Model | V1R4552AX3 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 2608 (H) × 1964(V) = 5,122,112 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Single core ARM Cortex-A9 960MHz CPU & (DDR 512MB / Flash 128MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | Ø111 x 120(H) mm |
| Weight | 450g |
| Casing Material | Aluminum alloy |
| Warranty | 2 Year(s) |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color: 0.06 Lux at F1.6 ; B/W: 0.008 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.6 (W) – F3.1 (T) |
| Iris Control | Fixed IRIS |
| Angle of View | 96.8° (W) – 34.3° (T) (H) , 67.8° (W) – 25.7° (T) (V) , 126.6° (W) – 42.7° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR distance | 30M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Auto Focus | Support |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 5MP(2592 x 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 HDR mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Audio 1 output, Mono, Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW / 300mA, 450mW) , Terminal Block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.2W / POE, 9.2W |
