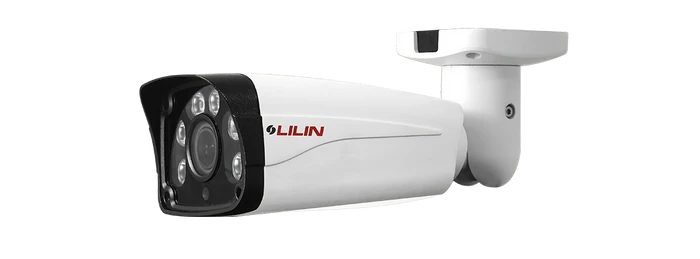

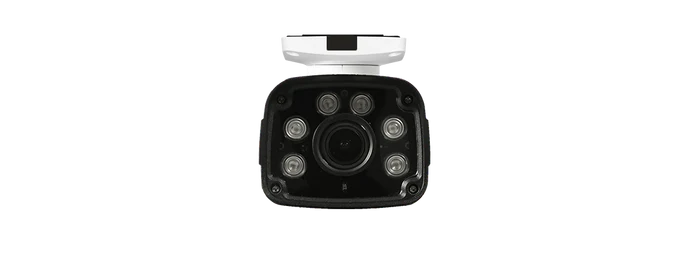

LiLin - V1R9552AX3 - 5MP Day & Night Auto Focus IR IP Bullet Camera
Product Description
The LILIN V1 Series 5MP Day & Night IR IP camera is designed for entry-level AI surveillance applications that require reliable image quality, edge-based recognition, and strong outdoor durability. Equipped with a 5 megapixel CMOS image sensor, H.265/HEVC and H.264/AVC compression, and simultaneous dual-codec streaming, it delivers efficient high-resolution monitoring for modern security systems.
With built-in EDGEFENCE support, the camera performs human and vehicle recognition directly at the edge, reducing the need for external AI processing units or PC-based analytics servers.
Key Configuration
This model includes an auto-focus motorized zoom/focus lens, high-efficiency IR illumination up to 55m, HDR up to 120dB, and IP67/IK10-rated protection for demanding indoor or outdoor installations.
Key Features
• 5 megapixel CMOS image sensor
• 5MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous streaming of H.265 and H.264 encoded streams
• Auto focus with zoom/focus motorized lens
• 3D noise reduction and 2D WDR function
• HDR function up to 120dB
• IVS and SMART event support
• Motion, tamper, audio, alarm, network lost, global counter, virtual input, and metadata event support
• High-efficiency IR LED with radiant distance up to 55m
• Day & Night operation with removable IR cut filter
• 2-way audio supported
• Digital I/O: 1 input, 1 output
• ONVIF Profile S, T, G, and M supported
• IP67 rain and dust resistant
• Vandal resistant approve IK10
Edge AI Surveillance
The V1 series cameras are specifically designed for entry-level AI applications, supporting EDGEFENCE functionality. Image recognition and event processing are handled directly on the camera, enabling efficient edge computing without additional AI servers or PC intermediaries.
Ideal Applications
Primarily used for intelligent surveillance, automated management, and security protection, the V1 series provides human and vehicle recognition capabilities for electronic fence-style perimeter monitoring. It is well suited for locations requiring basic recognition, event processing, and durable all-weather operation.
| General | |
| Model | V1R9552AX3 |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 2608 (H) × 1964(V) = 5,122,112 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Single core ARM Cortex-A9 960MHz CPU & (DDR 512MB / Flash 128MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | 100(W) x 85(H) x 284(D) mm |
| Weight | 950g |
| Casing Material | Aluminum alloy |
| Warranty | 2 Year(s) |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color: 0.06 Lux at F1.6 ; B/W: 0.008 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.6 (W) – F3.1 (T) |
| Iris Control | Fixed IRIS |
| Angle of View | 96.8° (W) – 34.3° (T) (H) , 67.8° (W) – 25.7° (T) (V) , 126.6° (W) – 42.7° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR distance | 55M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Auto Focus | Support |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 5MP(2592 x 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 HDR mode: 60Hz: 30 FPS @ 2592 x 1944 50Hz: 25 FPS @ 2592 x 1944 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio Input / Output | Audio 1 input / 1 output, Mono, 1.98 Vp-p, 2.2KΩ, Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW / 300mA, 450mW) , Terminal Block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| BSMI Certification | Yes, CNS 15963 |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 8.2W / POE, 9.9W |
