LiLin - V1W9452E2 - 5MP Day & Night Fixed Smart Dual Light Bullet IP Camera

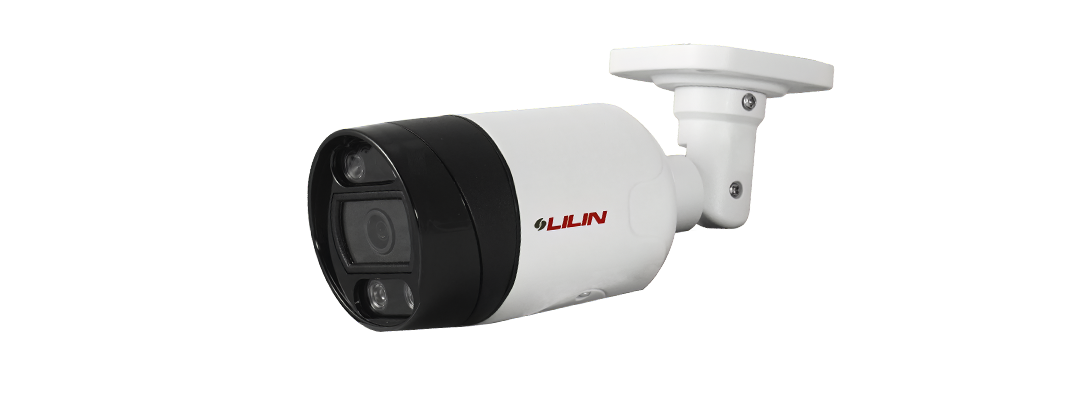

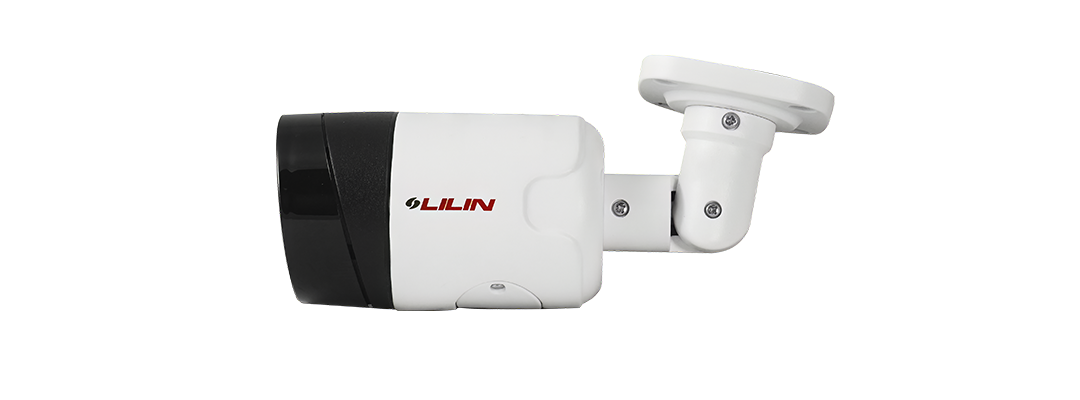

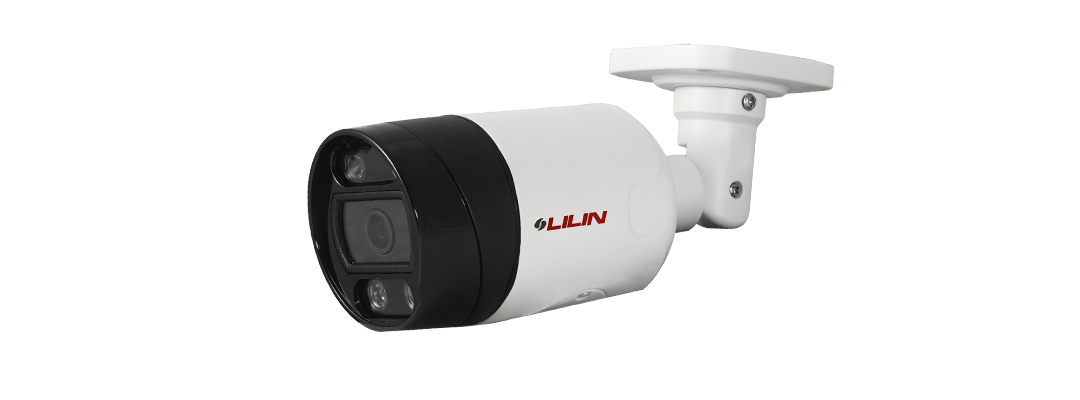

LILIN V1W9452E2 5MP Day & Night Fixed Smart Dual Light Bullet IP Camera
The LILIN V1W9452E2 is a 5 megapixel smart dual-light bullet IP camera designed for entry-level edge AI surveillance. As part of the V1 series, it supports EDGEFENCE functionality, allowing human and vehicle recognition to be processed directly at the camera without additional AI servers or PC-based analytics hardware.
With infrared and WarmLight illumination, the camera can provide discreet black-and-white night monitoring or visible-light full-color capture when greater detail is required. Its IP67 weather-resistant and IK10 vandal-resistant housing makes it suitable for demanding outdoor security applications.
Product Configuration
Model: V1W9452E2
Camera Type: Fixed smart dual light bullet IP camera
Resolution: 5MP
AI Function: EDGEFENCE human and vehicle recognition
Illumination: IR up to 30m, WarmLight up to 25m
Protection: IP67 weather resistant, IK10 vandal resistant
Key Features
• 5 megapixel CMOS image sensor
• H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous streaming of H.265 and H.264 encoded streams
• 3D noise reduction (MCTF)
• 2D WDR function
• HDR function up to 120dB
• IVS and SMART event support
• Motion, tamper, network lost, global counter, virtual input, and metadata event functions
• High-efficiency IR LED with radiant distance up to 30m
• WarmLight visible illumination distance up to 25m
• Day & Night operation with removable IR cut filter
• ONVIF Profile S, T, G, and M supported
• IP67 rain and dust resistant
• IK10 vandal resistant construction
Edge AI Capability
The V1 series is designed for efficient edge computing, performing image recognition and event processing directly on the camera. This architecture reduces the need for additional processing units and helps simplify deployment for perimeter protection, automated monitoring, and basic recognition-based security applications.
Smart Dual Light Operation
The dual-light design combines infrared and white-light illumination for flexible night surveillance. Infrared mode supports low-profile monitoring, while WarmLight can provide visible illumination for clearer color evidence when configured by event rules or lighting conditions.
| General | |
| Model | V1W9452E2 |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Single core ARM Cortex-A9 960MHz CPU & (DDR 512MB / Flash 128MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | 70(W) x 70(H) x 193(D) mm |
| Weight | 370g |
| Casing Material | Aluminum alloy |
| Warranty | 2 Year(s) |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color : 0.06 Lux at F1.3 ; B/W : 0.007 Lux at F1.3 ; 0 Lux with Light LED ON |
| Focal Length | 2.8mm |
| Iris | F1.3 |
| Iris Control | Fixed IRIS |
| Angle of View | 111.5° (H) , 58.9° (V) , 134.8° (D) |
| Peak wavelength | IR : 850nm, Warm Light : 3000K |
| Beam Spread | 60° , 90° |
| Max IR distance | IR : 30M, Warm Light : 25M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| Smart IR | Yes |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| RCM | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | PoE (IEEE 802.3af compliant) |
| Power Consumption | POE, 6.9W |
