LiLin - V1W9552X3 - 5MP Day & Night Auto Focus Smart Dual Light Bullet IP Camera

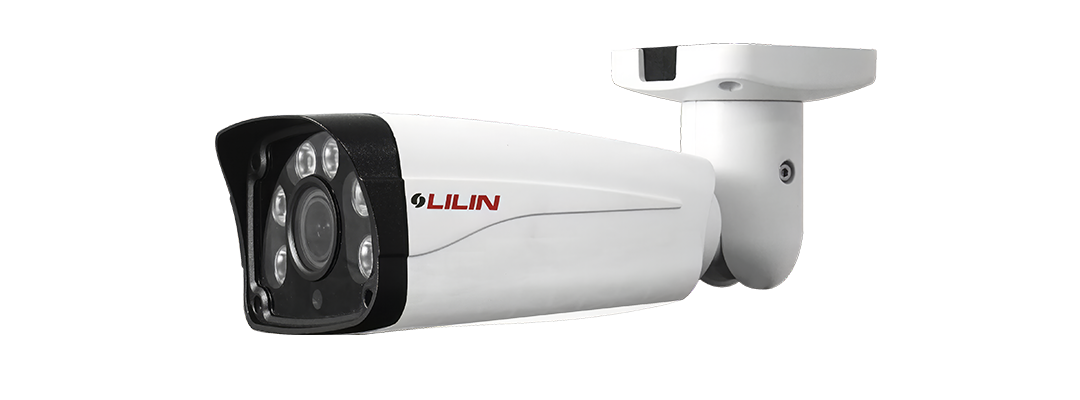

LILIN V1W9552X3 5MP Auto Focus Smart Dual Light Bullet IP Camera
The LILIN V1W9552X3 is a 5MP day/night bullet IP camera designed for entry-level AI surveillance with onboard EDGEFENCE functionality. It performs image recognition and event processing directly at the edge, reducing the need for external AI servers or intermediary PCs.

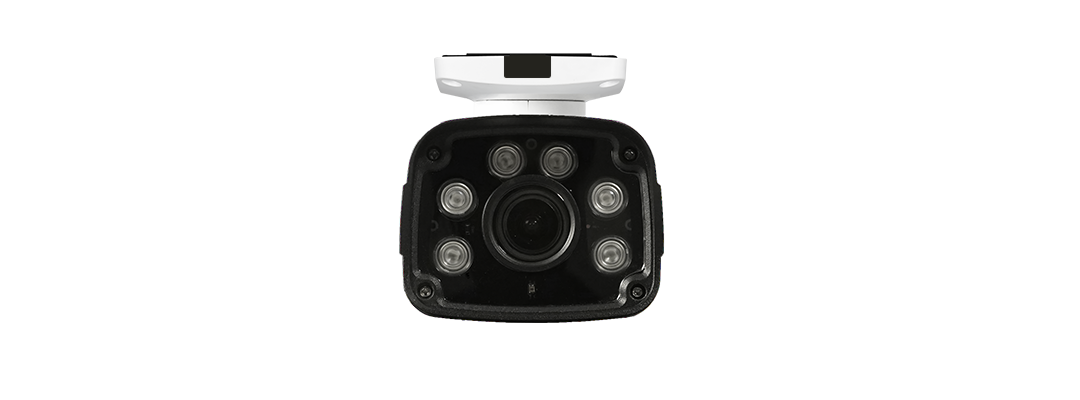

Its smart dual-light system combines infrared and WarmLight illumination, allowing the camera to capture discreet black-and-white footage in low light or switch to full-color imaging when needed.
Key Configuration
Model: V1W9552X3
Resolution: 5MP
Camera Type: Auto Focus Smart Dual Light Bullet IP Camera
AI Function: EDGEFENCE human and vehicle recognition
Illumination: IR up to 35m, WarmLight up to 30m
Protection: IP67 weather resistant, IK10 vandal resistant
Key Features
• 5 megapixel CMOS image sensor
• 5MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous streaming of H.265 and H.264 encoded streams
• Auto focus with zoom / focus motorized lens
• 3D noise reduction (MCTF)
• 2D WDR and HDR function up to 120dB
• IVS and SMART event support
• Motion, tamper, network loss, global counter, virtual input, and metadata event functions
• High-efficiency IR LED up to 35m and WarmLight up to 30m
• Day & Night operation with removable IR cut filter
• ONVIF Profile S, T, G, and M supported
• IP67 rain and dust resistant
• IK10 vandal resistant housing
AI Recognition
The V1W9552X3 supports human and vehicle recognition for electronic fence-style perimeter protection. Up to four alert zones or directional alert lines can be configured to trigger different events while filtering out invalid objects.
The camera supports night recognition, minimum identification resolution of 200 x 200 pixels, cold zone settings to reduce environmental false alarms, and configurable object type, size, and confidence filtering.
Installation Notes
The bullet-style housing is suited for outdoor perimeter, entrance, driveway, parking, and building-security applications. Its motorized zoom and focus simplify setup, while IP67 and IK10 protection make it suitable for exposed or high-risk locations.
| General | |
| Model | V1W9552X3 |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Single core ARM Cortex-A9 960MHz CPU & (DDR 512MB / Flash 128MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | 100(W) x 85(H) x 284(D) mm |
| Weight | 930g |
| Casing Material | Aluminum alloy |
| Warranty | 2 Year(s) |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color: 0.1 Lux at F1.6 ; B/W: 0.01 Lux at F1.6 ; 0 Lux with Light LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.6 (W) – F3.1 (T) |
| Iris Control | Fixed IRIS |
| Angle of View | 107.6° (W) – 38.1° (T) (H) , 56.5° (W) – 21.4° (T) (V) , 129.1° (W) – 43.5° (T) (D) |
| Peak wavelength | IR : 850nm, Warm Light : 3000K |
| Beam Spread | 60° , 90° |
| Max IR distance | IR : 35M, Warm Light : 30M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Auto Focus | Support |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| Smart IR | Yes |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| RCM | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | PoE (IEEE 802.3af compliant) |
| Power Consumption | POE, 9.7W |
