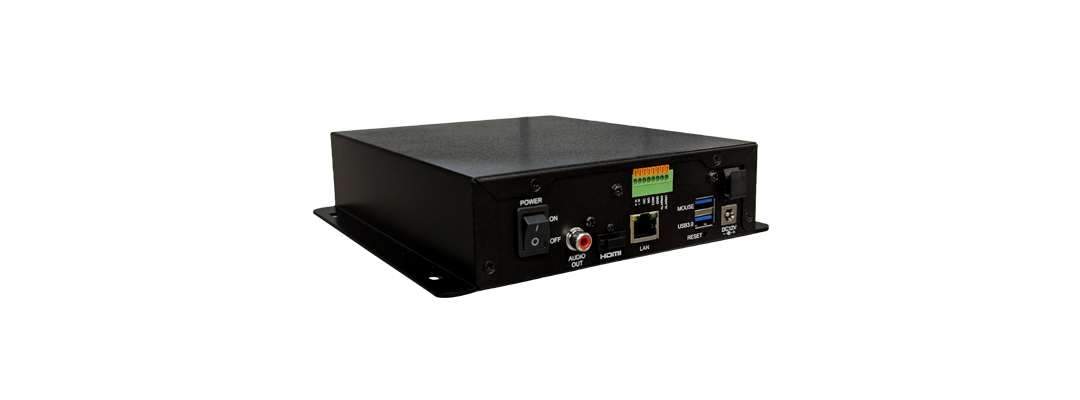

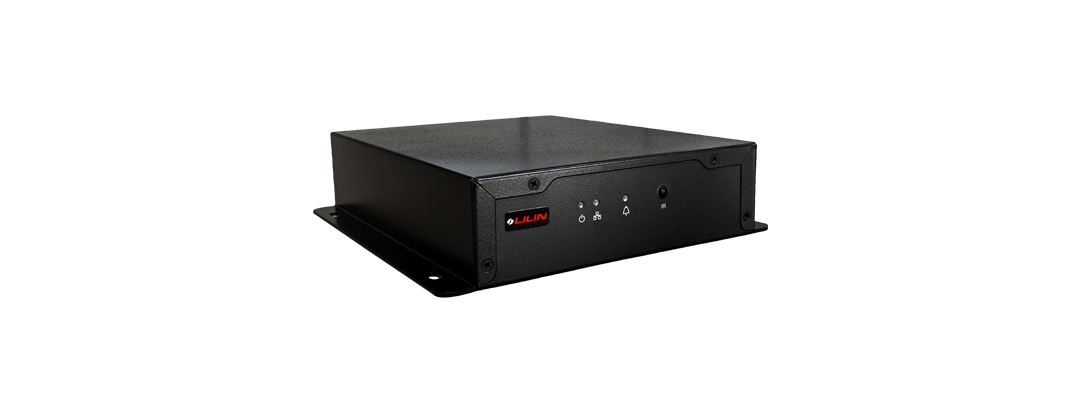

LILIN VD6022 Network Video Decoder
The LILIN VD6022 is a professional standalone Network Video Decoder designed to display high-resolution IP camera streams without requiring individual IP address configuration for each camera. Built for modern surveillance environments, it supports Ultra HD 4K video output and provides an efficient decoding solution for retail, hospitality, SMB, and intelligent-building security systems.
Key Configuration
Model: VD6022
Product Type: Network Video Decoder
Channel Setup: Up to 256 channels
Synchronized Display: Up to 32 channels
Video Support: 4K H.264/H.265 network camera streams
Compliance: NDAA compliant
Key Features
• Taiwan chipset
• NDAA compliant
• Supports up to 256-channel setup
• Supports up to 32-channel synchronized display
• 4K H.264/H.265 network camera support
• Designed for standalone network video decoding
• No IP address configuration required for cameras
• Suitable for megapixel surveillance and multi-camera display applications
Technical Context
The VD6022 supports Ultra HD 4K video decoding, allowing operators to display detailed IP camera footage with higher clarity than traditional 1080p systems. Its H.264 and H.265 support helps optimize bandwidth and storage efficiency while maintaining high-quality video output for live monitoring environments.
Installation Notes
The VD6022 is well suited for control rooms, reception desks, security offices, retail monitoring stations, hospitality facilities, and intelligent buildings that need reliable multi-camera video display from LILIN or compatible network camera systems.
| General | |
| Model | VD6022 |
| CPU | ARM Cortex A53 Quad Core |
| OS | Embedded Linux Kernel 4.19 |
| WDT | Hardware watchdog timer |
| Dimensions | 186 x 198 x 47 mm |
| Weight | ≈1.0 KG |
| Video Input | |
| Supports (Video Input)/Network video /IP video | Network camera / ONVIF Profile S / DVR / NVR / Video encoder / Navigator |
| Input(IP video input) | 256 CH |
| Resolution( IP video input ) | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Maximum Frame Rate ( IP video input ) | 32 CH Display 960 FPS |
| Video Display | |
| Output (Video output) | HDMI 1.4 (4K 30P) |
| Spot monitor (Video Display) | HDMI |
| Split Screen | 1 / 4 / 6 / 8 / 9 / 12 / 13 / 16 / 25 / 32 split division, sequence mode, freeze, alarm display, schedule |
| Digital zoom | Up to 64× |
| Storage & Backup | |
| USB Flash Disk(Backup) | Up to 128 GB supported |
| Audio & I/O | |
| Audio Input | G.711 u-law 8K & AAC |
| Audio Output | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Ports | DI × 2 and DO × 1 (With programmable condition) |
| RS-485 | One set for keyboard controller |
| Network | |
| Ethernet Ports | RJ-45 Gigabit Ethernet × 1 |
| Protocols | ARP / TCP/IP / UDP / HTTP / HTTPS / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S / IPv4 / IPv6 |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile Application | iOS / Android supported |
| IPScan / WS-Discovery( Network ) | WS-Discovery and IP Scan, automatically quick IP address setup for network cameras also available |
| Network | Menu configuration / event log |
| System | |
| Reports( System ) | Operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech |
| Time | Daylight saving / NTP Client / NTP Server |
| Keyboard Keypad | Support PIH-931D keyboard input (Connector box required) |
| Mouse | Mouse click, drag and scroll |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| Power Supply | Adapter DC 12V, 3A, 36W × 1 |
| NVR Consumption (without HDD) | ≤ 7W |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
