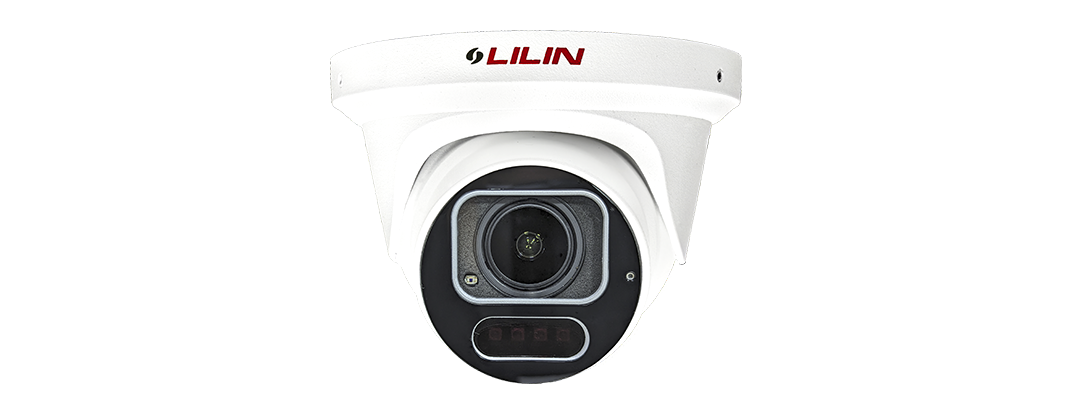

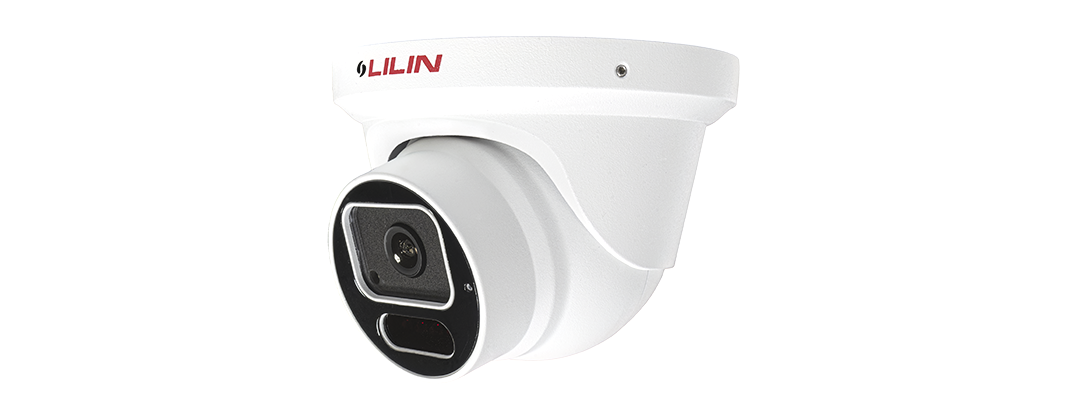

LiLin - Z6R6552X3 - 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
Product Description
The LILIN Z6R6552X3 is a 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera designed for intelligent outdoor and indoor surveillance. As part of the P6 Series, it combines high-resolution imaging, onboard AI analytics, motorized auto-focus optics, and rugged protection for demanding security installations.
The camera processes recognition and event data at the edge, reducing the need for external AI servers or intermediary PCs. It supports human and vehicle recognition, object counting, and advanced event handling for smart perimeter protection and site monitoring.
Key Configuration
Model: Z6R6552X3
Camera Type: Auto Focus IR Vandal Resistant Dome IP Camera
Resolution: 5MP
Lens: Motorized zoom / focus with auto focus
IR Distance: Up to 35m
Audio: Built-in microphone, 1-way audio supported
Protection: IP67 weather resistant, IK10 vandal resistant
Key Features
• 5 megapixel CMOS image sensor
• 5MP H.265/HEVC and H.264/AVC high-performance video compression
• Simultaneous streaming of H.265 and H.264 encoded streams
• Auto focus with zoom / focus motorized lens
• 3D noise reduction (MCTF)
• 2D WDR function
• HDR function up to 140dB
• IVS and SMART event support
• High efficiency IR LED with radiant distance up to 35m
• Day & Night with removable IR cut filter
• ONVIF Profile S, T, G, and M supported
• IP67 rain and dust resistant
• Vandal resistant, IK10 approved
| General | |
| Model | Z6R6552X3 |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Light sensor | Yes |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Network OS | Embedded Linux 4.14 |
| Dimensions | Ø115 × 91 mm |
| Weight | 465g |
| Casing Material | Aluminum alloy |
| Warranty | 3 Years |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color: 0.09 Lux at F1.6 ; B/W: 0.02 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.6 (W) – F2.8 (T) |
| Iris Control | Fixed IRIS |
| Angle of View (H) | 102.3° (W) – 36.9° (T) (H) |
| Angle of View (V) | 53.2° (W) – 20.6° (T) (V) |
| Angle of View (D) | 122.7° (W) – 42.1° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR distance | 35M |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| Auto Focus | Support |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Audio & I/O | |
| Audio | One-way Audio, G.711 u-law / AAC, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G ,ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Log | Event & operation log & IVS event log |
| Schedule Setting | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 8.2W / PoE, 9.2W |
