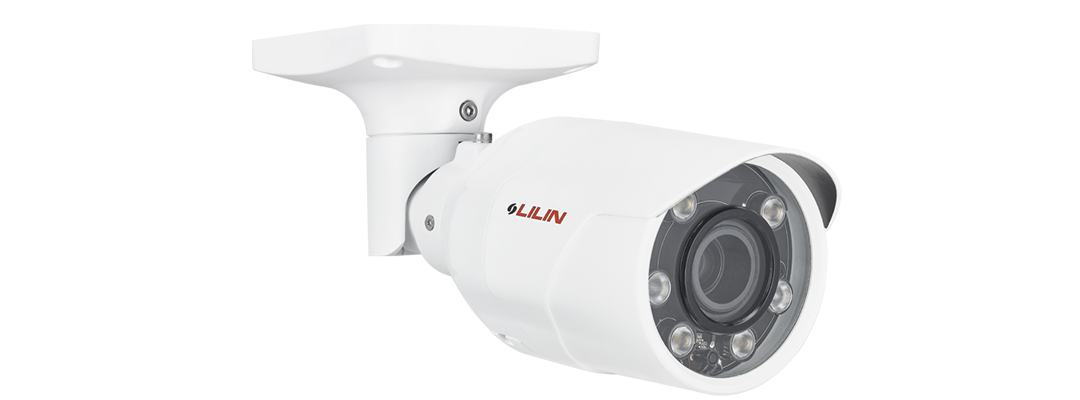

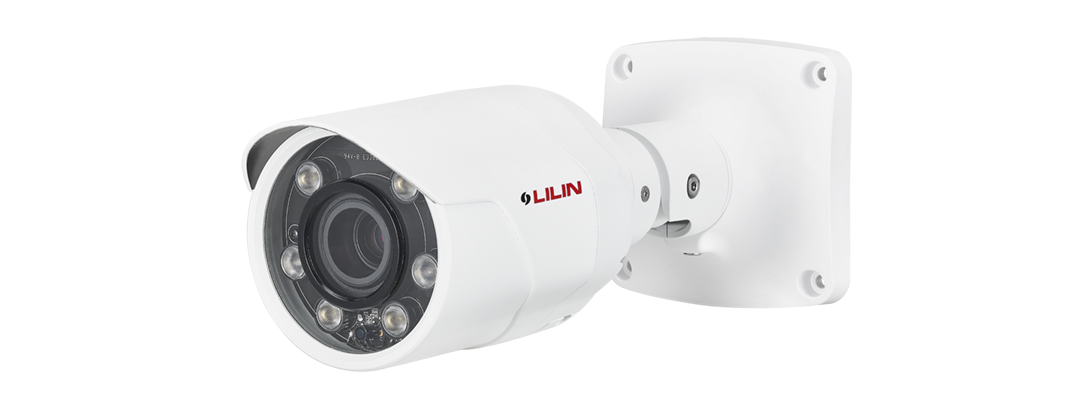

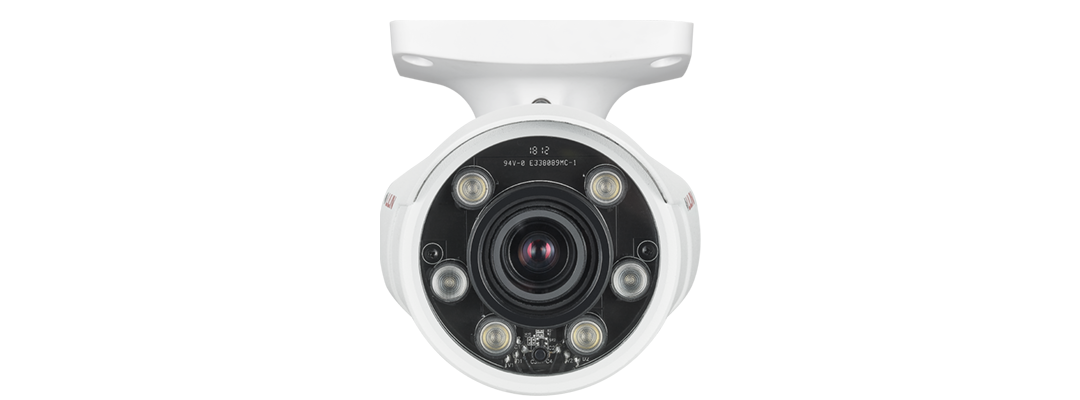

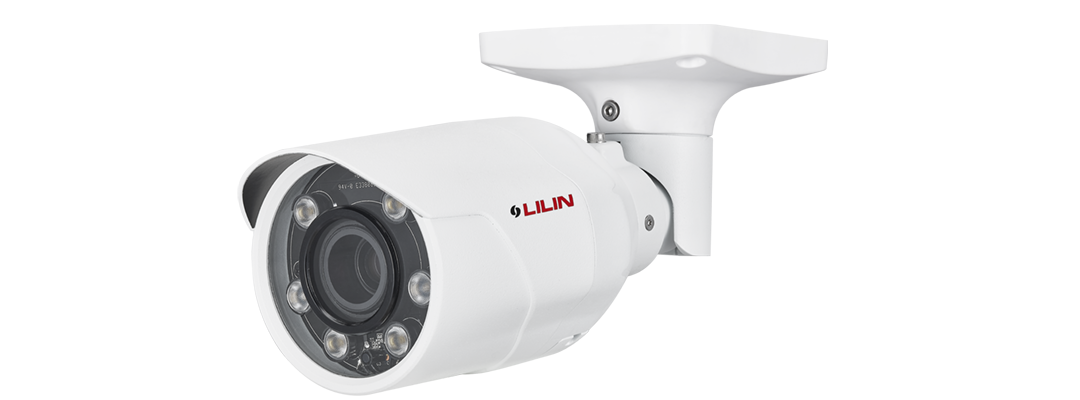

LiLin - Z6R8152X3-P - 5MP Day & Night Auto Focus IR Vandal Resistant Bullet IP Camera
Part number:
Price:
Product Overview
The LILIN Z6R8152X3-P is a 5MP Day & Night Auto Focus IR Vandal Resistant Bullet IP Camera designed for intelligent outdoor surveillance. It combines a 5 megapixel CMOS image sensor, motorized zoom/focus lens, P-Iris control, long-range IR illumination, and rugged IP68/IK10 protection.
Key Configuration
Model: Z6R8152X3-P | Resolution: 5MP | Lens: Auto focus motorized zoom/focus with P-Iris | IR Range: Up to 55m | Protection: IP68 / IK10
Key Features
- 5MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus zoom/focus motorized lens with P-Iris support
- IVS, AI, SMART event, motion, tamper, audio, alarm, network lost detection, global counter, virtual input, and metadata support
- ONVIF Profile S, T, G, and M supported
Technical Context
The P6 Series cameras support edge-based AI recognition and event processing for human and vehicle detection, object counting, and perimeter monitoring. These functions help reduce false alarms and allow the camera to process important events directly without relying on separate AI processing hardware.
Installation Notes
The IP68-rated enclosure is built for demanding outdoor environments, while IK10 vandal resistance helps protect the bullet camera in exposed public, commercial, and perimeter security installations.
| General | |
| Model | Z6R8152X3-P |
| Light sensor | Yes |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Network OS | Embedded Linux 4.14 |
| Dimensions | 103(W) × 103(H) × 258(D) mm |
| Weight | 1120g |
| Casing Material | Aluminum alloy |
| Warranty | 3 Years |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color: 0.1 Lux at F1.6 ; B/W: 0.03 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.6 (W) – F3.3 (T) |
| Iris Control | P-IRIS |
| Angle of View (H) | 102.8° (W) – 32° (T) (H) |
| Angle of View (V) | 55.2° (W) – 17.8° (T) (V) |
| Angle of View (D) | 120.2° (W) – 36.3° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Max IR distance | 55M |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Auto Focus | One Push |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Audio & I/O | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G, ONVIF Profile M ,ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Log | Event & operation log & IVS event log |
| Schedule Setting | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP68 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE+ (IEEE 802.3at compliant) |
| Power Consumption | DC12V, 14.6W / PoE+, 15.9W |
